Collection: PCs/Workstations

Intel Core i7-14700 (33MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, LAN, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i7-14700 (33MB Cache)
• 16GB DDR5-SDRAM & 512GB SSD

Description

Small in Size, Big in Functionality
An 8.2L small form factor desktop — the ThinkCentre Neo 50s Gen 5 SFF blends into your professional environment boldly with a brand-new design and classy look. Suitable for any workplace or healthcare setting, this PC boasts multiple smart features, connectivity, and collaboration options to increase your productivity and performance all the way.

Always Cool & Efficient
Elevate your PC’s performance and longevity with Intelligent Cooling Engine (ICE) 7.0 — transition easily between adaptive cooling modes and keep your system cool and efficient. Also, the ThinkCentre Neo 50s Gen 5 SFF ensures a quiet ambiance for dedicated work without disturbances, with TÜV Ultra Low Noise certification.

Secured Inside Out
ThinkShield security delivers hardware and software solutions, including discrete Trusted Platform Module (dTPM) 2.0 to safeguard data, and BIOS-based Smart USB protection to prevent unauthorized access via peripherals. Keep physical theft at bay with Kensington Security Slot™, padlock loop, optional cable lock, or an intrusion switch cable.

Enjoy Multidevice Collaboration
Share lesson plans between PCs, tablets, and mobile phones to enhance classroom collaboration through the Smart Connect app and enjoy cross-device interaction. Multitask by accessing multiple peripherals via optional Smart Cable, diverse ports, and expansion slots like a 3-in-1 card reader, serial, parallel, etc. for maximum productivity.

Next Level Performance & Innovation
Take your business to new heights with up to Intel® Core™ i7 processor (14th Gen) — combining innovation and productivity to boost performance. Plus, the ThinkCentre Neo 50s Gen 5 SFF seamlessly handles complex tasks and creative projects — thanks to flexible storage options, vast memory, and an optional Intel® Arc™ graphics processing unit (GPU).

Credibility & Collaboration
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Learn more about our sustainability program

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700
Processor cores	20
Processor boost frequency	5.4 GHz
Processor socket	LGA 1700
Processor cache	33 MB
Processor threads	28
Performance cores	8
Efficient cores	12
Processor base power	65 W
Maximum turbo power	219 W
Efficient-core Max Turbo Frequency	4.2 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2x DIMM
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	PC
Motherboard chipset	Intel B760
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC623-CG
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
Power
Power supply	260 W
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Chassis: Black, Bezel: Grey
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Display
Display included	No
Audio
Audio chip	Realtek ALC623-CG
Audio system	High Definition Audio
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	291.4 mm
Height	339.5 mm
Weight	4.2 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Display included	No
Keyboard connectivity	Wired
Certificates
Certification	RoHS / WEEE / REACH TCO Certified 9.0
Keyboard
Keyboard connectivity	Wired
Other features
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache, 2x 8GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, Windows 11 Pro

Key Features

• Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache
• 2x 8GB SODIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics
• Windows 11 Pro

Description

LENOVO ThinkCentre Neo 50Q G5 Tiny Intel i5-13420H 16GB DDR5 512GB SSD Windows 11 Pro 1YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache
Graphics Integrated Intel® UHD Graphics
Chipset Intel® SoC Platform
Memory 2x 8GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each
RAID Preset None
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC256 codec
Speakers 2Wx1
Camera No camera
Microphone No microphone
Power Supply 90W 89% Adapter
DESIGN
Keyboard USB, Calliope, Black, English (US)
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Adapter Cage None
Toolless Chassis Screw None
Mounting None
IO Box No IO box
Pen Pen Not Supported
Form Factor Tiny (1L)
Dimensions (WxDxH) Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches)
Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight Around 1.13 kg (2.49 lbs)
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4b
1x Ethernet (GbE RJ-45)
1x Power connector
Optional Rear Ports (configured) DP 1.4
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
RoHS compliant
TCO Certified, generation 10
SOFTWARE
Operating System Windows® 11 Pro, English

Specifications

Processor
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-13420H
Processor cores	8
Processor threads	12
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Audio chip	Realtek ALC256
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.3
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power supply	90 W
Design
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Audio
Audio chip	Realtek ALC256
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	34.5 mm
Weight	1.13 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,RoHS
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

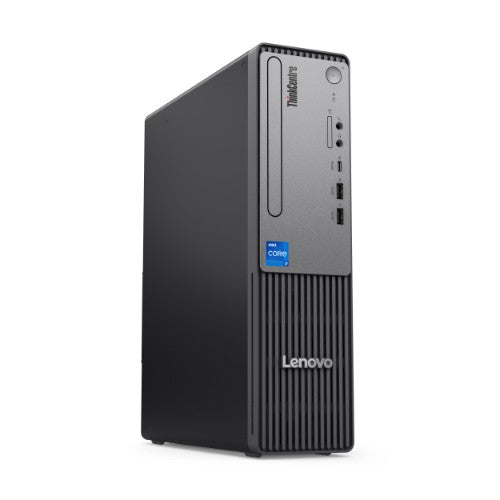

Intel Core i5-14400, 10C (6P + 4E)/16T, P-core 2.5/4.7GHz, E-core 1.8/3.5GHz, 20MB Intel Smart Cache, 2x 8GB UDIMM DDR5-4800, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 730, Windows 11 Pro

Key Features

• Intel Core i5-14400, 10C (6P + 4E)/16T, P-core 2.5/4.7GHz, E-core 1.8/3.5GHz, 20MB Intel Smart Cache
• 2x 8GB UDIMM DDR5-4800
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics 730
• Windows 11 Pro

Description

LENOVO ThinkCentre N50S G5 SFF Intel i5-14400 16GB DDR5 512GB SSD Windows 11 Pro 1YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB Intel Smart Cache
Graphics Integrated Intel® UHD Graphics 730
Chipset Intel® B760 Chipset
Memory 2x 8GB UDIMM DDR5-4800
Memory Slots Two DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to two drives, 1x 3.5' HDD + 1x M.2 SSD • 3.5' HDD up to 2TB • M.2 SSD up to 1TB
To install a HDD storage, 3.5'' HDD screw and grommet kit is needed.
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 180W 85%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color Chassis: Black, Bezel: Grey
Stand None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 291.4 x 339.5 mm (3.6 x 11.5 x 13.4 inches)
Weight Around 4.2 kg (9.3 lbs)
CONNECTIVITY
WLAN + Bluetooth None
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4
1x VGA
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Smart Cable Clip None
Chassis Intrusion Switch None
Additional Security None
SERVICE
Base Warranty 1-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications RoHS / WEEE / REACH
TCO Certified 9.0
SOFTWARE
Operating System Windows® 11 Pro, English

Specifications

Processor
Processor frequency	2.5 GHz
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-14400
Processor cores	10
Processor boost frequency	4.7 GHz
Processor threads	16
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x DIMM
Memory clock speed	4800 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	PC
Motherboard chipset	Intel B760
Trusted Platform Module (TPM)	Yes
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	No
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
Power
Power supply	180 W
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Chassis: Black, Bezel: Grey
Software
Operating system installed	Windows 11 Pro
Bundled software	Bufferzone Standard Plus 1-year
Operating system language	English
Audio
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	291.4 mm
Height	339.5 mm
Weight	4.2 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Bundled software	Bufferzone Standard Plus 1-year
Keyboard connectivity	Wired
Certificates
Certification	TCO
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

Intel Core Ultra 7 265T, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache, 2x 16GB SODIMM DDR5-5600, 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal, Intel Graphics, Realtek Wi-Fi 7 RTL8922AE 802.11be 2x2+ BT5.4, Windows 11 Pro

Key Features

• Intel Core Ultra 7 265T, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
• 2x 16GB SODIMM DDR5-5600
• 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkCentre M70Q G6 Tiny Intel U7-265T 32GB DDR5 1TB SSD Windows 11 Pro AI NOW 3YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core Ultra 7 265T, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 16GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 64GB (2x 32GB DDR5 SODIMM)
Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal
Max Storage Support Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB
RAID Preset None
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 24-bit PCM format
16-bit ADC supports 44.1K/48K/96K sample rate, 2 stereo ADC supports 16-bit PCM format
Speakers 2Wx1
Power Supply 135W 90% Adapter
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Adapter Cage None
Toolless Chassis Screw None
Dust Filter None
Mounting None
IO Box None
Pen Pen Not Supported
Form Factor Tiny (1L)
Dimensions (WxDxH) 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight Around 1.18 kg (2.6 lbs)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured) DP 1.4
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Kensington Cable Lock None
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English

Specifications

Processor
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	265T
Processor cores	20
Processor threads	20
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	1 TB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Motherboard chipset	Intel® Q870
Trusted Platform Module (TPM)	Yes
Audio chip	Realtek ALC233VB
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power supply	135 W
Design
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Software
Operating system installed	Windows 11 Pro
Bundled software	Lenovo AI Now
Operating system language	English
Audio
Audio chip	Realtek ALC233VB
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.18 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Bundled software	Lenovo AI Now
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,RoHS
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache, 2x 8GB SODIMM DDR5-5600, 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, Windows 11 Pro

Key Features

• Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache
• 2x 8GB SODIMM DDR5-5600
• 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics
• Windows 11 Pro

Description

LENOVO ThinkCentre Neo 50Q G5 Tiny Intel i5-13420H 16GB DDR5 256GB SSD Windows 11 Pro 1YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache
Graphics Integrated Intel® UHD Graphics
Chipset Intel® SoC Platform
Memory 2x 8GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each
RAID Preset None
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC256 codec
Speakers 2Wx1
Camera No camera
Microphone No microphone
Power Supply 90W 89% Adapter
DESIGN
Keyboard USB, Calliope, Black, English (US)
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Adapter Cage None
Toolless Chassis Screw None
Mounting None
IO Box No IO box
Pen Pen Not Supported
Form Factor Tiny (1L)
Dimensions (WxDxH) Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches)
Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight Around 1.13 kg (2.49 lbs)
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4b
1x Ethernet (GbE RJ-45)
1x Power connector
Optional Rear Ports (configured) DP 1.4
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Onsite

Specifications

Processor
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-13420H
Processor cores	8
Processor threads	12
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	256 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Audio chip	Realtek ALC256
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.3
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power supply	90 W
Design
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Audio
Audio chip	Realtek ALC256
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	34.5 mm
Weight	1.13 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,RoHS
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

Intel Core Ultra 5 225, 10C (6P + 4E)/10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache, 2x 8GB UDIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel Graphics, Realtek Wi-Fi 7 RTL8922AE 802.11be 2x2 + BT5.4, Windows 11 Pro

Key Features

• Intel Core Ultra 5 225, 10C (6P + 4E)/10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache
• 2x 8GB UDIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkCentre M70S G6 SFF Desktop PC Intel U5-225 16GB DDR5 512GB SSD Windows 11 Pro 3YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core Ultra 5 225, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB UDIMM DDR5-5600
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 128GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to four drives, 1x 3.5' HDD + 1x 2.5' HDD + 2x M.2 SSD
• 3.5' HDD up to 2TB
• 2.5' HDD bay is only for customer self upgrade
• M.2 SSD up to 2TB each (2.5'' HDD bay is optional part, only for customer self upgrade purpose and the hard drive is sold separately)
RAID Preset None
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 200W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
Two PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 299.7 x 339.5 mm (3.6 x 11.8 x 13.4 inches)
Weight 5.1 kg (11.2 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Rear Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® 2.1 TMDS
2x DisplayPort™ 1.4a (HBR3, DSC)
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
TCO Certified 10
ErP Lot 3
GREENGUARD®
RoHS compliant
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English

Specifications

Processor
Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	225
Processor cores	10
Processor threads	10
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	PC
Motherboard chipset	Intel® Q870
Trusted Platform Module (TPM)	Yes
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Power
Power supply	200 W
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Audio
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	299.7 mm
Height	339.5 mm
Weight	5.1 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,RoHS
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

Intel Core Ultra 7 265, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache, 2x 8GB UDIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel Graphics, Realtek Wi-Fi 7 RTL8922AE 802.11be 2x2 + BT5.4, Windows 11 Pro

Key Features

• Intel Core Ultra 7 265, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
• 2x 8GB UDIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkCentre M70S G6 SFF Intel U7-265 16GB DDR5 512GB SSD Windows 11 Pro 3YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB UDIMM DDR5-5600
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 128GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to four drives, 1x 3.5' HDD + 1x 2.5' HDD + 2x M.2 SSD • 3.5' HDD up to 2TB • 2.5' HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
RAID Preset None
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
Two PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 299.7 x 339.5 mm (3.6 x 11.8 x 13.4 inches)
Weight 5.1 kg (11.2 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Rear Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® 2.1 TMDS
2x DisplayPort™ 1.4a (HBR3, DSC)
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
TCO Certified 10
ErP Lot 3
GREENGUARD®
RoHS compliant
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English

Specifications

Processor
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	265
Processor cores	20
Processor threads	20
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	PC
Motherboard chipset	Intel® Q870
Trusted Platform Module (TPM)	Yes
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Power
Power supply	260 W
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Audio
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	299.7 mm
Height	339.5 mm
Weight	5.1 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,RoHS
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core 2.1/4.6GHz, E-core 1.5/3.4GHz, 12MB, 2x 8GB SO-DIMM DDR4-3200, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

Key Features

• Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core 2.1/4.6GHz, E-core 1.5/3.4GHz, 12MB
• 2x 8GB SO-DIMM DDR4-3200
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics
• Windows 11 Pro

Description

At home in even the most cramped places

Office space can be an issue for any business. Thankfully, the ThinkCentre Neo 50q Gen 4 Tiny is compact and durable enough to be housed almost anywhere, even in the smallest places. It's portable, too, so ideal for hybrid working. Yet, this energy-efficient PC boasts up to 13th Gen Intel® Core™ i5 H-series mobile processing power, can run Windows 11 Pro, and has multiple ports, including USB-C and HDMI. It also comes with an optional port that can be customized to meet your particular needs.

Robust memory, lightning-fast storage

For any business, being fast and agile can be the key to success. With the ThinkCentre Neo 50q Gen 4 Tiny you can pair blazing-fast SSD storage with HDD storage, so space is never a problem. And with this PC's flexible, ease-of-use design, you can swap out the hard drive as your needs change—without the need for any tools. Plus, thanks to heaps of memory, this ultrasmall desktop boots up smoothly and quickly every time. What's more, apps launch in seconds, saving unnecessary thumb-fiddling and frustration waiting for things to load.

One less thing to worry about

More than ever, if your data or PC falls into the wrong hands, the results can be costly. Thankfully, the ThinkCentre Neo 50q Gen 4 Tiny has ThinkShield, essential security tools from the chipset and BIOS level to anti-theft protection. And just in case the worst should happen, this compact PC boasts device backup and recovery, remote management, and more.

Sustainably built

We've designed and engineered the ThinkCentre Neo 50q Gen 4 Tiny with sustainability as the cornerstone. From our low-halogen factory lighting to the desktop’s chassis made from post-consumer recycled content, we’ve reduced this PC’s carbon footprint wherever possible. So much so, that it comes with eco-friendly certifications, including recognition for energy efficiency, low noise, and reduced environmental impact.

Space-saving meets cost-savings

The ThinkCentre Neo 50q Gen 4 Tiny won’t cramp your desk space or break the bank. Its ultrasmall 1L form factor takes up less room than a couple of standard notebooks or journals, plus it comes with a budget-friendly price tag. It’s also available with optional mounting accessories, including a desktop stand or secure VESA mount for the wall or under a desk. What’s more, ⁠this compact PC is compatible with other Lenovo ThinkCentre Tiny-in-One devices.

Enhances productivity, seamlessly

From intensive data-crunching and everyday tasks to multitasking with up to three 4K monitors, the ThinkCentre Neo 50q Gen 4 Tiny combines productivity with efficiency. While punching way above its weight, this powerful business PC also supports WiFi 6 connectivity, enabling you to seamlessly connect with remote teams and clients as if you were all in the same room.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor generation	13th gen Intel® Core™ i5
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-13420H
Processor cores	8
Processor boost frequency	4.6 GHz
Processor cache	12 MB
Processor threads	12
Number of processors installed	1
Performance cores	4
Efficient cores	4
Processor base power	45 W
Maximum turbo power	95 W
Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core Max Turbo Frequency	4.6 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	3200 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.4
Design
VESA mounting	Yes
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Audio chip	Realtek ALC256
Number of speakers	1
Product type	Mini PC
Motherboard chipset	Intel SoC
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, Supervisor, HDD
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	65 W
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	20 - 90%
Certificates
Certification	ENERGY STAR 8.0 EPEAT Gold ErP Lot 3 and Lot 7 TCO Certified 9.0 RoHS compliant
Ergonomics
VESA mounting	Yes
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.11 kg
Package width	140 mm
Package depth	262 mm
Package height	500 mm
Package weight	5.18 kg
Packaging data
Package width	140 mm
Package depth	262 mm
Package height	500 mm
Package weight	5.18 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
VESA mounting	Yes
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
