Collection: Internal Hard Drives

3.5” SATA HDD, 16 TB, 512e, 7200 rpm, 26.11 x 101.85 x 147 mm, 720 g

Key Features

• Reliable Always-On Operation
• Tested for Maximum Reliability
• Seamless Firmware Updates
• Reliable Recording Technology

Description

Reliable Drives for Home and Small Office Systems
Synology Plus Series SATA HDDs are designed to meet the reliability, endurance, and performance requirements of 24/7 storage in Synology small and medium-sized business storage systems. Stringent validation testing and NAS-class reliability ensure consistent performance in high-uptime and multi-user environments.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	16 TB
Workload rate limit	180 TB/year
HDD speed	7200 RPM
Interface	Serial ATA
HDD sustained transfer rate	281 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Certification	CE, RCM, BSMI, KC, UKCA, UL, TUV, ICES, RoHS
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	16 TB
Workload rate limit	180 TB/year
HDD speed	7200 RPM
Interface	Serial ATA
HDD sustained transfer rate	281 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Certification	CE, RCM, BSMI, KC, UKCA, UL, TUV, ICES, RoHS
24/7 operation	Yes
Noise level (idle)	20 dB
Power
Power consumption (write)	8.41 W
Power consumption (read)	8.41 W
Power consumption (idle)	5.61 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-304.8 - 3048 m
Non-operating altitude	-304.8 - 12192 m
Technical details
Warranty period	3 year(s)
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	720 g
Other features
Interface	Serial ATA
Certification	CE, RCM, BSMI, KC, UKCA, UL, TUV, ICES, RoHS
Warranty period	3 year(s)

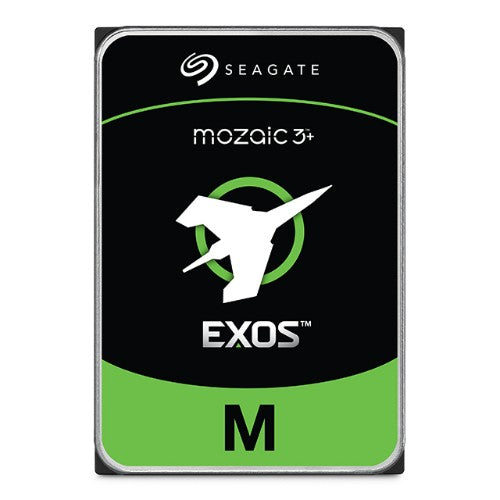

30TB, SATA 6Gb/s, 7200RPM

Key Features

• Breakthrough Areal Density: The Exos M hard drive is the first to feature 3TB per platter, enabling massive storage capacity in the same footprint for maximized AI-driven data center efficiency
• Unmatched Capacity: 30TB+ of storage in an industry-standard 3.5-inch form factor delivers capacity at scale while optimizing space utilization in data centers
• Time-Tested Excellence Meets Next-Gen Innovation: Blends 90% of trusted, proven components from previous generations with cutting-edge Mozaic 3+ technology
• Superior Power Efficiency: Offers 3× the power efficiency per terabyte compared to typical drives, reducing operational costs and energy consumption and supporting your sustainability goals
• Enterprise-Class Reliability: Designed for the stringent demands of hyperscale cloud service providers, providing durable, always-on performance essential for critical enterprise applications
• Sustainability: Built with more renewable energy and recycled materials than any previous Seagate product, Exos M 30TB enables businesses to align with their own sustainability initiatives while reducing environmental impact
• Compatibility and Interoperability: Maintains the same form factor, interface, and cooling as previous generations, simplifying integration into existing infrastructure and reducing upgrade complexities
• Efficient Cooling: Engineered for optimal heat dissipation, ensuring reliable performance without increasing cooling requirements in your data center
• Scalable for AI and Big Data: Ideal for AI, big data analytics, and high-capacity storage, Exos M 30TB supports evolving business demands and data-hungry applications, ensuring future-ready infrastructure
• Seagate Secure: Built-in reliable data protection enhances security, safeguarding your data against threats in enterprise environments

Description

Seagate’s Exos M hard drive, boasting breakthrough 3TB per platter density, delivers extraordinary storage capacity and power efficiency. Engineered on proven technology, it’s crafted to power AI and data-intensive applications in cutting-edge cloud and enterprise environments.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	30 TB
HDD average transfer rate	275 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
Average latency	4.16 ms
Hot-swap	Yes
HDD sustained transfer rate	262 MiB/s
HDD interface transfer rate	12 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	30 TB
HDD average transfer rate	275 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
Average latency	4.16 ms
Hot-swap	Yes
HDD sustained transfer rate	262 MiB/s
HDD interface transfer rate	12 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Power
Power consumption (idle)	6.9 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	10 - 60 °C
Operating shock	30 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Technical details
Warranty period	5 year(s)
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	695 g
Other features
Interface	Serial ATA
Warranty period	5 year(s)

24TB SATA 6 Gb/s Standard 26.1 mm/1.028 in × 101.85 mm/4.010 in × 147mm/5.787in

Description

Enterprise Hard Drives
Exos X24 Hard Drive
Delivering maximum storage capacity with the highest rack-space efficiency.

Scalable. Responsive. Innovative.
Powerful performance with proven technology—Seagate’s® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Specifications

Hard drive
Component for	PC
HDD size	3.5"
HDD capacity	24 TB
HDD average transfer rate	285 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
HDD sustained transfer rate	272 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	PC
HDD size	3.5"
HDD capacity	24 TB
HDD average transfer rate	285 MB/s
HDD speed	7200 RPM
Interface	Serial ATA
HDD sustained transfer rate	272 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Power
Power consumption (write)	7.1 W
Power consumption (read)	8.9 W
Power consumption (idle)	6.3 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	10 - 60 °C
Operating shock	40 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	685 g
Other features
Interface	Serial ATA

2TB, 256MB, 3.5", SATA 6 Gb/s, CMR, Health Management Included

Description

SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.

ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.

SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.

Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.

RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.

ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.

1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.

Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability

Specifications

Hard drive
Component for	PC
HDD size	3.5"
HDD capacity	2 TB
Workload rate limit	180 TB/year
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Features
Type	HDD
Component for	PC
HDD size	3.5"
HDD capacity	2 TB
Workload rate limit	180 TB/year
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^14 bits read
Rotational Vibration (RV) sensors	Yes
24/7 operation	Yes
RV sensor(s)	Yes
Maximum number of cameras supported	64
Power
Power consumption (typical)	3.7 W
Power consumption (off)	0.25 W
Power consumption (idle)	2.5 W
Start-up current	1.8 A
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Weight & dimensions
Width	101.6 mm
Height	20.2 mm
Depth	147 mm
Weight	415 g
Other features
Interface	Serial ATA III
Maximum number of cameras supported	64

Red Plus Internal NAS HDD 3.5" - 4TB

Description

Powerful internal HDDs designed for performance, reliability and power efficiency in small to medium NAS environments.

WD Red Plus internal HDDs are designed to handle workloads for power users and small to medium business NAS environments. WD Red Plus drives deliver the speed and capacity required to store, protect and share growing amounts of data in mid-sized RAID-optimized NAS systems with increased power efficiency.

Tuned for NAS with NASware™
Western Digital’s exclusive NASware™ technology fine tunes drive parameters to match NAS system workloads which helps increase performance and reliability.

Designed for Continuous Operation
Since your NAS system is always on, a reliable drive is essential. WD Red Plus hard drives are designed for systems that operate 24x7, giving users the confidence of knowing they can reliably access their data.

Tested for Dependable Compatibility
Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.

Optimized for Lower TCO
WD Red Plus drives are engineered to use less power (versus previous models) and run cooler, which reduces operating costs and helps reduce heat in thermally challenged NAS boxes.

Powered for Strong Performance
Despite using less power, the drives have plenty of bandwidth to handle the mixed performance demands of multi-drive NAS systems.

Balanced for Increased Reliability
Hard drives that are not properly balanced may cause excessive vibration and noise in multi-drive systems, which could reduce hard drive life span and degrade the performance over time. Our enhanced dual-plane balance control technology significantly improves balance and increases overall drive performance and reliability.

Backed by World-Class Support and Warranty
As an industry-leading hard drive manufacturer, Western Digital stands behind their NAS storage solutions with the assurance of a 3-year limited warranty and world-class support services for hassle free data storage.

Desktop drives vs. WD Red® Plus
It is important to choose a drive purpose-built for RAID-optimized NAS systems to ensure optimum performance and preserve your valuable data. Take the following into consideration when choosing a hard drive for your NAS:
• Compatibility: Unlike desktop drives, WD Red Plus hard drives are specifically designed and tested for NAS and include NASware™ technology which fine tunes drive parameters to match NAS system workloads for optimum performance.
• Reliability: Desktop drives aren’t typically designed for the demands of an always-on NAS environment. WD Red Plus hard drives are designed to perform under tough conditions encountered in high-intensity 24x7 multi-user NAS environments.
• RAID Ready: WD Red hard drives are engineered with RAID error recovery control to help reduce failures within multi-bay NAS systems, unlike most desktop drives that are configured for generic use.
• Noise and Vibration Protection: Designed to operate solo, desktop drives typically offer little or no protection from the noise and vibration present in a multi-drive system. WD Red hard drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration often found in multi-bay NAS systems.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	4 TB
HDD average transfer rate	180 MB/s
HDD speed	5400 RPM
Interface	Serial ATA III
Hot-swap	No
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	128 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	4 TB
HDD average transfer rate	180 MB/s
HDD speed	5400 RPM
Interface	Serial ATA III
Hot-swap	No
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	128 MB
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Quantity per pack	1 pc(s)
Compliance certificates	RoHS
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	550 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Compliance certificates	RoHS

22 TB, 3.5", SATA 6 Gb/s, 7200 RPM, CMR

Key Features

• WD Purple Pro hard drive for surveillance is engineered with advanced capabilities
• High performance, reliability and workload capability for advanced AI-enabled recorders, video analytics appliances, deep-learning servers and cloud-based storage, including RAID and JBOD configurations
• Supports up to 550 TB/yr workload rate in 8TB –22TB
• Designed with tarnish-resistant components for harsh environments, and with additional robustness for multi-bay enclosures

Description

Advanced Storage for Smart Video Solutions
WD Purple Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.

Purpose-built storage for your smart video solution
The WD Purple™ Pro HDD, with OptiNAND™ technology in 22TB, delivers big capacity in an enterprise-class drive for video analytics servers, AI, and deep learning systems to enable data-driven outcomes.

Western Digital's exclusive AllFrame™ AI technology
AllFrame AI technology supports up to 32 AI streams for deep learning analytics within the system while reducing frame drops.

Multiple cameras, multiple streams
WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras in addition to 32 concurrent AI streams. This flexibility allows you to easily upgrade and scale your smart video solution to meet your changing needs.

Advanced workload capability for advanced systems
These reliable drives are built with a workload rating up to 550TB/year to keep up with the 24/7 data capture and analysis demands of advanced AI-enabled recorders, video analytics appliances, and deep learning analytics servers.

Designed for reliable operation
Engineered with an MTBF of up to 2.5 million hours and backed with a 5-year limited warranty, the WD Purple™ Pro HDD also features tarnish-resistant components and full multi-bay support for dependable operation in large-scale surveillance systems.

Proactive storage management with WDDA™
Western Digital Device Analytics™ (WDDA) provides drive health management features for compatible recorders and video management systems.

Specifications

Hard drive
Component for	Surveillance system
HDD size	3.5"
HDD capacity	22 TB
Workload rate limit	550 TB/year
HDD speed	7200 RPM
Interface	Serial ATA III
RAID levels	JBOD
Start/stop cycles	600000
Hot-swap	No
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Surveillance system
HDD size	3.5"
HDD capacity	22 TB
Workload rate limit	550 TB/year
HDD speed	7200 RPM
Interface	Serial ATA III
RAID levels	JBOD
Start/stop cycles	600000
Hot-swap	No
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Advanced Format (AF)	Yes
24/7 operation	Yes
Noise level (idle)	20 dB
Power
Power consumption (standby)	1.2 W
Power consumption (idle)	5.6 W
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	40 G
Non-operating shock	200 G
Technical details
Quantity per pack	1 pc(s)
Compliance certificates	RoHS
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	670 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III
Compliance certificates	RoHS

Red Plus Internal NAS HDD 3.5" - 12TB

Description

Powerful internal HDDs designed for performance, reliability and power efficiency in small to medium NAS environments.

WD Red Plus internal HDDs are designed to handle workloads for power users and small to medium business NAS environments. WD Red Plus drives deliver the speed and capacity required to store, protect and share growing amounts of data in mid-sized RAID-optimized NAS systems with increased power efficiency.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	12 TB
Workload rate limit	180 TB/year
HDD average transfer rate	260 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	12 TB
Workload rate limit	180 TB/year
HDD average transfer rate	260 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	512 MB
Power
Power consumption (standby)	0.3 W
Power consumption (write)	8.8 W
Power consumption (read)	8.8 W
Power consumption (idle)	6.1 W
Operating voltage	12 V
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Weight	750 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III

18TB, 7200rpm, SATA, 272MB/s

Key Features

• Available in capacities ranging from 2-18TB with
• support for up to 24 bays
• Supports up to 300 TB/yr workload rate
• Enhanced reliability with 3D Active Balance™
• Plus technology and error recovery controls with
• NASware™ 3.0 technology
• Extended drive testing to ensure each drive is
• tested for extended reliable operation

Description

For the Demands of Big Business
Designed specifically with medium or large scale business customers in mind, WD Red™ Pro drives are available for up to 24-bay NAS systems. Engineered to handle high-intensity workloads1 in 24x7 environments, WD Red™ Pro is ideal for archiving and sharing, as well as RAID array rebuilding on extended operating systems such as ZFS or other file systems. These drives add value to your business by enabling your employees to quickly share their files and back-up folders reliably in your NAS solution.

Exclusive NASware™ 3.0 Technology
Our exclusive advanced firmware technology, NASware™ 3.0, enables seamless integration, robust data protection and optimal performance for NAS systems operating under heavy demand. Built into every WD Red™ Pro hard drive, NASware 3.0’s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.

Built for Optimum NAS Compatibility
WD Red™ Pro drives with NASware™ technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red™ Pro drive is one of the most compatible drives available for NAS enclosures. But don’t take our word for it. WD Red™ Pro drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.

Larger NAS Bay Shock Protection
WD Red™ Pro drives are equipped with a multi-axis shock sensor that automatically detects subtle shock events and dynamic fly height technology which adjusts each read-write function to compensate and protect the data. This combination of technology further protects the drives in larger 24-bay NAS environments and helps increase hard drive reliability.

3D Active Balance Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time.

Error Recovery Prevention
Built specifically for RAID and NAS environments, WD Red™ Pro drives come equipped with error recovery controls as part of NASware™ 3.0 technology to help reduce drive fallout in RAID applications.

Extended Drive Testing
A NAS environment that has up to 24 bays is very demanding on a hard drive with added vibration and heat. This is why every WD Red™ Pro drive is shipped with extended thermal cycle burn-in testing to help ensure each drive is tested for extended reliable operation.

Desktop drives vs. WD Red™ Pro
Do right by your NAS and choose the drive purpose-built for NAS with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	18 TB
HDD speed	7200 RPM
Interface	Serial ATA
HDD interface transfer rate	6 Gbit/s
Compatible products	NAS
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	18 TB
HDD speed	7200 RPM
Interface	Serial ATA
HDD interface transfer rate	6 Gbit/s
Compatible products	NAS
Storage drive buffer size	512 MB
24/7 operation	Yes
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	30 G
Non-operating shock	250 G
Technical details
Harmonized System (HS) code	84717050
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	690 g
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA
Compatible products	NAS
