Collection: Signage Display Mounts

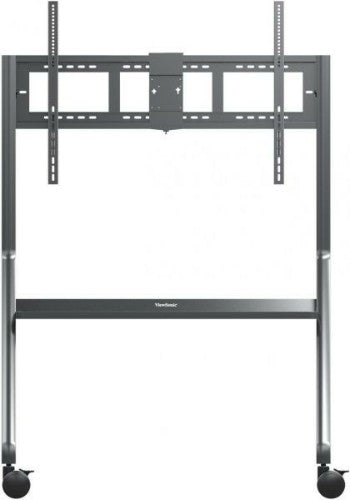

Slim Trolley Cart for 55" to 105" Display

Key Features

• Streamlined, height-adjustable design
• 360° silent wheels with quick-release brakes
• Storage tray included for accessories and other items

Description

The ViewSonic VB-STND-009 trolley cart is designed for ViewBoard Interactive Flat Panel Displays ranging from 55” to 105,” and securely accommodates any large format display weighing up to 120kg. Its streamlined, height-adjustable design and easy installation enable seamless integration into any space. Featuring 360° silent wheels with quick-release brakes, this cart offers effortless, stable, and secure mobility of presentation displays from one room to another.

Specifications

Mounting
Minimum screen size	139.7 cm (55")
Maximum screen size	2.67 m (105")
Mounting type	Floor
Maximum weight capacity	120 kg
Number of displays supported	1
Ergonomics
Height adjustment	Yes
Included number of shelves	1
Number of wheels	4 wheel(s)
Wheels	Yes
Design
Product colour	Black, Silver
Type	Portable floor stand
Weight & dimensions
Width	1155 mm
Depth	704 mm
Height	45.5 mm
Weight	24.6 kg
Package width	1510 mm
Package depth	736 mm
Package height	175 mm
Package weight	28.7 kg
Packaging data
Package width	1510 mm
Package depth	736 mm
Package height	175 mm
Package weight	28.7 kg
Quantity per pack	1 pc(s)
Other features
Wheels	Yes
Logistics data
Products per master (outer) case	1 pc(s)
Pallet gross width	151 cm
Pallet gross length	73.6 cm
Pallet gross height	2.22 m
Harmonized System (HS) code	9403208000

Spacedec SD-POS-HA, Black

Description

The Height Adjustable Spacedec POS Multi is designed for commercial and retail applications. It features adjustable tension control for touch screen operation and is perfect for point of sale use kiosk use. With its compact design, contemporary styling and advanced security it suits installation in front office and public area environments.

The SD-POS-HA features a Quick Release mounting head for easy display installation and fast maintenance. The screen can be locked to the pole with a security screw and the mount supports use of 3rd party cable locking devices. Hidden mounting screws and integrated cable management further enhance theft resistance while also improving the visual presentation. The pole allows user height adjustment as well as horizontal screen rotation. The rotation can be locked during installation or limited within a series of ranges for situations where confidentiality needs to be maintained. The mounting head incorporates a ball joint with tension control for universal tilt/ pan and landscape to portrait screen orientation adjustment.

For high density installation environments the unit can be upgraded to hold two screens in a back to back configuration - see SD-POS-HA-B2B.

Specifications

Mounting
Mounting type	Floor
Maximum weight capacity	20 kg
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Design
Product colour	Black
Other features
Height (imperial)	45.5 cm (17.9")

StarTech TV Ceiling Mount, Hanging Single Screen Vesa Mount for 32”-75" TVs/Displays - Height Adjustable Telescopic Pole

Key Features

• SINGLE 75" TV CEILING MOUNT: VESA compatible ceiling mount supports displays up to 75" (110lb/50kg) including curved TVs; Height adjustable pole, 98.4" - 118.1" (250cm - 300cm) from ceiling
• FULL MOTION: Ceiling TV mount allows for the display to be swiveled 180° around the telescopic pole, and tilt downwards -25 degrees, without using tools
• VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for TV / screen allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
• COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
• TIDY AESTHETIC: The universal television ceiling mount for one large display provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications

Description

Display Ceiling Mount | Full Motion | For 32" to 75" Displays

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in lobbies, entrances or other areas with high ceilings.

Adjustable Height

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6" (.5 m).

Swivels to Suit Your Ceiling

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILPTBLP is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting
Minimum screen size	81.3 cm (32")
Maximum screen size	190.5 cm (75")
Mounting type	Ceiling
Maximum weight capacity	50 kg
Number of displays supported	2
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Ergonomics
Height adjustment	Yes
Height adjustment range	2500 - 3000 mm
Swivel angle range	-180 - 180°
Tilt angle range	-25 - 0°
Cable management	Yes
Design
Product colour	Black
Housing material	Steel
Certification	CE, REACH
Anti-theft function	No
Weight & dimensions
Width	435 mm
Depth	680 mm
Height	3200 mm
Weight	10 kg
Depth (max)	68 cm
Package dimensions (WxDxH)	320 x 1270 x 115 mm
Package width	323 mm
Package depth	1280 mm
Package height	123 mm
Package weight	10.8 kg
Packaging data
Package width	323 mm
Package depth	1280 mm
Package height	123 mm
Package weight	10.8 kg
Packaging content
Wrench included	Yes
Washers included	Yes
Spacer included	Yes
Screws included	Yes
Number of washers included	8
Number of spacers included	16
Number of screws	28
Manual	Yes
Technical details
Package dimensions (WxDxH)	320 x 1270 x 115 mm
Compliance certificates	RoHS
Certificates
Certification	CE, REACH
Logistics data
Master (outer) case width	323 mm
Master (outer) case length	1280 mm
Master (outer) case height	123 mm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85299097

StarTech TV Ceiling Mount, Hanging Single Screen Vesa Mount for 32”-75" TVs/Displays - Height Adjustable Telescopic Pole

Key Features

• SINGLE 75" TV CEILING MOUNT: VESA compatible ceiling mount supports displays up to 75" (110lb/50kg) including curved TVs; Height adjustable pole, 22.0" - 35.8" (56cm - 91cm) from ceiling
• FULL MOTION: Ceiling TV mount allows for the display to be swiveled 180° around the telescopic pole, and tilt downwards -25 degrees, without using tools
• VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for TV / screen allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
• COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
• TIDY AESTHETIC: The universal television ceiling mount for one large display provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications

Description

Display Ceiling Mount | Full Motion | For 32" to 75" Displays

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.

Adjustable Height

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).

Swivels to Suit Your Ceiling

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILPTBSP is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting
Minimum screen size	94 cm (37")
Maximum screen size	190.5 cm (75")
Mounting type	Ceiling
Maximum weight capacity	50 kg
Number of displays supported	1
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Ergonomics
Height adjustment	Yes
Height adjustment range	560 - 910 mm
Swivel angle range	-180 - 180°
Tilt angle range	-25 - 0°
Angle of rotation	360°
Pivot angle	-180 - 180°
Cable management	Yes
Design
Product colour	Black
Housing material	Steel
Certification	REACH, CE
Anti-theft function	No
Weight & dimensions
Width	680 mm
Depth	680 mm
Height	1150 mm
Weight	4.9 kg
Depth (max)	43.5 cm
Package dimensions (WxDxH)	366 x 771 x 149 mm
Package width	776 mm
Package depth	380 mm
Package height	150 mm
Package weight	6.8 kg
Packaging data
Package width	776 mm
Package depth	380 mm
Package height	150 mm
Package weight	6.8 kg
Packaging content
Wrench included	Yes
Washers included	Yes
Spacer included	Yes
Screws included	Yes
Number of washers included	8
Number of spacers included	8
Number of screws	24
Mounting kit	Yes
Manual	Yes
Technical details
Package dimensions (WxDxH)	366 x 771 x 149 mm
Compliance certificates	RoHS
Certificates
Certification	REACH, CE
Logistics data
Master (outer) case width	795 mm
Master (outer) case length	393 mm
Master (outer) case height	469 mm
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	85299097
