Collection: Signage Displays

55", 3840 x 2160, VA, 4000:1, 500 cd/㎡, 143 W, 100-240V, 50/60Hz, 1253.8 x 734.6 x 56.7 mm, 26.9 kg

Key Features

• Powerful touch solution with Tizen
• UHD resolution
• Non-glare display

Description

Powerful touch experience
Tizen-Based Media Player
Our built-in Tizen Operating System is designed to make playback more stable and open up new possibilities with high-speed content.
Responsive touch functionality helps to create an engaging user experience and the user-friendly design facilitates comfortable, productive digital interaction.

Captivate customers with 4K UHD content
4K UHD Resolution
4K UHD delivers 4x more pixels than Full HD, for a larger display with total clarity. See even the tiniest details in designs, photos, and videos. Audiences will be captivated by lifelike, sharp images.

Visibility even in sunlight
Non-Glare Glass
The QMB-T series is equipped with non-glare technology which is designed to improve visibility by minimising glare to help deliver clear messaging even in brighter surroundings. Additionally, the haze coating helps create a smoother touch.

Maintain meeting room settings with ease
Custom Home
Designed for simple conference room management, Custom Home, allows admins to lock specific meeting room settings, preventing users from making unintended changes. Now, conference rooms can work throughout the day as intended, helping reduce errors to allow IT to focus on other tasks.

Maintain consistency between screens
Smart Calibration
Manage and adjust content across multiple displays. Through the Samsung mobile app, Smart Calibration helps ensure that every display is calibrated correctly and delivers the intended message.

Easy setup and updates to help minimise workloads
Tizen Zero Config
Tizen Zero Config is a helpful tool for IT managers operating multiple units across different locations. Following display installation, IT professionals can register new apps through Tizen Business Manager and remotely install, helping to eliminate needless travel and local installations.

Supports the latest web-based content
Upgradable Web-Engine
Upload various content types with ease. QMB-T’s constant web-engine upgrades enable the latest types of content to be played, allowing for more diversified and engaging creative assets.

Flexible installation for custom designs
Auto Level
Keep content clear and steady. Auto Level automatically adjusts content when the screen is rotated from vertical to horizontal for increased versatility in a range of spaces. It also automatically recognises incorrect pivot directions to help keep the display in the correct orientation.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Vertical scan range	48 - 75 Hz
Touchscreen	Yes
Panel type	VA
Horizontal scan range	30 - 81 kHz
Colour gamut	92%
Anti-glare screen	Yes
Haze rate	25%
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
DisplayPorts quantity	1
DisplayPorts in	1
Design
Product design	Interactive flat panel
Product colour	Black
Panel mounting interface	200 x 200 mm
VESA mounting	Yes
Anti-glare screen	Yes
Screen shape	Flat
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	143 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	0.5 W
Computer system
Operating system installed	Tizen 6.5
Weight & dimensions
Display width	1253.8 mm
Display depth	56.7 mm
Display height	734.6 mm
Display weight	26.9 kg
Packaging data
Package width	884 mm
Package depth	165 mm
Package height	1421 mm
Package weight	32.5 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Panel type	VA
DisplayPorts in	1
Compliance certificates	Electromagnetic Compatibility (EMC)
Thin Client
Operating system installed	Tizen 6.5
Other features
Wi-Fi	Yes
Panel type	VA
DisplayPorts in	1
Bluetooth	Yes

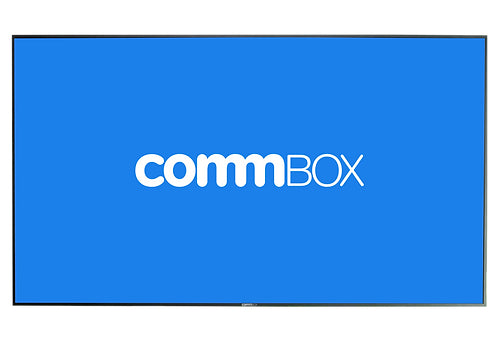

43" IPS 4K 3840 x 2160, 1200:1, 8ms, HDMI, USB, 108W, no OS

Description

Meeting Room Display Gen 2
Streamline your meetings
CommBox Meeting Room Display Gen 2 is a premium 4K commercial display built for modern meeting spaces.

Bright, anti-glare visuals keep content clear and professional – helping teams standardise rooms for reliable, consistent meeting experiences.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	109.2 cm (43")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Active display area (W x H)	941.184 x 529.416 mm
Panel life	50000 h
Panel type	IPS
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display technology	LCD
Native refresh rate	60 Hz
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
DVI port	No
VGA (D-Sub) input ports	1
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB ports quantity	2
PC Audio in	Yes
DisplayPorts quantity	1
USB 2.0 Type-B ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	100 x 100 mm
VESA mounting	Yes
Performance
Purpose	Universal
Panel life	50000 h
Power
Power consumption (standby)	0.5 W
AC input voltage	240 V
Power consumption (max)	108 W
Computer system
Built-in processor	No
Weight & dimensions
Display width	969.9 mm
Display depth	71 mm
Display height	558.3 mm
Display weight	11.5 kg
Packaging data
Package width	1070 mm
Package depth	140 mm
Package height	650 mm
Package weight	15.2 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Panel type	IPS
LED backlighting type	Direct-LED
Network
Ethernet LAN	Yes
Other features
USB connector type	USB Type-A, USB Type-C
Power consumption (max)	108 W
Panel type	IPS
Display technology	LCD

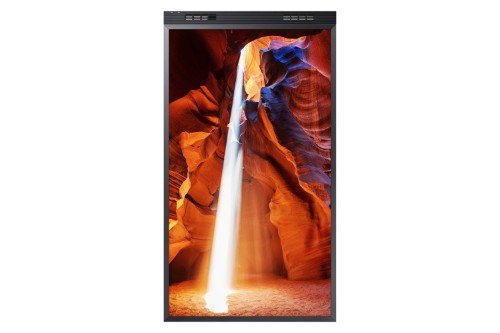

55" OMN-S Series FHD Window Signage Display OM55N-S

Key Features

• Present bright content on a dual-display
• Modernize space with flexible design
• Maximize operational efficiency

Description

Present bright content on a dual-display
Dual-display, double the impact. Engineered to enhance multiple environments, maintaining picture integrity on the window-facing side even in direct sunlight, while delivering information concisely in-store for comprehensive customer engagement.

Modernize space with flexible design
Choose the position of your display with multiple installation options, complementing any environment with a flexible, smart design.

Maximize operational efficiency
A double-sided display allows content on both sides, all powered by just one electric power cord and one LAN cable for minimal clutter and maximized energy efficiency.

Streamline content management
The OMN-DS series’ embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allowing for easy content management and ensuring seamless content transition and playback.

Durable Performance
With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMN-DS series continuously provides robust durability.

Clean Cable Configuration
Connectivity cover keeps connections clean and organized. Embedded Wi-Fi also allows for updates without the need for any additional messy cables.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	139.7 cm (55")
Display resolution	1920 x 1080 pixels
Display brightness	3000 cd/m²
HD type	Full HD
Response time	6 ms
Contrast ratio (typical)	6000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.63 x 0.63 mm
Vertical scan range	24 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	15 - 135 kHz
Display technology	LCD
Colour gamut	72%
RGB colour space	NTSC
Pixel frequency (max)	594 MHz
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
Infrared data port	Yes
DisplayPorts quantity	0
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor/outdoor
Orientation	Vertical
Bezel width (top)	2.28 cm
Bezel width (side)	2.28 cm
Bezel width (bottom)	2.28 cm
Certification	Class A 60950-1
Screen shape	Flat
Performance
Purpose	Universal
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	500 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	Tizen 5.0
Built-in processor	Yes
Weight & dimensions
Display width	726.8 mm
Display depth	69.5 mm
Display height	1299 mm
Display weight	42 kg
Packaging data
Package width	940 mm
Package depth	367 mm
Package height	1466 mm
Package volume	52000 cm³
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	Class A 60950-1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	Tizen 5.0
Technical details
RS-232 input ports	1
Panel type	VA
Other features
Wi-Fi	Yes
RS-232 input ports	1
Panel type	VA
Flash memory	8000 MB
Display technology	LCD
Bezel width (top)	2.28 cm
Bezel width (side)	2.28 cm
Bezel width (bottom)	2.28 cm

50" 3840 x 2160 px, IPS, 178/178, 24/7, WiFi, Bluetooth, 16GB, Tizen 7.0

Key Features

• QM50C
• Ultra slim depth
• Even bezel for clean visuals
• Centred VESA mount holes

Description

Slim design. Stunning performance.
Introducing QMC, the slimmest display in Samsung’s Professional Display range. It brings elegance to business while maximising space. With built-in solutions and intuitive home screen UX, the QMC is easy to use and helps enable businesses in various verticals to achieve growth with its efficiency and design innovation.

Maximum impact in minimum space
Ultra Slim Depth
The QMC's ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD 4K series. Its sleek design and Slim Fit Wall Mount, helps you optimise space and install it neatly in a wide range of business environments.

Clean visuals in landscape or portrait mode
Even Bezel
The QMC’s bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design helps prevent visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centred VESA Holes
The central positioning of the VESA holes on the back of the display helps evenly distribute its weight for secure mounting. With the VESA holes positioned in the centre, this helps prevent the display from tilting unintentionally when adjusted into portrait mode.

Lifelike colour expression
Dynamic Crystal Colour
The QMC series features Dynamic Crystal Display, using 10 bit processing for vivid colour expression, allowing viewers to enjoy a wide spectrum of colours.

View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Intelligent UHD upscaling technology, made possible by Samsung’s Crystal Processor 4K, enables content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to help optimise on-screen text and imagery.

Clear visibility
Non-Glare
The QMC features non-glare panels that help provide visibility across a variety of environments. This helps allow businesses to deliver accurate information in various ambient lighting conditions.

Connect with convenience
Home User Interface (UI)
The QMC series’ home screen UI displays popular categories like Favourites, Sources and Settings on the same screen for convenience. The Favourites folder grants users quick, easy access to frequently used features.

Collaborate between screens with wire-free speed
Smartview+5
SmartView+ enables wireless screen sharing without cable connections to assist with easy collaboration. Users can now enable the screen sharing functionality at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.

Streamlined calibration between screens with mobile app
Smart Calibration
Maintain brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration helps ensure every display is calibrated correctly, showcasing brand logos and other collateral in the exact colours required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimises post-processing enhancements, helping to align content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full greyscale standards.

Smooth and virtually seamless content playback
MagicINFO S10 Player
The embedded MagicINFO™ S10 player, backed by the powerful Tizen operating system, helps boost the overall performance of the display and offers painless management. This helps ensure seamless transitions and playback to deliver a better experience for both customers and store managers.

Everyday Sustainability
Energy Star, EPEAT and TÜV Rheinland Carbon Footprint Certification
Samsung is making diverse efforts to reduce our environmental impact in smart display, and encouraging users to pursue a more sustainable life. The QMC series has earned a series of certifications for environmentally preferable products from highly recognised institutes in Germany and the U.S.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	127 cm (50")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.285 x 0.285 mm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	IPS
Horizontal scan range	30 - 81 kHz
Display technology	LED
Haze rate	25%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
DisplayPorts quantity	1
Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	200 x 200 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	132 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system

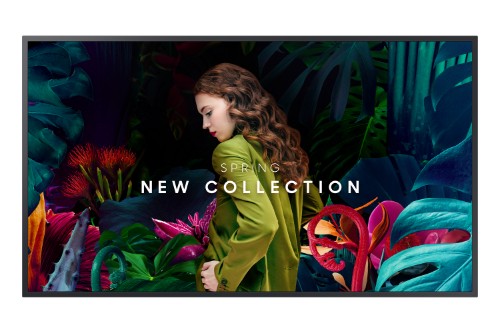

Operating system installed	Tizen
Internal memory	16 GB
Operating system version	Tizen 7.0
Weight & dimensions
Display width	1124.1 mm
Display depth	28.5 mm
Display height	644.8 mm
Display weight	11.8 kg
Packaging data
Package width	761 mm
Package depth	131 mm
Package height	1246 mm
Package weight	14.9 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Panel type	IPS
Network
Wi-Fi	Yes
Thin Client
Operating system installed	Tizen
Internal memory	16 GB
Other features
Wi-Fi	Yes
Panel type	IPS
Display technology	LED

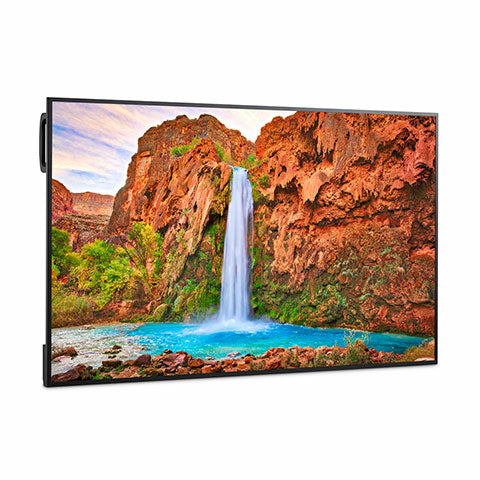

55" Ultra High Definition Commercial Display

Description

Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp ME Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs. The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.32 x 0.32 mm
Vertical scan range	23 - 76 Hz
Touchscreen	No
Panel type	ADS
Native aspect ratio	16:9
LED backlighting type	Direct-lit LED
Horizontal scan range	15 - 135 kHz
Display technology	LCD
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported	Yes
Native refresh rate	60 Hz
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Wi-Fi	No
RS-232C	Yes
DisplayPorts quantity	0
Audio
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	400 x 400 mm
VESA mounting	Yes
Performance
Purpose	Commercial
HDCP	Yes
Wi-Fi	No
Power
Power consumption (typical)	120 W
Power consumption (standby)	0.5 W
Power consumption (max)	220 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	123 kWh
Computer system
Computer system	Yes
Operating system installed	Android
Operating system version	13
Weight & dimensions
Display width	1233 mm
Display depth	62 mm
Display height	703.5 mm
Display weight	13.2 kg
Packaging data
Package width	1332 mm
Package depth	156 mm
Package height	819 mm
Package weight	29.5 kg
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Panel type	ADS
LED backlighting type	Direct-lit LED
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Android
Other features
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Wi-Fi	No
Power consumption (max)	220 W
Panel type	ADS
Display technology	LCD

Intelligent Display Gen 2, 86" 4K UHD, 500 cd/m2, 1200:1, 60 Hz

Description

CommBox Intelligent Display Gen 2 is a premium 4K commercial display built for organisations that need visibility, simple control and reliable performance at scale.​

With built-in LAN control, simple signage included and consistent brightness across all sizes, Gen 2 makes it easier to deploy, manage and standardise displays across your environment.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	2.18 m (86")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Active display area (W x H)	1895.04 x 1065.96 mm
Panel life	50000 h
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display technology	LCD
Anti-glare screen	Yes
Native refresh rate	60 Hz
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	4
USB port	Yes
DVI port	No
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	1
Number of speaker outputs	1
Microphone in	Yes
DisplayPorts quantity	0
OPS module slot	Yes
HDMI input ports quantity	3
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
Audio
Number of built-in speakers	2
RMS rated power	32 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	600 x 400 mm
Bezel width (top)	1.59 cm
Bezel width (side)	1.59 cm
Bezel width (bottom)	1.59 cm
VESA mounting	Yes
Anti-glare screen	Yes
Bezel colour	Black
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Panel life	50000 h
Wi-Fi	Yes
Power
Power consumption (typical)	147 W
Power consumption (standby)	0.5 W
Power consumption (max)	376 W
Input voltage	240 V
Computer system
Operating system installed	CommBox OS
Built-in processor	No
Weight & dimensions
Display width	1930.8 mm
Display depth	68 mm
Display height	1101.7 mm
Display weight	40.8 kg
Packaging data
Package width	2110 mm
Package depth	225 mm
Package height	1247 mm
Package weight	57 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Technical details
VESA mounting	Yes
LED backlighting type	Direct-LED
Network
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Thin Client
Operating system installed	CommBox OS
Other features
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Power consumption (max)	376 W
Microphone in	Yes
Display technology	LCD
Bezel width (top)	1.59 cm
Bezel width (side)	1.59 cm
Bezel width (bottom)	1.59 cm
OPS module slot	Yes
Input voltage	240 V

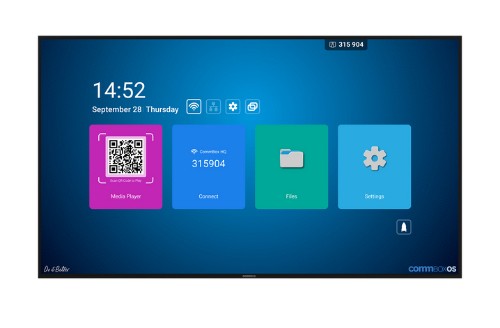

Intelligent Display Gen 2, 75" 4K UHD, 500 cd/m2, 5500:1, 60 Hz

Description

CommBox Intelligent Display Gen 2 is a premium 4K commercial display built for organisations that need visibility, simple control and reliable performance at scale.​

With built-in LAN control, simple signage included and consistent brightness across all sizes, Gen 2 makes it easier to deploy, manage and standardise displays across your environment.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	5500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Active display area (W x H)	1649.66 x 927.94 mm
Panel life	50000 h
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display technology	LCD
Anti-glare screen	Yes
Native refresh rate	60 Hz
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	4
USB port	Yes
DVI port	No
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	1
Number of speaker outputs	1
Microphone in	Yes
DisplayPorts quantity	0
OPS module slot	Yes
HDMI input ports quantity	3
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
Audio
Number of built-in speakers	2
RMS rated power	32 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	600 x 400 mm
Bezel width (top)	1.59 cm
Bezel width (side)	1.59 cm
Bezel width (bottom)	1.59 cm
VESA mounting	Yes
Anti-glare screen	Yes
Bezel colour	Black
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Panel life	50000 h
Wi-Fi	Yes
Power
Power consumption (typical)	116 W
Power consumption (standby)	0.5 W
Power consumption (max)	342 W
Input voltage	240 V
Computer system
Built-in processor	No
Weight & dimensions
Display width	1685.6 mm
Display depth	68 mm
Display height	963.7 mm
Display weight	33.2 kg
Packaging data
Package width	1863 mm
Package depth	225 mm
Package height	1090 mm
Package weight	48.4 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Technical details
VESA mounting	Yes
LED backlighting type	Direct-LED
Network
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Other features
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Power consumption (max)	342 W
Microphone in	Yes
Display technology	LCD
Bezel width (top)	1.59 cm
Bezel width (side)	1.59 cm
Bezel width (bottom)	1.59 cm
OPS module slot	Yes
Input voltage	240 V

43", 3840 x 2160 (UHD), 500nit, 8m (G to G), 16:9, 60Hz, 1,200:1 (Typ), BT709 95%, 10bit(D), 1.07Billion colors, 24/7, HDMI/RS232C/IR IN/Audio Out/RJ45/USB, 971.7 x 561.0 x 29.7mm, 9.4 kg

Description

UHD Signage Display with LG webOS Platform and Advanced Security

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

* SoC : System On Chip
** SI : System Integrator

Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.

Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

* SuperSign must be purchased separately.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	109.2 cm (43")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Panel life	50000 h
Touchscreen	No
Panel type	ADS
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Display technology	LCD
Colour gamut	95%
Colour depth	10 bit
Native refresh rate	60 Hz
Ports & interfaces
USB connector type	USB Type-A
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
DVI port	No
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
USB version	2.0
USB ports quantity	2
RS-232C	Yes
PC Audio out	Yes
DisplayPorts quantity	1
DisplayPorts in	1
HDMI input ports quantity	3
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	200 x 200 mm
Certification	CB / NRTL / FCC Class "B" / CE / KC
VESA mounting	Yes
Bezel colour	Black
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
Picture-in-Picture	Yes
Smart modes	Energy saving
On Screen Display (OSD)	Yes
Number of OSD languages	21
HDCP	Yes
Automatic brightness control	Yes
Plug and Play	Yes
HDCP version	1.4/2.2
Security algorithms	SNMP
Panel life	50000 h
Wi-Fi	Yes
Power
Heat dissipation	222 BTU/h
Power consumption (typical)	65 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (off)	0.5 W
Power consumption (max)	124 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	82.6 kWh
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	WebOS
Internal memory	16 GB
Operating system version	webOS 8.0
Weight & dimensions
Display width	971.7 mm
Display depth	29.7 mm
Display height	561 mm
Display weight	9.4 kg
Packaging data
Package width	1055 mm
Package depth	140 mm
Package height	660 mm
Package weight	11.3 kg
Remote control included	Yes
Cables included	AC
Batteries included	Yes
Packaging content
Remote control included	Yes
Cables included	AC
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	CB / NRTL / FCC Class "B" / CE / KC
Technical details
VESA mounting	Yes
USB connector type	USB Type-A
Power supply type	Internal
Bezel width	1.14 cm
Panel type	ADS
LED backlighting type	Edge-LED
DisplayPorts in	1
Built-in brightness sensor	Yes
Surface treatment	25%
Real Time Clock (RTC)	Yes
Sustainability certificates	ENERGY STAR, ErP
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Security algorithms	SNMP
Thin Client
Operating system installed	WebOS
Internal memory	16 GB
Features
Heat dissipation (max)	423 BTU/h
Other features
USB connector type	USB Type-A
Power supply type	Internal
Bezel width	1.14 cm
Wi-Fi	Yes
Power consumption (PowerSave)	46 W
Power consumption (max)	124 W
PC Audio out	Yes
Panel type	ADS
DisplayPorts in	1
Display technology	LCD
Built-in brightness sensor	Yes
Plug and Play	Yes
