SKU: PN-ME502

Availability: Sold out 10+ in stock
Regular price $2,002.81
Price: $2,002.81 Regular price
Taxes included.

IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.

50" Ultra High Definition Commercial Display

Key Features

  • 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Powerful System-on-Chip Design to fit your digital signage needs
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol
  • 400 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
  • Integrated Media Player allows for playlist creation and scheduled playback via USB or onboard storage
  • 18/7 commercial runtimes with built-in real-time clock and full scheduler capabilities
  • Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Energy Star 8.0 Certified Product
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
  • Fully compatible with Crestron Connected® software as well as Crestron XiO Cloud® Service

Description

Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp ME Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs. The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.

Specifications

Display
LED backlight Yes
Display diagonal 127 cm (50")
Display resolution 3840 x 2160 pixels
Display brightness 450 cd/m²
HD type 4K Ultra HD
Response time 8 ms
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Vertical scan range 23 - 76 Hz
Touchscreen No
Panel type ADS
Native aspect ratio 16:9
LED backlighting type Direct-lit LED
Horizontal scan range 15 - 135 kHz
Display technology LED
Native refresh rate 60 Hz

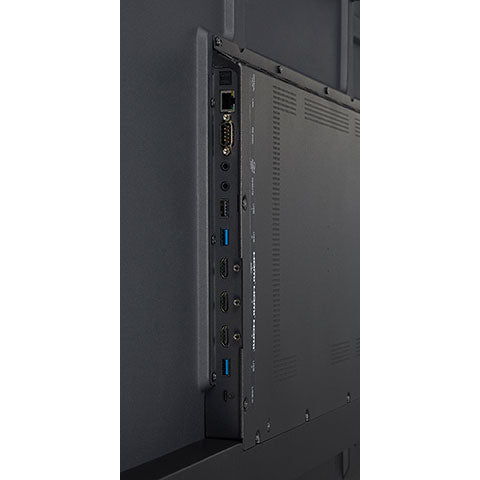

Ports & interfaces
USB connector type USB Type-A, USB Type-C
Ethernet LAN Yes
HDMI ports quantity 3
USB port Yes
HDMI version 2.0
DVI port No
Ethernet LAN (RJ-45) ports 1
USB ports quantity 4
RS-232C Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Type-C DisplayPort Alternate Mode Yes
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
Orientation Horizontal/Vertical
Panel mounting interface 400 x 400 mm
Bezel width (top) 9.9 mm
Bezel width (side) 9.9 mm
Bezel width (bottom) 9.9 mm
VESA mounting Yes
Screen shape Flat
Performance
Purpose Commercial
Operating hours (hours/days) 18/7

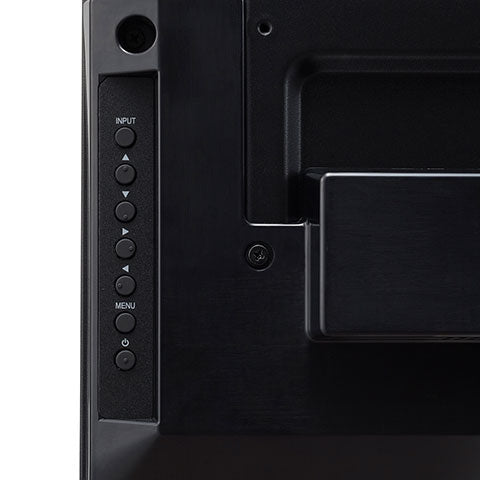

On Screen Display (OSD) Yes
Power
Power consumption (typical) 85 W
Power consumption (standby) 0.5 W
Power consumption (max) 105 W
Energy efficiency class (SDR) G
Energy efficiency class (HDR) G
Energy consumption (SDR) per 1000 hours 96 kWh
Computer system
Built-in processor No
Weight & dimensions
Display width 1118.6 mm
Display depth 62 mm
Display height 639.2 mm
Display weight 11.7 kg
Packaging data
Package width 1202 mm
Package depth 156 mm
Package height 719 mm
Package weight 17.5 kg
Remote control included Yes
Cables included AC, HDMI
Batteries included Yes
Packaging content
Remote control included Yes
Cables included AC, HDMI
Batteries included Yes
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 80%
Technical details
VESA mounting Yes
USB connector type USB Type-A, USB Type-C
Power supply type Internal
Panel type ADS
LED backlighting type Direct-lit LED
Network
Ethernet LAN Yes
Other features
USB connector type USB Type-A, USB Type-C
Power supply type Internal
Power consumption (max) 105 W
Panel type ADS
Display technology LED
Bezel width (top) 9.9 mm
Bezel width (side) 9.9 mm
Bezel width (bottom) 9.9 mm
