Collection: NAS & Storage Servers

Quad-Core ARM Cortex-A57 at 1.7 GHz, 8 GB, 2U, 7x (7) 2.5/3.5" HDD / SSD, 10G SFP+, GbE RJ4, 1.3" touchscreen

Key Features

• (7) 2.5/3.5" HDD / SSD support
• (1) 10G SFP+ uplink and (1) GbE RJ45 port
• Data protection with RAID storage technology
• UniFi Power Backup ready
• 1.3" touchscreen for management

Description

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
RAID support	Yes
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A57
Processor family	Cortex-A
Processor model	Cortex-A57
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory	8 GB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
USB port	No
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
Design
Chassis type	Rack (2U)
Product colour	Grey
Cooling type	Active
Housing material	Steel
Number of fans	2 fan(s)
LED indicators	Status
Built-in display	Yes
Display type	LCM
Performance
Type	NAS
Backup function	Yes
Reset button	Yes
Power
Power consumption (max)	160 W
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Weight & dimensions
Width	442 mm
Depth	325 mm
Height	87 mm
Weight	9.2 kg
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging content
Rack mount kit	Yes
Cables included	Power
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)

ARM 4-core Cortex-A55, 2 GB DDR, 4 GB Flash, LAN, 36 W, 100-240 V

Key Features

• Centralized multimedia management: Centrally store photos, music, and videos; easily browse, organize, and share multimedia files
• AI-powered image recognition: With a built-in NPU (Neural network Processing Unit) processor, the TS-133 boosts performance for high-speed face and object recognition
• Home entertainment center: Supports ARM NEON technology that accelerates video processing for a greater entertainment experience
• Secure remote access: myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet
• Snapshot protection against Ransomware: Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection
• Comprehensive security management: Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more

Description

TS-133
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-133. Designed to enhance collaboration and increase remote work productivity, the TS-133 also features rich multimedia applications and provides a complete home entertainment portal.

Minimalist design
The compact and slim TS-133 prioritizes a clean and essential design, and perfectly blends into your home or office.

Effective cooling fan for heat flow
The TS-133 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 1.8 GHz CPU NAS for everyday use and collaboration
Powered by a ARM® Cortex-A55 quad-core 1.8 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports one SATA 6Gb/s hard drive, the TS-133 provides dependable read/write performance for running various home and business NAS applications. The TS-133 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

QTS 5, Fast, smooth, and easy-to-use!
The TS-133 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

An easy-to-use, all-in-one backup solution
The TS-133 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.

Protect your data from ransomware threats with Snapshots
Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS – including the TS-133. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware. Read the guide for home data protection against ransomware.

Centrally store and protect your huge multimedia collection
The TS-133 is your private personal cloud for your movies, videos, photos, and files that are securely at your fingertips anywhere and anytime.

Enhanced multimedia experience
The TS-133 supports ARM NEON technology to accelerate video processing for a greater entertainment experience. Stream media files from the TS-133 to DLNA® devices and TVs using common media streaming devices including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®.

Tips for a more productive workday
With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends’ or colleague’s devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-133’s shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-133 helps you save time while being more efficient and productive.

Access your NAS from anywhere
The myQNAPcloud service enables quick and easy remote access to your TS-133, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-133, and will automatically connect using the best method based on your network environment.

Protect your data with higher security
The TS-133 provides advanced privacy and security settings but is easy to set up and use. Besides IP blocking and HTTPS connectivity, there are more apps that help ensure an optimal level of NAS protection against threats like malware and hackers.

Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-133 integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Flexible and economical storage expansion
QNAP provides easy and affordable solutions to expand your NAS storage capacity.

More productivity-boosting applications
The TS-133 provides an App Center that includes feature-rich apps to expand your NAS potential!

Specifications

Storage
Total installed storage capacity	4 TB
Storage drives installed	Yes
Installed storage drive type	HDD
Number of storage drives installed	1
Supported storage drive types	HDD & SSD
Number of storage drives supported	1
Disk roaming	Yes
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive capacity	4 TB
RAID support	No
Hot-swap drive bays	No
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Processor
Processor model	Cortex-A55
Processor frequency	1.8 GHz
Processor cores	4
Memory
Internal memory	2 GB
Maximum RAM supported	2 GB
Flash memory	4000 MB
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
Concurrent connections	200
Design
Chassis type	Tower
Product colour	White
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	5 cm
LED indicators	HDD, LAN, Status, System
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Password authentication	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Security algorithms	HTTPS, SSH, SSL/TLS, TLS, 256-bit AES, FIPS 140-2
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP V2/V3
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Yes
Snapshot	Yes
Software
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Yes
Power
Power supply location	External
Power supply unit (PSU) capacity	36 W
Number of power supply units	1
Power consumption (typical)	7.32 W
Power consumption (sleep)	2.74 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	66 mm
Depth	157.5 mm
Height	187.4 mm
Packaging content
Number of screws	8
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%

16 TB, Intel Celeron N5095, 8GB DDR4, 4GB Flash, 4x 2.5/3.5" SATA, 2x M.2, 2.5G LAN, USB, HDMI

Key Features

• TS-464 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
• Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking
• Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices
• Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,647 MB/s transfer speed
• Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices
• If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots

Description

TS-464 is a compact 4-bay NAS with superior performance. Supporting up to 66 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-464 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

2.5GbE NAS is a must in 2024
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. The 2.5GbE TS-464 NAS is as fast as a single-port 10GbE NAS. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, TS-464 delivers up to 589 MB/s transfer speeds.

Upgrade to dual-port 10GbE with a PCIe network card
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-464. Combining 10GbE networking, quad-core processor, and M.2 SSD caching, the TS-464 unleashes its full performance potential.

Expand storage capacity up to 16 hard drives
TS-464 supports a storage capacity of up to 66 TB by installing four 3.5-inch 22 TB hard drives in RAID 5. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional twelve hard drives to the TS-464 to achieve up to 280TB storage space to meet growing storage requirements.

Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
TS-464 has two M.2 PCIe Gen 3 slots for installing NVMe SSD (including Apacer®, Micron®, Seagate®, WD®, and more) or Edge TPU.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-464 by configuring its two M.2 SSDs as a cache disk.

When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-464 allows you to enjoy exceptional application performance.

Accelerate AI–powered image recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-464 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-464 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.

One Touch Copy backup with USB 3.2 Gen 2
TS-464 provides two 10Gbps USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-464 with a single button press.

Smoother mobile experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-464. With Intel® UHD Graphics, the TS-464 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.

Use your NAS like a PC
QNAP’s exclusive Virtualization Station enables running multiple Windows®/Linux® virtual machines. By connecting a keyboard, mouse, and HDMI™ monitor, you can easily use the TS-464 as a PC.

QTS 5, Fast, smooth, and easy-to-use!
The TS-464 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-464, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Enhanced cybersecurity and data protection
TS-464 is loaded with comprehensive privilege settings and security measures. Besides, there are abundant apps that help ensure optimal NAS protection against threats like malware and hackers.

A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

Specifications

Storage
Total installed storage capacity	16 TB
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor boost frequency	2.9 GHz
On-board graphics card model	Intel® UHD Graphics
Processor model	N5095
Processor frequency	2 GHz
Processor cores	4
Number of processors supported	1
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	8 GB
Flash memory	4000 MB
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
HDMI version	2.1
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Concurrent connections	1500
PCI Express x2 (Gen 3.x) slots	1
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Tower
Product colour	Black, Gold
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
LED indicators	HDD, LAN, Power, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	AFP, CIFS/SMB, FTP
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Backup button	Yes
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Operating system installed	QNAP Turbo System
Operating system version	5.1.3
Security algorithms	FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP
Access Control List (ACL)	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Solaris 10
Snapshot	Yes
USB copy function	Yes
Software
Operating system installed	QNAP Turbo System
Operating system version	5.1.3
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Solaris 10
Power
Power consumption (HDD standby)	21.618 W
Power supply location	External
Power supply unit (PSU) capacity	90 W
Number of power supply units	1
Power consumption (typical)	40.536 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	170 mm
Depth	226.5 mm
Height	165 mm
Packaging content
Number of screws	24
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Intel Celeron N5095 4-core/4-thread, 2.9 GHz, Intel UHD Graphics, 2 x M.2 2280 PCIe Gen 3 x1, HDMI 2.0, 2 x Type-A, 2x USB 2.0

Key Features

• TS-264 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
• Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking
• Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices
• Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed
• Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices
• If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots

Description

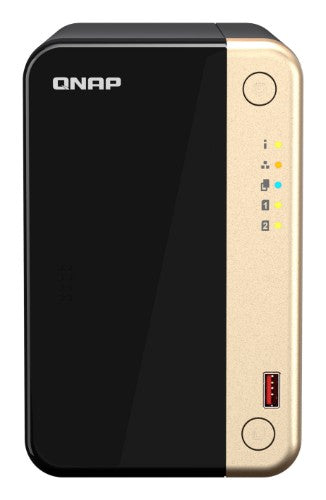

TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 22 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

2.5GbE NAS is a must in 2023
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, the TS-264 delivers up to 589 MB/s transfer speeds for fast data access workflow

Processor
Intel® Celeron® N5095 quad-core processor, burst up to 2.9 GHz

GPU
Built-in Intel® UHD Graphics to speed up video processing and graphical computing

Memory
Built-in 8 GB DDR4 memory..

Encryption Engine
Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.

Upgrade to dual-port 10GbE with a PCIe network card
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-264. Combining 10GbE networking, quad-core processor, and M.2 SSD caching, the TS-264 unleashes its full performance potential.

Expand storage capacity up to 14 hard drives
TS-264 supports a storage capacity of up to 22 TB by installing two 3.5-inch 22 TB hard drives in RAID 1. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional fourteen hard drives to the TS-264 to achieve up to 240 TB storage space to meet growing storage requirements.

Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
TS-264 has two M.2 PCIe Gen 3 slots for installing NVMe SSD (including Apacer®, Micron®, Seagate®, WD®, and more) or Edge TPU.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-264 by configuring its two M.2 SSDs as a cache disk.

When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-264 allows you to enjoy exceptional application performance.

Accelerate AI–powered image recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-264 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-264 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.

One Touch Copy backup with USB 3.2 Gen 2
TS-264 provides two 10Gbps USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-264 with a single button press.

Smoother mobile experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-264. With Intel® UHD Graphics, the TS-264 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.

Use your NAS like a PC
QNAP’s exclusive Virtualization Station enables running multiple Windows®/Linux® virtual machines. By connecting a keyboard, mouse, and HDMI monitor, you can easily use the TS-264 as a PC.

Specifications

Storage
Total installed storage capacity	8 TB
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
RAID support	Yes
RAID levels	0, 1, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor cache	4 MB
Processor boost frequency	2.9 GHz
On-board graphics card model	Intel® UHD Graphics
Processor model	N5095
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory	8 GB
Maximum RAM supported	8 GB
Flash memory	4000 MB
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Ports & interfaces
USB port	Yes
HDMI version	2.0
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Concurrent connections	1500
PCI Express x2 (Gen 3.x) slots	1
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Tower
Product colour	Black, Gold
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	7 cm
LED indicators	HDD, LAN, Power, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	512
S.M.A.R.T. support	Yes
Hot spare	Yes
Browser supported	Apple Safar, Google Chrome, Microsoft Edge, Mozilla Firefox
Remotely operated	Yes
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Security algorithms	256-bit AES, FIPS 140-2
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC
Snapshot	Yes
USB copy function	Yes
Software
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC
Power
Power supply location	External
Power supply unit (PSU) capacity	65 W
Power consumption (typical)	29.086 W
Power consumption (sleep)	18.288 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	105 mm
Depth	226 mm
Height	168 mm
Packaging content
Number of screws	12
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

ARM 4-core Cortex-A55 2.0GHz, 4 GB, 4x 3.5-inch SATA 6Gb/s, 3Gb/s, 2x USB 2.0, 1x USB 3.2 Gen 1, 90W

Key Features

• Centrally store photos, music, and videos; easily browse, organize, and share multimedia files
• myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet
• With a built-in NPU (Neural network Processing Unit) processor, the TS-433 boosts performance for high-speed face and object recognition
• Supports ARM NEON technology that accelerates video processing for a greater entertainment experience
• Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection
• Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more

Description

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-433. Designed with a 2.5GbE port to enhance collaboration and increase remote work productivity, the TS-433 also features rich multimedia applications and provides a complete home entertainment portal.

Minimalist design
The compact and slim TS-433 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.

Effective cooling fan for heat flow
The TS-433 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 2.0 GHz CPU NAS for everyday use and collaboration
Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 4 GB RAM, one Gigabit LAN port, one 2.5 Gigabit LAN port, and supports four SATA 6Gb/s hard drives, the TS-433 provides dependable read/write performance for running various home and business NAS applications. The TS-433 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

NPU accelerates on-device AI performance. 6x Faster face recognition.
With a built-in NPU (Neural network Processing Unit) processor, the TS-433 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

QTS 5, Fast, smooth, and easy-to-use!
The TS-433 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

An easy-to-use, all-in-one backup solution
The TS-433 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.

Protect your data from ransomware threats with Snapshots
Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS – including the TS-433. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware.

The best storage for your high-resolution multimedia files
High-resolution RAW files eat up phone storage so quickly. Whether you are a photographer enthusiastic, YouTuber, or professional photo/video editors, use the TS-433 with high-capacity hard drives to alleviate your storage anxiety and organize files efficiently as the best storage center.

Enhanced multimedia experience
The TS-433 supports ARM NEON technology to accelerate video processing for a greater entertainment experience. Stream media files from the TS-433 to DLNA® devices and TVs using common media streaming devices including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®.

Tips for a more productive workday
With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends’ or colleague’s devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-433’s shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-433 helps you save time while being more efficient and productive.

Protect your data with higher security
The TS-433 provides advanced privacy and security settings but is easy to set up and use. Besides IP blocking and HTTPS connectivity, there are more apps that help ensure an optimal level of NAS protection against threats like malware and hackers.

Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-433 integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-433.

Flexible and economical storage expansion
QNAP provides easy and affordable solutions to expand your NAS storage capacity.

More productivity-boosting applications
The TS-433 provides an App Center that includes feature-rich apps to expand your NAS potential!

Specifications

Storage
Total installed storage capacity	16 TB
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Storage drive interface	Serial ATA II, Serial ATA III
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor architecture	ARM Cortex-A55
Processor family	ARM
Processor model	Cortex-A55
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory	4 GB
Maximum RAM supported	4 GB
Flash memory	4000 MB
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
Concurrent connections	200
Design
Chassis type	Tower
Product colour	White
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
Drive bay locking	Yes
LED indicators	HDD, LAN, Status
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Built-in FTP server	Yes
System log	Yes
S.M.A.R.T. support	Yes
Password authentication	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP V2/V3
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Snapshot	Yes
Software
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power consumption (HDD standby)	8.45 W
Power supply location	External
Power supply unit (PSU) capacity	90 W
Power consumption (typical)	22.54 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	160 mm
Depth	219 mm
Height	169 mm
Packaging content
Number of screws	28
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Drive tray key included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%

6 x 3.5", Intel Celeron N5105/N5095, 8 GB SODIMM DDR4, 4GB Flash, LAN, 120 W, 100-240V, 168 x 235 x 226 mm, 2.9 kg

Key Features

• 2.5GbE connectivity: Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
• M.2 SSD caching: Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition
• PCIe expandability: Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card
• License-free virtualized environment: Host multiple containerized apps to run a wide range of applications and services
• Drives Auto-Tiering: Qtier™ auto-tiering technology and SSD caching enable constant storage optimization
• 4K HDMI: 4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience

Description

TS-664
Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applications

Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

Quad-core high performance and up to 16GB RAM
The TS-664 is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
The TS-664 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
The TS-664 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs1 with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-664 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

Accelerate AI–powered image recognition with TPU
By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-664 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

SSD caching and auto-tiering enable 24/7 optimized storage efficiency
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-664 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.

Streamline large file transfers and video editing with 2.5GbE
The TS-664 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-proof your IT infrastructure for high-speed networks
The TS-664 is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-664. UPS and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O capabilities with PCIe expansion
The TS-664 has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.

Direct 4K HDMI output for multimedia and virtual machine display
The TS-664 features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 2.0 output supports up to 4K, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-664 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-664 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-664 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QTS 5, Fast, smooth, and easy-to-use!
The TS-664 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Comprehensive backup and disaster recovery solution
The TS-664 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-664 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats
The TS-664 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-664 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-664, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Conainer Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.

Comprehensive security and privilege settings
The TS-664 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-664 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified privilege settings
The TS-664 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-664 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor
A security portal for the TS-664 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-664 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

The best file storage and collaboration center
The TS-664 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-664 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-664 storage as needed to accommodate data and business growth.

Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-664, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-664 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces	M.2, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor boost frequency	2.9 GHz
On-board graphics card model	Intel® UHD Graphics
Processor model	N5095
Processor frequency	2 GHz
Processor cores	4
Number of processors supported	1
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	4000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
HDMI version	2.1
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Tower
Product colour	Black, Bronze
Cooling type	Active
Number of fans	2 fan(s)
Fan diameter	9 cm
LED indicators	HDD, LAN, Power, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	Yes
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Backup button	Yes
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP QTS
Operating system version	5.0.0
Security algorithms	FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP V2, V3
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Solaris 10
Snapshot	Yes
USB copy function	Yes
Software
Operating system installed	QNAP QTS
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Solaris 10
Power
Power supply location	External
Power supply unit (PSU) capacity	120 W
Number of power supply units	1
Power consumption (typical)	44.02 W
Power consumption (sleep)	23.22 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	235 mm
Depth	226 mm
Height	168 mm
Weight	2.9 kg
Package width	255 mm
Package depth	383 mm
Package height	345 mm
Package weight	4.56 kg
Technical details
Warranty period	3 year(s)
Packaging content
Package type	Box
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Other features
Warranty period	3 year(s)

Desktop, 4x 2.5/3.5" drive bays, 2x M.2 NVMe SSD bays, 2.5 GbE RJ45 (2.5G/1G/100M/10M), 5 Gbps USB-C, PoE+++, Quad-Core ARM Cortex-A55 at 1.7 GHz, Bluetooth 4.1, 1.47" color LCM

Description

UniFi Network Attached Storage with (4) 2.5/3.5" HDD bays, (2) M.2 NVMe SSD cache slots, 2.5 GbE networking, USB-C connectivity, and an included PoE+++ adapter, all in a compact footprint.

Specifications

Storage
NVMe	Yes
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Storage drive size	2.5/3.5"
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
Processor
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A57
Processor family	Cortex-A
Processor model	Cortex-A57
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory	4 GB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Design
Chassis type	Desktop
Product colour	White
Housing material	Polycarbonate (PC)
LED indicators	Status, System
Built-in display	Yes
Display type	LCM
Performance
Type	NAS
Backup function	Yes
Web-based management	Yes
Power
Power consumption (max)	90 W
Power supply location	External
Weight & dimensions
Width	129 mm
Depth	246 mm
Height	224.5 mm
Weight	2.6 kg
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging content
External power adapter	Yes
Cables included	Power
Power cables quantity	1
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Other features
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
