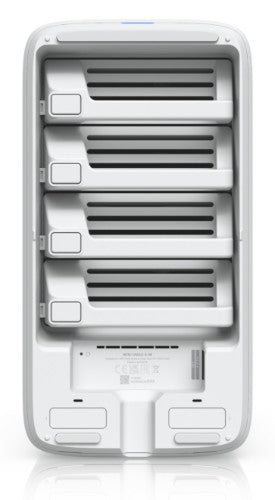

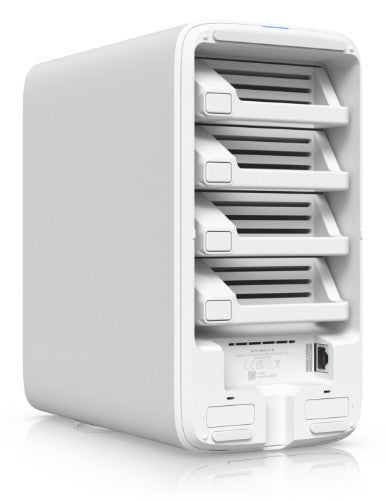

Desktop, 4x 2.5/3.5" drive bays, 2x M.2 NVMe SSD bays, 2.5 GbE RJ45 (2.5G/1G/100M/10M), 5 Gbps USB-C, PoE+++, Quad-Core ARM Cortex-A55 at 1.7 GHz, Bluetooth 4.1, 1.47" color LCM
Description
UniFi Network Attached Storage with (4) 2.5/3.5" HDD bays, (2) M.2 NVMe SSD cache slots, 2.5 GbE networking, USB-C connectivity, and an included PoE+++ adapter, all in a compact footprint.
Specifications
Storage
NVMe
Yes
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
4
Storage drive size
2.5/3.5"
Storage drive sizes supported
2.5,3.5"
Number of M.2 (M & B) slots
2
Processor
Processor manufacturer
ARM
Processor architecture
ARM Cortex-A57
Processor family
Cortex-A
Processor model
Cortex-A57
Processor frequency
1.7 GHz
Processor cores
4
Memory
Internal memory
4 GB
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Ports & interfaces
USB port
Yes
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Design
Chassis type
Desktop
Product colour
White
Housing material
Polycarbonate (PC)
LED indicators
Status, System
Built-in display
Yes
Display type
LCM
Performance
Type
NAS
Backup function
Yes
Web-based management
Yes
Power
Power consumption (max)
90 W
Power supply location
External
Weight & dimensions
Width
129 mm
Depth
246 mm
Height
224.5 mm
Weight
2.6 kg
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging content
External power adapter
Yes
Cables included
Power
Power cables quantity
1
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Other features
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
