MAXHUB CMB Series ND43CMB 43" 4K Commercial Display

CMB Series ND43CMB 43" 4K Commercial Display

Description

CMB SERIES
Your Perfect Solution for Engaging Meetings and Captivating Commercial Displays.

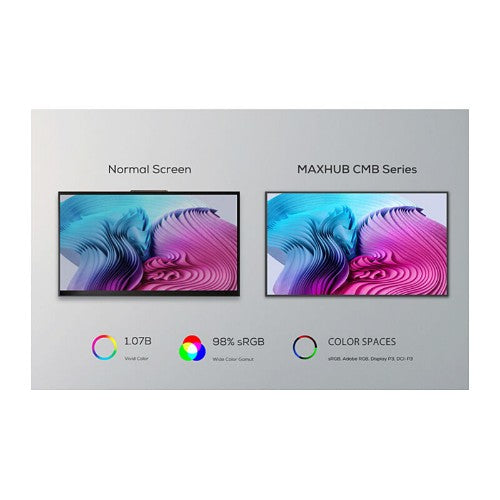

PROFESSIONAL-GRADE COLOR, CALIBRATED & MANAGED
True to your imagination, precise in its presentation.

4K CLARITY. 24/7 RELIABILITY. FLEXIBLE SIZES.

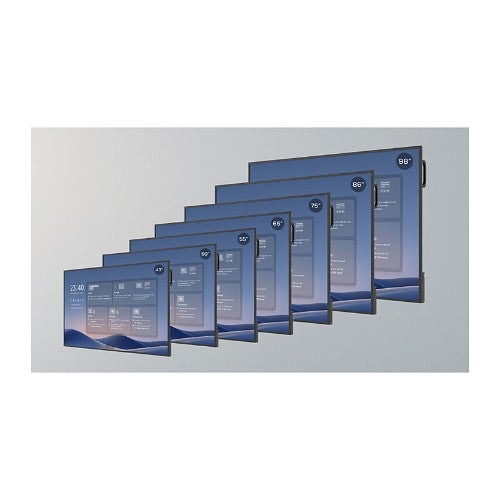

Engineered for mission-critical environments, delivering stunning visuals and uninterrupted performance around the clock. We offer a wide range of screen sizes from 43'' to 98'', meeting diverse needs for different spaces and usage scenarios.

THE ULTIMATE MICROSOFT TEAMS ROOMS COMPANION
Engineered for seamless integration. Designed with a dedicated Meeting Mode, this display is the perfect partner for Microsoft Teams Rooms. It automatically wakes and sleeps in sync with your MTR system and can be managed directly from the console, delivering a truly streamlined and professional meeting experience.

CONNECT. MOUNT. COLLABORATE.
Engineered for hassle-free collaboration. Our multiple-size displays feature side-ported dongle pairing for effortless connectivity. They offer versatile mounting with an optional XBar series wall plate and a standard VESA bracket designed to securely hold any brand of video bar. Simplify your meeting space with purpose-built design.

ENDURING PERFORMANCE, ELEGANTLY ENGINEERED
Go beyond the ordinary with a display crafted for continuous commercial performance. It merges an elegant, minimalist aesthetic—featuring ultra-narrow bezels and a 95% screen-to-body ratio—with a rugged premium full-metal chassis engineered to withstand demanding environments. Inside, commercial-grade hardware and IP5X dust-resistant construction ensure flawless 24/7 operation day after day. Backed by an exceptional 100,000-hour lifespan, it offers unparalleled reliability and immersive visual clarity, year after year.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	127 cm (50")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.245 x 0.245 mm
Active display area (W x H)	941.184 x 529.416 mm
Panel life	50000 h
Panel type	ADS
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display technology	LED
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
USB connector type	USB Type-C, USB Type-A
Ethernet LAN	Yes
HDMI ports quantity	4
USB port	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
HDMI version	2.0
Audio (L/R) in	1
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	3
HDMI input ports quantity	3
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
USB Type-C DisplayPort Alternate Mode	Yes
Audio
Number of built-in speakers	2
RMS rated power	32 W
Built-in speaker(s)	Yes
Audio output channels	2.0 channels
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	200 x 200 mm
Bezel width (top)	9.9 mm
Bezel width (side)	9.9 mm
Bezel width (bottom)	9.9 mm
Certification	Energy Star
VESA mounting	Yes
Screen shape	Flat
Wall mountable	Yes
Performance
Purpose	Commercial
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
Ambient light sensor	Yes
Panel life	50000 h
Wi-Fi	Yes
Power
Power consumption (typical)	40 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (max)	105 W
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	39 kWh
Power consumption (economy mode)	39 W
Computer system
Processor family	ARM Cortex
Processor model	A73
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Processor manufacturer	ARM
Built-in processor	Yes
Operating system version	Android 14.0
Weight & dimensions
Display width	964.6 mm
Display depth	62 mm
Display height	552.5 mm
Display weight	9.4 kg
Packaging data
Package width	1056 mm
Package depth	156 mm
Package height	647 mm
Package weight	13 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, HDMI
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, HDMI
Wi-Fi module included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	Energy Star
Technical details
VESA mounting	Yes
USB connector type	USB Type-C, USB Type-A
Power supply type	Internal
Panel type	ADS
LED backlighting type	Direct-LED
Ambient light sensor	Yes
Sustainability certificates	ENERGY STAR
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Thin Client
Processor family	ARM Cortex
Processor model	A73
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Sensors
Ambient light sensor	Yes
Features
Wall mountable	Yes
Other features
USB connector type	USB Type-C, USB Type-A
Power supply type	Internal
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Power consumption (max)	105 W
Panel type	ADS
Display technology	LED
Bezel width (top)	9.9 mm
Bezel width (side)	9.9 mm
Bezel width (bottom)	9.9 mm
