Collection: PCs/Workstations

Intel Core Ultra 5 226V (8MB Cache), 16GB LPDDR5x-SDRAM, 512GB SSD, Intel Arc Graphics 130V, LAN, WLAN, Bluetooth, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 5 226V (8MB Cache)
• 16GB LPDDR5x-SDRAM & 512GB SSD

Description

LENOVO ThinkCentre Neo 50q G6 Tiny Desktop PC Ultra 5 226V 16GB 512GB SSD Windows 11 Pro 1yrs Onsite Wty UHD Graphics WiFi6 Keyboard Mouse

PERFORMANCE
Processor Intel Core™ Ultra 5 226V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB Intel® Smart Cache
AI PC Category Copilot+ PC
NPU Integrated Intel® AI Boost, up to 40 TOPS
Graphics Integrated Intel® Arc™ Graphics 130V
Chipset Intel® SoC Platform
Memory 16GB Soldered LPDDR5X-8533, MoP Memory
Memory Slots Memory soldered to systemboard, no slots
Max Memory 16GB soldered LPDDR5X-8533 MoP, not upgradable
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support One drive, up to 1TB M.2 2280 SSD
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio
Speakers 2Wx1
Power Supply 65W 89% Adapter
DESIGN
Keyboard USB, Calliope, Black, English (US)
Mouse USB Calliope Mouse, Black
Expansion Slots Two M.2 slots (one for WLAN, one for SSD)
Case Color Black
Stand None
Adapter Cage None
Toolless Chassis Screw None
Mounting None
Pen Pen Not Supported
Form Factor Tiny (1L)
Dimensions (WxDxH) Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches)
Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight Around 1.1 kg (2.43 lbs)
CONNECTIVITY
WLAN + Bluetooth MediaTek Wi-Fi® 7 MT7925, 802.11be 2x2 + BT5.4
WWAN WWAN Not Supported
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4b
1x Ethernet (GbE RJ-45)
1x Power connector
Optional Rear Ports (configured) DP 1.2
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks Kensington Security Slot™, 3 x 7 mm
Chassis Intrusion Switch Chassis Intrusion Switch
SERVICE
Base Warranty 1-year
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
RoHS compliant
TCO Certified, generation 10
SOFTWARE
Operating System Windows® 11 Pro, English
Bundled Software None

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	226V
Processor cores	8
Processor boost frequency	4.5 GHz
Processor cache	8 MB
Processor threads	8
Performance cores	4
Performance-core base frequency	2.1 GHz
Processor base power	17 W
Maximum turbo power	37 W
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-cores	4
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-core Base Frequency	2100 MHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs
Copilot+ PC	Yes
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Maximum internal memory	16 GB
Memory data transfer rate	8533 MT/s
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics 130V
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Motherboard chipset	Intel SoC
Password protection	Yes
Password protection type	HDD
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
WLAN controller model	MediaTek MT7925
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	MediaTek
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Power
Power supply	65 W
Design
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Raven black
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Copilot+ PC	Yes
Display
Display included	No
Processor special features
Low Power Efficient-cores	4
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-core Base Frequency	2100 MHz
Audio
Number of speakers	1
Audio system	High Definition Audio
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.1 kg
Package width	242 mm
Package depth	250 mm
Package height	187 mm
Package weight	2.6 kg
Packaging data
Package width	242 mm
Package depth	250 mm
Package height	187 mm
Package weight	2.6 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Display included	No
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR 9.0 RoHS compliant TCO Certified, generation 10
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes

Intel Core i7-14700 (33MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i7-14700 (33MB Cache)
• 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 512GB SSD

Description

Intelligent Performance With AI Enhancements
The Lenovo ThinkCentre M70s Gen 5 desktop constantly adapts and learns from your usage patterns to optimize power usage and dynamically allocate resources. No more overheating woes as the AI-driven fan control keeps your device cool, reducing temperature and noise. Plus, the power optimization feature enhances energy efficiency.

Enhanced Productivity
The ThinkCentre M70s Gen 5 desktop is a powerhouse of productivity powered by up to 14th Gen Intel® Core™ processor with Intel vPro® Enterprise to accomplish more with less effort. Unlock boundless creativity with integrated Intel® graphics. Plus, this small form factor handles complex data operations with ease thanks to ample memory and storage.

Unmatched Security
Protect your data and business with ThinkShield, our comprehensive suite of security solutions, featuring the discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Physical security is reinforced with Kensington Security Slot™, chassis e-locks, and more, offering unparalelled security.

Multitasking Flexibility
The ThinkCentre M70s Gen 5 makes multitasking a breeze with multiple ports and expansion slots. Connect your tablets and laptops through Smart Cable. This intelligent feature offers cutting-edge device collaboration through convenient USB-A and USB-C connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices.

Flexibilitet för multitasking
The ThinkCentre M70s desktop PC uses 90% post-industry content (PIC) recycled materials expanded polyethylene (EPE) cushion, 60% post-consumer content (PCC) recylced plastic, 30% ocean-bound plastic (OBP) thermal shell and 30% OBP bag and Forest Stewardship Council® (FSC) certified carton in packaging. The chasis uses 85% PCC acrylonitrile butadine styrene (ABS)

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700
Processor cores	20
Processor boost frequency	5.4 GHz
Processor cache	33 MB
Processor threads	28
Performance cores	8
Efficient cores	12
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor base power	65 W
Maximum turbo power	219 W
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x DIMM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
DisplayPort version	1.4a
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Certified refurbished	No
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Product type	PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	260 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	297.7 mm
Height	339.5 mm
Weight	5.3 kg
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging data
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Compliance certificates	RoHS
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes

Intel Core i5-14400 (20MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 730, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i5-14400 (20MB Cache)
• 16GB (4800MHz) DDR5-SDRAM (2 x 8) & 512GB SSD

Description

Intelligent Performance With AI Enhancements
The Lenovo ThinkCentre M70s Gen 5 desktop constantly adapts and learns from your usage patterns to optimize power usage and dynamically allocate resources. No more overheating woes as the AI-driven fan control keeps your device cool, reducing temperature and noise. Plus, the power optimization feature enhances energy efficiency.

Enhanced Productivity
The ThinkCentre M70s Gen 5 desktop is a powerhouse of productivity powered by up to 14th Gen Intel® Core™ processor with Intel vPro® Enterprise to accomplish more with less effort. Unlock boundless creativity with integrated Intel® graphics. Plus, this small form factor handles complex data operations with ease thanks to ample memory and storage.

Unmatched Security
Protect your data and business with ThinkShield, our comprehensive suite of security solutions, featuring the discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Physical security is reinforced with Kensington Security Slot™, chassis e-locks, and more, offering unparalelled security.

Multitasking Flexibility
The ThinkCentre M70s Gen 5 makes multitasking a breeze with multiple ports and expansion slots. Connect your tablets and laptops through Smart Cable. This intelligent feature offers cutting-edge device collaboration through convenient USB-A and USB-C connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices.

Flexibilitet för multitasking
The ThinkCentre M70s desktop PC uses 90% post-industry content (PIC) recycled materials expanded polyethylene (EPE) cushion, 60% post-consumer content (PCC) recylced plastic, 30% ocean-bound plastic (OBP) thermal shell and 30% OBP bag and Forest Stewardship Council® (FSC) certified carton in packaging. The chasis uses 85% PCC acrylonitrile butadine styrene (ABS)

Specifications

Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-14400
Processor cores	10
Processor boost frequency	4.7 GHz
Processor cache	20 MB
Processor threads	16
Performance cores	6
Efficient cores	4
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	65 W
Maximum turbo power	148 W
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x DIMM
Memory clock speed	4800 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
DisplayPort version	1.4a
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Certified refurbished	No
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Product type	PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	260 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	297.7 mm
Height	339.5 mm
Weight	5.3 kg
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging data
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Compliance certificates	RoHS
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes

Intel Core Ultra 7 265T (30MB Cache), 32GB DDR5-SDRAM, 512GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra 7 265T (30MB Cache)
• 32GB (5600MHz) DDR5-SDRAM & 512GB SSD

Description

ENSURED PRODUCTIVITY FOR PROFESSIONALS
AI-Assisted Performance

Supercharge your workflow with the ThinkCentre M70q Gen 6 Tiny PC. Powered by Intel® Core™ Ultra processors, it features Intel vPro® for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine allocates workloads between CPU, GPU, and NPU for peak performance. Plus, WiFi 7 ensures blazing-fast connectivity.

BIG POWER & FLEXIBILITY
Multitask Like a Pro

Enjoy unmatched productivity with faster USB speeds and multiple ports. Connect the ThinkCentre M70q Tiny PC to up to four displays to power through tasks with vast memory and expandable storage. With an optional USB-C® (Thunderbolt™ 4) port and Neural Processing Unit (NPU), enhance hybrid and digital workplace expansion for a broadened ecosystem.

ALL-AROUND SAFETY IN PLACE
Robust Security & Manageability

This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with a self-healing BIOS, dTPM chip, Kensington Security Slot™, and Smart USB Protection. Choose Intel vPro® security for advanced threat protection while securing your data and business with ThinkCentre Customization.

DURABILITY YOU CAN RELY ON
Intentional Engineering to Boost Efficiency

This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With TüV anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	265T
Processor cores	20
Processor boost frequency	5.3 GHz
Processor cache	30 MB
Processor threads	20
Number of processors installed	1
Performance cores	8
Efficient cores	12
Performance-core base frequency	1.5 GHz
Efficient-core base frequency	1.2 GHz
Processor base power	35 W
Maximum turbo power	112 W
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Memory channels	Single-channel
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Motherboard chipset	Intel® Q870
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	No
Number of speakers	1
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Wake-on-LAN ready	Yes
WLAN controller model	Realtek RTL8922AE
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
DVI port	Yes
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.4a
Power
Power supply	135 W
Design
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Raven black
Certified refurbished	No
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Display
Display included	No
Audio
Number of speakers	1
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.18 kg
Package width	250 mm
Package depth	490 mm
Package height	128 mm
Package weight	3.2 kg
Packaging data
Package width	250 mm
Package depth	490 mm
Package height	128 mm
Package weight	3.2 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Display included	No
Keyboard connectivity	Wired
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, TCO
Keyboard
Keyboard connectivity	Wired
Technical details
Sustainability certificates	ENERGY STAR, TCO
Compliance certificates	RoHS
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes

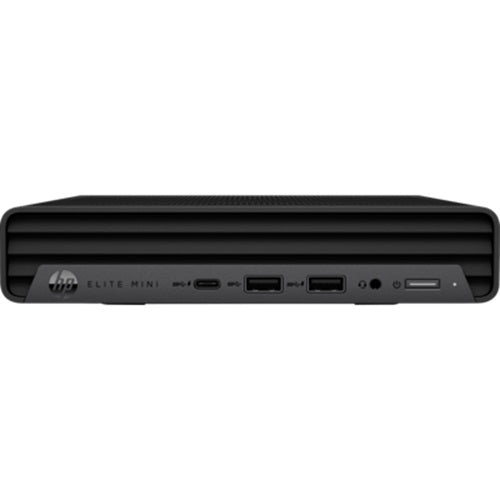

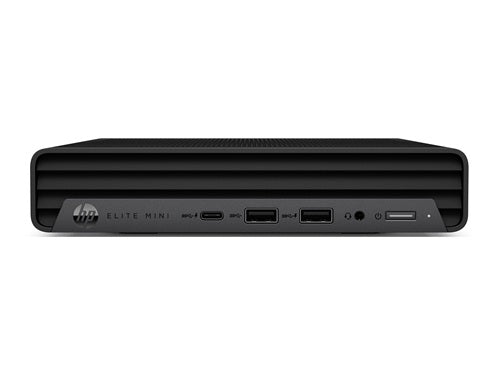

HP Elite Mini 800 G9 Desktop PC Intel i7-14700T vPRO 32GB DDR5 1TB SSD Windows 11 PRO 770 Graphics WLAN 2xDP HDMI KB+Mouse 3YR OS Wty

Description

HP Elite Mini 800 G9 Desktop PC Intel i5-14500T vPRO 16GB DDR5 512GB SSD Windows 11 PRO 770 Graphics WLAN 2xDP HDMI KB+Mouse 3YR OS Wty

Operating system Windows 11 Pro
Processor family Intel® Core™ i7 14th generation processor
Processor Intel® Core™ i7-14700T (up to 5.0 GHz Max Turbo frequency, 33 MB L3 cache, 20 cores, 28 threads)
Chipset Intel® Q670 (vPro®)
Form factor Mini
Graphics (integrated) Intel® UHD Graphics 770
Memory 32 GB DDR5-4800 MT/s (1 x 32 GB) Transfer rates up to 4800 MT/s.
Internal Storage 1 TB PCIe® NVMe™ SSD
Internal drive bays One 2.5' HDD
Slots 1 M.2 2230; 2 M.2 2280 1 M.2 2230 slot for WLAN and 2 M.2 2280 slots for storage
Ports 1 headset connector; 1 SuperSpeed USB Type-A 10Gbps signaling rate; 1 SuperSpeed USB Type-A 10Gbps signaling rate (charging); 1 SuperSpeed USB Type-C® 20Gbps signaling rate
I/O Port location Front
Network interface WLAN
Wireless Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card (supporting gigabit data rate)
Audio Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support
Keyboard HP 655 Wireless Keyboard and mouse combo
Power 90 W external power adapter, up to 89% efficiency, active PFC
Energy efficiency EPEAT® registered
Operating temperature range 10 to 35°C 50 to 95°F
Ecolabels EPEAT® registered
Sustainable impact specifications 45% post-consumer recycled plastic
Energy star certified ENERGY STAR® certified
Security management HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Admin; HP BIOSphere Gen6; HP Client Security Manager Gen7; HP Tamper Lock; HP Sure Start Gen7; HP Sure Run Gen5; HP Sure Recover Gen5; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 11 (Common Criteria EAL4+ certified)(FIPS 140-2 Level 2 certified)
Management features HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download)
Available software HP Smart Support
Warranty 3 year warranty

Specifications

Intel Core i5-13500 (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, LAN, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i5-13500 (24MB Cache)
• 16GB (4400MHz) DDR5-SDRAM & 512GB SSD

Description

LENOVO ThinkCentre M90S G4 SFF Intel i5-13500 16GB DDR5 512GB SSD Windows 11 Pro 1YR OS Intel UHD GPU vPro Keyboard Mouse

Input Devices Physical Characteristics 0
Keyboard Localization English (US) Weight (Approximate) 5.30 kg
Warranty Form Factor Small Form Factor
Additional Warranty Information 1 Year On-site Height 339.5 mm
Chipset Width 92.5 mm
Chipset Manufacturer Intel Depth 297.7 mm
Chipset Model Q670 Product Color Black
Memory Color Family Black
Maximum Memory Supported 128 GB Miscellaneous
Standard Memory 16 GB Package Contents ThinkCentre M90s Gen 4
Memory Technology DDR5 SDRAM Keyboard
Network & Communication Mouse
Ethernet Technology Gigabit Ethernet
LAN Manufacturer Intel Features Security Slot
LAN Model I219-LM Toolless Cover
Display & Graphics Environmentally Friendly Yes
Graphics Controller Manufacturer Intel Environmental Certification TCO Certified 9.0
Graphics Controller Model UHD Graphics 770 TCO Certified Yes
Graphics Memory Technology DDR5 SDRAM Energy Efficiency Compliance Energy-related Products Directive Lot 3 (ErP Lot 3)
Graphics Memory Accessibility Shared Environmental Compliance Restriction of Hazardous Substances (RoHS)
Operating System General Information
Operating System Windows 11 Pro Product Type Desktop Computer
Operating System Architecture 64-bit Manufacturer Part Number 12HRS10J00
Operating System Platform Windows Manufacturer Website Address http://www3.lenovo.com/au/en
Operating System Language English Manufacturer Lenovo Group Limited
Power Description Product Model 12HRS10J00
Input Voltage 120 V AC Product Name ThinkCentre M90s Gen 4
230 V AC Product Line ThinkCentre
Frequency 50 Hz Product Series M90s Gen 4
60 Hz Brand Name Lenovo
Maximum Power Supply Wattage 260 W Interfaces/Ports
Storage Total Number of USB Ports 9
Drive Type SSD Number Of Ethernet Ports 1
Solid State Drive Interface PCI Express NVMe 4.0 x4 USB Type-C Detail 1x USB-C® 3.2 Gen 2 (support data transfer and 15W charging)
Solid State Drive Configuration 1 x 512GB HDMI (Rear) Yes
Total Solid State Drive Capacity 512 GB USB Type-C (Front) Yes
SSD Form Factor M.2 Number of DisplayPort Outputs (Rear) 2
DisplayPort (Rear) Yes
Number of USB 3.2 Gen 1 Ports 6
Number of USB 3.2 Gen 2 Ports 2
Optional Ports Details regarding optional ports aggregated from the information available for this product's family/series. | Optional Rear Ports

1x USB-C® 3.2 Gen 1 with DisplayPort™ function and 5V@3A charging (Flex IO)
1x HDMI® 2.1 TMDS (Flex IO)
1x DP 1.2 (Flex IO)
1x VGA (Flex IO)
1x USB-C® 3.2 Gen 2x2 (support data transfer, via USB-C® expansion card, PCIe® x4)
2x USB-C® 3.2 Gen 2 (support data transfer, via 2-port USB-C® expansion card, PCIe® x4)
2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe® x1)
2x USB 2.0 (via 2-port adapter)
1x parallel
1x serial
1x 2nd serial

Optional Front Ports

1x card reader
Processor
Processor Speed 2.50 GHz
Processor Type Core i5
L2 Cache 11.50 MB
Processor Model i5-13500
Processor Core Tetradeca-core (14 Core)
Processor Manufacturer Intel
vPro Technology Yes
Maximum Turbo Speed 4.80 GHz
Processor Generation 13th Gen
Processor Threads 20

Specifications

Processor
Processor generation	13th gen Intel® Core™ i5
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-13500
Processor cores	14
Processor boost frequency	4.8 GHz
Processor cache	24 MB
Processor threads	20
Performance cores	6
Efficient cores	8
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	65 W
Maximum turbo power	154 W
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory slots	4x DIMM
Memory clock speed	4400 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Audio chip	Realtek ALC897Q-CG
Number of speakers	1
Product type	PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	260 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ErP Lot 3 RoHS compliant TCO Certified 9.0
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	297.7 mm
Height	339.5 mm
Weight	5.3 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
