Collection: Uninterruptible Power Supplies (UPSs)

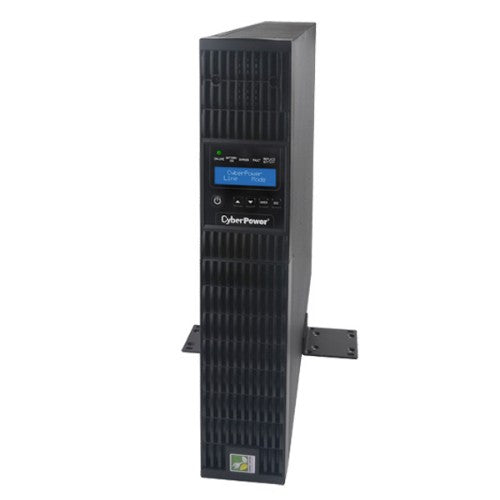

OL2000ERTXL2U 2000VA / 1800W, (8) IEC C13, (1) IEC C19

Description

The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Specifications

Power
Output power capacity	2 kVA
Output power	1800 W
Emergency Power Off (EPO)	Yes
Input frequency	40/70 Hz
Performance
Audible alarm modes	Battery replacement
EMI/RFI noise filtering	Yes
Surge protection	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Audible alarm modes	Battery replacement
Output power capacity	2 kVA
Output power	1800 W
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Audible alarm(s)	Yes
Input frequency	40/70 Hz
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery recharge time	4 h
Typical backup time at half load	11 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Cold start	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
LED indicators	Yes
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Width	433 mm
Depth	600 mm
Height	88 mm
Weight	30 kg
Packaging data
Bundled software	PowerPanel® Business Edition
Logistics data
Harmonized System (HS) code	85078000
Other features
Overload protection	Yes
Compatible operating systems	Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
Packaging content
Bundled software	PowerPanel® Business Edition

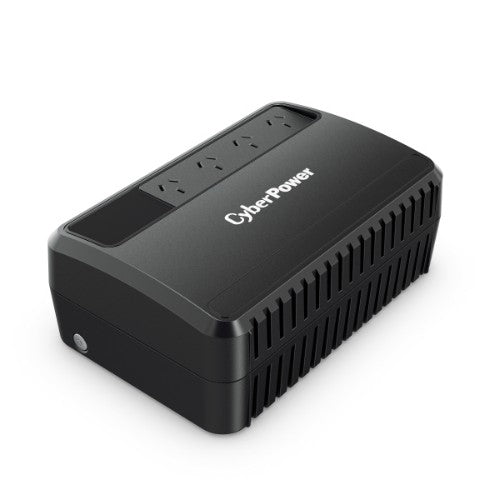

1100VA, 660W, CN x 4, 220V

Key Features

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• Overload Protection
• EMI and RFI Filtration
• Configurable Alarm
• Automatic Voltage Regulation (AVR)
• Generator Compatible
• Surge and Spike Protection
• LED Status Indicator

Description

CyberPower BU1100E provides home and office users with a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power irregularities. As all CyberPower UPSs are designed with fireproof plastic housing, this product provides an outstanding fire-resistant capability (as compared to similar products) to minimize possible damage to valuable assets in case of fire.

The innovative Battery Management Technology significantly increases battery efficiency and promotes increased battery performance and longer battery life. Configurable alarm allows users to switch the audible alarm on or off during battery mode to avoid unnecessary disturbances. Its desktop design allows users to place it easily on desks or other tight spaces.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.1 kVA
Output power	660 W
Input operation voltage (min)	165 V
Input operation voltage (max)	280 V
Output operation voltage (max)	220 V
Maximum current	5 A
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.37 m
AC outlets quantity	4 AC outlet(s)
Performance
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.1 kVA
Output power	660 W
Input operation voltage (min)	165 V
Input operation voltage (max)	280 V
Output operation voltage (max)	220 V
Maximum current	5 A
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Heat dissipation	45 BTU/h
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Design
Form factor	Desktop
Product colour	Black
Cable length	1.37 m
LED indicators	Yes
Housing material	Plastic
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Compliance certificates	CE, RoHS
Weight & dimensions
Width	190 mm
Depth	290 mm
Height	110.5 mm
Weight	7.6 kg
Package width	163 mm
Package depth	340 mm
Package height	267 mm
Package weight	7.68 kg
Packaging data
Package width	163 mm
Package depth	340 mm
Package height	267 mm
Package weight	7.68 kg

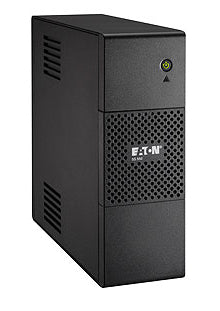

700/420 VA/Watts, AVR with Booster + Fader

Description

The Powerware 5S 700VA/420W LED uninterruptible power system (UPS) was designed to provide the best UPS power protection against the threats that lurk in public utilities. This line-interactive UPS system delivers the ultimate in power quality, constantly safeguarding your equipment from power outages, surges, sags, brownouts, and over-voltage conditions—while also providing varying degrees of power management for additional threats. If utility power is interrupted, even briefly, the Powerware 5S 700VA/420W transfers to UPS battery power.
Typical Backup Time at full load: 4 minutes, at half load: 12 minutes

Specifications

Power
Output power capacity	0.7 kVA
Output power	420 W
Input operation voltage (min)	175 V
Input operation voltage (max)	275 V
Output operation voltage (min)	240 V
Input frequency	50/60 Hz
Performance
Surge protection features	Fax, Modem, Network, Telephone
Noise level	40 dB
Features
Output power capacity	0.7 kVA
Output power	420 W
Input operation voltage (min)	175 V
Input operation voltage (max)	275 V
Output operation voltage (min)	240 V
Surge protection features	Fax, Modem, Network, Telephone
Noise level	40 dB
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
Battery
Typical backup time at half load	9 min
Typical backup time at full load	5 min
Cold start	Yes
Automatic battery test	Yes
Design
Form factor	Tower
Product colour	Black
Safety	IEC/EN 62040-1, IEC/EN 62040 -3
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	87 mm
Depth	260 mm
Height	250 mm
Weight	5.98 kg
Certificates
Safety	IEC/EN 62040-1, IEC/EN 62040 -3

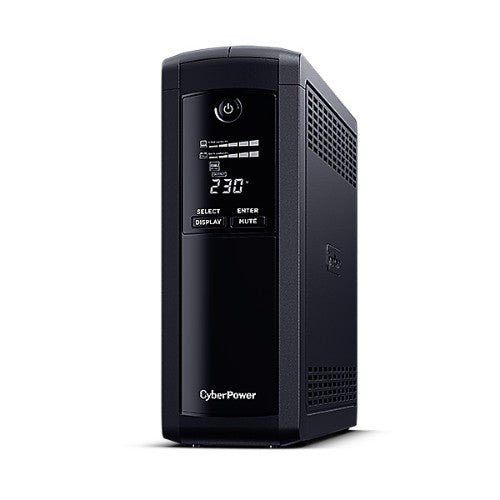

1600 VA, 960W, 167-295V, 50/60Hz, 6.96A, 450J, 50 dB, 100x355x281mm, 10.42kg

Key Features

• Line-interactive UPS Topology
• Generator Compatible
• Automatic Voltage Regulation (AVR)
• High-speed Ethernet Data Transmission
• Surge and Spike Protection
• PowerPanel Management Software
• Energy Saving Technology
• Simulated Sine Wave Output
• LCD Status Display
• USB Connectivity Port

Description

VP1600ELCD

CyberPower VP1600ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.6 kVA
Output power	960 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (max)	230 V
Surge energy rating	450 J
Maximum current	6.96 A
Output voltage regulation	10%
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.5 m
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
Cabling technology	10/100/1000Base-T(X)
AC outlets quantity	5 AC outlet(s)
AC outlet types	Type F
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.6 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	960 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (max)	230 V
Surge energy rating	450 J
Maximum current	6.96 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage
Output voltage regulation	10%
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Heat dissipation	68 BTU/h
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	11 min
Typical backup time at full load	2 min
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Certification	CE, RCM
Cable length	1.5 m
LED indicators	Yes
Housing material	Plastic
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	RoHS
Certificates
Certification	CE, RCM
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Manual	Yes
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	100 mm
Depth	355 mm
Height	281 mm
Weight	10.4 kg
Package width	430 mm
Package depth	165 mm
Package height	384 mm
Package weight	11.3 kg
Packaging data
Cables included	USB cable
Manual	Yes
Package width	430 mm
Package depth	165 mm
Package height	384 mm
Package weight	11.3 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590

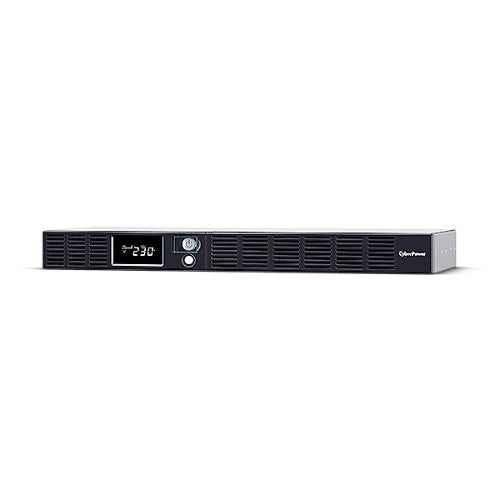

600 VA, 360 W, IEC C13 x 6, Line-interactive, Sine Wave, AVR, Hot-swap, 1U Rack, Silver

Key Features

• Line-interactive UPS Topology
• Energy Saving Technology
• Simulated Sine Wave Output
• Automatic Voltage Regulation (AVR)
• Overload Protection
• Hot-swappable Batteries
• Surge and Spike Protection
• EMI and RFI Filtration
• Phone/Fax/Modem/DSL/Network Protection
• LCD Status Display
• USB Connectivity Port
• PowerPanel® Management Software
• SNMP/HTTP Remote Management Capability (Optional)
• Rack Mount Form Factor

Description

CyberPower OR600ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	0.6 kVA
Output power	360 W
Input operation voltage (min)	165 V
Input operation voltage (max)	271 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
Power factor	0.6
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Waveform	Sine
Power protection features	Overload
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Operation
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	0.6 kVA
Response time	4 ms
Output power	360 W
Input operation voltage (min)	165 V
Input operation voltage (max)	271 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Waveform	Sine
Power protection features	Overload
Power factor	0.6
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	8 h
Typical backup time at half load	13 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Design
Country of origin	China
Rack capacity	1U
Form factor	Rackmount
Product colour	Silver
Certification	CE, EAC, RCM
Cable length	1.83 m
LED indicators	Operation
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	8504408590
Compliance certificates	RoHS
Certificates
Certification	CE, EAC, RCM
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	433 mm
Depth	235 mm
Height	44 mm
Weight	7.8 kg
Package width	530 mm
Package depth	315 mm
Package height	155 mm
Package weight	10.3 kg
Packaging data
Cables included	USB cable
Package width	530 mm
Package depth	315 mm
Package height	155 mm
Package weight	10.3 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590

Line-interactive, 1000 VA, 600 W, 230 V, LCD, IEC C13 x 6, 1U Rack

Key Features

• Line-interactive UPS Topology
• Energy Saving Technology
• Simulated Sine Wave Output
• Automatic Voltage Regulation (AVR)
• Overload Protection
• Hot-swappable Batteries
• Surge and Spike Protection
• EMI and RFI Filtration
• Phone/Fax/Modem/DSL/Network Protection
• LCD Status Display
• USB Connectivity Port
• PowerPanel® Management Software
• SNMP/HTTP Remote Management Capability (Optional)

Description

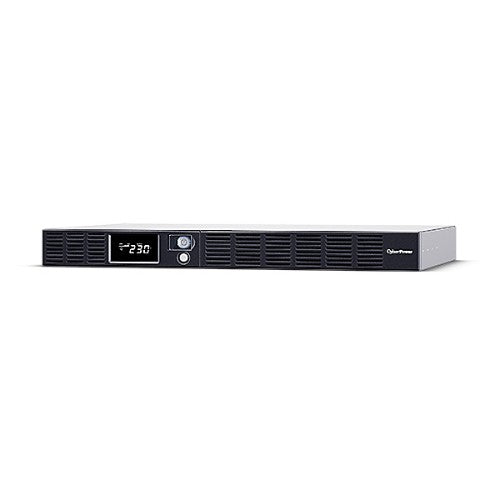

CyberPower OR1000ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1 kVA
Output power	600 W
Input operation voltage (min)	165 V
Input operation voltage (max)	271 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	810 J
Maximum current	10 A
Power factor	0.6
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Performance
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Overload
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Operation
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1 kVA
Response time	4 ms
Output power	600 W
Input operation voltage (min)	165 V
Input operation voltage (max)	271 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	810 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Overload
Power factor	0.6
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	8 h
Typical backup time at half load	14 min
Typical backup time at full load	3.5 min
Hot-swap battery	Yes
Design
Country of origin	China
Rack capacity	1U
Form factor	Rackmount
Product colour	Silver
Certification	CE, EAC, RCM
Cable length	1.83 m
LED indicators	Operation
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	8504408590
Compliance certificates	RoHS
Certificates
Certification	CE, EAC, RCM
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	433 mm
Depth	389 mm
Height	44 mm
Weight	13.7 kg
Package width	545 mm
Package depth	515 mm
Package height	158 mm
Package weight	17.4 kg
Packaging data
Cables included	USB cable
Package width	545 mm
Package depth	515 mm
Package height	158 mm
Package weight	17.4 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590

1.5 kVA, 1.5 kW, 151-302V, 50/60Hz, 2430J, 55.5dB, 433x500x86.5mm, 36.5kg, Black

Description

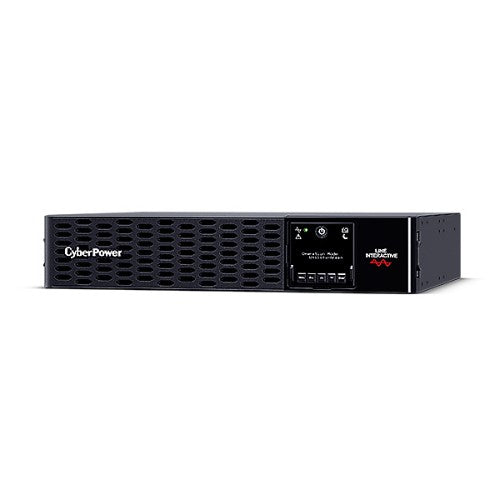

PR1500ERTXL2U

CyberPower PR1500ERTXL2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment. Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Critical/Noncritical Load Outlets

By dividing the outlets according to the importance of the connected loads, users are offered the flexibility to wisely manage the limited battery power during the event of power outage. In the state of a power failure, the UPS battery power can be preserve by terminating the power provided to the non-critical outlets, sparing the power to allow more runtime for critical loads to perform graceful shutdown.

Heavy-duty Rackmount Rails Included

The adjustable rackmount rails are engineered to facilitate the rack mounting of UPS or battery modules and support heavy UPS systems. Installation is quick and easy and required mounting hardware is included.

Sturdy Rackmount Ears Included

The rackmount ears are included for flexible rack mounting of UPS or battery modules. For some rack/tower convertible models, the ears also serve as supporting stands to provide stability and keep the unit upright. Installation is quick and easy and required mounting hardware is included.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.5 kVA
Output power	1500 W
Input operation voltage (min)	159 V
Input operation voltage (max)	288 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	10 A
Emergency Power Off (EPO)	Yes
Output power factor	1
Power Factor Correction (PFC) type	Active
Input frequency	50/60 Hz
Ports & interfaces
Cable length	3.05 m
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Battery
Battery type	RBP0129
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	3 h
Typical backup time at half load	19.3 min
Typical backup time at full load	6.5 min
Hot-swap battery	Yes
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Pure sine
Power protection features	Overload
Automatic Voltage Regulation (AVR)	Yes
Noise level	55.5 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	1500 W
Input operation voltage (min)	159 V
Input operation voltage (max)	288 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Overload
Output power factor	1
Automatic Voltage Regulation (AVR)	Yes
Noise level	55.5 dB
Audible alarm(s)	Yes
Power Factor Correction (PFC) type	Active
Input frequency	50/60 Hz
Heat dissipation	71.7 BTU/h
Design
Country of origin	China
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Cable length	3.05 m
Cooling type	Active
LED indicators	Yes
Built-in fan	Yes
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI
Packaging content
Cables included	Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Cooling
Cooling type	Active
Built-in fan	Yes
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	433 mm
Depth	500 mm
Height	86.5 mm
Weight	36.5 kg
Package width	560 mm
Package depth	620 mm
Package height	275 mm
Package weight	38.8 kg
Packaging data
Cables included	Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Package width	560 mm
Package depth	620 mm
Package height	275 mm
Package weight	38.8 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
Other features
Battery type	RBP0129

Smart App UPS for Network and Server

Key Features

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• Critical/Non-critical Load Outlets
• Surge and Spike Protection
• LCD Status Display
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
• Energy Saving Technology
• Pure Sine Wave Output
• Overload Protection
• Hot-swappable Batteries
• EMI and RFI Filtration
• USB Connectivity Port
• PowerPanel Management Software
• Tower Form Factor

Description

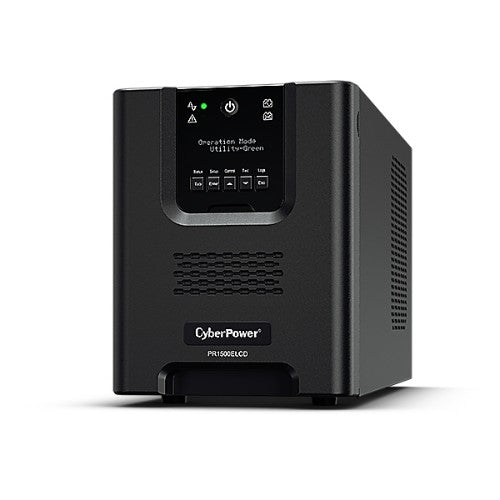

The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. Its detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.

The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.5 kVA
Output power	1350 W
Input operation voltage (min)	151 V
Input operation voltage (max)	301 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
Emergency Power Off (EPO)	Yes
Power factor	0.9
Input frequency	50/60 Hz
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Pure sine
Power protection features	Overload
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Error, Operation
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Response time	4 ms
Output power	1350 W
Input operation voltage (min)	151 V
Input operation voltage (max)	301 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Overload
Power factor	0.9
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Number of output IEC jumpers	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	8 h
Typical backup time at half load	17 min
Typical backup time at full load	5 min
Hot-swap battery	Yes
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Certification	CE, EAC, RCM, RoHS
LED indicators	Error, Operation
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	8504408590
Certificates
Certification	CE, EAC, RCM, RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	170 mm
Depth	432 mm
Height	221 mm
Weight	25.1 kg
Package width	316 mm
Package depth	579 mm
Package height	360 mm
Package weight	27 kg
Packaging data
Cables included	USB cable
Package width	316 mm
Package depth	579 mm
Package height	360 mm
Package weight	27 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
Other features
Overload protection	Yes
Compatible operating systems	Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux
