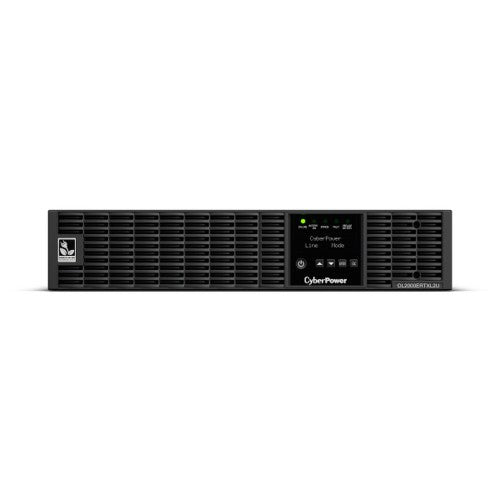

The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Specifications
Power
Output power capacity
2 kVA
Output power
1800 W
Emergency Power Off (EPO)
Yes
Input frequency
40/70 Hz
Performance
Audible alarm modes
Battery replacement
EMI/RFI noise filtering
Yes
Surge protection
Yes
LED indicators
Yes
Audible alarm(s)
Yes
Features
Audible alarm modes
Battery replacement
Output power capacity
2 kVA
Output power
1800 W
EMI/RFI noise filtering
Yes
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Audible alarm(s)
Yes
Input frequency
40/70 Hz
Ports & interfaces
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery recharge time
4 h
Typical backup time at half load
11 min
Typical backup time at full load
4 min
Hot-swap battery
Yes
Cold start
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
Product colour
Black
LED indicators
Yes
Technical details
Harmonized System (HS) code
85078000
Weight & dimensions
Width
433 mm
Depth
600 mm
Height
88 mm
Weight
30 kg
Packaging data
Bundled software
PowerPanel® Business Edition
Logistics data
Harmonized System (HS) code
85078000
Other features
Overload protection
Yes
Compatible operating systems
Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
