Collection: Power Distribution Units (PDUs)

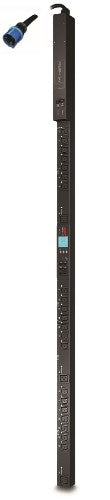

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

Description

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Specifications

Design
Type	Single-phase
PDU types	Metered, Metered-by-outlet, Switched
Mounting	Vertical
Product colour	Black
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Rack capacity	0U
Ports & interfaces
Power plug	IEC309
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
Cable length	3 m
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	3 m
Power
Maximum power	7680 W
Nominal input voltage	230 V
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Power protection features	Overload
AC input frequency	50 - 60 Hz
Certificates
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	8.23 kg
Width	56 mm
Depth	51 mm
Height	1829 mm
Package width	162 mm
Package depth	118 mm
Package height	2038 mm
Package weight	10.5 kg
Packaging data
Package width	162 mm
Package depth	118 mm
Package height	2038 mm
Package weight	10.5 kg
Technical details
Total carbon footprint (kg of CO2e)	8595.81
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	8595.81

Basic Rack PDU AP9572

Description

Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13.

Specifications

Design
PDU types	Basic
Mounting	Vertical
Product colour	Black
Rack capacity	0U
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	15 AC outlet(s)
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Output connections	(15) IEC 320 C13
Features
Cable length	2.5 m
Ergonomics
Cable length	2.5 m
Power
Maximum power	3680 W
Nominal input voltage	23 V
Output voltage	230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	2 kg
Width	44 mm
Depth	44 mm
Height	620 mm

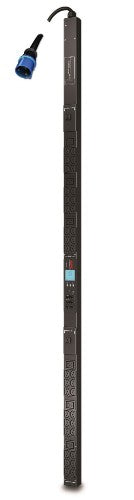

NetShelter Metered Rack PDU, 0U, 1PH, 7.4kW 230V32A, 36 C13 and 6 C19 outlets, IEC 309 2P+E cord

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

Design
Type	Single-phase
PDU types	Metered
Mounting	Vertical
Product colour	Black
Certification	RoHS, REACH IEC 60950,VDE
Rack capacity	0U
Ports & interfaces
Power plug	IEC309
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC 309 32A 2P+E
Output connections	36x IEC 320 C13 6x IEC 320 C19
Features
Cable length	3 m
Certification	RoHS, REACH IEC 60950,VDE
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	3 m
Power
Maximum power	7680 W
Nominal output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
AC input frequency	50 - 60 Hz
Certificates
Certification	RoHS, REACH IEC 60950,VDE
Operational conditions
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	6.93 kg
Width	56 mm
Depth	44 mm
Height	1791 mm
Technical details
Total carbon footprint (kg of CO2e)	28921.23
Logistics data
Total carbon footprint (kg of CO2e)	28921.23

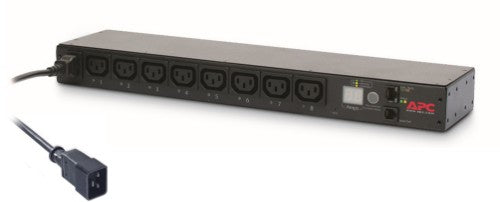

NetShelter Switched Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, 8 C13 outlets, C20cord

Description

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Specifications

Design
PDU types	Metered, Switched
Mounting	Horizontal/Vertical
Product colour	Black
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Rack capacity	0U/1U
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Features
Cable length	2.5 m
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	2.5 m
Power
Maximum power	3680 W
Nominal input voltage	200-230 V
Maximum current	16 A
Nominal output voltage	208-230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
AC input frequency	50 - 60 Hz
Certificates
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	1 - 15000 m
Weight & dimensions
Weight	2.27 kg
Width	445 mm
Depth	108 mm
Height	44 mm
Package width	470 mm
Package depth	343 mm
Package height	70 mm
Package weight	3.45 kg
Packaging content
Packaging content	Installation Guide, Rack Mounting Brackets, User Manual
Packaging data
Package width	470 mm
Package depth	343 mm
Package height	70 mm
Package weight	3.45 kg
Technical details
Total carbon footprint (kg of CO2e)	915.89
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	915.89

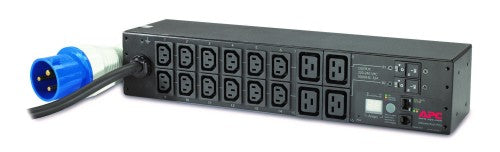

NetShelter Metered Rack PDU, 2U, 1PH, 7.4kW 230V 32A, x12 C13 and x4 C19 outlets, IEC 309 cord

Description

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Design
On/off switch	Yes
Type	Single-phase
PDU types	Metered
Mounting	Horizontal/Vertical
Product colour	Black
Certification	C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Rack capacity	2U
Ports & interfaces
Power plug	IEC309
AC outlets quantity	16 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC 309 32A 2P+E
Output connections	12 x C13 4 x C19
Features
LED indicators	Yes
Cable length	3.66 m
Certification	C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Management features
Monitoring	Current, Power, Voltage
Ergonomics
LED indicators	Yes
Cable length	3.66 m
Power
Maximum power	7680 W
Nominal input voltage	208-230 V
Maximum current	32 A
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Power protection features	Overload
AC input frequency	50 - 60 Hz
Certificates
Certification	C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	3.36 kg
Width	444 mm
Depth	112 mm
Height	88 mm
Package width	508 mm
Package depth	368 mm
Package height	140 mm
Package weight	5.41 kg
Packaging data
Package width	508 mm
Package depth	368 mm
Package height	140 mm
Package weight	5.41 kg
Technical details
Total carbon footprint (kg of CO2e)	8952.07
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	8952.07

APC NetShelter Rack PDU Advanced Gen 2, Metered, 7.4kW, 1Phase, 230V, 32A, 332P6, 40 Outlets

Key Features

• Ideal for high-density applications
• Next-gen PDU speeds up IT deployments — one PDU for every type of device
• 4-in-1 combination outlet design acts as C13, C15, C19, and C21 in one outlet
• Enhanced cybersecurity and EcoStruxure™ IT compatible
• 1 year free subscription to Secure NMC3 System

Description

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A and features 20 count C13/C15/C19/C21 combo outlets and 20 count C13/C15 outlets.

Specifications

Design
Type	Single-phase
PDU types	Metered
Product colour	Black
Certification	UKCA, CE, EN 62368-1, RoHS
Rack capacity	0U
Ports & interfaces
USB ports quantity	1
AC outlets quantity	40 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports	5
Features
Certification	UKCA, CE, EN 62368-1, RoHS
Management features
Management platform	NMC3
Power
Nominal input voltage	230 V
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	7400 VA
AC input frequency	50/60 Hz
Number of phases	1
Certificates
Certification	UKCA, CE, EN 62368-1, RoHS
Weight & dimensions
Weight	6.2 kg
Width	56 mm
Depth	75 mm
Height	1490 mm
Package width	116 mm
Package depth	208 mm
Package height	1720 mm
Package weight	8.2 kg
Packaging data
Package width	116 mm
Package depth	208 mm
Package height	1720 mm
Package weight	8.2 kg

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Description

Description:

APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19

Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual

Output Voltage(s) (main only) - 120, 208, 230 V

Maximum Total Current Draw per Phase - 16 A

Output Connections - (10)IEC 320 C13; (2)IEC 320 C19

Always on Outlets - 12
Overload Protection

Input:

Nominal input voltage - 120, 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C20

Cord Length 8.2 feet ( 2.5 meters )

Acceptable Input Voltage - 90-250 VAC

Maximum Line Current per phase - 16.0 A

Maximum Input Current per phase - 16.0 A

Load Capacity - 3680

Specifications

Design
Type	Single-phase
PDU types	Basic
Mounting	Horizontal/Vertical
Product colour	Black
Rack capacity	0U/1U
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
I/O ports	Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
Features
Cable length	2.5 m
Ergonomics
Cable length	2.5 m
Power
Maximum power	3680 W
Load capacity	3680 VA
Maximum input current per phase	16 A
Weight & dimensions
Dimensions (WxDxH)	447 x 57.2 x 44.5 mm
Weight	980 g
Width	447 mm
Depth	57.2 mm
Height	44.5 mm
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%

Enlogic by nVent G3 Metered 1-phase 7.3kVA/Outlets (32) C13 (6) Combo C13/C19 PDU for HPE

Reasons To Buy

Powerfully Built Power Distribution, Because no Two Environments are the Same

Enlogic by nVent G3 Enterprise Power Distribution Units for HPE are backed by a 5-year Manufacturer warranty.
Premium materials and robust construction offer power continuity and maintained performance at elevated temperatures.
Enlogic by nVent G3 PDUs for HPE include vertical and horizontal models with power output options ranging from 1.9 kVA to 22 kVA.
Single- and three-phase models to meet your facility power needs.

Get Power Where You Need it to Go – and Keep it There

Enlogic by nVent G3 Enterprise PDUs for HPE horizontal/modular PDU models can be installed in any U position in your rack.
Optional dual-locking power cords secure the PDU to both power source and device, protecting against disconnection— accidental or intentional.
Integrated cord retention to connect the right cord to the right outlet, quickly and easily.

Vertical PDU Models Use Button and Keyhole Mounting for Simple Drop in Install

Enlogic by nVent G3 Enterprise PDUs for HPE vertical form factor models have a wide range of single- and three-phase options providing up to 22 kVA of output power.
Flexible vertical mounts on either rear side use industry-standard button and keyhole mounting, preventing interference in the maintenance zone between rear RETMA rails.
Using the optional configuration of facing the outlets into the rack, multiple PDUs can be mounted on one side of the rack for higher power density.
Enlogic by nVent G3 PDUs for HPE have a wide range of mounting options to fit every application. Power where you need it—plus more room for compute.

From Purchase to Prime Time, Getting Power Where You Need It has Never Been Easier

Enlogic by nVent G3 Enterprise Power Distribution Units for HPE introduces the C13/C19 combination outlet providing flexible outlet configurations.
Impressive high-density PDUs mean more power and less headache for even the most demanding compute applications.
Toolless installation, low profile, and modular extensions simplify configuration and reduce time to deployment.

Description

Do you need impressive power distribution with simple installation and maintenance? Enlogic by nVent G3 Enterprise Power Distribution Units for HPE are designed to work precisely with Hewlett Packard Enterprise infrastructure and compute solutions to provide a compatible, industry-standard fit for use with HPE advanced, and enterprise server racks. Built with high-temperature grade premium components, Enlogic by nVent G3 PDUs for HPE can operate in temperatures up to 60°C over extended periods of time and provide reliable operation backed by a 5-year warranty.

What is new supporting point:
Premium materials and robust construction provide power continuity and maintained performance at elevated temperatures.
Wide range of mounting options to fit every application. Power where you need it—plus more room for compute.
Optional dual-locking power cords secure the PDU to both power source and device, protecting against disconnection—accidental or intentional.
Compatible fit and reliable operation is backed by a 5-year warranty.
C13/C19 Combination outlets offer flexible configurations.

Specifications

Design
PDU types	Metered
Mounting	Horizontal/Vertical
Product colour	Black
Rack capacity	0U/1U
Ports & interfaces
AC outlets quantity	32 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, NEMA 5–20R
Power
Load capacity	7300 VA
