Collection: Maintenance Bypass Panels (MBPs)

HotSwap, MBP, IEC

Description

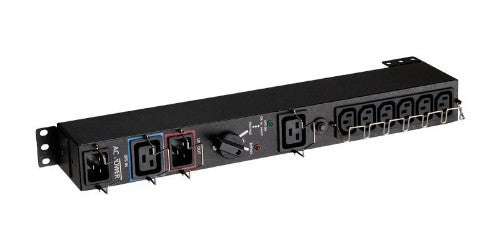

The Eaton HotSwap MBP series is made of versatile, flexible 2U PDUs designed to add high availability to UPSs up to 3,000 VA. Any UPS connected to a HotSwap MBP can be replaced for maintenance or upgrade purposes without interrupting the power supply to the protected devices. As a unique feature, they can be screwed at the back a Pulsar UPS, either front-facing or rear-facing, on the left or right hand side, for maximum versatility. They offers multiple mounting options for rack enclosures, wall mounting or connection at the rear of a UPS, whatever its brand.

Features and Benefits
- Adds high availability to UPSs up to 3,000 VA
- Can be rackmounted, wallmounted or connected at the rear of an Eaton UPS in 3 different ways
- 2U versatile power distribution unit
- Easy plug-in connectivity
- Universal solution

Specifications

Features
Housing colour	Black
Rack capacity	1U
Rack mounting	Yes
Operating temperature (T-T)	0 - 40 °C
Ports & interfaces
UPS input	IEC20
UPS output	IEC19
Power
Operation voltage range	220 - 240 V

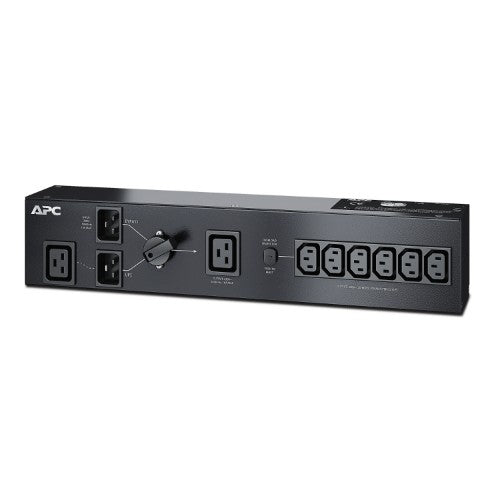

230V, 16A, 3000VA, 6 x IEC 320 C13 & 1 x IEC 320 C19 Out, 1 x IEC Jumper, 1 x IEC-320 C20 In, OLP, 2.5m Cord, 2.09kg, Black

Description

APC Maintenance Bypass Panels , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19,IEC Jumpers

Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.

Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load

Specifications

Features
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Certification	VDE, REACH
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	432 mm
Depth	76 mm
Height	89 mm
Weight	2.09 kg

APC Service Bypass Panel- 230V; 50A; BBM; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13

Description

Features:
19 inch Rack-Mountable
Quick Transfer Rate
Wrap Around System Bypass

Specifications

Features
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	432 mm
Depth	66 mm
Height	89 mm
Weight	11.4 kg
