Collection: NAS & Storage Servers

2.5-Gigabit Ethernet, RTD1619B 1.7GHz quad-core, 2GB DDR4 RAM, 8GB eMMC, USB 3.2, 90W, 100 - 240V, 19.7dB, 2.2 kg

Key Features

• Equipped with Realtek RTD1619B 1.7GHz quad-core processor
• Superfast 2.5-Gigabit Ethernet
• 2 GB DDR4 RAM
• Upgraded powerful internal display, smooth transcoding of 4K videos
• Supports Wake on LAN and Wake on WAN
• Btrfs/iSCSI Snapshots
• Tool-free installation

Description

Multimedia Transcoding - Btrfs Support - Maximum Value
Affordable personal cloud bringing high speeds for individuals and families.

CPU and iGPU Upgrades
The Drivestor Pro Gen2 contains a 1.7 GHz CPU, which is faster than the 1.4 GHz found in the first generation of Drivestor Pro NAS devices. The upgraded CPU also contains an upgraded iGPU that provides significant upgrades in transcoding features and performance, making the Drivestor Pro Gen2 the best price-performance NAS.

2.5-Gigabit Ethernet – Double Speed
The Drivestor 4 Pro Gen2, despite being extremely affordable contains 2.5-Gigabit Ethernet and more than doubles the performance of comparable Gigabit-class devices.

Regular access (RAID 5)

2GB DDR4 RAM
The Drivestor Pro Gen2 handles multitasking with ease by utilizing its 2 GB of DDR4 memory ensuring that virtually any task on an ASUSTOR NAS is executed smoothly.

Easily Get Started with ASUSTOR
The all-new navigation page helps make controlling your NAS and data even easier. A user friendly UI incentivizes becoming familiar with the numerous features an ASUSTOR NAS provides to ensure better data security.

Efficient and Powerful
The Drivestor Pro Gen2 are ASUSTOR’s highest value devices ever. Transcode 10-bit 4K H.265 media with hardware decoding easily that enables unbelievably smooth video playback in LooksGood.

Share and Share Alike!
Share links can create hyperlinks to share with other people to upload and download files to and from an ASUSTOR NAS. While share links come with multiple customizable options to increase convenience or security, people that use a share link are not required to have an account to upload and download files on the share link, making it more convenient for project collaboration or organizing travel photos.

Btrfs for ARM is Here!
The Drivestor Pro Gen2 is the first ARM NAS by ASUSTOR to support Btrfs. Use your Drivestor Pro Gen2 to create Btrfs snapshots in Snapshot Center for extra data protection. Snapshot Center supports scheduling or manual creation of snapshots, making it easier to restore files after unintentional modifications. Snapshots can be used to respond to ransomware threats in real time and help effectively protect data integrity.

Tool-free Installation
ASUSTOR’s Driverstor Pro Gen2 series introduces its new tool-free caddies as a way to simplify installation of hard drives. Each NAS comes included with brackets to install the drive easily. On the Driverstor Pro Gen2 series, hot-swapping of hard drives is supported, allowing you to change hard drives easily without powering down the NAS.

Exclusive MyArchive Cold Backup Technology
Unlimited Capacity Expansion
MyArchive cold storage technology turns NAS hard drives into removable storage archive drives. Directly insert a MyArchive hard drive into a free bay inside your NAS to easily access, backup and share terabytes of content.

Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups

Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout

Internal Data
- MyArchive on and offsite backups
- AES-256 folder encryption
- Antivirus software

Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
- Wake-on-WAN (WAN)

Protected From Ransomware
The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks. With Snapshot Center and Btrfs providing efficient snapshots to easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features black and white lists and the ability to change default ports, disable SSH and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256bit encryption.

DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Web Center
Easily set up a website with Web Center. Install Apache or Nginx or almost any other web server implementation and add multiple website portals for an easy-to-use web server experience.

Photo Gallery 3 + AiFoto 3
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.

Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 25 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

Portainer – Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Mobile Apps
ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

First-Class Product Warranty

All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

Specifications

Storage
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	Realtek
Processor family	Realtek
Processor model	RTD1619B
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	2 GB
Flash memory	8192 MB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
Design
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
LED indicators	Yes
Performance
Built-in UPnP AV media server	Yes
Share folder access right management	Yes
Browser supported	Microsoft Edge, Firefox, Chrome
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level (idle)	19.7 dB
Operating system installed	ADM
Operating system version	4.1
Web-based management	Yes
Security algorithms	256-bit AES, HTTPS, SSH, SSL/TLS
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported	FreeBSD, UnixWare
Software
Operating system installed	ADM
Operating system version	4.1
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported	FreeBSD, UnixWare
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	90 W
Number of power supply units	1
Power consumption (typical)	25.1 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	174 mm
Depth	230 mm
Height	170 mm
Weight	2.2 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC

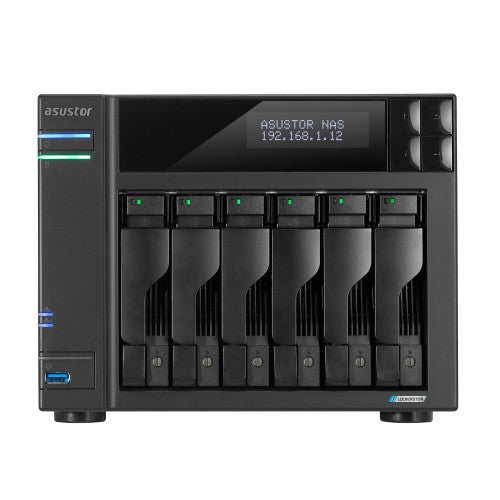

Intel Celeron N5105, 8GB SO-DIMM DDR4, 250W x1, 185.5 (H) x 233 (W) x 230 (D) mm, 100V to 240V AC

Key Features

• Quad-Core 10 nm Intel Celeron N5105 CPU brings 31% more performance
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for 10GbE NICs or M.2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports – 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN

Description

Enthusiast-grade NAS with two, four or six bays
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.

Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality

CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.

Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

Specifications

Storage
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Storage drive interface	M.2, Serial ATA, Serial ATA II, Serial ATA III
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	4
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor boost frequency	2.9 GHz
On-board graphics card model	Intel® UHD Graphics
Processor model	N5105
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Jumbo frames support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
Built-in display	Yes
Display type	LCD
Performance
Browser supported	Firefox, Chrome, Safari, Microsoft Edge
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Noise level	18.1 dB
Operating system installed	ADM
Operating system version	4.1
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	MacOS
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022
Software
Operating system installed	ADM
Operating system version	4.1
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	MacOS
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power consumption (HDD standby)	27.7 W
Power supply location	External
Power supply unit (PSU) capacity	250 W
Power consumption (typical)	48.5 W
Power consumption (sleep)	0.81 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	233 mm
Depth	230 mm
Height	185.5 mm
Weight	4.4 kg
Technical details
Harmonized System (HS) code	84714100
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Logistics data
Harmonized System (HS) code	84714100
Other features
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

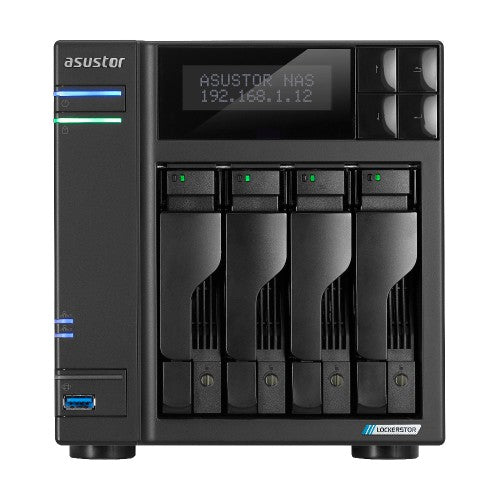

Intel Celeron N5105, 4GB SO-DIMM DDR4, 90W x1, 8GB eMMC, 1x HDMI 2.0b, 17.6dB, 100V to 240V AC

Key Features

• Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for 10GbE NICs or M.2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports – 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN

Description

Enthusiast-grade NAS with two, four or six bays
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.

Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality

CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.

Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Storage drive capacity	0 GB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	M.2, Serial ATA
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	4
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron® N
CPU configuration (max)	1
Processor cache	4 MB
On-board graphics card model	Intel® UHD Graphics
Processor model	N5105
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Memory clock speed	2933 MHz
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Concurrent connections	512
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
LED indicators	Yes
Built-in display	Yes
Display type	LCD
Performance
System log	Yes
S.M.A.R.T. support	Yes
Browser supported	Firefox, Chrome, Safari, Microsoft Edge
Type	NAS
Universal Plug and Play (UPnP)	Yes
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level	17.6 dB
Operating system installed	ADM
Operating system version	4.1 Onwards
Web-based management	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Software
Operating system installed	ADM
Operating system version	4.1 Onwards
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Power
Power supply location	External
Power supply unit (PSU) capacity	90 W
Power consumption (typical)	35 W
Power consumption (sleep)	0.88 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	170 mm
Depth	230 mm
Height	185.5 mm
Weight	2.94 kg
Technical details
Harmonized System (HS) code	84714100
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84714100

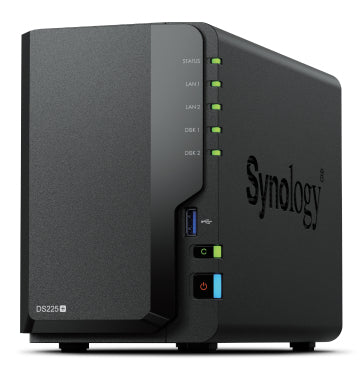

Intel Celeron J4125, 100V to 240V AC, 50/60 Hz, 60 watts, Black

Description

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, and protect your assets with professional video surveillance.

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Hard drives designed for Synology

See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Specifications

Storage
Storage drives installed	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	2
Storage drive interface	Serial ATA
RAID support	Yes
RAID levels	0, 1, JBOD
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor boost frequency	2.7 GHz
Processor model	J4125
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	2 GB
Maximum RAM supported	6 GB
ECC	No
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	2
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	9.2 cm
LED indicators	LAN
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Noise level	19.6 dB
Operating system installed	Synology DSM
Reset button	Yes
Software
Operating system installed	Synology DSM
Power
Power consumption (typical)	60 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	108 mm
Depth	232.2 mm
Height	165 mm
Weight	1.3 kg
Technical details
Compliance certificates	BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, UKCA, VCCI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Other features
Compliance certificates	BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, UKCA, VCCI

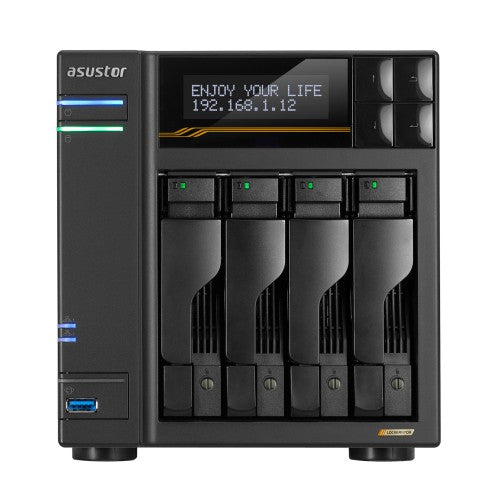

Asustor LOCKERSTOR 4 Gen3, NAS, Desktop, AMD Ryzen, V3C14, 16 GB, DDR5

Description

Asustor LOCKERSTOR 4 Gen3. Type: NAS. Chassis type: Desktop. Device class: Home & Home Office. Processor family: AMD Ryzen, Processor model: V3C14, Processor frequency: 2.3 GHz. Internal memory: 16 GB, Internal memory type: DDR5. Operating system installed: ADM

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Storage drive interface	M.2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Supported file systems	BTRFS, HFS+, NTFS, exFAT, ext4
Storage drive sizes supported	2.5,3.5,M.2
Processor
Processor manufacturer	AMD
Processor family	AMD Ryzen
Processor boost frequency	3.8 GHz
Processor model	V3C14
Processor frequency	2.3 GHz
Processor cores	4
Memory
Internal memory type	DDR5
Internal memory	16 GB
Memory clock speed	4800 MHz
Maximum RAM supported	64 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500,10000 Mbit/s
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
Built-in display	Yes
Display type	LCD
Performance
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Noise level	17.6 dB
Operating system installed	ADM
Web-based management	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Software
Operating system installed	ADM
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power supply location	External
Power supply unit (PSU) capacity	90 W
Power consumption (typical)	34 W
Power consumption (sleep)	2.3 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	170 mm
Depth	230 mm
Height	185.5 mm
Weight	3.2 kg
Technical details
Warranty period	3 year(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Other features
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty period	3 year(s)

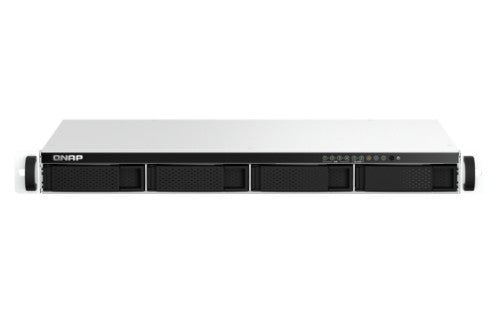

4 x 3.5", Intel Celeron N5095, 8 GB SO-DIMM DDR4, 4 GB Flash, LAN, 100 W, 100-240 V, 43.3 x 482.6 x 321.33 mm, 4.35 kg

Key Features

• 2.5GbE connectivity: Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports
• HDMI Output: Supports 4K media playback and real-time transcoding
• NVMe SSD application: Two M.2 PCIe NVMe SSD slots support Qtier™ auto-tiering technology and SSD caching
• USB interface: Two USB 3.2 Gen 2 10Gbps ports for faster data transfer
• Backup and data recovery: Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services
• Hybrid cloud applications: Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS

Description

TS-464eU
1U Short depth rackmount 2.5GbE NAS, upgrades to M.2 NVMe SSD slots for greater performance

The TS-464eU is powered by Intel® Celeron® N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-464eU surpasses the previous generation.

Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB
The TS-464eU is powered by Intel® Celeron® N5095/N5105 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.

Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A fast 2.5GbE NAS
A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Upgrade computers and servers
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add a 5GbE port to laptops
Laptops and upgrade-limited computers can use QNAP’s portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

A switch that supports 2.5GbE+
QNAP’s 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

Future-proof your IT infrastructure for high-speed networks
The TS-464eU is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-464eU. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.

Accelerate AI–powered image recognition and caching with TPU and PCIe expansion M.2 PCIe Gen3
The TS-464eU has two M.2 PCIe Gen3 slots, enabling cache acceleration or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

NVMe 2 SSDs for cache acceleration or efficient tiered storage
The TS-464eU supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-464eU with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

Accelerate AI–powered image recognition with TPU
By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-464eU can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-464eU accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

Direct 4K HDMI output for multimedia and virtual machine display
The TS-464eU features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 1.4b output supports up to 4K @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-464eU to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-464eU as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

QTS 5, Fast, smooth, and easy-to-use!
The TS-464eU comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Comprehensive backup and disaster recovery solution
The TS-464eU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-464eU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats
The TS-464eU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-464eU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

The best file storage and collaboration center
The TS-464eU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

File Station
Manage, access, and share all the files in the TS-464eU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync
Make any file uploaded to a TS-464eU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Qfiling
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Comprehensive security and privilege settings
The TS-464eU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

Simplified privilege settings
The TS-464eU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Security Counselor
A security portal for the TS-464eU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-464eU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-464eU, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Conainer Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.

Single Root I/O Virtualization (SR-IOV)
By installing an SR-IOV compatible PCIe SmartNIC in the TS-464eU, you can allocate bandwidth resources from a physical network card directly to VMs, increasing network efficiency and reduced CPU overheads.

Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-464eU and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-464eU storage as needed to accommodate data and business growth.

Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-464eU, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-464eU while also centrally managing files on the NAS, cloud storage, and remote devices.

More productivity-boosting applications
The TS-464eU provides an App Center that includes feature-rich apps to expand your NAS potential!

QuObjects
Run a high-performance S3 compatible development environment on your TS-464eU to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.

Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Qmiix
An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.

QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.

Browser Station
Remotely access protected data on the same LAN as the TS-464eU without going through complex VPN settings.

QuFTP
The TS-464eU can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA III, Serial ATA II
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor boost frequency	2.9 GHz
On-board graphics card model	Intel® UHD Graphics
Processor model	N5095
Processor frequency	2 GHz
Processor cores	4
L3 cache	4 MB
Number of processors supported	1
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	4000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Rack (1U)
Product colour	Aluminium, Black
Cooling type	Active
Number of fans	3 fan(s)
Fan diameter	4 cm
LED indicators	HDD, LAN, Power, SSD, Status, USB
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Password authentication	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP Turbo System
Operating system version	5.0.0
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP V2/V3
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Snapshot	Yes
Software
Operating system installed	QNAP Turbo System
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power consumption (HDD standby)	21.105 W
Power supply location	Built-in
Power supply unit (PSU) capacity	100 W
Power consumption (typical)	35.297 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Weight & dimensions
Width	482.6 mm
Depth	297.4 mm
Height	43.3 mm
Weight	4.35 kg
Package width	542 mm
Package depth	415 mm
Package height	179 mm
Package weight	5.9 kg
Technical details
Warranty period	3 year(s)
Packaging content
Number of screws	28
Package type	Box
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Other features
Warranty period	3 year(s)

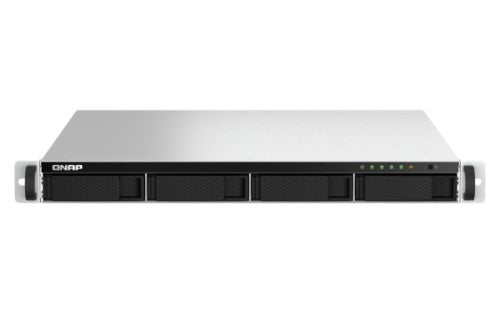

4 x 3.5", Intel Celeron N5095, 8 GB on board, 4GB Flash, LAN, 250W (x2), 100 - 240V, 43.3 x 482.6 x 508.7 mm

Key Features

• 2.5GbE connectivity: Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
• PCIe expandability: Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card
• Snapshots: Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data
• License-free virtualized environment: Host multiple containerized apps to run a wide range of applications and services
• Drives Auto-Tiering: Qtier™ auto-tiering technology and SSD caching enable constant storage optimization
• Flexible expansion: Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units

Description

Powered by an Intel® Celeron® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime.

Quad-core high performance and up to 16GB RAM
The TS-464U-RP is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Streamline large file transfers and video editing with 2.5GbE
The TS-464U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-proof your IT infrastructure for high-speed networks
The TS-464U-RP is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-464U-RP. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O capabilities with PCIe expansion
The TS-464U-RP has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.

SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-464U-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-464U-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Direct 4K HDMI output for multimedia and virtual machine display
The TS-464U-RP features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 1.4b output supports up to 4K (3840 x 2160p) @60Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-464U-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-464U-RP as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-464U-RP accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QuMagie photo management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.

QTS 5, Fast, smooth, and easy-to-use!
The TS-464U-RP comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Comprehensive backup and disaster recovery solution
The TS-464U-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-464U-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats
The TS-464U-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-464U-RP to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-464U-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Conainer Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.

Comprehensive security and privilege settings
The TS-464U-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-464U-RP through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified privilege settings
The TS-464U-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-464U-RP as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor
A security portal for the TS-464U-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-464U-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

The best file storage and collaboration center
The TS-464U-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

File Station
Manage, access, and share all the files in the TS-464U-RP and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync
Make any file uploaded to a TS-464U-RP available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Qfiling
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-464U-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-464U-RP storage as needed to accommodate data and business growth.

Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-464U-RP, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-464U-RP while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More productivity-boosting applications
The TS-464U-RP provides an App Center that includes feature-rich apps to expand your NAS potential!

QuObjects
Run a high-performance S3 compatible development environment on your TS-464U-RP to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.

Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Proxy Server
By using a high-capacity TS-464U-RP as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.

QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.

Qcontactz
Centrally manage all your contacts, import contacts from Google™, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.

QuFTP
The TS-464U-RP can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

S.M.A.R.T. and back block scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Seagate® IronWolf™ Health Management
When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
RAID support	Yes
RAID levels	0, 6, 1, JBOD, 5, 10
Hot-swap drive bays	Yes
Supported file systems	FAT32, exFAT, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor boost frequency	2.9 GHz
On-board graphics card model	Intel® UHD Graphics
Processor model	N5095
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	4000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,1000,2500,100 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Concurrent connections	1500
PCI Express x2 (Gen 3.x) slots	1
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Rack (1U)
Product colour	Aluminium, Black
Cooling type	Active
Number of fans	2 fan(s)
Fan diameter	4 cm
LED indicators	HDD, Status, Power, LAN
Performance
Built-in FTP server	Yes
System log	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP V2, V3
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 8, Windows 7, Windows 11
Linux operating systems supported	Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2019, Windows Server 2012 R2, Windows Server 2008 R2, Windows Server 2016, Windows Server 2012
Other operating systems supported	Solaris 10
Snapshot	Yes
Software
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Windows operating systems supported	Windows 10, Windows 8, Windows 7, Windows 11
Linux operating systems supported	Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2019, Windows Server 2012 R2, Windows Server 2008 R2, Windows Server 2016, Windows Server 2012
Other operating systems supported	Solaris 10
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	51.404 W
Power consumption (sleep)	37.469 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	430 mm
Depth	479 mm
Height	43.3 mm
Weight	8.12 kg
Package width	667 mm
Package depth	612 mm
Package height	160 mm
Package weight	12.1 kg
Technical details
Harmonized System (HS) code	84714100
Warranty period	3 year(s)
Packaging content
Number of screws	84
Package type	Box
Cables included	AC, LAN (RJ-45)
Power cables quantity	2
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84714100
Other features
Warranty period	3 year(s)

4 x 3.5", Marvell OCTEON TX2 CN9130 / CN9131, 4 GB SODIMM DDR4, 4 GB Flash, LAN, 100 W, 100-240 V, 43.3 x 430 x 292.12 mm, 4.17 kg

Key Features

• Dual-port 10GbE SFP+ connectivity accelerates intensive file access, large backup/restoration tasks, and media transfer
• Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
• Dual M.2 PCIe Gen 3 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance
• Host multiple containerized apps to run a wide range of applications and services
• Build a surveillance system with lower TCO and higher scalability with the subscription-based QVR Elite smart surveillance solution
• Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units

Description

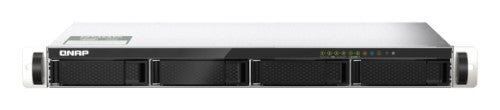

TS-435XeU
Short depth rackmount 4-bay NAS, supporting 2.5GbE/10GbE connectivity and M.2 NVMe SSD caching

The compact and feature-rich TS-435XeU provides a professional-grade quad-core NAS solution in short depth rackmount form factor. The native 10GbE SFP+ and 2.5GbE connectivity alongside M.2 NVMe SSD slots that enable cache acceleration allows businesses to efficiently tackle everyday tasks like file backup/restore and to boost team collaboration with higher productivity. The space-efficient short depth design makes the TS-435XeU easy to install in small media cabinets or places with a lot of cabling. Supporting abundant business applications (including file sharing and sync, snapshot protection, containerization, cloud storage gateways, and video streaming), expandable storage capacity, and install-on-demand apps, the TS-435XeU is an ideal cost-effective entry-level rackmount NAS.

Smaller footprint for bigger opportunities
Compared to a traditional 4-bay rackmount NAS, the compact TS-435XeU has a depth of only 11.49 inches (292 mm). This makes the TS-435XeU an excellent choice for smaller racks, and the unused space can be reserved for cabling or ventilation. The TS-435XeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.

Robust quad-core 2.2 GHz processor
The TS-435XeU is powered by an OCTEON TX2™ infrastructure Marvell® CN9130 series CN9131 ARM®v8 Cortex-A72 quad-core 2.2 GHz processor that features integrated workload-optimized hardware accelerators to meet performance, power and total cost of ownership requirements. The TS-435XeU comes with 4 GB DDR4 memory that can be upgraded to 32 GB for enhanced multi-tasking capabilities, and SATA 6 Gb/s support ensures maximum performance from storage drives.

Streamlined workflows with high-speed 10GbE and 2.5GbE
The TS-435XeU has two 10GbE SFP+ ports and two 2.5GbE RJ45 ports for high-speed networking to satisfy bandwidth-demanding applications (including massive file transfer, high-speed backup/restoration, containers, and multimedia transmission) with the support of port trunking and load balancing. QNAP’s managed and unmanaged 2.5GbE/10GbE switches are a perfect match for organizations to build budget-friendly high-speed networks for productive team collaboration.

Future-proof your IT infrastructure for high-speed networks
QNAP provides comprehensive, budget-friendly storage and networking solutions, allowing you to easily and flexibly upgrade network environments for bandwidth-hungry applications.

2.5GbE/10GbE NAS
A fast NAS with one or more 2.5GbE/10GbE LAN ports.

Upgrade computers and servers
Computers and servers with available PCIe slots can install QNAP network expansion cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add Ethernet ports to laptops
Laptops and computers can use a QNAP USB 3.2 Gen 1 to 5GbE adapter that supports N-BASET/Multi-Gig.

A switch that supports 2.5GbE+
QNAP switches allow connecting multiple workstations and devices for high-speed collaboration.

Get performance benefits from SSD caching and Qtier Technology
To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or the two built-in M.2 2280 SSD slots (supports high-performance NVMe PCIe Gen 3 SSDs, sold separately) in the TS-435XeU. Coupled with QNAP’s SSD-aware features, the TS-435XeU maximizes performance with high cost-effectiveness.

SSD over-provisioning
(Over-provisioning)
Add additional SSD over-provisioning to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer-grade SSDs!

SSD cache acceleration
Enables SSD caching for increasing IOPS performance and reducing latency for storage volumes, ideal for IOPS-demanding applications.

Qtier for auto-tiering
Qtier Technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.

Host container applications
Container Station integrates Docker®, LXD, and Kata Containers lightweight virtualization technologies. You can download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls, enjoying the benefit of easy installation, transferability and high-efficiency.

A multimedia server for video streaming
The short depth TS-435XeU can be easily placed in a media cabinet. By installing streaming apps such as Plex® Media Server from the QTS App Center, you can stream media files stored on the TS-435XeU to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™).

Comprehensive backup and disaster recovery solution
The TS-435XeU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-435XeU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

Multi-version snapshots mitigate ransomware threats
The TS-435XeU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-435XeU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

Comprehensive security and privilege settings
The TS-435XeU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-435XeU through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified privilege settings
The TS-435XeU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-435XeU as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

Security Counselor
A security portal for the TS-435XeU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-435XeU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

The best file storage and collaboration center
The TS-435XeU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

File Station
Manage, access, and share all the files in the TS-435XeU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync
Make any file uploaded to a TS-435XeU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Qfiling
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-435XeU and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-435XeU storage as needed to accommodate data and business growth.

Connect expansion enclosures to the TS-435XeU, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-435XeU while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More productivity-boosting applications
The TS-435XeU provides an App Center that includes feature-rich apps to expand your NAS potential!

QuMagie
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tools for the ultimate photo management and sharing solution.

Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Qmiix
An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.

Proxy Server
By using a high-capacity TS-435XeU as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.

QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.

QuFTP
The TS-435XeU can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

S.M.A.R.T. and back block scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss

Seagate® IronWolf™ Health Management
When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
Auto-rebuild	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	M.2, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
RAID rebuild	Yes
Processor
Processor manufacturer	Marvell
Processor family	Marvell
Processor model	CN9131
Processor frequency	2.2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Maximum RAM supported	32 GB
Memory slots	1
Flash memory	4000 MB
Memory form factor	SO-DIMM
Network
Load balancing system	Yes
Link aggregation	Yes
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500,10000 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP+
Concurrent connections	1500
Design
Chassis type	Rack (1U)
Product colour	Black, Grey
Cooling type	Active
Number of fans	3 fan(s)
Fan diameter	4 cm
LED indicators	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Built-in FTP server	Yes
System log	Yes
Share folder	Yes
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox, Microsoft Edge
Remotely operated	Yes
Type	NAS
Universal Plug and Play (UPnP)	Yes
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP QTS
Operating system version	5.0.0
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Snapshot	Yes
Software
Operating system installed	QNAP QTS
Operating system version	5.0.0
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power consumption (HDD standby)	17.367 W
Power supply location	Built-in
Power supply unit (PSU) capacity	100 W
Number of power supply units	1
Power consumption (typical)	30.878 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Weight & dimensions
Width	439 mm
Depth	291 mm
Height	44 mm
Weight	4.17 kg
Package width	415 mm
Package depth	179 mm
Package height	542 mm
Package weight	5.86 kg
Technical details
Harmonized System (HS) code	84714100
Warranty period	3 year(s)
Packaging content
Number of screws	28
Package type	Box
Rack mount kit	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Logistics data
Harmonized System (HS) code	84714100
Other features
Warranty period	3 year(s)
