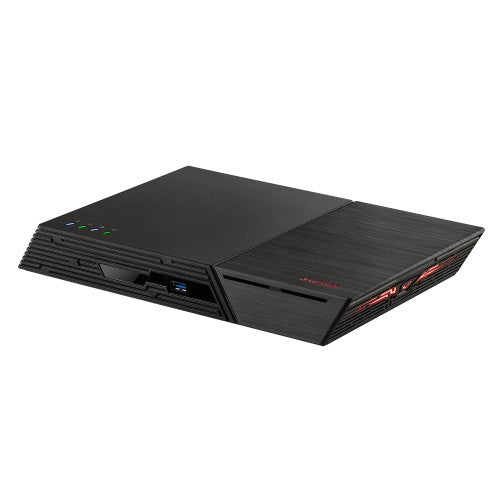

FLASHSTOR 6 Gen2

Key Features

• AMD Quad-Core 6 nm Ryzen Embedded V3C14 Processor
• Six M.2 slots for NVMe SSDs - Supports up to PCIe 4.0 x4
• 10-Gigabit Ethernet
• Powered by 8 GB of DDR5-4800 RAM – ECC RAM supported
• 2 x USB 4.0 (Type-C)
• 3 x USB 3.2 Gen 2 (Type-A)
• Suitable for 4K editing, enthusiasts, and content creation

Description

Ryzen + Flash = Fast
The AMD Ryzen™ Embedded V3C14 processor integrates high-performance Zen 3 cores into a cool and quiet CPU. The exceptional processing efficiency and high-speed I/O connectivity of the Ryzen Embedded CPU ensures efficient operation, enabling fast data transfer and high-speed computing while sipping minimal power.

Breaking the 10 Gbps Barrier
The Flashstor 6 Gen2 series features 10-Gigabit Ethernet, allowing for high speed transfers when paired with a 10GbE-enabled device and a compatible router or switch.

Windows sequential read and write (RAID 5)

Compact, Yet Powerful
Compact: Compact design for easy mobility.
Protected: Protect valuable files with RAID and Snapshots.
Connected: 10-Gigabit Ethernet brings extreme performance.
Stable: ECC memory support ensures data accuracy and stability.
USB4: Connect USB4 and Thunderbolt devices for maximum performance.

ECC RAM Supported
ECC (Error-Correcting Code) can detect and correct memory errors, enhancing system stability and reliability. It reduces the risk of data errors, ensuring data integrity in enterprise environments. For businesses that require high reliability, consider upgrading your Flashstor Gen2 to the maximum of 64 GB of memory for enterprise servers and workstations.

USB4 – Unmatched Flexibility
The Flashstor Gen2 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever. When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.
* The Lockerstor Gen3 and Flashstor Gen2 series are based on AMD's current USB4 driver. AMD USB4 at the moment only supports external storage devices and direct connection between another Lockerstor Gen3 or Flashstor Gen2 series NAS.

Keeping Cool
The Flashstor Gen2 series now incorporate an improved thermal dissipation design that includes strategically placed fans that are efficient and silent to cool every high performance component in the Flashstor Gen2 series. This optimized cooling efficiency ensures sustained high performance while maintaining low noise levels.

Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Hard Drives Welcome!
The all-SSD Flashstor continues ADM’s amazing support for hard drives when connecting an AS5004U expansion unit to the USB 3 ports on your NAS. When raw capacity is needed, the Flashstor enables the best of both worlds.

Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.

DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Photo Gallery 3 + AiFoto 3
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.

Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 72 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

Portainer – Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Mobile Apps
ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

First-Class Product Warranty
All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	SSD
Number of storage drives supported	12
Online RAID migration	Yes
Online RAID expansion	Yes
Storage drive interface	M.2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	M.2
Processor
Processor manufacturer	AMD
Processor family	AMD Ryzen
Processor boost frequency	3.8 GHz
Processor model	V3C14
Processor frequency	2.3 GHz
Processor cores	4
Memory
Internal memory type	DDR5
Internal memory	8 GB
Memory clock speed	4800 MHz
Maximum RAM supported	64 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
ECC	Yes
Network
Link aggregation	Yes
Ethernet LAN data rate supported (max)	10000 Mbit/s
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Jumbo frames support	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Design
Chassis type	Compact
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	8 cm
LED indicators	Yes
Performance
System log	Yes
Share folder access right management	Yes
S.M.A.R.T. support	Yes
Browser supported	Firefox, Chrome, Safari, Microsoft Edge
Remotely operated	Yes
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level	18.6 dB
Web-based management	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android, iOS
Snapshot	Yes
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android, iOS
Power
Power supply location	External
Power supply unit (PSU) capacity	90 W
Power consumption (typical)	17.9 W
Power consumption (sleep)	1.2 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	308.3 mm
Depth	193 mm
Height	48.3 mm
Weight	1.4 kg
Technical details
Warranty period	3 year(s)
Compliance certificates	BIS, C-TICK, CCC, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), KCC, UKCA
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Other features
Warranty period	3 year(s)
Compliance certificates	BIS, C-TICK, CCC, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), KCC, UKCA

Intel Celeron N5105, 4GB DDR4, 2.5-Gigabit Ethernet, HDMI 2.0b, 38.3W

Key Features

• Quad-Core 10 nm Intel Celeron N5105 CPU
• 4x M.2 slots for NVMe SSDs
• 4 GB of DDR4-2933 RAM
• Dual 2.5-Gigabit Ethernet ports
• 3x USB 3.2 Gen 2 at 10 Gbps
• HDMI 2.0b
• Aesthetically pleasing M.2 SSD heat dissipation thermal vents
• Enjoy, download, upload and stream content with 4K transcoding
• Supports Wake on LAN and Wake on WAN

Description

The Best NAS 4 Flash
Hard Drives + Flash SSDs = The best of both worlds

Packed Full of Value

Intel’s all-new N5105 10 nm Quad-Core Celeron SoC at 2.0 GHz. With a boost frequency of up to 2.9 GHz, the powerful performance of the CPU ensures that working with the NAS is as smooth as butter while remaining affordable.

Upgradeable 4GB DDR4-2933 RAM

The AS54 comes with four Gigabytes of DDR4 RAM and can be upgraded up to 16GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.

End of the Road…for Gigabit Ethernet

2.5GbE is not the future. It’s now. With 2.5GbE ubiquitous on enthusiast motherboards and available as an affordable USB adapter, the ubiquity of 2.5GbE makes all transfers fast. Break barriers even further by combining the dual 2.5-Gigabit Ethernet ports in SMB Multichannel to enjoy speeds exceeding 2.5 Gbps.

SMB Multichannel (RAID 5)

Windows sequential read and write

* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.

Best 4 Flash

The AS54 series is equipped with four M.2 slots for NVMe SSDs to accelerate tasks that require high random IO performance to save unbelievable amounts of time in applications that can take advantage of SSDs, such as content creation. Each M.2 slot for NVMe SSDs is tool-free for easier installation while the cooling vents ensure SSDs run at optimum performance.

All New Gaming-Inspired Theme for ADM　

Take a look at the all new gaming-inspired elements brought to ADM.

USB 3.2 Gen 2 – Double Performance

The AS54 series upgrades the USB interface to USB 3.2 Gen 2x1. This means that the USB ports are up to twice the speed of the USB ports found on the previous generation of NAS devices at 10 Gbps. Plug in multiple expansion devices for extra storage or utilize the USB ports for backups and other peripherals for a truly custom experience.

Gaming-inspired looks

- Aesthetic cooling vents:
Ensuring high-speed transmission of data on M.2 SSD while looking good.

- Tool-free hard drives and SSDs:
Quickly install or replace hard drives and SSDs without tools.

- Magnetic panel:
Dust resistant to ensure extra longevity of hard drives and internal components.

Store Games on an iSCSI Drive

A NAS’s enormous capacity helps expand storage for a PC. According to modern operating systems, iSCSI drives appear as local drives and programs which cannot be installed on network shares may be installed. This enables certain games to be played from a NAS when they can’t be run on a network share.

ASUSTOR Live

Your own streaming center. Stream your from a phone or tablet as well as a computer to multiple streaming platforms, Including, but not limited to Twitch, YouTube, Facebook, Instagram, Restream or RTMP compatible platforms. Unlike services like restream.io, ASUSTOR Live doesn’t require fees to operate to stream to multiple platforms and channels which saves you money and streaming resources. Recordings can be safely saved to your NAS for future use.

Overwhelming 4K HDR Experience

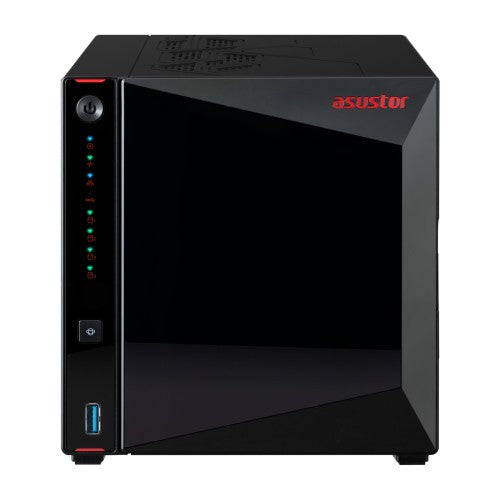

The AS5404T features HDMI 2.0b with 10bit 4K hardware decoding, HEVC decoding and VP9 10bit Profile2 decoding for a smoother experience and lower CPU usage. Use Plex Pass or a third-party player to play 4K HDR videos.

Exclusive MyArchive Cold Backup Technology
Unlimited Capacity Expansion

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

Protected From the Inside and Out

Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Snapshot Center

Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.

DataSync Center

DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center

Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Create the Ultimate Home Multimedia Center

Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Photo Gallery 3 + AiFoto 3

The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.

Comprehensive Surveillance System

An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 44 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

Portainer – Easy Docker Deployments

Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Dr. ASUSTOR

ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Mobile Apps

ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

App Central

Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

First-Class Product Warranty

All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	16
Storage drive interface	M.2, Serial ATA III
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor cache	4 MB
Processor boost frequency	2.9 GHz
Processor model	N5105
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Memory clock speed	2933 MHz
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	8192 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Design
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
Performance
System log	Yes
Share folder	Yes
Browser supported	FireFox, Chrome, Safari, Microsoft Edge
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level	19.7 dB
Operating system installed	ADM
Operating system version	4.1
Security algorithms	256-bit AES
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Software
Operating system installed	ADM
Operating system version	4.1
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power consumption (typical)	38.3 W
Power consumption (sleep)	0.81 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	174 mm
Depth	230 mm
Height	170 mm
Weight	2.26 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Other features
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

Intel Celeron N5105, 4GB DDR4, 2.5-Gigabit Ethernet, HDMI 2.0b, 22.9W, 18.6d, 1.71 kg

Key Features

• Quad-Core 10 nm Intel Celeron N5105 CPU
• 4x M.2 slots for NVMe SSDs
• 4 GB of DDR4-2933 RAM
• Dual 2.5-Gigabit Ethernet ports
• 3x USB 3.2 Gen 2 at 10 Gbps
• HDMI 2.0b
• Aesthetically pleasing M.2 SSD heat dissipation thermal vents
• Enjoy, download, upload and stream content with 4K transcoding
• Supports Wake on LAN and Wake on WAN

Description

The Best NAS 4 Flash
Hard Drives + Flash SSDs = The best of both worlds

Packed Full of Value

Intel’s all-new N5105 10 nm Quad-Core Celeron SoC at 2.0 GHz. With a boost frequency of up to 2.9 GHz, the powerful performance of the CPU ensures that working with the NAS is as smooth as butter while remaining affordable.

Upgradeable 4GB DDR4-2933 RAM

The AS54 comes with four Gigabytes of DDR4 RAM and can be upgraded up to 16GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.

End of the Road…for Gigabit Ethernet

2.5GbE is not the future. It’s now. With 2.5GbE ubiquitous on enthusiast motherboards and available as an affordable USB adapter, the ubiquity of 2.5GbE makes all transfers fast. Break barriers even further by combining the dual 2.5-Gigabit Ethernet ports in SMB Multichannel to enjoy speeds exceeding 2.5 Gbps.

SMB Multichannel (RAID 1)

Windows sequential read and write

* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.

Best 4 Flash

The AS54 series is equipped with four M.2 slots for NVMe SSDs to accelerate tasks that require high random IO performance to save unbelievable amounts of time in applications that can take advantage of SSDs, such as content creation. Each M.2 slot for NVMe SSDs is tool-free for easier installation while the cooling vents ensure SSDs run at optimum performance.

All New Gaming-Inspired Theme for ADM　

Take a look at the all new gaming-inspired elements brought to ADM.

USB 3.2 Gen 2 – Double Performance

The AS54 series upgrades the USB interface to USB 3.2 Gen 2x1. This means that the USB ports are up to twice the speed of the USB ports found on the previous generation of NAS devices at 10 Gbps. Plug in multiple expansion devices for extra storage or utilize the USB ports for backups and other peripherals for a truly custom experience.

Gaming-inspired looks

- Aesthetic cooling vents:
Ensuring high-speed transmission of data on M.2 SSD while looking good.

- Tool-free hard drives and SSDs:
Quickly install or replace hard drives and SSDs without tools.

- Magnetic panel:
Dust resistant to ensure extra longevity of hard drives and internal components.

Store Games on an iSCSI Drive

A NAS’s enormous capacity helps expand storage for a PC. According to modern operating systems, iSCSI drives appear as local drives and programs which cannot be installed on network shares may be installed. This enables certain games to be played from a NAS when they can’t be run on a network share.

ASUSTOR Live

Your own streaming center. Stream your from a phone or tablet as well as a computer to multiple streaming platforms, Including, but not limited to Twitch, YouTube, Facebook, Instagram, Restream or RTMP compatible platforms. Unlike services like restream.io, ASUSTOR Live doesn’t require fees to operate to stream to multiple platforms and channels which saves you money and streaming resources. Recordings can be safely saved to your NAS for future use.

Overwhelming 4K HDR Experience

The AS5402T features HDMI 2.0b with 10bit 4K hardware decoding, HEVC decoding and VP9 10bit Profile2 decoding for a smoother experience and lower CPU usage. Use Plex Pass or a third-party player to play 4K HDR videos.

Exclusive MyArchive Cold Backup Technology
Unlimited Capacity Expansion

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

Protected From the Inside and Out

Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Snapshot Center

Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.

DataSync Center

DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center

Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Create the Ultimate Home Multimedia Center

Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Photo Gallery 3 + AiFoto 3

The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.

Comprehensive Surveillance System

An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 44 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

Portainer – Easy Docker Deployments

Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Dr. ASUSTOR

ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Mobile Apps

ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

App Central

Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

First-Class Product Warranty

All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	14
Storage drive interface	M.2, Serial ATA III
Storage drive capacity	0 GB
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor cache	4 MB
Processor boost frequency	2.9 GHz
Processor model	N5105
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Memory clock speed	2933 MHz
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	8192 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Design
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	7 cm
Performance
System log	Yes
Share folder	Yes
Browser supported	FireFox, Chrome, Safari, Microsoft Edge
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level	18.6 dB
Operating system installed	ADM
Operating system version	4.1
Security algorithms	256-bit AES
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Software
Operating system installed	ADM
Operating system version	4.1
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power consumption (typical)	22.9 W
Power consumption (sleep)	0.71 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	114 mm
Depth	230 mm
Height	170 mm
Weight	1.71 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Other features
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

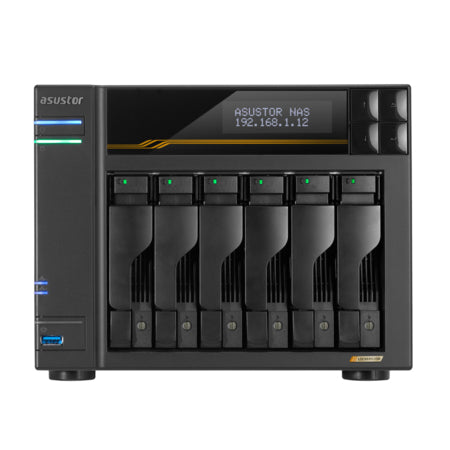

AMD Ryzen V3C14, 16GB ECC DDR5-4800 SO-DIMM, PCIe 4.0 x1, 250W

Description

Speeds keep Ryzen and Ryzen!
The Lockerstor Gen3 series is ASUSTOR’s fastest NAS ever! The combination of AMD’s Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.

Ryzen Up to the Challenge!
AMD’s Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.

Server-grade ECC memory
ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.

PCI Express 4.0 Brings Doubled Performance
The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs. These newly upgraded M.2 slots now support the PCI Express 4.0 bus which doubles the performance over PCI Express 3.0. ADM supports both caching and storage for faster random I/O performance done your way.

USB4 is More Than Just Storage
The Lockerstor Gen3 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever.
When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.

The Hottest NAS Ever is also the Coolest
With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Storage drive interface	M.2, Serial ATA
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Supported file systems	BTRFS, HFS+, NTFS, exFAT, ext4
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	4
Processor
Processor manufacturer	AMD
Processor family	AMD Ryzen
Processor boost frequency	3.8 GHz
Processor model	V3C14
Processor frequency	2.3 GHz
Processor cores	4
Memory
Internal memory type	DDR5
Internal memory	16 GB
Memory clock speed	4800 MHz
Maximum RAM supported	64 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500,10000 Mbit/s
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
Built-in display	Yes
Display type	LCD
Performance
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Noise level	18.1 dB
Operating system installed	ADM
Operating system version	5.0 Onwards
Web-based management	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Software
Operating system installed	ADM
Operating system version	5.0 Onwards
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power supply location	External
Power supply unit (PSU) capacity	250 W
Power consumption (typical)	45 W
Power consumption (sleep)	2.3 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	233 mm
Depth	230 mm
Height	185.5 mm
Weight	4.4 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Intel Celeron N5105 Quad-Core 2.0GHz (burst up 2.90 GHz), 4GB SO-DIMM DDR4 , 8GB eMMC, 6 xM.2 Drive Slots, 2x USB 3.2 Gen 2x1; 2 x USB 2.0, 2x 2.5 Gigabit Ethernet (2.5G/1G/100M), 1x HDMI 2.0b, 1x S/PDIF, fan 1 x 80mm, 65W x1, 100V to 240V AC, 48.3 (H) x 308.26 (W) x 193 (D) mm, 1.35kg

Key Features

• Quad-Core 10 nm Intel Celeron N5105 CPU
• 6x M.2 NVMe slots
• Dual Superfast 2.5-Gigabit Ethernet ports
• 4 GB of fast and efficient DDR4-2933 RAM
• Dual USB 3.2 Gen 2x1
• HDMI 2.0b
• S/PDIF output for amazing sound quality
• Smooth 4K hardware transcoding
• Supports Wake on WAN and Wake on LAN

Description

Your ASUSTOR Brings Virtually Unlimited Potential to Final Cut Pro
Archiving and unfinished raw content are among the most common storage problems content creators encounter when working on a Mac. Final Cut Pro Libraries can grow rapidly and out of control. Content creators often turn to USB external drives to store material for Final Cut Pro. When using a Mac, especially portable Macs like the MacBook Pro, external drives are often connected and disconnected, which can lead to wear and tear of the port. External drives are also inconvenient as the files cannot be conveniently shared with coworkers or collaborators and external drives are susceptible to damage in ways a NAS is not. A NAS remains stationary while digitally making your files available to you while an external drive is portable, increasing the risk of drops, spills or other types of damage.

Store Games on an iSCSI Drive
A NAS’s enormous capacity helps expand storage for a PC. According to modern operating systems, iSCSI drives appear as local drives and programs which cannot be installed on network shares may be installed. This enables certain games to be played from a NAS when they can’t be run on a network share.

Efficient and Fast
The 10 nm Quad-Core Intel Celeron N5105 processor brings speeds of up to 2.9 GHz. Performance is up to 31% higher than the previous generation, ensuring maximum speed for your workflow in an efficient package.

Keeping SSDs Cool
The silent fan and efficient air duct design achieve rapid heat dissipation to ensure that SSDs get the cooling they need.

Roon Server and S/PDIF
The Flashstor series come with S/PDIF over TOSLINK. Enjoy high quality sound with S/PDIF combined with Roon or High-Res Player for an unmatched audio experience.
Hi-Res Player is a third party music player for ASUSTOR NAS devices. Hi-Res Player supports a wide variety of common media formats including MP3 songs while also supporting high-resolution DSD and lossless formats for an unrivalled music playback experience.

Use Roon Server with your Windows, Mac, iOS and Android devices to stream music stored on your NAS to Sonos, AirPlay and Roon Ready devices.

Efficient and Quiet
The Flashstor keeps your SSDs and NAS cool, quiet and efficient. When idling, the Flashstor only emits 18.7 decibels of sound. While quietly dissipating heat, the Flashstor makes it easy focus on content creation and consumption without noise interference.

Speed has Never Looked So Good
The Flashstor’s aesthetics are not only for looks, but are designed to ensure efficient cooling to keep components running at their maximum speeds.
Saving Power Costs with the Flashstor
The efficient design of the Flashstor and support for M.2 NVMe drives ensure lower power usage. The Flashstor NAS comes with ADM and its powerful power saving features to ensure maximum efficiency.


WOL/WOW
Wake on WAN allows you to convenient power your NAS back on from outside the home and office while Wake on LAN provides the same functionality on a local network. Like a remote control, your NAS can be turned on and off and put to sleep to ensure data can easily accessed at any time while reducing power consumption costs and saving energy.

Power Scheduling
The most efficient way to use your NAS is to turn off the NAS when not in use. Let the NAS rest when you sleep or away from the home/office. ADM's power scheduling features enable you to schedule shutdown, startup, and hibernation of your NAS making saving power easy and efficient.

Sleep Mode (S3)
When your NAS is not in use, put it into Sleep Mode to save power, hardware longevity and power for maximum financial savings. Your NAS can also be scheduled to sleep at specific times to ensure greater savings.
More Efficient than Ever Before
Easily Transcode 10-bit 4K H.265 media with hardware decoding with unbelievably smooth video playback in LooksGood for the ultimate in 4K enjoyment.

The Ultimate Live Streaming Tool
ASUSTOR Live Your own streaming and backup center for YouTube and Twitch.

Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Photo Gallery 3 + AiFoto 3
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.

Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups
Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout
Internal Data
- AES-256 folder encryption
- Antivirus software
Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
- Wake-on-WAN (WAN)

Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 44 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.

DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Portainer – Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Mobile Apps
ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

First-Class Product Warranty
All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	SSD
Number of storage drives supported	6
Online RAID migration	Yes
Online RAID expansion	Yes
Storage drive interface	M.2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	M.2
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor cache	4 MB
Processor boost frequency	2.9 GHz
Processor model	N5105
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	8 MB
Memory form factor	SO-DIMM
Network
Link aggregation	Yes
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Jumbo frames support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
WLAN adapter supported	Yes
Ports & interfaces
USB port	Yes
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
Audio in/out	Yes
USB 2.0 ports quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Design
Chassis type	Compact
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	8 cm
LED indicators	Yes
Performance
Built-in iTunes server	Yes
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
S.M.A.R.T. support	Yes
Password authentication	Yes
Network Time Protocol (NTP) client	Yes
Disk scan	Yes
Browser supported	Firefox, Chrome, Safari, Microsoft Edge
Remotely operated	Yes
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive
Multilingual support	Yes
Number of users	4096 user(s)
Noise level	18.7 dB
Web-based management	Yes
Security algorithms	FTPES, HTTPS, SSH, SSL/TLS
Built-in BitTorrent client	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android, iOS
Third-party support	Yes
Snapshot	Yes
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android, iOS
Power
Power supply location	External
Power supply unit (PSU) capacity	65 W
Power consumption (typical)	18.2 W
Power consumption (sleep)	0.83 W
AC input voltage	100-240 V
Weight & dimensions
Width	308.3 mm
Depth	193 mm
Height	48.3 mm
Weight	1.35 kg
Technical details
Warranty period	3 year(s)
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), KCC, UKCA
Packaging content
External power adapter	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Warranty period	3 year(s)
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), KCC, UKCA

4 x 3.5", ARM 4-core Cortex-A55, 4 GB RAM, 4 GB Flash, LAN, 90 W, 100-240 V, 169 x 160 x 219 mm, 2.07 kg

Key Features

• Centralized multimedia management: Centrally store photos, music, and videos; easily browse, organize, and share multimedia files
• AI-powered image recognition: With a built-in NPU (Neural network Processing Unit) processor, the TS-433 boosts performance for high-speed face and object recognition
• Home entertainment center: Supports ARM NEON technology that accelerates video processing for a greater entertainment experience
• Secure remote access: myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet
• Snapshot protection against Ransomware: Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection
• Comprehensive security management: Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more

Description

TS-433
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-433. Designed with a 2.5GbE port to enhance collaboration and increase remote work productivity, the TS-433 also features rich multimedia applications and provides a complete home entertainment portal.

Minimalist design
The compact and slim TS-433 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.

Effective cooling fan for heat flow
The TS-433 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 2.0 GHz CPU NAS for everyday use and collaboration
Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 4 GB RAM, one Gigabit LAN port, one 2.5 Gigabit LAN port, and supports four SATA 6Gb/s hard drives, the TS-433 provides dependable read/write performance for running various home and business NAS applications. The TS-433 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A fast 2.5GbE NAS
The TS-433 features one 2.5GbE ports.

Upgrade computers and servers
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add a 5GbE port to laptops
Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

A switch that supports 2.5GbE+
QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

NPU accelerates on-device AI performance. 6x Faster face recognition.
With a built-in NPU (Neural network Processing Unit) processor, the TS-433 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

QTS 5, Fast, smooth, and easy-to-use!
The TS-433 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

An easy-to-use, all-in-one backup solution
The TS-433 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.

Back up Windows®/Mac® files
For Windows®, install NetBak Replicator to back up your PC to the TS-433. In macOS®, simply set up the built-in Time Machine® to back up files to NAS.

Back up photos on mobile devices
Install Qfile or QuMagie mobile app and enable the “auto-upload” function. Photos will be automatically uploaded to your TS-433 as soon as they are taken.

Back up USB drives & external hard drives
Simply plug in the storage device to the front USB port of the TS-433 and press the One-Touch Copy button to back up all files to the NAS.

Back up Google Drive™
Hybrid Backup Sync can safely back up files and data from Google Drive™ to the TS-433, helping you save money on cloud storage costs.

Back up NAS files to the cloud
Hybrid Backup Sync supports all your favorite public cloud services, allowing you to effortlessly back up or sync NAS files to cloud storage.

Back up NAS files to remote sites
With Hybrid Backup Sync, you can easily backup or sync files and data from the TS-433 to a remote QNAP NAS or server for multiplied data protection.

Back up WordPress sites
Enjoy efficient WordPress backup/restore and site migration by leveraging the user-friendly Multi-Application Recovery Service (MARS), and easily batch backup WordPress files and database to the TS-433 with backup scheduling.

Protect your data from ransomware threats with Snapshots
Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS – including the TS-433. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware.

The best storage for your high-resolution multimedia files
High-resolution RAW files eat up phone storage so quickly. Whether you are a photographer enthusiastic, YouTuber, or professional photo/video editors, use the TS-433 with high-capacity hard drives to alleviate your storage anxiety and organize files efficiently as the best storage center.

Storage for music collections
Use Music Station to collect and play lossless music, sing along with lyrics, and share albums, playlists or folders with friends and family. You can also put tons of music right in your pocket using the Qmusic mobile app.

Store high-resolution videos
Centrally collect GoPro diaries, videos of your family, friends, and pets in Video Station, and easily share your favorites. Take all your videos with you on your mobile devices using the Qvideo mobile app.

Enhanced multimedia experience
The TS-433 supports ARM NEON technology to accelerate video processing for a greater entertainment experience. Stream media files from the TS-433 to DLNA® devices and TVs using common media streaming devices including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®.

Tips for a more productive workday
With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends’ or colleague’s devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-433’s shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-433 helps you save time while being more efficient and productive.

File Station
Easily manage files stored in your TS-433 using the web-based File Station. The Qfile companion mobile app also puts all your files at your fingertips, providing a complete personal cloud service that is accessible from anywhere!

Qsync
Qsync is a perfect replacement of Dropbox®, allowing you to synchronize files with computers and mobile devices belonging to your family, friends, colleagues, and clients.

Qfiling
Save time organizing and archiving your files with Qfiling. Simply categorize your files, set a schedule, and Qfiling will automatically organize and archive them.

Access your NAS from anywhere
The myQNAPcloud service enables quick and easy remote access to your TS-433, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-433, and will automatically connect using the best method based on your network environment.

Protect your data with higher security
The TS-433 provides advanced privacy and security settings but is easy to set up and use. Besides IP blocking and HTTPS connectivity, there are more apps that help ensure an optimal level of NAS protection against threats like malware and hackers.

2-step verification
When activated, anyone who logs in to the TS-433 must enter a one-time verification code after their username and password.

Advanced folder permissions
Easily manage folder permissions, specifying read, read/write, and deny access of individual users to each folder and subfolder.

QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-433 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

Security Counselor
A security portal for the TS-433 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-433 integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-433.

Flexible and economical storage expansion
QNAP provides easy and affordable solutions to expand your NAS storage capacity.

Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-433, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-433 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your files and multimedia collections.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA III, Serial ATA II
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor architecture	ARM Cortex-A55
Processor family	ARM
Processor model	Cortex-A55
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory	4 GB
Maximum RAM supported	4 GB
Flash memory	4000 MB
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
Concurrent connections	200
Design
Chassis type	Tower
Product colour	White
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
Drive bay locking	Yes
LED indicators	Power, Reset, USB
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Built-in FTP server	Yes
System log	Yes
S.M.A.R.T. support	Yes
Password authentication	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP QTS
Operating system version	5.0.1
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP V2/V3
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Snapshot	Yes
Software
Operating system installed	QNAP QTS
Operating system version	5.0.1
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power consumption (HDD standby)	8.45 W
Power supply location	External
Power supply unit (PSU) capacity	90 W
Power consumption (typical)	22.54 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	160 mm
Depth	225 mm
Height	168.5 mm
Weight	2.07 kg
Package width	307 mm
Package depth	520 mm
Package height	320 mm
Package weight	3.5 kg
Technical details
Warranty period	2 year(s)
Packaging content
Number of screws	28
Package type	Box
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Drive tray key included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Other features
Warranty period	2 year(s)

2 x 3.5", ARM 4-core Cortex-A55, 2 GB RAM, 4 GB Flash, LAN, 65 W, 100-240 V, 188.64 x 90.18 x 156.26 mm, 1.11 kg

Key Features

• Centralized multimedia management: Centrally store photos, music, and videos; easily browse, organize, and share multimedia files
• AI-powered image recognition: With a built-in NPU (Neural network Processing Unit) processor, the TS-233 boosts performance for high-speed face and object recognition
• Home entertainment center: Supports ARM NEON technology that accelerates video processing for a greater entertainment experience
• Secure remote access: myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet
• Snapshot protection against Ransomware: Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection
• Comprehensive security management: Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more

Reasons To Buy

Back up Windows®/Mac® files

For Windows®, install NetBak Replicator to back up your PC to the TS-233. In macOS®, simply set up the built-in Time Machine® to back up files to NAS.

Back up photos on mobile devices

Install Qfile or QuMagie mobile app and enable the “auto-upload” function. Photos will be automatically uploaded to your TS-233 as soon as they are taken.

Back up USB drives & external hard drives

Simply plug in the storage device to the front USB port of the TS-233 and press the One-Touch Copy button to back up all files to the NAS.

Description

TS-233
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition

TS-233
ARM 4-core Cortex-A55 2.0GHz processor, 2 GB, not expandable

Minimalist design
The compact and slim TS-233 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.

Effective cooling fan for heat flow
The TS-233 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 2.0 GHz CPU NAS for everyday use and collaboration
Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports two SATA 6Gb/s hard drives, the TS-233 provides dependable read/write performance for running various home and business NAS applications. The TS-233 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

NPU accelerates on-device AI performance. 6x Faster face recognition.
With a built-in NPU (Neural network Processing Unit) processor, the TS-233 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

QTS 5, Fast, smooth, and easy-to-use!
The TS-233 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

An easy-to-use, all-in-one backup solution
The TS-233 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.

Back up Windows®/Mac® files
For Windows®, install NetBak Replicator to back up your PC to the TS-233. In macOS®, simply set up the built-in Time Machine® to back up files to NAS.

Back up photos on mobile devices
Install Qfile or QuMagie mobile app and enable the “auto-upload” function. Photos will be automatically uploaded to your TS-233 as soon as they are taken.

Back up USB drives & external hard drives
Simply plug in the storage device to the front USB port of the TS-233 and press the One-Touch Copy button to back up all files to the NAS.

Back up Google Drive™
Hybrid Backup Sync can safely back up files and data from Google Drive™ to the TS-233, helping you save money on cloud storage costs.

Back up NAS files to the cloud
Hybrid Backup Sync supports all your favorite public cloud services, allowing you to effortlessly back up or sync NAS files to cloud storage.

Back up NAS files to remote sites
With Hybrid Backup Sync, you can easily backup or sync files and data from the TS-233 to a remote QNAP NAS or server for multiplied data protection.

Protect your data from ransomware threats with Snapshots
Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS – including the TS-233. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware.

Centrally store and protect your huge multimedia collection
The TS-233 is your private personal cloud for your movies, videos, photos, and files that are securely at your fingertips anywhere and anytime.

Storage for music collections
Use Music Station to collect and play lossless music, sing along with lyrics, and share albums, playlists or folders with friends and family. You can also put tons of music right in your pocket using the Qmusic mobile app.

Store high-resolution videos
Centrally collect GoPro diaries, videos of your family, friends, and pets in Video Station, and easily share your favorites. Take all your videos with you on your mobile devices using the Qvideo mobile app.

Enhanced multimedia experience
The TS-233 supports ARM NEON technology to accelerate video processing for a greater entertainment experience. Stream media files from the TS-233 to DLNA® devices and TVs using common media streaming devices including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®.

Tips for a more productive workday
With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends’ or colleague’s devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-233’s shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-233 helps you save time while being more efficient and productive.

File Station
Easily manage files stored in your TS-233 using the web-based File Station. The Qfile companion mobile app also puts all your files at your fingertips, providing a complete personal cloud service that is accessible from anywhere!

Qsync
Qsync is a perfect replacement of Dropbox®, allowing you to synchronize files with computers and mobile devices belonging to your family, friends, colleagues, and clients.

Qfiling
Save time organizing and archiving your files with Qfiling. Simply categorize your files, set a schedule, and Qfiling will automatically organize and archive them.

Access your NAS from anywhere
The myQNAPcloud service enables quick and easy remote access to your TS-233, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-233, and will automatically connect using the best method based on your network environment.

Protect your data with higher security
The TS-233 provides advanced privacy and security settings but is easy to set up and use. Besides IP blocking and HTTPS connectivity, there are more apps that help ensure an optimal level of NAS protection against threats like malware and hackers.

2-step verification
When activated, anyone who logs in to the TS-233 must enter a one-time verification code after their username and password.

Advanced folder permissions
Easily manage folder permissions, specifying read, read/write, and deny access of individual users to each folder and subfolder.

QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-233 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

Security Counselor
A security portal for the TS-233 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-233 integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-233.

Flexible and economical storage expansion
QNAP provides easy and affordable solutions to expand your NAS storage capacity.

Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-233, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-233 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your files and multimedia collections.

More productivity-boosting applications
The TS-233 provides an App Center that includes feature-rich apps to expand your NAS potential!

QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.

Qcontactz
Centrally manage all your contacts, import contacts from Google™, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.

Qmiix
An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	2
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
Storage drive interface	Serial ATA II, Serial ATA III
RAID support	Yes
RAID levels	0, 1, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, exFAT, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
System drive sizes supported	2.5,3.5"
Processor
Processor family	ARM
Processor model	Cortex-A55
Processor frequency	2 GHz
Processor cores	4
Number of processors supported	1
Memory
Internal memory	2 GB
Maximum RAM supported	2 GB
Flash memory	4000 MB
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	IPv4, IPv6
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
Design
Chassis type	Tower
Product colour	White
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	8 cm
LED indicators	HDD, LAN, Status, USB
Performance
Built-in FTP server	Yes
System log	Yes
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP QTS
Operating system version	5.0.0
Web-based management	Yes
Security algorithms	256-bit AES, 802.1x RADIUS, FIPS 140-2, HTTPS, SSH, TTLS
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
USB copy function	Yes
Remote administration	PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt
Software
Operating system installed	QNAP QTS
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power supply location	External
Power supply unit (PSU) capacity	65 W
Number of power supply units	1
Power consumption (typical)	10.81 W
Power consumption (sleep)	3.43 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Weight & dimensions
Width	90 mm
Depth	156 mm
Height	188 mm
Weight	1.11 kg
Package width	222 mm
Package depth	100 mm
Package height	265 mm
Package weight	1.95 kg
Technical details
Harmonized System (HS) code	84714100
Warranty period	2 year(s)
Packaging content
Package type	Box
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Logistics data
Harmonized System (HS) code	84714100
Other features
Warranty period	2 year(s)

Desktop, 2x 3.5" drive bays, 2.5 GbE RJ45 (2.5G/1G/100M/10M), 5 Gbps USB-C, PoE++, Quad-Core ARM Cortex-A55 at 1.7 GHz, Bluetooth 4.1, 1.47" color LCM

Description

UniFi Network Attached Storage with (2) 3.5" HDD bays, 2.5 GbE networking, USB-C connectivity, and an included PoE++ adapter, all in a compact footprint.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD
Number of storage drives supported	2
Storage drive size	3.5"
RAID support	Yes
RAID levels	1
Hot-swap drive bays	No
Storage drive sizes supported	3.5"
Processor
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A57
Processor family	Cortex-A
Processor model	Cortex-A57
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory	4 GB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Design
Chassis type	Desktop
Product colour	Black
Housing material	Polycarbonate (PC)
LED indicators	Status, System
Built-in display	Yes
Display type	LCM
Performance
Type	NAS
Backup function	Yes
Web-based management	Yes
Other operating systems supported	Android, iOS
Software
Other operating systems supported	Android, iOS
Power
Power consumption (max)	60 W
Power supply location	External
Weight & dimensions
Width	129 mm
Depth	135 mm
Height	223.7 mm
Weight	1.3 kg
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging content
External power adapter	Yes
Cables included	Power
Power cables quantity	1
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Other features
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
