Collection: NAS & Storage Servers

6 x 3.5", Intel Celeron N5105/N5095, 8 GB SODIMM DDR4, 4GB Flash, LAN, 120 W, 100-240V, 168 x 235 x 226 mm, 2.9 kg

Key Features

• 2.5GbE connectivity: Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
• M.2 SSD caching: Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition
• PCIe expandability: Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card
• License-free virtualized environment: Host multiple containerized apps to run a wide range of applications and services
• Drives Auto-Tiering: Qtier™ auto-tiering technology and SSD caching enable constant storage optimization
• 4K HDMI: 4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience

Description

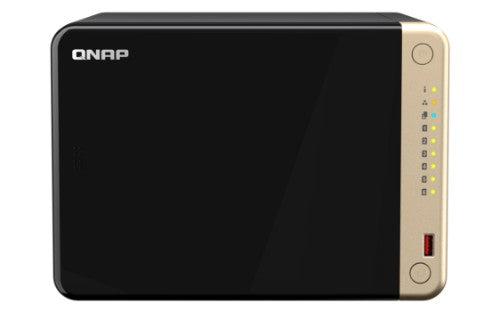

TS-664
Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applications

Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

Quad-core high performance and up to 16GB RAM
The TS-664 is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
The TS-664 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
The TS-664 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs1 with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-664 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

Accelerate AI–powered image recognition with TPU
By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-664 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

SSD caching and auto-tiering enable 24/7 optimized storage efficiency
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-664 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.

Streamline large file transfers and video editing with 2.5GbE
The TS-664 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-proof your IT infrastructure for high-speed networks
The TS-664 is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-664. UPS and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O capabilities with PCIe expansion
The TS-664 has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.

Direct 4K HDMI output for multimedia and virtual machine display
The TS-664 features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 2.0 output supports up to 4K, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-664 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-664 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-664 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QTS 5, Fast, smooth, and easy-to-use!
The TS-664 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Comprehensive backup and disaster recovery solution
The TS-664 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-664 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats
The TS-664 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-664 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-664, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Conainer Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.

Comprehensive security and privilege settings
The TS-664 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-664 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified privilege settings
The TS-664 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-664 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor
A security portal for the TS-664 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-664 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

The best file storage and collaboration center
The TS-664 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-664 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-664 storage as needed to accommodate data and business growth.

Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-664, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-664 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces	M.2, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor threads	4
Processor boost frequency	2.9 GHz
On-board graphics card model	Intel® UHD Graphics
Processor model	N5095
Processor frequency	2 GHz
Processor cores	4
Number of processors supported	1
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	4000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
HDMI version	2.1
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Tower
Product colour	Black, Bronze
Cooling type	Active
Number of fans	2 fan(s)
Fan diameter	9 cm
LED indicators	HDD, LAN, Power, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	Yes
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Backup button	Yes
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP QTS
Operating system version	5.0.0
Security algorithms	FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP V2, V3
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Solaris 10
Snapshot	Yes
USB copy function	Yes
Software
Operating system installed	QNAP QTS
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Solaris 10
Power
Power supply location	External
Power supply unit (PSU) capacity	120 W
Number of power supply units	1
Power consumption (typical)	44.02 W
Power consumption (sleep)	23.22 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	235 mm
Depth	226 mm
Height	168 mm
Weight	2.9 kg
Package width	255 mm
Package depth	383 mm
Package height	345 mm
Package weight	4.56 kg
Technical details
Warranty period	3 year(s)
Packaging content
Package type	Box
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Other features
Warranty period	3 year(s)

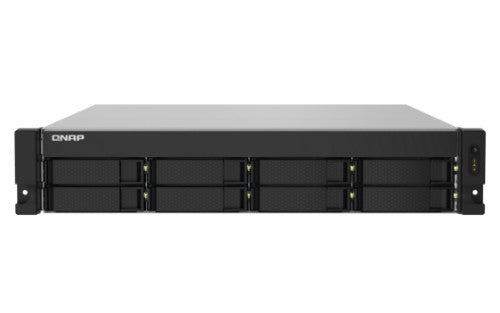

8x 3.5", Alpine AL324, 4 GB UDIMM DDR4 (1 x 4 GB), 512 MB Flash, LAN, 250W (x2) PSU, 100 - 240 V, 89 x 482 x 534 mm

Key Features

• Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing
• HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning
• Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ Workspace and Microsoft 365®
• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
• Expand the application potential of the TS-832PXU-RP by installing a compatible PCIe card
• Increase the storage capacity of the TS-832PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD

Reasons To Buy

HybridMount File-Based Cloud Gateway

Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block-Based Cloud Gateway

VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.

Description

With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity.

Higher performance x faster throughput
The TS-832PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.

Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.

Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

Balance performance and capacity
Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.

Extend SSD lifespan
SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.

Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

Easily find and automatically organize files and photos
The TS-832PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.

File search
Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.

Photo management
QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.

Auto archiving
Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.

Secure Google™ Workspace and Microsoft 365® backup
The convenience of Software as a Service (SaaS) solutions such as Google™ Workspace and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google™ Workspace and Microsoft 365® to provide an extra layer of data protection for business cloud data.

Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-832PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.

Flexibly expand storage capacity whenever needed
The storage capacity of the TS-832PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PXU-RP can also be used to expand the storage space of other QNAP NAS.

PCIe expandability for greater application potential
The TS-832PXU-RP includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.

Network Adapter
Add additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.

QM2 Card
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

USB Card
Add QNAP USB 3.2 Gen 2 expansion card to benefit from 10Gbps data transfer performance with newer, faster USB devices for transferring large media files.

Redundant power for dependable services
The TS-832PXU-RP is equipped with a redundant power supply to ensure maximum service uptime. Combined with dual 10GbE SFP+ and dual 2.5GbE ports, your businesses can easily maintain 24/7 operations, guaranteeing a cost-effective and reliable storage solution.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Online RAID migration	Yes
Online RAID expansion	Yes
Bad block scan	Yes
Storage drive interface	Serial ATA III
Storage drive capacity	0 GB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor manufacturer	Annapurna Labs
Processor family	Annapurna Labs
Processor model	AL324
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Maximum RAM supported	16 GB
Memory slots	1
Flash memory	512 MB
Memory form factor	UDIMM
Network
Load balancing system	Yes
Link aggregation	Yes
Ethernet LAN data rate supported (max)	10000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500,10000 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	PPTP, L2TP/IPSec, OpenVPN, QBelt
WLAN adapter supported	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
Fiber ports quantity	2
Fiber optic connector	SFP+
Concurrent connections	700
Design
Chassis type	Rack (2U)
Product colour	Black
Cooling type	Active
Number of fans	2 fan(s)
Fan diameter	7 cm
LED indicators	HDD, LAN, Status
Performance
Built-in FTP server	Yes
System log	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Hot spare	Yes
Browser supported	Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome
Type	NAS
Universal Plug and Play (UPnP)	Yes
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	30.6 dB
Operating system installed	QNAP Turbo System
Operating system version	5.0.0
Web-based management	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Snapshot	Yes
USB copy function	Yes
Software
Operating system installed	QNAP Turbo System
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	2
Power consumption (typical)	69.191 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Weight & dimensions
Width	482 mm
Depth	534 mm
Height	89 mm
Weight	10.9 kg
Package width	560 mm
Package depth	720 mm
Package height	270 mm
Package weight	14.4 kg
Technical details
Harmonized System (HS) code	84714100
Warranty period	3 year(s)
Packaging content
Number of screws	56
Package type	Box
Cables included	AC, LAN (RJ-45)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84714100
Other features
Warranty period	3 year(s)

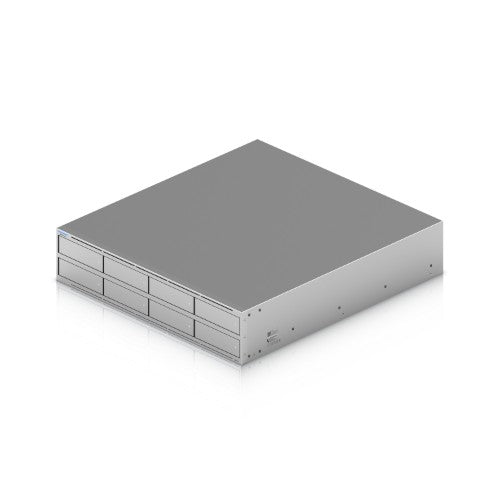

Ubiquiti UniFi UNAS-Pro-8 8-Bay NAS Enclosure

Description

Ubiquiti UNAS Pro 8

SKU : UNAS-Pro-8

Tech Specs: Click Here
Installation Guide: Click Here

Description:
2U rack-mount NAS with (8) 2.5/3.5' HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.

Note: SSD trays for (2) M.2 NVMe bays must be ordered separately

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	10
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA
RAID support	Yes
Processor
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A57
Processor family	Cortex-A
Processor model	Cortex-A57
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory	16 GB
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	2
Fiber optic connector	SFP+
Design
Chassis type	Rack (2U)
Product colour	Grey
Cooling type	Active
Housing material	SGCC
Performance
Type	NAS
Backup function	Yes
Power
Power consumption (typical)	550 W
Weight & dimensions
Width	442.4 mm
Depth	480 mm
Height	87.4 mm
Weight	11.5 kg
Operational conditions
Operating temperature (T-T)	-5 - 40 °C

RTD1619B 1.7GHz quad-core, 2.5-Gigabit Ethernet, 2GB DDR4 RAM, ADM 4.1, USB, 13.1W, AES 256-Bit

Key Features

• Equipped with Realtek RTD1619B 1.7GHz quad-core processor
• Superfast 2.5-Gigabit Ethernet
• 2 GB DDR4 RAM
• Upgraded powerful internal display, smooth transcoding of 4K videos
• Supports Wake on LAN and Wake on WAN
• Btrfs/iSCSI Snapshots
• Tool-free installation

Description

Multimedia Transcoding - Btrfs Support - Maximum Value
Affordable personal cloud bringing high speeds for individuals and families.

CPU and iGPU Upgrades
The Drivestor Pro Gen2 contains a 1.7 GHz CPU, which is faster than the 1.4 GHz found in the first generation of Drivestor Pro NAS devices. The upgraded CPU also contains an upgraded iGPU that provides significant upgrades in transcoding features and performance, making the Drivestor Pro Gen2 the best price-performance NAS.

2.5-Gigabit Ethernet – Double Speed
The Drivestor 2 Pro Gen2, despite being extremely affordable contains 2.5-Gigabit Ethernet and more than doubles the performance of comparable Gigabit-class devices.

Regular access (RAID 1)

2GB DDR4 RAM
The Drivestor Pro Gen2 handles multitasking with ease by utilizing its 2 GB of DDR4 memory ensuring that virtually any task on an ASUSTOR NAS is executed smoothly.

Easily Get Started with ASUSTOR
The all-new navigation page helps make controlling your NAS and data even easier. A user friendly UI incentivizes becoming familiar with the numerous features an ASUSTOR NAS provides to ensure better data security.

Efficient and Powerful
The Drivestor Pro Gen2 are ASUSTOR’s highest value devices ever. Transcode 10-bit 4K H.265 media with hardware decoding easily that enables unbelievably smooth video playback in LooksGood.

Share and Share Alike!
Share links can create hyperlinks to share with other people to upload and download files to and from an ASUSTOR NAS. While share links come with multiple customizable options to increase convenience or security, people that use a share link are not required to have an account to upload and download files on the share link, making it more convenient for project collaboration or organizing travel photos.

Btrfs for ARM is Here!
The Drivestor Pro Gen2 is the first ARM NAS by ASUSTOR to support Btrfs. Use your Drivestor Pro Gen2 to create Btrfs snapshots in Snapshot Center for extra data protection. Snapshot Center supports scheduling or manual creation of snapshots, making it easier to restore files after unintentional modifications. Snapshots can be used to respond to ransomware threats in real time and help effectively protect data integrity.

Tool-free Installation
ASUSTOR’s Driverstor Pro Gen2 series introduces its new tool-free caddies as a way to simplify installation of hard drives. Each NAS comes included with brackets to install the drive easily. On the Driverstor Pro Gen2 series, hot-swapping of hard drives is supported, allowing you to change hard drives easily without powering down the NAS.

Exclusive MyArchive Cold Backup Technology
Unlimited Capacity Expansion
MyArchive cold storage technology turns NAS hard drives into removable storage archive drives. Directly insert a MyArchive hard drive into a free bay inside your NAS to easily access, backup and share terabytes of content.

Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups

Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout

Internal Data
- MyArchive on and offsite backups
- AES-256 folder encryption
- Antivirus software

Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
- Wake-on-WAN (WAN)

Protected From Ransomware
The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks. With Snapshot Center and Btrfs providing efficient snapshots to easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features black and white lists and the ability to change default ports, disable SSH and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256bit encryption.

DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Web Center
Easily set up a website with Web Center. Install Apache or Nginx or almost any other web server implementation and add multiple website portals for an easy-to-use web server experience.

Photo Gallery 3 + AiFoto 3
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.

Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 25 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

Portainer – Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Mobile Apps
ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

First-Class Product Warranty
All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

Specifications

Storage
Supported storage drive types	HDD & SSD
Number of storage drives supported	2
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA III
Processor
Processor manufacturer	Realtek
Processor family	Realtek
Processor model	RTD1619B
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	2 GB
Flash memory	8192 MB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
Design
Product colour	Black
Cooling type	Active
Fan diameter	7 cm
LED indicators	Yes
Performance
Share folder access right management	Yes
Browser supported	Microsoft Edge, Firefox, Chrome
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level (idle)	18.6 dB
Operating system installed	ADM
Operating system version	4.1
Web-based management	Yes
Security algorithms	256-bit AES, HTTPS, SSH, SSL/TLS
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported	FreeBSD, UnixWare
Software
Operating system installed	ADM
Operating system version	4.1
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported	FreeBSD, UnixWare
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	65 W
Number of power supply units	1
Power consumption (typical)	13.1 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	114 mm
Depth	230 mm
Height	170 mm
Weight	1.6 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
Other features
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC

Intel Celeron N5105, 4GB SO-DIMM DDR4, 90W x1, 8GB eMMC, 1x HDMI 2.0b, 17.6dB, 100V to 240V AC

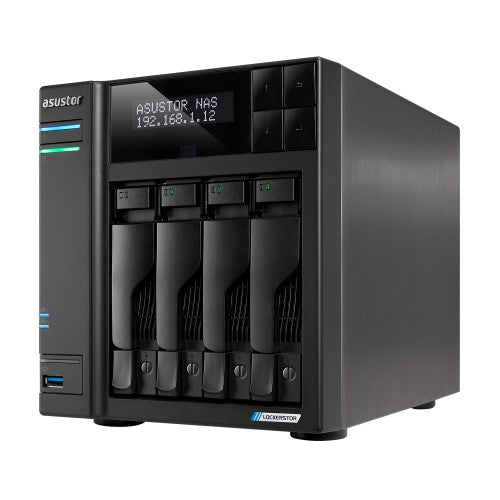

Key Features

• Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for 10GbE NICs or M.2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports – 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN

Description

Enthusiast-grade NAS with two, four or six bays
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.

Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality

CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.

Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Storage drive capacity	0 GB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	M.2, Serial ATA
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	4
Processor
Processor manufacturer	Intel
CPU configuration (max)	1
Processor cache	4 MB
On-board graphics card model	Intel® UHD Graphics
Processor model	N5105
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Memory clock speed	2933 MHz
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Concurrent connections	512
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
LED indicators	Yes
Built-in display	Yes
Display type	LCD
Performance
System log	Yes
S.M.A.R.T. support	Yes
Browser supported	Firefox, Chrome, Safari, Microsoft Edge
Type	NAS
Universal Plug and Play (UPnP)	Yes
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level	17.6 dB
Operating system installed	ADM
Operating system version	4.1 Onwards
Web-based management	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Software
Operating system installed	ADM
Operating system version	4.1 Onwards
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Power
Power supply location	External
Power supply unit (PSU) capacity	90 W
Power consumption (typical)	35 W
Power consumption (sleep)	0.88 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	170 mm
Depth	230 mm
Height	185.5 mm
Weight	2.94 kg
Technical details
Harmonized System (HS) code	84714100
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84714100

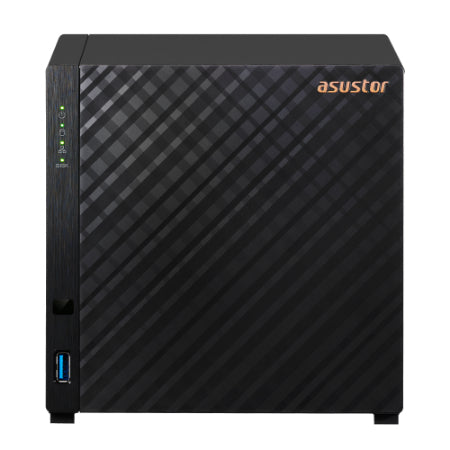

DRIVESTOR 4 Gen2

Key Features

• Equipped with Realtek RTD1619B 1.7GHz quad-core processor
• Superfast 2.5-Gigabit Ethernet
• 1 GB DDR4 RAM
• Upgraded powerful internal display, smooth transcoding of 4K videos
• Supports Wake on LAN and Wake on WAN
• Tool-free installation

Description

Post-Quantum Cryptography (PQC) Ready: ADM Prepared for Future Threats
ASUSTOR has officially upgraded ADM to support PQC Hybrid TLS encryption certified by the US NIST. This fully adopts the official version of the Kyber algorithm, X25519+ML-KEM 768, and in ADM 5.1 and later, is automatically enables this feature through TLS 1.3 without requiring any configuration. This protects against the Harvest Now, Decrypt Later threat. As long as your browser supports PQC, it will immediately establish a post-quantum cryptography (PQC) encrypted secure connection, and the connection status will be clearly displayed through the ADM interface, ensuring that data stored on your ASUSTOR NAS can withstand future quantum computer threats.

Build Your Family's Data Center
The AS12 series is designed for families: offering ample storage, secure backups, and ease of use. Powered by a Realtek RTD1619B 1.7 GHz Quad-Core processor, it features 2.5GbE networking and supports Btrfs snapshots for extra data protection. With three USB 5Gbps ports (1 front, 2 rear), you have more flexibility for external backups and peripheral expansion.

CPU and iGPU Upgrades
The Drivestor Gen2 contains a 1.7 GHz CPU, which is faster than the 1.4 GHz found in the first generation of Drivestor NAS devices. The upgraded CPU also contains an upgraded iGPU that provides significant upgrades in transcoding features and performance, making the Drivestor Gen2 the best price-performance NAS.

1GB DDR4 RAM
The Drivestor Gen2 handles multitasking with ease by utilizing its 1 GB of DDR4 memory ensuring that virtually any task on an ASUSTOR NAS is executed smoothly.

2.5-Gigabit Ethernet – Double Speed
The Drivestor Gen2, despite being extremely affordable contains 2.5-Gigabit Ethernet and more than doubles the performance of comparable Gigabit-class devices.

Easily Get Started with ASUSTOR
The all-new navigation page helps make controlling your NAS and data even easier. A user friendly UI incentivizes becoming familiar with the numerous features an ASUSTOR NAS provides to ensure better data security.

Share and Share Alike!
Share links can create hyperlinks to share with other people to upload and download files to and from an ASUSTOR NAS. While share links come with multiple customizable options to increase convenience or security, people that use a share link are not required to have an account to upload and download files on the share link, making it more convenient for project collaboration or organizing travel photos.

Efficient and Powerful
Transcode 10-bit 4K H.265 media with hardware decoding easily that enables unbelievably smooth video playback in LooksGood.

Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Toolless installation
The sliding cover design found on the Drivestor Gen2 makes opening your NAS easy. The inner hard drive rails and outer cover all use thumb screws making hard drive installation simple and easy without tools.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Online RAID migration	Yes
Bad block scan	Yes
Storage drive interface	Serial ATA
RAID support	Yes
RAID levels	0, 1, JBOD
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drive sizes supported	3.5"
Processor
Processor manufacturer	Realtek
Processor family	Realtek
Processor model	RTD1619B
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	1 GB
Flash memory	8000 MB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
Design
Chassis type	Tower
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
LED indicators	Yes
Performance
System log	Yes
S.M.A.R.T. support	Yes
Browser supported	Firefox, Chrome, Safari, Microsoft Edge
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Number of users	4096 user(s)
Noise level	19.7 dB
Operating system installed	ADM
Operating system version	5.0
Web-based management	Yes
Security algorithms	256-bit AES, HTTPS, SNMP, SSH
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Snapshot	Yes
Software
Operating system installed	ADM
Operating system version	5.0
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power supply unit (PSU) capacity	65 W
Power consumption (typical)	22.8 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	164 mm
Depth	218 mm
Height	165 mm
Weight	1.57 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

DRIVESTOR 2 Gen2

Key Features

• Equipped with Realtek RTD1619B 1.7GHz quad-core processor
• Superfast 2.5-Gigabit Ethernet
• 1 GB DDR4 RAM
• Upgraded powerful internal display, smooth transcoding of 4K videos
• Supports Wake on LAN and Wake on WAN
• Tool-free installation

Description

Post-Quantum Cryptography (PQC) Ready: ADM Prepared for Future Threats
ASUSTOR has officially upgraded ADM to support PQC Hybrid TLS encryption certified by the US NIST. This fully adopts the official version of the Kyber algorithm, X25519+ML-KEM 768, and in ADM 5.1 and later, is automatically enables this feature through TLS 1.3 without requiring any configuration. This protects against the Harvest Now, Decrypt Later threat. As long as your browser supports PQC, it will immediately establish a post-quantum cryptography (PQC) encrypted secure connection, and the connection status will be clearly displayed through the ADM interface, ensuring that data stored on your ASUSTOR NAS can withstand future quantum computer threats.

Build Your Family's Data Center
The AS12 series is designed for families: offering ample storage, secure backups, and ease of use. Powered by a Realtek RTD1619B 1.7 GHz Quad-Core processor, it features 2.5GbE networking and supports Btrfs snapshots for extra data protection. With three USB 5Gbps ports (1 front, 2 rear), you have more flexibility for external backups and peripheral expansion.

CPU and iGPU Upgrades
The Drivestor Gen2 contains a 1.7 GHz CPU, which is faster than the 1.4 GHz found in the first generation of Drivestor NAS devices. The upgraded CPU also contains an upgraded iGPU that provides significant upgrades in transcoding features and performance, making the Drivestor Gen2 the best price-performance NAS.

1GB DDR4 RAM
The Drivestor Gen2 handles multitasking with ease by utilizing its 1 GB of DDR4 memory ensuring that virtually any task on an ASUSTOR NAS is executed smoothly.

2.5-Gigabit Ethernet – Double Speed
The Drivestor Gen2, despite being extremely affordable contains 2.5-Gigabit Ethernet and more than doubles the performance of comparable Gigabit-class devices.

Easily Get Started with ASUSTOR
The all-new navigation page helps make controlling your NAS and data even easier. A user friendly UI incentivizes becoming familiar with the numerous features an ASUSTOR NAS provides to ensure better data security.

Share and Share Alike!
Share links can create hyperlinks to share with other people to upload and download files to and from an ASUSTOR NAS. While share links come with multiple customizable options to increase convenience or security, people that use a share link are not required to have an account to upload and download files on the share link, making it more convenient for project collaboration or organizing travel photos.

Efficient and Powerful
Transcode 10-bit 4K H.265 media with hardware decoding easily that enables unbelievably smooth video playback in LooksGood.

Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus and ADM’s various backup tools help protect ransomware even better.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	2
Online RAID migration	Yes
Bad block scan	Yes
Storage drive interface	Serial ATA
RAID support	Yes
RAID levels	0, 1, JBOD
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drive sizes supported	3.5"
Processor
Processor manufacturer	Realtek
Processor family	Realtek
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	1 GB
Flash memory	8000 MB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
Design
Chassis type	Tower
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	7 cm
LED indicators	Yes
Performance
System log	Yes
S.M.A.R.T. support	Yes
Browser supported	Firefox, Chrome, Safari, Microsoft Edge
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Number of users	4096 user(s)
Noise level	18.6 dB
Operating system installed	ADM
Operating system version	5.0
Web-based management	Yes
Security algorithms	256-bit AES, HTTPS, SNMP, SSH
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Snapshot	Yes
Software
Operating system installed	ADM
Operating system version	5.0
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power supply unit (PSU) capacity	65 W
Power consumption (typical)	11.6 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	102 mm
Depth	218 mm
Height	165 mm
Weight	1.14 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Intel Celeron N5105, 4GB SO-DIMM DDR4, 65W x1, 8GB eMMC, 1x HDMI 2.0b, 17.7dB (HDD idle), 100V to 240V AC

Key Features

• Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for M.2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports – 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN

Description

Enthusiast-grade NAS with two, four or six bays
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.

Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality

CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.

Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	2
Storage drive interface	M.2, Serial ATA
Storage drive capacity	0 GB
RAID support	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	4
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron®
CPU configuration (max)	1
Processor cache	4 MB
On-board graphics card model	Intel® UHD Graphics
Processor model	N5105
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Memory clock speed	2933 MHz
Maximum RAM supported	16 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS/SMB, SMB 2.0/3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
USB port	Yes
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Graphics
On-board graphics card model	Intel® UHD Graphics
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	7 cm
LED indicators	Yes
Performance
System log	Yes
Type	NAS
Universal Plug and Play (UPnP)	Yes
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Noise level (idle)	17.7 dB
Operating system installed	ADM
Operating system version	4.1 Onwards
Web-based management	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Software
Operating system installed	ADM
Operating system version	4.1 Onwards
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power supply location	External
Power supply unit (PSU) capacity	65 W
Number of power supply units	1
Power consumption (typical)	21 W
Power consumption (sleep)	0.79 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	163.5 mm
Depth	108 mm
Height	230 mm
Weight	2 kg
Technical details
Harmonized System (HS) code	84714100
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84714100
