Collection: Power Distribution Units (PDUs)

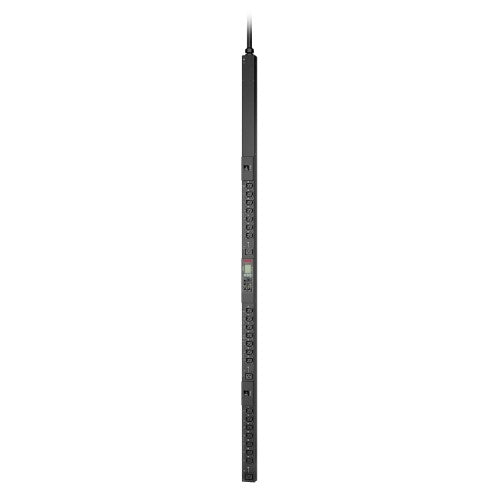

Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19

Key Features

• With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control
• Includes: Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

Description

NetShelter Switched Rack PDUs Features & Benefits
Manageability
1% Metering Accuracy
Providing the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides peace of mind to use these PDUs to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Available on 9000 series PDUs.
Gigabit Ethernet Connectivity
9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center. All other models provide 10/100 ethernet connectivity.
Network Port Sharing
Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU. Manage up to 32 PDUs with 9000 series and up to 4 PDUs with 8000 series.
Multi-tier user access
Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.
Outlet Level Grouping
Outlet power sequencing can be configured to group any combination of outlets to power up or down together providing flexibility.
EcoStruxure IT Ready
Seamless integration of one or many PDUs including alerts and control with EcoStruxure IT. Allows IT and data center professionals to monitor and manage all of their critical IT infrastructure on-premise, in the cloud, and at the edge from anywhere.
Enhanced Cybersecurity
9000 series PDUs include APC Network Management card with security features including secured interfaces and a modified password policy providing peace of mind.
Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Adaptability
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Agility
Wireless Connectivity
Compatible with the optional APC USB WiFi Device for cableless connectivity over WiFi that speeds deployment and simplifies moves, adds, and changes (9000 Series PDUs only - expected to be available on units manufactured after March 2021).
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Availability
60C Operating Temperature
Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
Hydraulic Magnetic Circuit Breakers
Provide increased availability by maintaining trip current over a wide temperature range.
C13/C15 and C19/C21 Hybrid Outlets
Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
High Retention Outlets
With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
Field-replaceable NMC
Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.

Specifications

Design
On/off switch	No
Type	Single-phase
PDU types	Switched
Mounting	Vertical
Product colour	Black
Certification	EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, RCM, VDE
Rack capacity	0U
Ports & interfaces
Power plug	IEC 60309
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
Certification	EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, RCM, VDE
Power
Maximum power	7360 W
Nominal input voltage	200, 208, 230, 220-240 V
Maximum current	32 A
Load capacity	7400 VA
AC input frequency	50 - 60 Hz
Weight & dimensions
Weight	7.34 kg
Width	56 mm
Depth	46 mm
Height	1829 mm
Package width	165 mm
Package depth	124 mm
Package height	2040 mm
Package weight	9.95 kg
Packaging data
Package width	165 mm
Package depth	124 mm
Package height	2040 mm
Package weight	9.95 kg
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m

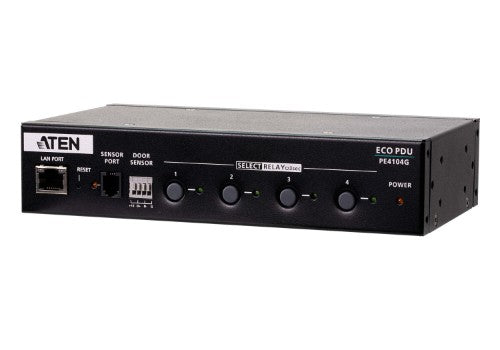

4-Outlet IP Control Box

Key Features

• Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
• Power-on sequencing - users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
• Works with web-based eco DC software
• Remote power control via TCP/IP and a built in 10/100 Ethernet port

Description

Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
1x IP Control Box
1x KC06-0012-B07G Standard Rack Mount Kit
1x LINP-10F3-2B0G Power Cord
4x 0X02-0040-002G Footpads
1x User Instructions

Specifications

Design
PDU types	Basic
Product colour	Black
Certification	CE-EMC CE-LVD
Rack capacity	1U
Ports & interfaces
Power plug	IEC 320
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	Yes
Cable length	3 m
Certification	CE-EMC CE-LVD
Reset button	Yes
Ergonomics
LED indicators	Yes
Cable length	3 m
Power
Nominal input voltage	100-240 V
Maximum current	10 A
Weight & dimensions
Weight	1.29 kg
Width	200 mm
Depth	115 mm
Height	44 mm
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.49 kg
Packaging data
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.49 kg
Packaging content
Cables included	AC
Manual	Yes
Rack mount kit	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Technical details
Compliance certificates	CE
Logistics data
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	8.04 kg
Products per master (outer) case	5 pc(s)
Master (outer) case net weight	6.45 kg

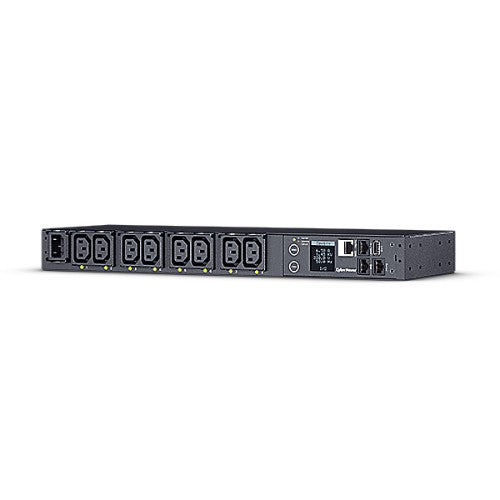

Switched, 8 x C13 Out

Key Features

• Real-Time Local/Remote Monitoring and Switching
• User Configurable Color LCD
• Firmware Upgrade via USB
• Sequential Outlet ON/OFF Control
• Digital Real-time Load Display

Description

CyberPower PDU41004 Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.

The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.

Specifications

Design
Type	Single-phase
PDU types	Managed, Switched
Mounting	Horizontal
Display	LCD
Product colour	Black
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Rack capacity	1U
Housing material	Steel
Ports & interfaces
USB ports quantity	1
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	4
Features
LED indicators	Link, Status
Cable length	3.05 m
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Daisy chain	Yes
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Bundled software	PowerPanel Business, PowerPanel Enterprise
Management features
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Firmware upgradeable via	USB
Firmware upgradeable	Yes
Ergonomics
Display	LCD
LED indicators	Link, Status
Cable length	3.05 m
Power
Nominal input voltage	100 - 240 V
Maximum current	12 A
Nominal output voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Certificates
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3500 m
Non-operating altitude	0 - 15000 m
Operating temperature (T-T)	32 - 140 °F
Weight & dimensions
Weight	2.1 kg
Width	433 mm
Depth	112 mm
Height	44 mm
Package width	500 mm
Package depth	250 mm
Package height	65 mm
Package weight	3.9 kg
Packaging content
Packaging content	PDU41004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable
Bundled software	PowerPanel Business, PowerPanel Enterprise
Packaging data
Package width	500 mm
Package depth	250 mm
Package height	65 mm
Package weight	3.9 kg
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
Security
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS

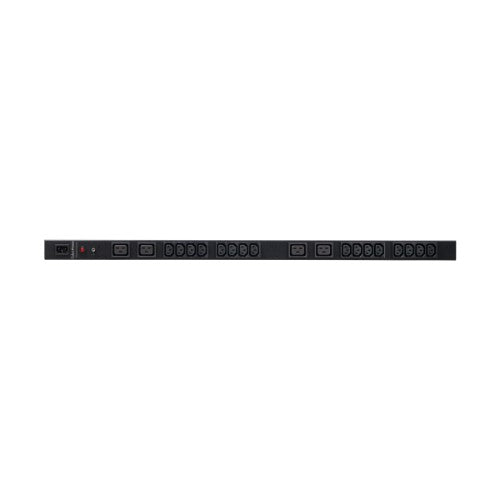

Power Distribution Units

Key Features

• Overload Protection
• Adjustable Mounting Brackets
• Industrial-grade Metal Housing
• Cord Retention Tray

Description

The CyberPower 20-outlet (20 Front) 0U vertical rack mount basic power distribution unit (PDU10BVHVIEC20F) provides 200/230V 10A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single IEC-320 C14 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 20 IEC-320 (4-C19 and 16-C13) output receptacles
- Single IEC-320 C14 plug
- 10-amp electrical capacity with circuit breaker
- 200/230V AC - 50/60Hz
- 36" 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord

Specifications

Design
Type	Single-phase
PDU types	Basic
Mounting	Vertical
Product colour	Black
Certification	UL60950
Rack capacity	0U
Housing material	Steel
Ports & interfaces
Power plug	C14 coupler
AC outlets quantity	20 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
Cable length	3.05 m
Certification	UL60950
Surge protection	Yes
Ergonomics
Cable length	3.05 m
Power
Nominal input voltage	200 - 240 V
Maximum current	10 A
Nominal output voltage	200 - 240 V
Power protection features	Overload
Surge protection	Yes
AC input frequency	50 / 60 Hz
Circuit breaker	Yes
Certificates
Certification	UL60950
Compliance certificates	CE, RoHS, UL
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 45 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Operating temperature (T-T)	32 - 95 °F
Weight & dimensions
Weight	2 kg
Weight (imperial)	1.36 kg (3 lbs)
Dimensions (W x D x H) (imperial)	44.5 x 914.4 x 38.1 mm (1.75 x 36 x 1.5")
Width	44.5 mm
Depth	38.1 mm
Height	914.4 mm
Package width	70.1 mm
Package depth	153.9 mm
Package height	1026.2 mm
Package weight	5.2 kg
Packaging content
Packaging content	PDU10BVHVIEC20F, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Packaging data
Package width	70.1 mm
Package depth	153.9 mm
Package height	1026.2 mm
Package weight	5.2 kg
Technical details
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	CE, RoHS, UL
Logistics data
Warranty period	2 year(s)

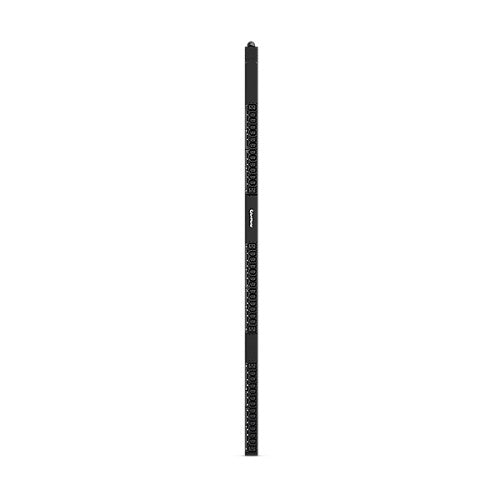

Power Distribution Units

Key Features

• Real-time Local/Remote Monitoring and Switching
• Overload Protection
• Ultra Low Power Consumption
• Industrial-grade Metal Housing
• User Configurable Color LCD
• Rotatable LCD for Proper Display Orientation
• Firmware Upgrade via USB
• User-upgradeable Firmware
• Adjustable Mounting Brackets
• IEC Receptacle Locking
• Controllable Receptacles with Power Sequencing
• Work under High Temperature
• ±1% Measurement Accuracy
• Digital Real-time Load Display
• Hot-swappable LCD Design
• LED Status Indicator
• Support Environmental Sensor
• PowerPanel Management Software
• Cord Retention Tray

Description

PDU41405

CyberPower PDU41405 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address. The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Specifications

Design
Type	Single-phase
PDU types	Monitored, Switched
Mounting	Vertical
Display	LCD
Product colour	Black
Certification	CE, EN 55032 Class A
Rack capacity	0U
Housing material	Steel
Ports & interfaces
Power plug	IEC 60309
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	3
Features
LED indicators	Yes
Cable length	3.05 m
Certification	CE, EN 55032 Class A
Daisy chain	Yes
Management features
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Firmware upgradeable via	USB
Firmware upgradeable	Yes
Ergonomics
Display	LCD
LED indicators	Yes
Cable length	3.05 m
Power
Nominal input voltage	220-240 V
Maximum current	32 A
Power protection features	Over current, Overload
AC input frequency	50 - 60 Hz
Certificates
Certification	CE, EN 55032 Class A
Compliance certificates	CE, RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3500 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	8 kg
Width	56 mm
Depth	48 mm
Height	1665 mm
Package width	185 mm
Package depth	115 mm
Package height	1895 mm
Package weight	9.9 kg
Packaging data
Package width	185 mm
Package depth	115 mm
Package height	1895 mm
Package weight	9.9 kg
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Logistics data
Country of origin	China

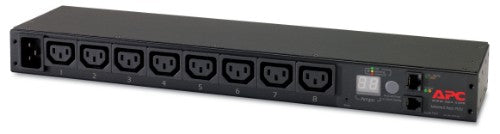

208/230 V, 8x IEC 320 C13, IEC-320 C20, 1U, 444 x 102 x 44 mm, 1740 g

Description

Marketing Features

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring
Status available to customers both in the data center and remotely.

Availability

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Agility

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Specifications

Design
PDU types	Metered
Mounting	Horizontal/Vertical
Product colour	Black
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, ICES-003, UL 60950, UL Listed, VCCI, VDE
Rack capacity	0U/1U
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Features
LED indicators	Yes
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, ICES-003, UL 60950, UL Listed, VCCI, VDE
Management features
Monitoring	Current, Power, Voltage
Ergonomics
LED indicators	Yes
Power
Maximum power	3680 W
Nominal input voltage	200-230 V
Maximum current	20 A
Output voltage	230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
AC input frequency	50 - 60 Hz
Certificates
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, ICES-003, UL 60950, UL Listed, VCCI, VDE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	1.74 kg
Width	444 mm
Depth	102 mm
Height	44 mm
Package width	470 mm
Package depth	337 mm
Package height	64 mm
Package weight	2.92 kg
Packaging content
Packaging content	Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual
Packaging data
Package width	470 mm
Package depth	337 mm
Package height	64 mm
Package weight	2.92 kg
Technical details
Compliance certificates	RoHS

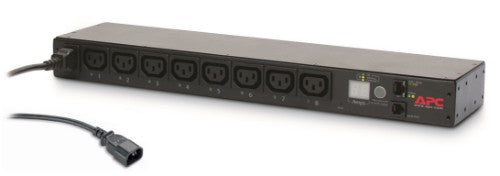

NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

Description

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Specifications

Design
PDU types	Metered, Switched
Mounting	Horizontal/Vertical
Product colour	Black
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Rack capacity	0U/1U
Ports & interfaces
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Input connection type	IEC-320 C14
Features
Cable length	1.98 m
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	1.98 m
Power
Maximum power	2300 W
Nominal input voltage	200-230 V
Maximum current	10 A
Nominal output voltage	208-230 V
Load capacity	2300 VA
Maximum input current per phase	10 A
Maximum total current draw per phase	10 A
AC input frequency	50 - 60 Hz
Certificates
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	1 - 15000 m
Weight & dimensions
Weight	2.27 kg
Width	445 mm
Depth	108 mm
Height	44 mm
Package width	470 mm
Package depth	343 mm
Package height	70 mm
Package weight	3.45 kg
Packaging content
Packaging content	Installation Guide, Rack Mounting Brackets, User Manual
Packaging data
Package width	470 mm
Package depth	343 mm
Package height	70 mm
Package weight	3.45 kg
Technical details
Total carbon footprint (kg of CO2e)	915.89
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	915.89

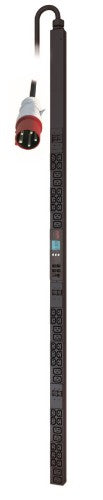

NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

Design
PDU types	Metered
Mounting	Vertical
Product colour	Black
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Rack capacity	0U
Ports & interfaces
Power plug	IEC309
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Output connections	30 x IEC 320 C13 12 x IEC 320 C19
Features
LED indicators	Yes
Cable length	1.83 m
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Management features
Monitoring	Current, Power, Voltage
Ergonomics
LED indicators	Yes
Cable length	1.83 m
Power
Maximum power	22000 W
Nominal input voltage	400 V
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	22080 VA
Maximum input current per phase	32 A
Power protection features	Overload
AC input frequency	50 - 60 Hz
Certificates
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	8.72 kg
Width	56 mm
Depth	51 mm
Height	1829 mm
Package width	170 mm
Package depth	112 mm
Package height	2050 mm
Package weight	11.6 kg
Packaging data
Package width	170 mm
Package depth	112 mm
Package height	2050 mm
Package weight	11.6 kg
Technical details
Total carbon footprint (kg of CO2e)	57837.86
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	57837.86
