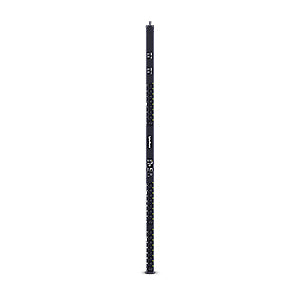

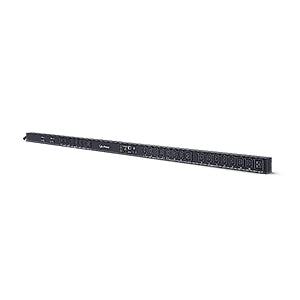

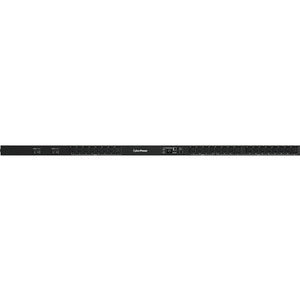

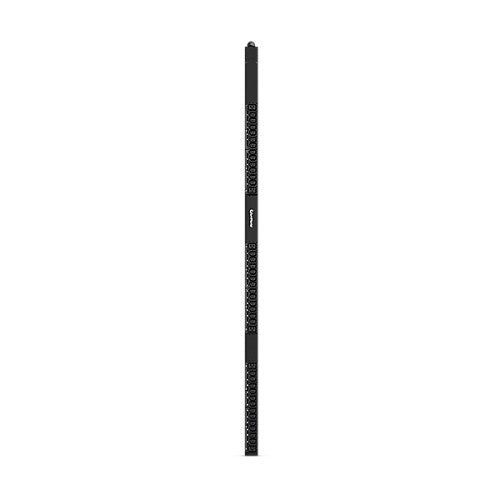

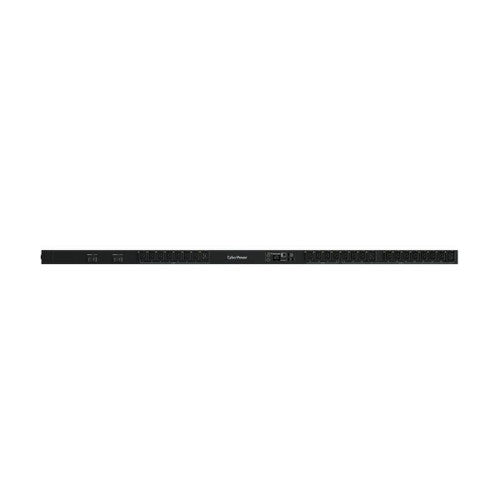

CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black
CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black
CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black
CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black
CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black
CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black
CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black
CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black

CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black

CyberPower PDU41405 power distribution unit (PDU) 24 AC outlet(s) 0U Black

SKU: PDU41405

Availability: Sold out 10 in stock
Regular price $1,426.50
Price: $1,426.50 Regular price
Taxes included.
Power Distribution Units

Key Features

  • Real-time Local/Remote Monitoring and Switching

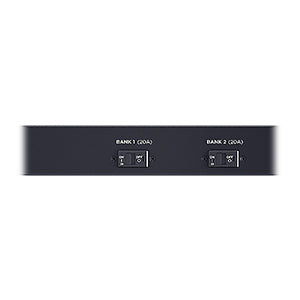

  • Overload Protection
  • Ultra Low Power Consumption
  • Industrial-grade Metal Housing

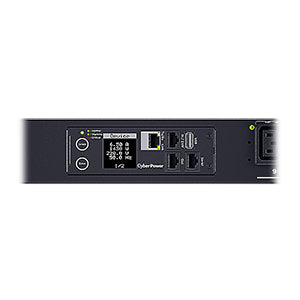

  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking
  • Controllable Receptacles with Power Sequencing
  • Work under High Temperature
  • ±1% Measurement Accuracy
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • Support Environmental Sensor
  • PowerPanel Management Software
  • Cord Retention Tray

Description

PDU41405

CyberPower PDU41405 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address. The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Specifications

Design
Type Single-phase
PDU types Monitored, Switched
Mounting Vertical
Display LCD
Product colour Black
Certification CE, EN 55032 Class A
Rack capacity 0U
Housing material Steel
Ports & interfaces
Power plug IEC 60309
AC outlets quantity 24 AC outlet(s)
AC outlet types C13 coupler, C19 coupler
Serial ports quantity 1
Ethernet LAN (RJ-45) ports 3
Features
LED indicators Yes
Cable length 3.05 m
Certification CE, EN 55032 Class A
Daisy chain Yes
Management features
Supported network protocols IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Firmware upgradeable via USB
Firmware upgradeable Yes
Ergonomics
Display LCD
LED indicators Yes
Cable length 3.05 m
Power
Nominal input voltage 220-240 V
Maximum current 32 A
Power protection features Over current, Overload
AC input frequency 50 - 60 Hz
Certificates
Certification CE, EN 55032 Class A
Compliance certificates CE, RoHS
Sustainability
Sustainability compliance Yes
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -15 - 60 °C
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3500 m
Non-operating altitude 0 - 15000 m
Weight & dimensions
Weight 8 kg
Width 56 mm
Depth 48 mm
Height 1665 mm
Package width 185 mm
Package depth 115 mm
Package height 1895 mm
Package weight 9.9 kg
Packaging data
Package width 185 mm
Package depth 115 mm
Package height 1895 mm
Package weight 9.9 kg
Technical details
Sustainability compliance Yes
Compliance certificates CE, RoHS
Logistics data
Country of origin China
