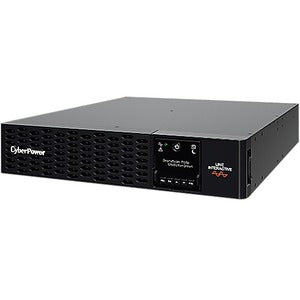

CyberPower PR1500ERTXL2U uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1500 W 10 AC outlet(s)

1.5 kVA, 1.5 kW, 151-302V, 50/60Hz, 2430J, 55.5dB, 433x500x86.5mm, 36.5kg, Black

Description

PR1500ERTXL2U

CyberPower PR1500ERTXL2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment. Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Critical/Noncritical Load Outlets

By dividing the outlets according to the importance of the connected loads, users are offered the flexibility to wisely manage the limited battery power during the event of power outage. In the state of a power failure, the UPS battery power can be preserve by terminating the power provided to the non-critical outlets, sparing the power to allow more runtime for critical loads to perform graceful shutdown.

Heavy-duty Rackmount Rails Included

The adjustable rackmount rails are engineered to facilitate the rack mounting of UPS or battery modules and support heavy UPS systems. Installation is quick and easy and required mounting hardware is included.

Sturdy Rackmount Ears Included

The rackmount ears are included for flexible rack mounting of UPS or battery modules. For some rack/tower convertible models, the ears also serve as supporting stands to provide stability and keep the unit upright. Installation is quick and easy and required mounting hardware is included.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.5 kVA
Output power	1500 W
Input operation voltage (min)	159 V
Input operation voltage (max)	288 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	10 A
Emergency Power Off (EPO)	Yes
Output power factor	1
Power Factor Correction (PFC) type	Active
Input frequency	50/60 Hz
Ports & interfaces
Cable length	3.05 m
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Battery
Battery type	RBP0129
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	3 h
Typical backup time at half load	19.3 min
Typical backup time at full load	6.5 min
Hot-swap battery	Yes
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Pure sine
Power protection features	Overload
Automatic Voltage Regulation (AVR)	Yes
Noise level	55.5 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	1500 W
Input operation voltage (min)	159 V
Input operation voltage (max)	288 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Overload
Output power factor	1
Automatic Voltage Regulation (AVR)	Yes
Noise level	55.5 dB
Audible alarm(s)	Yes
Power Factor Correction (PFC) type	Active
Input frequency	50/60 Hz
Heat dissipation	71.7 BTU/h
Design
Country of origin	China
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Cable length	3.05 m
Cooling type	Active
LED indicators	Yes
Built-in fan	Yes
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI
Packaging content
Cables included	Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Cooling
Cooling type	Active
Built-in fan	Yes
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	433 mm
Depth	500 mm
Height	86.5 mm
Weight	36.5 kg
Package width	560 mm
Package depth	620 mm
Package height	275 mm
Package weight	38.8 kg
Packaging data
Cables included	Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Package width	560 mm
Package depth	620 mm
Package height	275 mm
Package weight	38.8 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
Other features
Battery type	RBP0129
