Collection: Uninterruptible Power Supplies (UPSs)

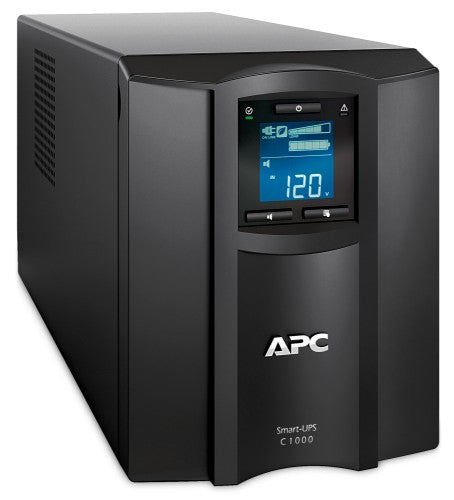

Smart-UPS C, Line Interactive, 1000VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD

Key Features

• 1000VA/600W line interactive pure sine wave tower UPS
• Ideal for entry-level servers, networks, retail POS, business VOIP and desktops
• Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
• Cloud-based remote power monitoring via SmartConnect Ethernet Port
• Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

Description

This APC Smart-UPS is designed for small to medium business owners to maintain business uptime and continuity. This 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. Designed for small offices or small business owners to maintain a core network and business communication.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1 kVA
Output power	600 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	455 J
Output voltage Total Harmonic Distortion (THD)	5%
Input frequency	50/60 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Surge protection	Yes
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	41 dB
LED indicators	Yes
Audible alarm(s)	Yes
Temperature voltage compensation	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	600 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	455 J
Surge protection	Yes
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	5%
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	41 dB
Audible alarm(s)	Yes
Temperature voltage compensation	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
SmartSlot	No
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
SmartConnect port	Yes
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Form factor	Mini Tower
Product colour	Black
Certification	CE, CSA, GOST, UL 1778, VDE
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	853.59
Certificates
Certification	CE, CSA, GOST, UL 1778, VDE
Management features
Web-based management	Yes
Packaging content
Cables included	USB cable
Management card included	No
Resource CD	Yes
Software CD	Yes
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	171 mm
Depth	439 mm
Height	219 mm
Weight	17.3 kg
Package width	328 mm
Package depth	595 mm
Package height	376 mm
Package weight	19.6 kg
Packaging data
Cables included	USB cable
Resource CD	Yes
Software CD	Yes
Package width	328 mm
Package depth	595 mm
Package height	376 mm
Package weight	19.6 kg
Management card included	No
Logistics data
Products per pallet	18 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	853.59

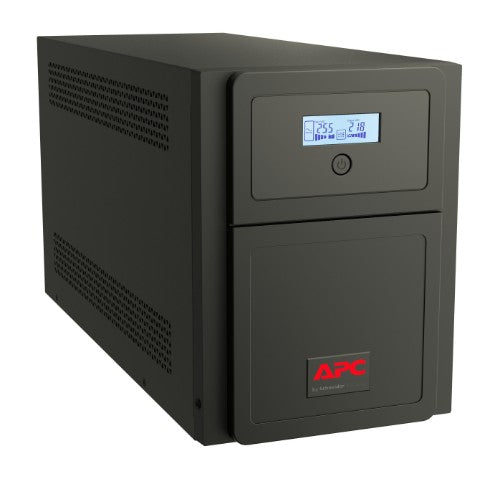

Easy UPS 1 Ph Line Interactive, 2000VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support

Description

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 2000VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV208.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	2 kVA
Output power	1400 W
Input operation voltage (min)	157 V
Input operation voltage (max)	303 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Maximum current	20 A
Output voltage regulation	-1 - 1%
Crest factor	3:1
Input frequency	45/65 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Power protection features	Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	2 kVA
Output power	1400 W
Input operation voltage (min)	157 V
Input operation voltage (max)	303 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Maximum current	20 A
Waveform	Sine
Power protection features	Overload, Short circuit
Output voltage regulation	-1 - 1%
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Input frequency	45/65 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	IEC 320
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	4 h
Cold start	Yes
Battery voltage	12 V
Battery capacity	7 Ah
Design
Form factor	Tower
Product colour	Black
International Protection (IP) code	IP20
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Packaging content
Cables included	USB cable
Manual	Yes
Weight & dimensions
Width	180 mm
Depth	455 mm
Height	240 mm
Weight	23.5 kg
Battery width	32.6 cm
Battery depth	60.1 cm
Battery height	41 cm
Battery weight	26.9 kg
Packaging data
Cables included	USB cable
Manual	Yes
Logistics data
Harmonized System (HS) code	85078000

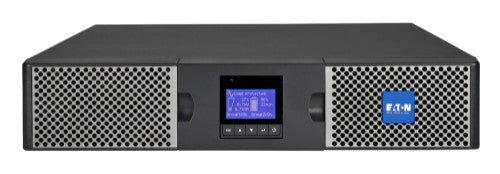

9PX UPS, ANZ, RT2U, 1000VA, 1000W, 240VAC, Input: IEC C14, Output: IEC C13 x 8, built-in battery, Multilingual graphical LCD display

Description

EATON 9PX 1000VA/1000W RACK/TOWER, 10AMP INPUT, 3 YRS WTY 440 X 450 X 86.5, 17.4KG

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Output operation voltage (min)	240 V
Output operation voltage (max)	240 V
Output power factor	1
Input frequency	40 - 70 Hz
Performance
UPS topology	Double-conversion (Online)
Number of output phases	1
Number of input phases	1
Waveform	Sine
Noise level	35 dB
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Number of output phases	1
Number of input phases	1
Output power	1000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Output operation voltage (min)	240 V
Output operation voltage (max)	240 V
Waveform	Sine
Output power factor	1
Noise level	35 dB
Input frequency	40 - 70 Hz
Auto shut-off	Yes
Power source type	AC
Compatibility	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C13 coupler
Battery
Battery technology	Sealed Lead Acid (VRLA)
Hot-swap battery	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Compatibility	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Product colour	Black, Silver
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 96%
Operating altitude	0 - 1000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Warranty period	3 year(s)
Compliance certificates	CE
Weight & dimensions
Width	450 mm
Depth	440 mm
Height	86.5 mm
Weight	17.4 kg

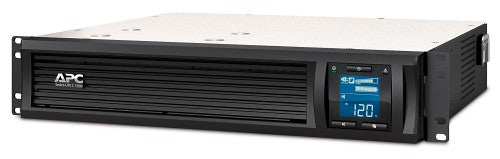

Smart-UPS C, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD

Key Features

• 1500VA/900W line interactive pure sine wave 2U rackmount UPS
• Ideal for entry-level servers, networks, retail POS, and business VOIP
• Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
• Cloud-based remote power monitoring via SmartConnect Ethernet Port
• Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

Description

Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is therefore ideally suited for (small) business use.

SmartConnect
Out-of-box remote UPS monitoring, free during a trial period of 6 months. Using the SmartConnect Ethernet port, you can easily connect the Smart-UPS to your network and you can easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).

* Extend access to SmartConnect via the following licenses:
1 year Standard Plan: ERWPMON1-1Y-DIGI
3 years Standard Plan: ERWPMON1-3Y-DIGI

1 year Advanced Plan: ERWPLUS1-1Y-DIGI
3 years Advanced Plan: ERWPLUS1-3Y-DIGI

PowerChute
By connecting the UPS via a USB cable to a maximum of one server, it can automatically provide it with a shutdown signal during a long-term power failure and thus still prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.

Ease of use
The basic functionalities can be set and read out using physical buttons and an LCD screen. Thanks to the supplied front post brackets for rack mounting rail, you can easily mount the UPS in a rack.

Battery life
You can easily read the expected battery life in the runtime graph, which you can find between the product images. This way, you can easily see how long the UPS will provide emergency power at a certain load.

Extend the lifespan
The internal battery cartridge (APCRBC132) can be easily, safely and independently replaced by the user. This without having to switch off the APC SMC1500I-2UC or connected equipment. This way, you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.

Warranty extension
The factory warranty of the SMC1500I-2UC is 2 years and can be upgraded to 5 years with the APC service pack (WBEXTWAR3YR-SP-03).


This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1500VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. The SMC has built-in lead-acid battery and is covered by a 2-year UPS warranty. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.5 kVA
Output power	900 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	459 J
Output voltage Total Harmonic Distortion (THD)	5%
Input frequency	50/60 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	46 dB
LED indicators	Yes
Audible alarm(s)	Yes
Temperature voltage compensation	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Output power	900 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	459 J
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	5%
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	46 dB
Audible alarm(s)	Yes
Temperature voltage compensation	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	No
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
SmartConnect port	Yes
Battery
Battery life (max)	6 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Certification	C-tick, CE, CSA, GOST, UL 1778, VDE
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1363.77
Certificates
Certification	C-tick, CE, CSA, GOST, UL 1778, VDE
Management features
Web-based management	Yes
Packaging content
Quick installation guide	Yes
Cables included	USB cable
Rack mount kit	Yes
Management card included	No
Resource CD	Yes
Software CD	Yes
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	477 mm
Height	86 mm
Weight	28.6 kg
Package width	594 mm
Package depth	603 mm
Package height	251 mm
Package weight	31.9 kg
Packaging data
Quick installation guide	Yes
Cables included	USB cable
Resource CD	Yes
Rack mount kit	Yes
Software CD	Yes
Package width	594 mm
Package depth	603 mm
Package height	251 mm
Package weight	31.9 kg
Management card included	No
Logistics data
Products per pallet	16 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1363.77

Smart-UPS On-Line, 1500VA/1500W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

Description

Stay always online and prevent data loss
An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power failures do not affect this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This prevents unwanted failure of, for example, a PC, server, storage or switch. With the included Powershute software, you can even have critical IT hardware shut down automatically and in a controlled manner. This prevents data loss, downtime and physical damage to hardware.

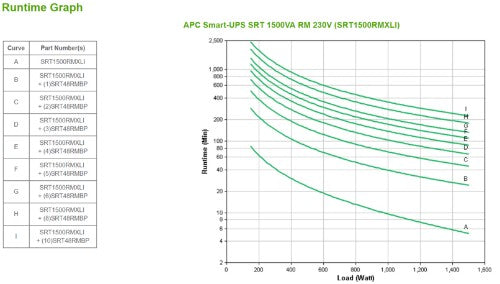

Extend the runtime
You can easily increase the number of minutes that the APC SRT1500RMXLI can independently supply emergency power by connecting external battery packs (SRT48RMBP). A runtime of several hours is even possible.

Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, which maximizes the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency generator. The On-Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used.

Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use.

Ease of use
The APC Smart-UPS SRT is easy to operate thanks to a tiltable graphic LCD screen and physical buttons. This makes it possible to set and read out the basic functionalities. Because the background color of the screen changes depending on the type of warning, the seriousness of the situation can be quickly visually assessed.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate the shutdown moment and the order in which this happens.

Extend the lifespan
The internal battery cartridge (APCRBC155) can be easily, safely and independently replaced by the user. This without having to switch off the APC SRT1500RMXLI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The factory warranty of the SRT1500RMXLI is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box
1x SRT1500RMXLI
1x USB cable

2x C13 to C14 power cord 2m
1x Software CD with Powershute Serial Edition
1x Documentation CD
1x Rack mounting materials
2x Rack mounting brackets
2x Rack mounting support rails

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 60320 C14 input, 6x IEC 320 C13 and 6x IEC 320 C13 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE and EAC. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.5 kVA
Output power	1500 W
Input operation voltage (min)	50 V
Input operation voltage (max)	150 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	432 J
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Input frequency	40/70 Hz
Ports & interfaces
Cable length	1.83 m
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlet types	IEC 60320
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	50 dB
LED indicators	Status
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Output power capacity	1.5 kVA
Output power	1500 W
Input operation voltage (min)	50 V
Input operation voltage (max)	150 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	432 J
Emergency Power Off (EPO)	Yes
Waveform	Sine
Crest factor	3:1
Noise level	50 dB
Audible alarm(s)	Yes
Input frequency	40/70 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Hot-swap battery	Yes
Design
Form factor	Rackmount
Product colour	Black
International Protection (IP) code	IP20
Certification	CE, EAC
Cable length	1.83 m
LED indicators	Status
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Technical details
Output frequency	50/60 Hz
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2577.53
Compliance certificates	RoHS
Certificates
Certification	CE, EAC
Compliance certificates	RoHS
Packaging content
Manual	Yes
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	505 mm
Height	85 mm
Weight	21 kg
Package width	594 mm
Package depth	749 mm
Package height	246 mm
Package weight	29.6 kg
Packaging data
Manual	Yes
Package width	594 mm
Package depth	749 mm
Package height	246 mm
Package weight	29.6 kg
Logistics data
Products per pallet	12 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2577.53

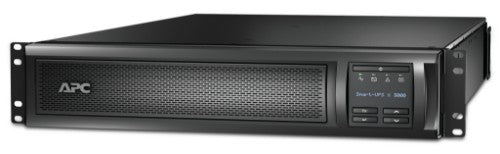

APC Smart-UPS X SMX3000RMHV2UNC - 3000VA, 8x C13, 1x C19 outlet, USB, expandable runtime, NMC

Description

Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120RMBP2U). A runtime of several hours is even possible.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Manage your Smart-UPS
Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.

*For HCI and virtual machine support an additional license is required:
1 year: SWPCNS1Y-DIGI
Up to (Replace bold number in article number with desired variant)
6 years: SWPCNS6Y-DIGI

Remote management and monitoring of your network
The network card can be managed externally via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.

Support contract
The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:
• New and improved functions
• Security updates
• Advanced support
(The functionality of the support contract is included free of charge in the first year of the UPS)

*The above license and available in the variants:
1 year: SWNMC3SU-1Y-DIGI
Up to (Replace the bold number in the article number with the desired variant)
6 years: SWNMC3SU-6Y-DIGI

Ease of use
The basic functionalities can be set and read using physical buttons and an LCD screen.

Rack/tower convertible
The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4 post rack mounting brackets are included, you can mount it in a rack (2U) or place it upright.

Extend the lifespan
The internal battery cartridge (APCRBC117) can be easily, safely and independently replaced by the user. This without having to switch off the APC SMX3000RMHV2UNC or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The factory warranty of the SMX3000RMHV2UNC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box
1x SMX3000RMHV2UNC
1x USB cable

2x C13 to C14 powercord 2 Meter
1x Schuko to C19 input powercord 2 Meter
1x C19 to C20 powercord 2.5 Meter
1x Software CD with PowerChute Network Shutdown Edition
1x Documentation CD
1x British BS1363A to C19 input powercord
2x 4 post rack mounting brackets
1x Temperature sensor

Specifications

Power
Output power capacity	3 kVA
Output power	2700 W
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Efficiency	98.5%
Emergency Power Off (EPO)	Yes
Output frequency regulation	50/60 Hz
Input frequency	50/60 Hz
Ports & interfaces
Cable length	2.44 m
SmartSlot	Yes
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Number of output IEC jumpers	2
Performance
Hold time (min)	2 ms
Hold time (max)	10 ms
UPS topology	Line-Interactive
Surge protection	Yes
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
LED indicators	Battery replacement
Audible alarm(s)	Yes
Features
Hold time (min)	2 ms
Hold time (max)	10 ms
UPS topology	Line-Interactive
Output power capacity	3 kVA
Output power	2700 W
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Efficiency	98.5%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	738 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	18 min
Typical backup time at full load	6.25 min
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI
Cable length	2.44 m
LED indicators	Battery replacement
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2723.74
Compliance certificates	RoHS
Packaging data
Packaging content	Web/SNMP Management Card
Cables included	RS-232
Rack mount kit	Yes
Manual	Yes
Temperature sensor	Yes
Software CD	Yes
Package width	596 mm
Package depth	869 mm
Package height	85 mm
Package weight	45.4 kg
Certificates
Certification	C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI
Compliance certificates	RoHS
Packaging content
Cables included	RS-232
Rack mount kit	Yes
Manual	Yes
Temperature sensor	Yes
Software CD	Yes
Packaging content	Web/SNMP Management Card
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	667 mm
Height	85 mm
Weight	37.3 kg
Package width	596 mm
Package depth	869 mm
Package height	85 mm
Package weight	45.4 kg
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2723.74
Other features
Packaging content	Web/SNMP Management Card
Nominal output voltage	230 V
Nominal input voltage	230 V

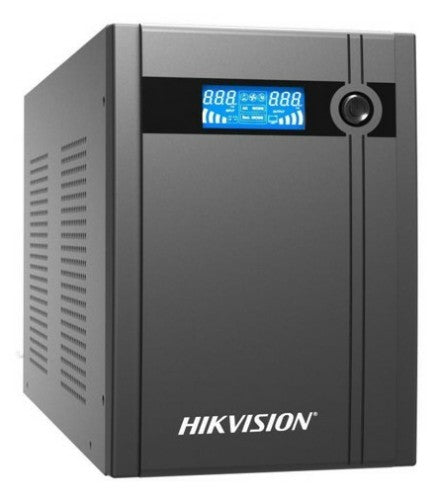

3 kVA, 1800 W, 85 - 150 VAC, 50/60 Hz, 10 ms, PVM, EU

Key Features

• LCD display
• Wide input voltage range
• Built-in AVR
• Super fast charging
• Overload and short circuit protection
• USB port for remote control
• Compact design

Description

HIKVISION UPS3000 UPS 3000VA/1800W, 1YR BATT, 3YR

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	3 kVA
Output power	1800 W
Input operation voltage (min)	140 V
Input operation voltage (max)	290 V
Output operation voltage (min)	210 V
Output operation voltage (max)	235 V
Input frequency	50/60 Hz
Performance
Audible alarm modes	Fault, Low battery alarm, Overload alarm
Response time	10 ms
Surge protection	Yes
Waveform	Pulse width modulation (PWM)
Power protection features	Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Fault, Low battery alarm, Overload alarm
Output power capacity	3 kVA
Response time	10 ms
Output power	1800 W
Input operation voltage (min)	140 V
Input operation voltage (max)	290 V
Output operation voltage (min)	210 V
Output operation voltage (max)	235 V
Surge protection	Yes
Waveform	Pulse width modulation (PWM)
Power protection features	Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	Type B
Power plug	Type B
USB port type	USB Type-B
Battery
Battery technology	Lead-Acid
Number of batteries supported	4
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time(90%)	8 h
Design
Form factor	Mini Tower
Product colour	Black
Certification	CB;CE-EMC;CE-LVD;RCM
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 90%
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	314001130
Certificates
Certification	CB;CE-EMC;CE-LVD;RCM
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	145 mm
Depth	412 mm
Height	210 mm
Weight	18.5 kg
Package weight	21.5 kg
Packaging data
Package weight	21.5 kg
Logistics data
Harmonized System (HS) code	314001130
Other features
Overload protection	Yes

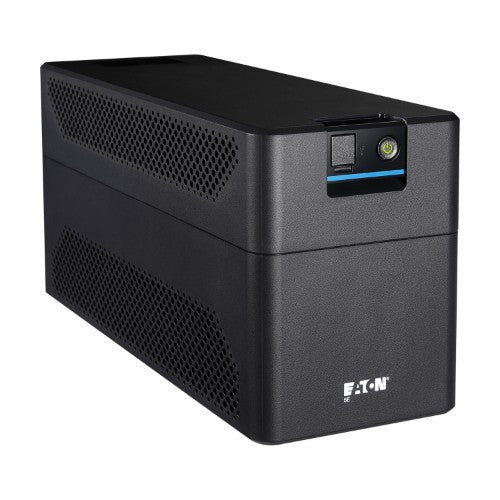

5E Gen2 UPS USB AU, 2200 VA, 1200 W, Input:cord, Outputs: (3) AU, Tower

Description

EATON 5E UPS 2200VA/1200W 3 X ANZ OUTLETS, FAN, 2 YRS WTY 133 X 330 X 180, 9.8KG

Specifications

Power
Output power capacity	2.2 kVA
Output power	1.2 W
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Output operation voltage (min)	195 V
Output operation voltage (max)	257 V
Efficiency	95%
Input frequency	45/65 Hz
Performance
UPS topology	Line-Interactive
Surge protection	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	40 dB
Features
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Output power	1.2 W
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Output operation voltage (min)	195 V
Output operation voltage (max)	257 V
Efficiency	95%
Surge protection	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	40 dB
Input frequency	45/65 Hz
Auto shut-off	Yes
Ports & interfaces
USB port	Yes
AC outlets quantity	3 AC outlet(s)
AC outlet types	Type I
Power plug	Type I
Battery
Battery technology	Lead-Acid
Cold start	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Automatic battery test	Yes
Design
Form factor	Tower
Product colour	Black
Certification	IEC/EN 62040-3 IEC/EN 62040-1 IEC/EN 62040-2 CE EAC UKCA Cm Ukr
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	133 mm
Depth	330 mm
Height	180 mm
Weight	9.8 kg
Packaging data
Quick installation guide	Yes
Certificates
Certification	IEC/EN 62040-3 IEC/EN 62040-1 IEC/EN 62040-2 CE EAC UKCA Cm Ukr
Packaging content
Quick installation guide	Yes
