Collection: Uninterruptible Power Supplies (UPSs)

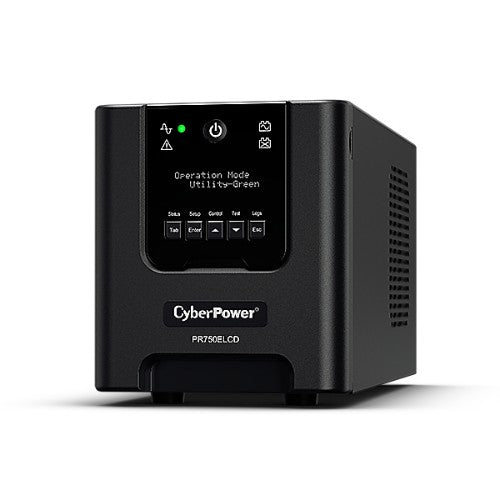

Smart App UPS for Network and Server

Key Features

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• Hot-swappable Batteries
• EMI and RFI Filtration
• USB Connectivity Port
• PowerPanel Management Software
• Tower Form Factor
• Energy Saving Technology
• Pure Sine Wave Output
• Overload Protection
• Surge and Spike Protection
• LCD Status Display
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)

Description

The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sine Wave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.

The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Specifications

Power
Output power capacity	0.75 kVA
Output power	675 W
Input operation voltage (min)	150 V
Input operation voltage (max)	301 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
Power factor	0.9
Input frequency	50/60 Hz
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Pure sine
Power protection features	Overload
LED indicators	Error, Operation
Audible alarm(s)	Yes
Features
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	0.75 kVA
Response time	4 ms
Output power	675 W
Input operation voltage (min)	150 V
Input operation voltage (max)	301 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Pure sine
Power protection features	Overload
Power factor	0.9
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	8 h
Typical backup time at half load	10.5 min
Typical backup time at full load	2.5 min
Hot-swap battery	Yes
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Certification	CE, EAC, RCM, RoHS
LED indicators	Error, Operation
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	8504408590
Certificates
Certification	CE, EAC, RCM, RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	349 mm
Depth	138 mm
Height	162 mm
Weight	12.3 kg
Package width	272 mm
Package depth	486 mm
Package height	283 mm
Package weight	13.3 kg
Packaging data
Cables included	USB cable
Package width	272 mm
Package depth	486 mm
Package height	283 mm
Package weight	13.3 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
Other features
Overload protection	Yes

APC Smart-UPS Ultra Li-Ion SRTL3KRM1UINC, 3KW, 1U Rack/Tower/Wall, 3x C13 & 2x C19, NMC

Key Features

• 3kVA/3KW on-line pure sine wave 1U rackmount UPS
• Add up to 5 external battery packs (SRTL50RMBP1U-Li) for extended runtime
• Lithium-ion battery minimizes the need to replace battery during the life time of UPS
• Graceful shutdown of physical servers, virtual machines and HCI Clusters

Description

Stay always online and prevent data loss
An APC Smart-UPS Ultra On-Line Li-Ion always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a server, storage or switch. With the integrated network card and associated APC PowerChute Network Shutdown software, the UPS can send a shutdown signal via the network to multiple physical and/or virtual servers and have them shut down automatically and in a controlled manner when the UPS battery is almost empty. This way you prevent data loss, downtime and physical damage to hardware.

Ultra
Thanks to next-gen semiconductor technology, this APC Ultra UPS delivers 3000W in just a 1U form factor.

Lithium-Ion
The APC SRTL3KRM1UINC uses Li-Ion batteries, which provides unique advantages:

-Longer life span. Li-Ion batteries can last up to 10 years, making the UPS truly maintenance-free.
-Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 30% less than lead acid batteries, saving space, 2U form factor and simplifying installation.
-Better performance at high temperature. Li-Ion batteries perform well at high ambient temperatures (up to 40°C), in contrast to lead acid batteries where this is at the expense of battery life.
-5 year manufacturer's warranty. Standard long warranty on the UPS including the battery.
-Lower costs: The above benefits reduce the total costs over the entire lifespan of the UPS by up to 53% (compared to a UPS with lead-acid batteries.)

Battery life
You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.

Extend the runtime
You can easily increase the number of minutes that the APC SRTL3KRM1UINC can independently supply emergency power by connecting up to 5 additional external battery packs (SRTL50RMBP1U-LI). A runtime of several hours is even possible.

Manage your Smart-UPS
Thanks to the integrated network card, you can easily connect the APC UPS to your network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.

*An additional license is required for HCI and virtual machine support:
1 year: SWPCNS1Y-DIGI
Up to (Replace the bold number in the article number for the desired variant)
6 years: SWPCNS6Y-DIGI

Remote management and monitoring of your network
The network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SWITE1YR-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.

Support contract
The optional network card support contract license* ensures that you are always up to date and secure and includes additional benefits such as frequent updates with:
• New and improved features
• Security updates
• Advanced support
(The support contract functionality is included free of charge in the first year of the UPS)

*The above license and available in the variants:
1 year: SWNMC3SU-1Y-DIGI
Up to (Replace the bold number in the article number for the desired variant)
6 years: SWNMC3SU-6Y-DIGI

Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, which increases the availability and lifespan of connected hardware.

Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is therefore ideally suited for business use.

Easy to use
The APC Smart-UPS SRTL is easy to operate thanks to a graphic LCD screen with auto-rotation.

Rack/Tower/Wall/Ceiling/Desk convertible
The SRTL3KRM1UINC can really be placed anywhere. Both feet (Tower), the 4 post rails (Rack), and wall brackets (Wall) are included. So you can mount it horizontally in a rack, but also place it vertically or hanging.

Switched Outlet Groups: Remote reboot and fasingfirst start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.

It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SWITE1YR-DIGI), this can even be done remotely.

You also cannot eliminate critical loads; This way you extend the runtime for critical equipment.

Green Premium
This label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.

Green Premium:
- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.

- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/

- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS-/REACh)

Certainty in a connected world
Over the past 40 years, 120 million APC UPSs have been installed in more than 160 countries.

Included in the box
- 1x SRTL3KRM1UINC
- 1x IEC C19 – Schuko input power cord
- 1x C13 to C14 power cord 1.2 meters
- 1x C19 to C20 power cord 2.5 meters
- 1x Installation manual
- 4x Stabilizers
- 2x Rackmount brackets
- 1x USB cable

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	3 kVA
Output power	3000 W
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Input frequency	50/60 Hz
Ports & interfaces
Cable length	2.44 m
USB port	Yes
AC outlets quantity	5 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	Type F
USB 2.0 ports quantity	1
USB port type	USB Type-A
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	3000 W
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Waveform	Sine
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	1.5 h
Battery voltage	50 V
Design
Rack capacity	1U
Form factor	Rackmount
Product colour	Grey, Silver
International Protection (IP) code	IP20
Certification	CE UKCA CE Mark UKCA EN/IEC 62040-1
Cable length	2.44 m
Control type	Buttons, Touch
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	Green Premium
Compliance certificates	RoHS
Certificates
Certification	CE UKCA CE Mark UKCA EN/IEC 62040-1
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	560 mm
Height	43 mm
Weight	15.9 kg
Package width	564 mm
Package depth	764 mm
Package height	278 mm
Package weight	24.2 kg
Packaging data
Package width	564 mm
Package depth	764 mm
Package height	278 mm
Package weight	24.2 kg

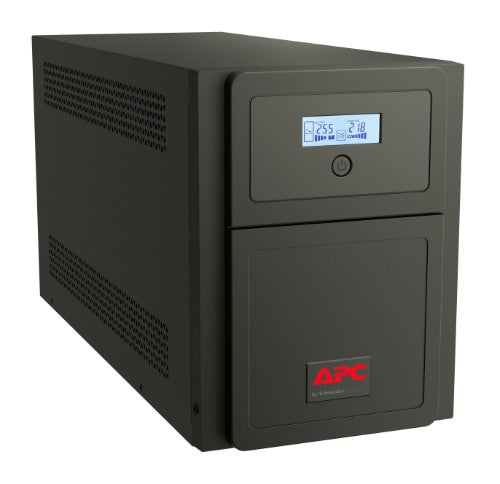

Easy UPS 1 Ph Line Interactive, 3kVA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support

Description

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 3kVA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C20 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV209.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	3 kVA
Output power	2100 W
Input operation voltage (min)	157 V
Input operation voltage (max)	303 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Maximum current	25 A
Output voltage regulation	-1 - 1%
Crest factor	3:1
Input frequency	45/65 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Power protection features	Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	3 kVA
Output power	2100 W
Input operation voltage (min)	157 V
Input operation voltage (max)	303 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Maximum current	25 A
Waveform	Sine
Power protection features	Overload, Short circuit
Output voltage regulation	-1 - 1%
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Input frequency	45/65 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	IEC 320
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	4 h
Cold start	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Tower
Product colour	Black
International Protection (IP) code	IP20
Certification	CE
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Certificates
Certification	CE
Packaging content
Cables included	USB cable
Manual	Yes
Weight & dimensions
Width	180 mm
Depth	455 mm
Height	240 mm
Weight	25.2 kg
Battery width	32.6 cm
Battery depth	60.1 cm
Battery height	41 cm
Battery weight	28.9 kg
Packaging data
Cables included	USB cable
Manual	Yes
Logistics data
Harmonized System (HS) code	85078000

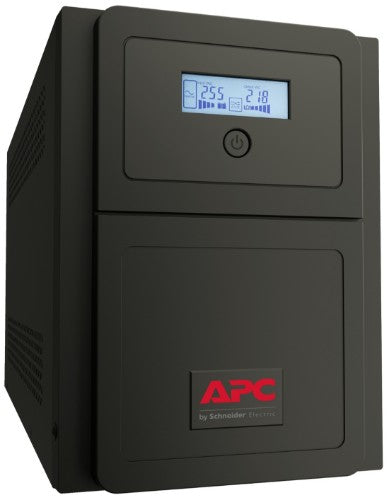

Easy UPS 1 Ph Line Interactive, 1000VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support

Key Features

• Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers
• Includes: Documentation CD, USB cable, User Manual

Description

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 1000VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV206.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1 kVA
Output power	700 W
Input operation voltage (min)	160 V
Input operation voltage (max)	295 V
Efficiency	97.9%
Crest factor	3:1
Input frequency	45/65 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	2 ms
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1 kVA
Response time	2 ms
Output power	700 W
Input operation voltage (min)	160 V
Input operation voltage (max)	295 V
Efficiency	97.9%
Waveform	Sine
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	45/65 Hz
Ports & interfaces
USB port	Yes
SmartSlot	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Cold start	Yes
Design
Form factor	Tower
Product colour	Black, Grey
Certification	CE
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Certificates
Certification	CE
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	160 mm
Depth	410 mm
Height	220 mm
Weight	13.6 kg
Battery width	27.2 cm
Battery depth	50.8 cm
Battery height	33.9 cm
Battery weight	16.6 kg
Packaging data
Cables included	USB cable
Logistics data
Harmonized System (HS) code	85078000
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V

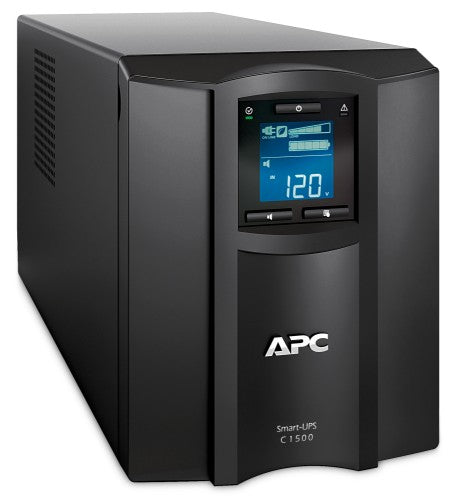

APC Smart-UPS SMC1500IC - 8x C13, USB, SmartConnect, 1500VA

Key Features

• 1500VA/900W line interactive pure sine wave tower UPS
• Ideal for entry-level servers, networks, retail POS, business VOIP and desktops
• Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
• Cloud-based remote power monitoring via SmartConnect Ethernet Port
• Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

Description

Stay always online and prevent data loss
As soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is therefore ideally suited for (small) business use.

SmartConnect
Out-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).

* Extend access to SmartConnect through the following licenses:
1 year Standard Plan: ERWPMON1-1Y-DIGI
3 year Standard Plan: ERWPMON1-3Y-DIGI

1 year Advanced Plan: ERWPLUS1-1Y-DIGI
3 year Advanced Plan: ERWPLUS1-3Y-DIGI

PowerChute
By connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Business Edition software.

Ease of use
By means of physical buttons and an LCD screen make it possible to set and read the basic functionalities.

Battery life
You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.

Extend the lifespan
The internal battery cartridge (RBC6) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMC1500IC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The factory warranty of the SMC1500IC is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-03).

Green Premium
This label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.

Green Premium:
- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.

- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/

- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS-/REACh)

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.5 kVA
Output power	900 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	459 J
Output voltage Total Harmonic Distortion (THD)	5%
Input frequency	50/60 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
LED indicators	Yes
Audible alarm(s)	Yes
Temperature voltage compensation	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Output power	900 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	459 J
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	5%
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Temperature voltage compensation	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
SmartSlot	No
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
SmartConnect port	Yes
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	3 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Form factor	Mini Tower
Product colour	Black
Certification	C-tick, CE, CSA, GOST, UL 1778, VDE
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1090.81
Certificates
Certification	C-tick, CE, CSA, GOST, UL 1778, VDE
Management features
Web-based management	Yes
Packaging content
Cables included	USB cable
Management card included	No
Resource CD	Yes
Software CD	Yes
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	171 mm
Depth	439 mm
Height	219 mm
Weight	24.1 kg
Package width	328 mm
Package depth	595 mm
Package height	376 mm
Package volume	27230 cm³
Packaging data
Cables included	USB cable
Resource CD	Yes
Software CD	Yes
Package volume	27230 cm³
Package width	328 mm
Package depth	595 mm
Package height	376 mm
Management card included	No
Logistics data
Products per pallet	18 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1090.81

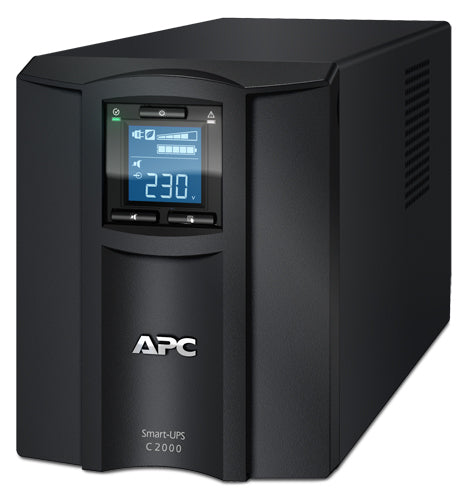

Smart-UPS C, Line Interactive, 2000VA, Tower, 230V, 6x IEC C13+1x IEC C19 outlets, USB and Serial communication, AVR, Graphic LCD

Description

This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 2000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The Smart-UPS C has an intuitive graphic LCD interface. This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty. This line interactive UPS operates in green mode for high operating efficiency. The SMC has built-in lead-acid battery and is covered by a 2-year UPS warranty. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Power
Output power capacity	2 kVA
Output power	1300 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (max)	230 V
Surge energy rating	300 J
Output voltage Total Harmonic Distortion (THD)	5%
Input frequency	47/63 Hz
Performance
Audible alarm modes	Low battery alarm
UPS topology	Line-Interactive
Surge protection	Yes
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Web-based management	Yes
Audible alarm modes	Low battery alarm
UPS topology	Line-Interactive
Output power capacity	2 kVA
Output power	1300 W
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Output operation voltage (max)	230 V
Surge energy rating	300 J
Surge protection	Yes
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	5%
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Input frequency	47/63 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	7 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, C20 coupler
Battery
Battery life (max)	5 year(s)
Battery capacity	499 VAh
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	3 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Form factor	Compact
Product colour	Black
Certification	C-tick, CE, GOST, SABS, VDE, REACH
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Total carbon footprint (kg of CO2e)	2269.61
Compliance certificates	RoHS
Certificates
Certification	C-tick, CE, GOST, SABS, VDE, REACH
Compliance certificates	RoHS
Management features
Web-based management	Yes
Packaging content
Cables included	USB cable
Resource CD	Yes
Software CD	Yes
Weight & dimensions
Width	170 mm
Depth	440 mm
Height	216 mm
Weight	27.5 kg
Package width	370 mm
Package depth	590 mm
Package height	330 mm
Package weight	30 kg
Packaging data
Cables included	USB cable
Resource CD	Yes
Software CD	Yes
Package width	370 mm
Package depth	590 mm
Package height	330 mm
Package weight	30 kg
Logistics data
Total carbon footprint (kg of CO2e)	2269.61

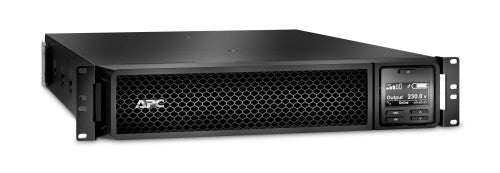

APC Smart-UPS On-Line SRT2200RMXLI-NC - 2200VA, 8x C13 & 2x C19, rack mount, NMC

Description

Always stay online and prevent data loss
An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power failures do not affect this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This prevents unwanted failure of, for example, a PC, server, storage or switch. With the APC PowerChute Network Shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner if the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SRT2200RMXLI-NC can supply emergency power independently by connecting external battery packs (SRT72RMBP). A runtime of several hours is even possible.

Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, which maximizes the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency generator. The On-Line double conversion technology ensures clean, uninterrupted power to protected equipment, even when generator power is used.

Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltages caused by lightning, among other things. This APC emergency power supply is ideally suited for business use.

Ease of use
The APC Smart-UPS SRT is easy to operate thanks to a tiltable graphic LCD screen and physical buttons. This makes it possible to set and read out the basic functionalities. Because the background color of the screen changes depending on the type of warning, the seriousness of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.

Manage your Smart-UPS
Thanks to the pre-installed APC Network Management Card (AP9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.

*For HCI and virtual machine support an additional license is required:
1 year: SWPCNS1Y-DIGI
3 years: SWPCNS3Y-DIGI
5 years: SWPCNS5Y-DIGI

Remote management and monitoring of your network
The network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.

Support contract
The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:
• New and improved functions
• Security updates
• Advanced support
(The functionality of the support contract is included free of charge in the first year of the UPS)

*The above license and available in the variants:
1 year: SWNMC3SU-1Y-DIGI
Up to (Replace the bold number in the article number with the desired variant)
6 years: SWNMC3SU-6Y-DIGI

Extend the lifespan
The internal battery cartridge (APCRBC141) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT2200RMXLI-NC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.

Warranty extension
The factory warranty of the SRT2200RMXLI-NC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box
1x SRT2200RMXLI-NC
1x USB cable
1x C13 to C14 powercord 1.2M
1x Software CD with Powershute Network Shutdown Edition
1x Documentation CD
1x Schuko to C19 input powercord 2M
1x British BS1363A to C19 input powercord
1x C19 to C20 input powercord 2.5M
2x Rackmount brackets
1x Temperature sensor


This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Power
Output power capacity	2.2 kVA
Output power	1980 W
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Input frequency	40 - 70 Hz
Ports & interfaces
Cable length	2.44 m
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Number of output IEC jumpers	2
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	55 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	2.2 kVA
Output power	1980 W
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Emergency Power Off (EPO)	Yes
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	40 - 70 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	367 VAh
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	3 h
Design
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
International Protection (IP) code	IP20
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Cable length	2.44 m
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output voltage	230 V
Sustainability certificates	ENERGY STAR, Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	3656.79
Compliance certificates	RoHS
Certificates
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, Green Premium
Weight & dimensions
Width	432 mm
Depth	584 mm
Height	85 mm
Weight	25 kg
Package width	599 mm
Package depth	810 mm
Package height	246 mm
Package weight	34 kg
Packaging data
Package width	599 mm
Package depth	810 mm
Package height	246 mm
Package weight	34 kg
Logistics data
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	3656.79
Other features
Output voltage	230 V

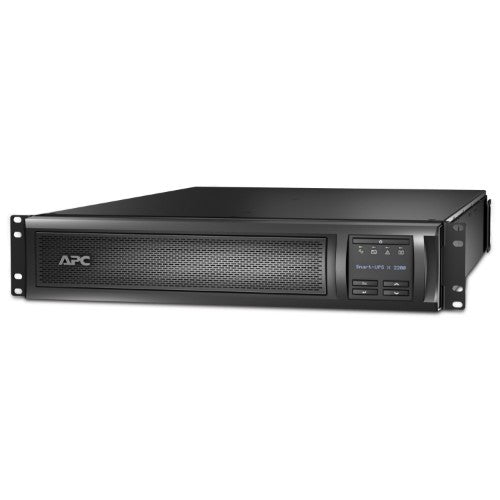

APC Smart-UPS X SMX2200RMHV2U - 2200VA, 8x C13 + 1x C19 outlet, USB, expandable runtime

Description

Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the included Powershute software, you can even have critical IT hardware shut down automatically and in a controlled manner. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120RMBP2U). A runtime of several hours is even possible.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate the shutdown moment and the order in which this happens.

Easy to use
This APC Smart-UPS SMX is easy to operate thanks to the LCD screen.

Rack/tower convertible
The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4 post rack mounting brackets are included, you can mount it in a rack (2U) or place it upright.

Extend the lifespan
The internal battery cartridge (APCRBC117) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX2200RMHV2U or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.

Warranty extension
The factory warranty of the SMX2200RMHV2U is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box
1x SMX2200RMHV2U
1x USB cable
2x C13 to C14 powercord 2 Meter
1x Schuko to C19 input powercord 2 Meter
1x C19 to C20 powercord 2.5 Meter
1x Software CD with Powershute Business Edition
1x Documentation CD
1x British BS1363A to C19 input powercord
2x 4 post rack mounting brackets
4x Stabilizer feet


This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX2200RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Power
Output power capacity	2.2 kVA
Output power	1980 W
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Efficiency	98.1%
Emergency Power Off (EPO)	Yes
Output frequency regulation	50/60 Hz
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
USB port	Yes
SmartSlot	Yes
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Number of output IEC jumpers	2
Performance
Hold time (min)	2 ms
Hold time (max)	10 ms
UPS topology	Line-Interactive
Response time	4 ms
Surge protection	Yes
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
LED indicators	Battery replacement
Audible alarm(s)	Yes
Features
Hold time (min)	2 ms
Hold time (max)	10 ms
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Response time	4 ms
Output power	1980 W
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Efficiency	98.1%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	702 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	25.3 min
Typical backup time at full load	9.8 min
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Cable length	1.83 m
LED indicators	Battery replacement
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2715.94
Compliance certificates	RoHS
Certificates
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Compliance certificates	RoHS
Packaging content
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Software CD	Yes
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	667 mm
Height	85 mm
Weight	37.3 kg
Package width	596 mm
Package depth	869 mm
Package height	243 mm
Package weight	45.4 kg
Packaging data
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Software CD	Yes
Package width	596 mm
Package depth	869 mm
Package height	243 mm
Package weight	45.4 kg
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2715.94
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
