Collection: Uninterruptible Power Supplies (UPSs)

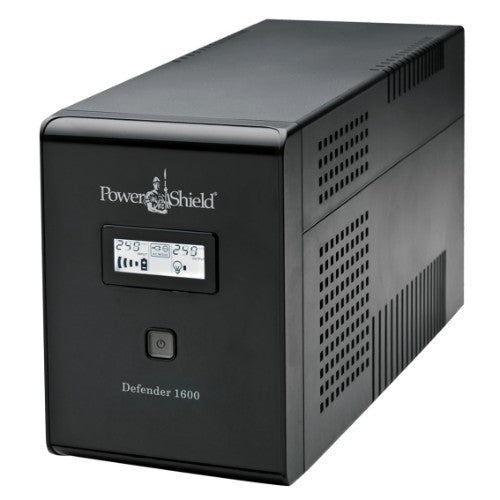

1600 VA, 960 W, 6 Outlets, 2 Batteries, 12 V, 9 Ah, 397 × 146 × 205 mm, 11500 g

Key Features

• Stylish and informative LCD display
• Surge Protection, Best in its Class
• Excellent microprocessor control guarantees high reliability
• Australian outlets for UPS and Surge Protection
• Boost and buck AVR for voltage stabilization
• User replaceable batteries
• Silent Operation (No fans included)
• Auto restart while AC is recovering
• Off-mode charging
• Cold start function
• USB communication with sophisticated NetGuard software

Description

The Defender 1600 uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user replaceable batteries and Australian sockets makes the Defender the complete package at this level and is ideal for Workstations and Gaming.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.6 kVA
Output power	960 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	936 J
Power factor	0.6
Output voltage regulation	10%
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Response time	6 ms
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Noise level	5 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output power capacity	1.6 kVA
Response time	6 ms
Output power	960 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	936 J
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Power factor	0.6
Output voltage regulation	10%
Noise level	5 dB
Input frequency	50/60 Hz
Power source type	AC
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
USB port type	USB Type-B
Battery
Number of batteries supported	2
Battery recharge time	6 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Tower
Product colour	Black
Certification	(A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006, Directive 2011/65/EU
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	146 mm
Depth	397 mm
Height	205 mm
Weight	11.5 kg
Certificates
Certification	(A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006, Directive 2011/65/EU

3000 VA, 2700 W, 8 Outlets, 6 Batteries, 12 V, 9 Ah, 2U, 600 × 438 × 88 mm, 26800 g

Key Features

• True double-conversion
• Output power factor 0.9
• User-friendly and electronic easy-shift LCD display
• Rack or Tower design
• Advanced ECO mode for energy saving
• Generator compatible
• Programmable power management outlets
• Emergency Power Off function (EPO)
• Hot swappable battery design
• Ideal for medium density power protection

Description

As a true online double conversion UPS the Centurion RT is our highest single phase power density UPS. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating.The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	3 kVA
Output power	2700 W
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	984 J
Efficiency	87%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	1%
Crest factor	3:1
Efficiency (On-line mode)	87%
Efficiency (ECO mode)	97%
ECO mode	Yes
Input frequency	40/70 Hz
Performance
UPS topology	Double-conversion (Online)
Response time	4 ms
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Noise level	50 dB
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Response time	4 ms
Output power	2700 W
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	984 J
Efficiency	87%
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Power factor	0.9
Output voltage regulation	1%
Crest factor	3:1
Noise level	50 dB
Efficiency (On-line mode)	87%
Efficiency (ECO mode)	97%
ECO mode	Yes
Input frequency	40/70 Hz
Power source type	AC
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	6
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	438 mm
Depth	600 mm
Height	88 mm
Weight	26.8 kg
Certificates
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU

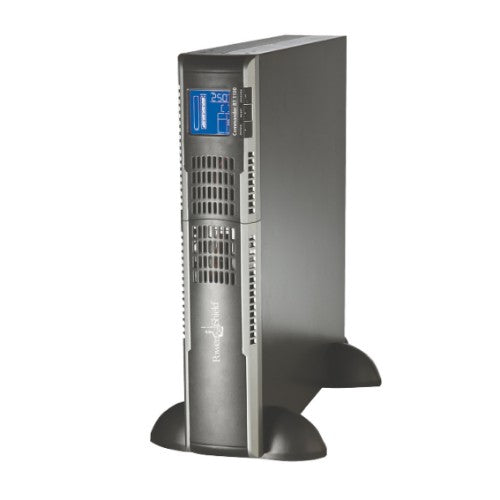

1100 VA, 990 W, 8 Outlets, 2 Batteries, 12 V, 9 Ah, 2U, 380 × 438 × 88 mm, 14000 g

Key Features

• Pure sine wave output
• Rack/Tower design
• Built-in boost and buck AVR
• Output power factor 0.9
• Programmable power management outlets
• ECO mode operation for energy saving (ECO)
• Emergency Power Off Function (EPO)
• Hot-swappable battery design
• Long-run models available
• Multiple communication available

Description

With pure sine wave output, the Commander Rackmount Tower guarantees compatibility for all kinds of loads. It’s perfect power protection for versatile applications such as networking, telecom and other mission-critical applications.
The ECO mode function allows cost-effective operation of UPS Systems as high as 98%. In this operation mode, load is supplied by the mains. In the event of a mains failure, the inverter takes over the load and provides supply continuity to the connected systems.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.1 kVA
Output power	990 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Surge energy rating	1560 J
Efficiency	83%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	10%
Crest factor	3:1
Efficiency (On-line mode)	90%
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Response time	6 ms
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output power capacity	1.1 kVA
Response time	6 ms
Output power	990 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Surge energy rating	1560 J
Efficiency	83%
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Power factor	0.9
Output voltage regulation	10%
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Efficiency (On-line mode)	90%
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Power source type	AC
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	2
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2011 / 65 / EU
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	438 mm
Depth	380 mm
Height	88 mm
Weight	14 kg
Certificates
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2011 / 65 / EU

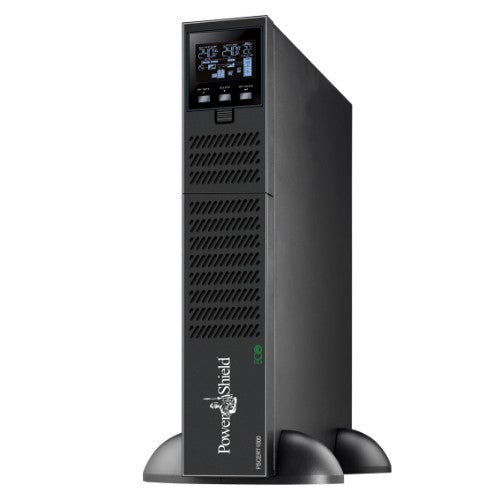

1000 VA, 900 W, 8 Outlets, 3 Batteries, 12 V, 9 Ah, 380 × 438 × 88 mm, 15200 g

Key Features

• True double-conversion
• Output power factor 0.9
• User-friendly and electronic easy-shift LCD display
• Rack or Tower design
• Advanced ECO mode for energy saving
• Generator compatible
• Programmable power management outlets
• Emergency Power Off function (EPO)
• Hot swappable battery design
• Ideal for medium density power protection
• Extra large charger

Description

As a true online double conversion UPS the Centurion RT is our highest single phase power density UPS. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating.
The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode.

Specifications

Power
Output power capacity	1 kVA
Output power	900 W
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	984 J
Efficiency	86%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	1%
Input power factor	0.99
Crest factor	3:1
ECO mode	Yes
Input frequency	40 - 70 Hz
Performance
UPS topology	Double-conversion (Online)
Number of output phases	1
Number of input phases	1
Response time	4 ms
Surge protection	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Over voltage, Overcharge, Short circuit
Noise level	50 dB
Features
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	900 W
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	984 J
Efficiency	86%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Over voltage, Overcharge, Short circuit
Power factor	0.9
Output voltage regulation	1%
Input power factor	0.99
Crest factor	3:1
Noise level	50 dB
ECO mode	Yes
Input frequency	40 - 70 Hz
Power source type	AC
Detachable power cord	Yes
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	3
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Compliance certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	438 mm
Depth	380 mm
Height	88 mm
Weight	15.2 kg
Certificates
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU

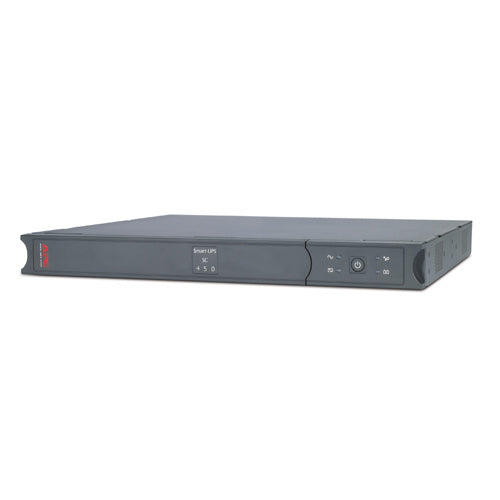

Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

Description

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.

Specifications

Power
Output power capacity	0.45 kVA
Output power	280 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Surge energy rating	320 J
Input frequency	50/60 Hz
Performance
Hold time (min)	4 ms
Hold time (max)	8 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	38 dB
LED indicators	Battery replacement
Audible alarm(s)	Yes
Features
Hold time (min)	4 ms
Hold time (max)	8 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	0.45 kVA
Output power	280 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Surge energy rating	320 J
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	38 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
Serial interface	Yes
Serial interface type	RS-232
SmartSlot	No
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Number of output IEC jumpers	2
Ethernet LAN (RJ-45) ports	0
SmartConnect port	No
Battery
Battery life (max)	5 year(s)
Battery capacity	108 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	5 h
Typical backup time at half load	19.4 min
Typical backup time at full load	5.9 min
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	1U
Form factor	Rackmount/Tower
Product colour	Grey
Certification	C-tick, CE, GOST, VDE, PEP, EOLI
LED indicators	Battery replacement
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	484.92
Compliance certificates	RoHS
Certificates
Certification	C-tick, CE, GOST, VDE, PEP, EOLI
Compliance certificates	RoHS
Packaging content
Cables included	RS-232
Rack mount kit	Yes
Manual	Yes
Management card included	No
Software CD	Yes
Weight & dimensions
Width	432 mm
Depth	383 mm
Height	44 mm
Weight	10.2 kg
Package width	476 mm
Package depth	589 mm
Package height	164 mm
Package weight	11.7 kg
Packaging data
Cables included	RS-232
Rack mount kit	Yes
Manual	Yes
Software CD	Yes
Package width	476 mm
Package depth	589 mm
Package height	164 mm
Package weight	11.7 kg
Management card included	No
Logistics data
Products per pallet	24 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	484.92
Other features
Nominal output voltage	230 V

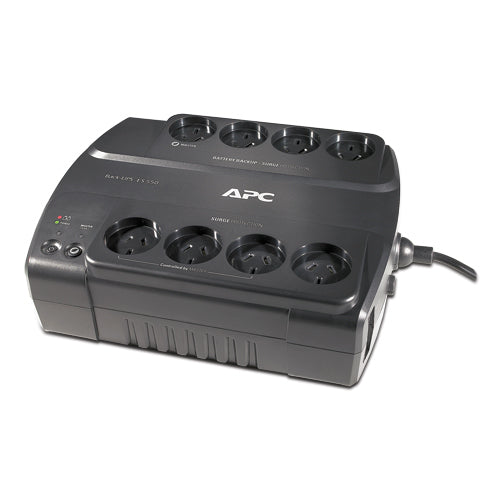

Power-Saving Back - UPS - 330 Watts / 550 VA; 230V; 47 - 63 Hz

Description

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Data-line Protection
Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.
Cold-start capable
Provides temporary battery power when the utility power is out.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
Battery replacement without tools
Allows quick, easy battery replacement.

Specifications

Power
Output power capacity	0.55 kVA
Output power	330 W
Surge energy rating	310 J
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
Ethernet LAN (RJ-45) ports	3
Features
Output power capacity	0.55 kVA
Output power	330 W
Surge energy rating	310 J
Input frequency	50/60 Hz
Battery
Battery recharge time	16 h
Design
Product colour	Black
Certification	A-tick, C-tick, CE, Telepermit
Cable length	1.83 m
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	6 kg
Certificates
Certification	A-tick, C-tick, CE, Telepermit
Other features
Dimensions (WxDxH)	224 x 311 x 89 mm
Output voltage note	47 - 63 Hz
Nominal input voltage	230 V
