Collection: Uninterruptible Power Supplies (UPSs)

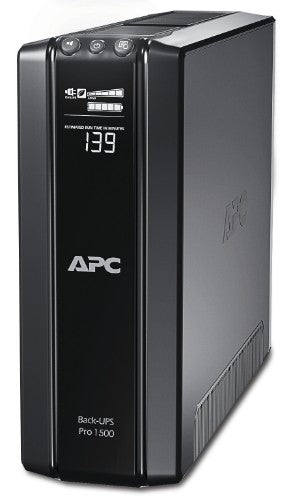

Back-UPS Pro, 1500VA/865W, Tower, 230V, 10x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Description

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 5 of which are battery back up and surge protection, and 5 that are surge protection only. It has a surge energy rating of 441 Joules. Its dimensions are 30.1 x 11.2 x 38 cm and 12.7 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Power
Output power capacity	1.5 kVA
Output power	865 W
Input operation voltage (min)	156 V
Input operation voltage (max)	300 V
Surge energy rating	441 J
Efficiency	98.9%
Output frequency regulation	50/60 Hz
Crest factor	3:1
Input frequency	50/60 Hz
Performance
Hold time (min)	10 ms
Hold time (max)	12 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Features
Hold time (min)	10 ms
Hold time (max)	12 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Output power	865 W
Input operation voltage (min)	156 V
Input operation voltage (max)	300 V
Surge energy rating	441 J
Efficiency	98.9%
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Waveform	Sine
Output frequency regulation	50/60 Hz
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Number of output IEC jumpers	2
Battery
Battery life (max)	5 year(s)
Battery capacity	187 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	12.4 min
Typical backup time at full load	3.7 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Replacement battery cartridge	APCRBC124
Design
Product colour	Black
Certification	A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 9000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging data
Packaging content	1x Detachable IEC Power Cord
Cables included	Phone (RJ-11), USB cable
Manual	Yes
Warranty card	Yes
Software CD	Yes
Bundled software	PowerChute Personal Edition
Package width	238 mm
Package depth	488 mm
Package height	387 mm
Package weight	14.3 kg
Weight & dimensions
Width	112 mm
Depth	380 mm
Height	301 mm
Weight	12.7 kg
Package width	238 mm
Package depth	488 mm
Package height	387 mm
Package weight	14.3 kg
Logistics data
Products per master (outer) case	1 pc(s)
Products per pallet	20 pc(s)
Harmonized System (HS) code	85078000
Certificates
Certification	A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Other features
Packaging content	1x Detachable IEC Power Cord
Nominal output voltage	230 V
Nominal input voltage	230 V
Packaging content
Cables included	Phone (RJ-11), USB cable
Manual	Yes
Warranty card	Yes
Software CD	Yes
Packaging content	1x Detachable IEC Power Cord
Bundled software	PowerChute Personal Edition

1200 VA, 720 W, 6 Outlets, 2 Batteries, 12 V, 7 Ah, 397 × 146 × 205 mm, 11100 g

Key Features

• Stylish and informative LCD display
• Surge Protection, Best in its Class
• Excellent microprocessor control guarantees high reliability
• Australian outlets for UPS and Surge Protection
• Boost and buck AVR for voltage stabilization
• User replaceable batteries
• Silent Operation (No fans included)
• Auto restart while AC is recovering
• Off-mode charging
• Cold start function
• USB communication with sophisticated NetGuard software

Description

The Defender Range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances.
To protect your valued equipment against damaging surges, the Defender has been designed to incorporate the best surge protection in its class.

Specifications

Power
Output power capacity	1.2 kVA
Output power	720 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Output operation voltage (max)	240 V
Surge energy rating	936 J
Output voltage regulation	10%
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	6 ms
Surge protection	Yes
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Noise level	5 dB
Features
UPS topology	Line-Interactive
Output power capacity	1.2 kVA
Number of output phases	1
Number of input phases	1
Response time	6 ms
Output power	720 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Output operation voltage (max)	240 V
Surge energy rating	936 J
Surge protection	Yes
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Output voltage regulation	10%
Noise level	5 dB
Input frequency	50/60 Hz
Power source type	AC
Detachable power cord	No
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
USB port type	USB Type-B
Battery
Number of batteries supported	2
Battery recharge time	6 h
Battery voltage	12 V
Battery capacity	7 Ah
Design
Form factor	Tower
Product colour	Black
Certification	(A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006, Directive 2011/65/EU
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	146 mm
Depth	397 mm
Height	205 mm
Weight	11.1 kg
Certificates
Certification	(A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006, Directive 2011/65/EU

1000VA, 900 W, 4 Outlets, 3 Batteries, 12 V, 9 Ah, 397 × 145 × 220 mm, 12500 g

Key Features

• True Online Double Conversion
• Wide input voltage range
• Input power factor correction 0.98
• 50Hz/60Hz frequency converter mode
• Programmable power outlets
• Emergency power off function (EPO)
• Optional Eco-mode operation for energy saving
• Generator compatible
• Backup time for all models is easily extended by simply plugging additional battery banks
• Battery banks are available with internal charger to enable fast recharge even with large battery banks
• USB, RS232, SNMP and AS400 multiple communications available

Description

The PowerShield Centurion UPS provides a permanent backup power solution for sensitive devices such as medical equipment and internet routers.
Use Power Shield Centurion to protect:
Servers
Critical power applications
Items in remote areas (over 30 kms outside of city grid)
Where light to heavy industrial equipment is utilised
Where generators are present
Applications that require remote connectivity

PowerShield Centurion 1000VA quantity

Specifications

Power
Output frequency	57/63 Hz
Output power capacity	1 kVA
Output power	900 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1248 J
Efficiency	90%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	1%
Input power factor	0.99
Charging current	1.5 A
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	40 - 70 Hz
Performance
UPS topology	Double-conversion (Online)
Number of output phases	1
Number of input phases	1
Response time	4 ms
Waveform	Pure sine
Noise level	50 dB
Features
Output frequency	57/63 Hz
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	900 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1248 J
Efficiency	90%
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power factor	0.9
Output voltage regulation	1%
Input power factor	0.99
Noise level	50 dB
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	40 - 70 Hz
Power source type	AC
Charging current	1.5 A
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	3
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Charging current	1.5 A
Design
Form factor	Tower
Product colour	Black
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2001 / 65 / EU
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 95%
Technical details
Output frequency	57/63 Hz
Compliance certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	145 mm
Depth	397 mm
Height	220 mm
Weight	12.5 kg
Certificates
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2001 / 65 / EU

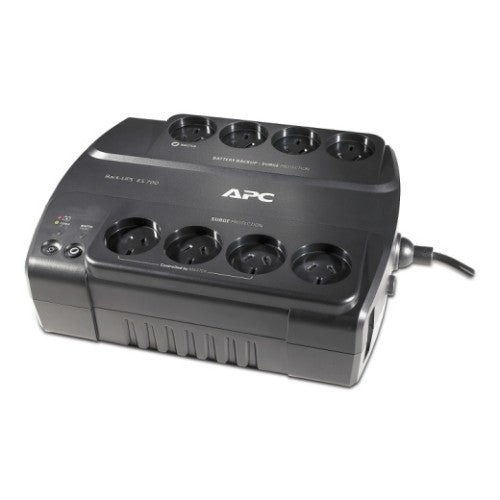

Power-Saving Back-UPS, ES 8 Outlet, 700VA, 230V, AS 3112

Key Features

• Battery Backup & Surge Protector for Electronics and Computers
• Includes: CD with software, Telephone cable, User manual

Description

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Cold-start capable
Provides temporary battery power when the utility power is out.
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Safety-agency approved
The UPS is UL1778 Listed
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Back-UPS Features & Benefits
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Availability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	0.7 kVA
Output power	405 W
Input operation voltage (min)	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	230 V
Surge energy rating	310 J
Input frequency	47/63 Hz
Performance
Response time	6 ms
Waveform	Sine
Noise level	40 dB
LED indicators	Yes
Features
Output frequency	50/60 Hz
Output power capacity	0.7 kVA
Response time	6 ms
Output power	405 W
Input operation voltage (min)	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	230 V
Surge energy rating	310 J
Waveform	Sine
Noise level	40 dB
Input frequency	47/63 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
Ethernet LAN (RJ-45) ports	3
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	16 h
Design
Form factor	Compact
Product colour	Black
Certification	A-Tick, C-Tick, CE, Telepermit, RoHS
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 9144 m
Non-operating altitude	0 - 9144 m
Technical details
Output frequency	50/60 Hz
Weight & dimensions
Width	224 mm
Depth	311 mm
Height	89 mm
Weight	6.93 kg
Package width	279 mm
Package depth	400 mm
Package height	127 mm
Package weight	7.84 kg
Packaging data
Manual	Yes
Package width	279 mm
Package depth	400 mm
Package height	127 mm
Package weight	7.84 kg
Certificates
Certification	A-Tick, C-Tick, CE, Telepermit, RoHS
Packaging content
Manual	Yes

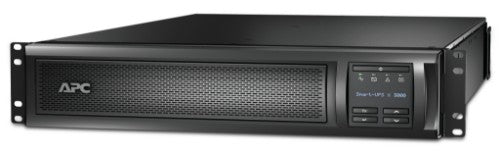

APC Smart-UPS X SMX3000RMHV2U - 3000VA, 8x C13, 1x C19 outlet, USB, expandable runtime

Description

Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120RMBP2U). A runtime of several hours is even possible.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate the shutdown moment and the order in which this happens.

Easy to use
This APC Smart-UPS SMX is easy to operate thanks to the LCD screen.

Rack/tower convertible
The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4 post rack mounting brackets are included, you can mount it in a rack (2U) or place it upright.

Extend the lifespan
The internal battery cartridge (APCRBC117) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX3000RMHV2U or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.

Warranty extension
The factory warranty of the SMX3000RMHV2U is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.


This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Power
Output power capacity	3 kVA
Output power	2700 W
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Efficiency	98.5%
Emergency Power Off (EPO)	Yes
Output frequency regulation	50/60 Hz
Crest factor	3:1
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
SmartSlot	Yes
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Number of output IEC jumpers	2
SmartConnect port	No
Performance
Hold time (min)	2 ms
Hold time (max)	10 ms
UPS topology	Line-Interactive
Surge protection	Yes
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
LED indicators	Battery replacement
Audible alarm(s)	Yes
Features
Hold time (min)	2 ms
Hold time (max)	10 ms
UPS topology	Line-Interactive
Output power capacity	3 kVA
Output power	2700 W
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Efficiency	98.5%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Crest factor	3:1
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	738 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	18 min
Typical backup time at full load	6.25 min
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Cable length	1.83 m
LED indicators	Battery replacement
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2723.78
Compliance certificates	RoHS
Certificates
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Management card included	No
Software CD	Yes
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	667 mm
Height	85 mm
Weight	37.3 kg
Package width	596 mm
Package depth	869 mm
Package height	243 mm
Package weight	45.4 kg
Packaging data
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Software CD	Yes
Package width	596 mm
Package depth	869 mm
Package height	243 mm
Package weight	45.4 kg
Management card included	No
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2723.78
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V

Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime

Description

Always stay online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX48RMBP2U).
A runtime of several hours is even possible.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate between the shutdown moment and the order in which this happens.

Easy to use
This APC Smart-UPS SMX is easy to operate thanks to the LCD screen.

Rack/tower convertible
The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4 post rack mounting brackets are included, you can mount it in a rack (2U) or place it upright.

Extend the lifespan
The internal battery cartridge (APCRBC115) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX1500RMI2U or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.

Warranty extension
The factory warranty of the SMX1500RMI2U is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-03).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.


This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1500VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Power
Output power capacity	1.5 kVA
Output power	1200 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Surge energy rating	645 J
Efficiency	98.5%
Emergency Power Off (EPO)	Yes
Output frequency regulation	50/60 Hz
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
USB port	Yes
SmartSlot	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Number of output IEC jumpers	2
Ethernet LAN (RJ-45) ports	0
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	40 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Output power	1200 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Surge energy rating	645 J
Efficiency	98.5%
Emergency Power Off (EPO)	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	311 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	17.2 min
Typical backup time at full load	5.8 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Cable length	1.83 m
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1419.64
Compliance certificates	RoHS
Packaging data
Packaging content	Removable support feet
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Software CD	Yes
Package width	589 mm
Package depth	620 mm
Package height	246 mm
Package weight	30 kg
Certificates
Certification	CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Software CD	Yes
Packaging content	Removable support feet
Weight & dimensions
Width	432 mm
Depth	490 mm
Height	89 mm
Weight	24.8 kg
Package width	589 mm
Package depth	620 mm
Package height	246 mm
Package weight	30 kg
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1419.64
Other features
Packaging content	Removable support feet
Nominal output voltage	230 V
Nominal input voltage	230 V

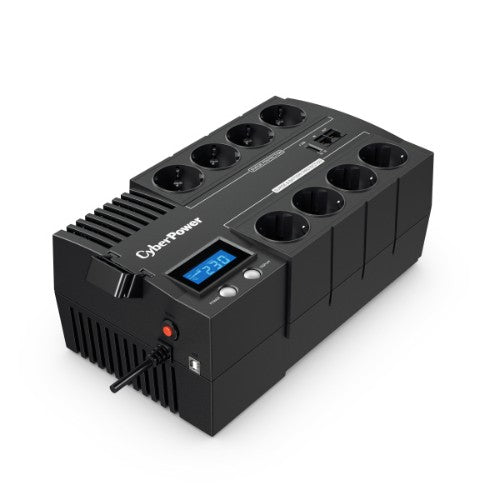

Backup UPS for Computer and Peripheral

Key Features

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• USB Charging Port(s)
• Phone/Fax/Modem/DSL/Network Protection
• PowerPanel Management Software
• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Surge and Spike Protection
• LCD Status Display
• Wall Mount Installation

Description

CyberPower BR1000ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.

The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surges/spikes and other power irregularities. Users can access precise information of critical power/battery conditions with the LCD status monitor.

Specifications

Power
Output power capacity	1 kVA
Output power	600 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	150 J
Maximum current	4.46 A
Input frequency	45/65 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	4 ms
Waveform	Sine
LED indicators	Yes
Audible alarm(s)	Yes
Features
Country of origin	China
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1 kVA
Response time	4 ms
Output power	600 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	150 J
Maximum current	4.46 A
Waveform	Sine
Audible alarm(s)	Yes
Input frequency	45/65 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	Type F
Power plug	Type F
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type A/USB Type-C
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	5 min
Typical backup time at full load	1 min
Hot-swap battery	Yes
Design
Country of origin	China
Form factor	Desktop
Product colour	Black
LED indicators	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	CE, RoHS
Certificates
Compliance certificates	CE, RoHS
Packaging content
Cables included	Serial, USB cable
Manual	Yes
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	288 mm
Depth	166 mm
Height	118 mm
Weight	6.5 kg
Package width	158 mm
Package depth	325 mm
Package height	230 mm
Package weight	6.95 kg
Packaging data
Cables included	Serial, USB cable
Manual	Yes
Package width	158 mm
Package depth	325 mm
Package height	230 mm
Package weight	6.95 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590

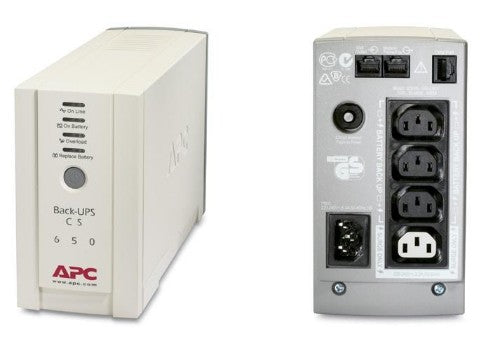

BACK-UPS CS 650VA 230V

Description

Back-UPS CS ,400 Watts ,650 VA ,Input 230V,Output 230V, Interface Port DB-9 RS-232, USB.

Specifications

Power
Output power capacity	0.65 kVA
Output power	400 W
Surge energy rating	320 J
Ports & interfaces
Cable length	1.83 m
Performance
Noise level	45 dB
Audible alarm(s)	Yes
Features
Output power capacity	0.65 kVA
Output power	400 W
Surge energy rating	320 J
Noise level	45 dB
Audible alarm(s)	Yes
Battery
Battery recharge time	8 h
Typical backup time at half load	14.8 min
Typical backup time at full load	4.7 min
Replacement battery cartridge	RBC17
Design
Product colour	Beige
Cable length	1.83 m
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	6.04 kg
Other features
Interface	DB-9 RS-232,USB
Output connections	(1) IEC 320 C13 (3) IEC 320 C13
Input connection type	IEC-320 C14
Dimensions (WxDxH)	91 x 284 x 165 mm
Nominal output voltage	230 V
Nominal input voltage	230 V
