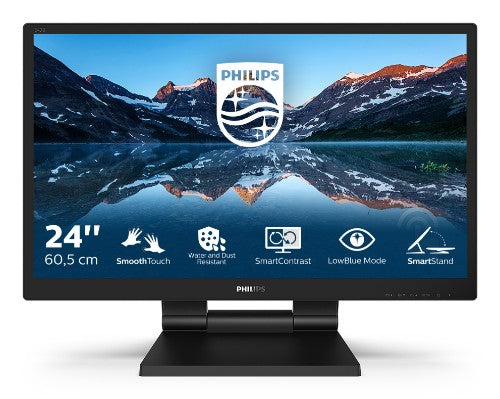

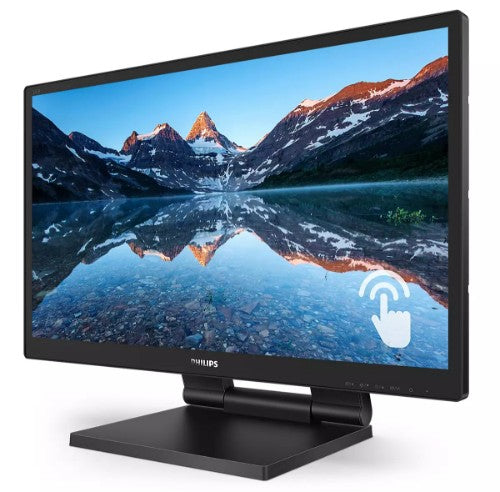

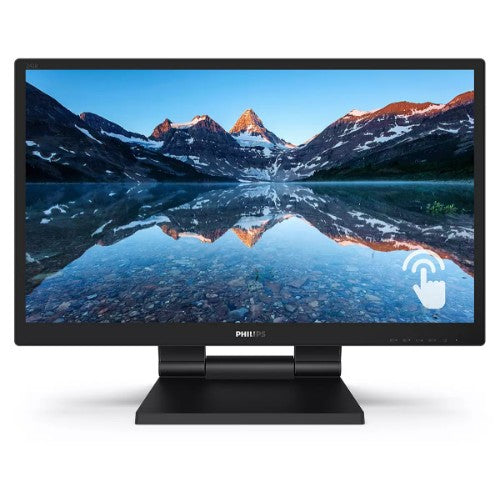

Philips LCD monitor with SmoothTouch 242B9T/00

Monitor 242B9T LCD monitor with SmoothTouch

Key Features

• B Line
• 24 (23.8"/60.5 cm diag.)
• Full HD (1920 x 1080)

Reasons To Buy

SmartStand with adjustable angles, boosts productivity

Philips SmartStand allows for flexible adjustment of the screen. Its Z-type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required.

Description

A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Dynamic contrast ratio marketing name	SmartContrast
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Display diagonal	60.5 cm (23.8")
Response time	5 ms
Display resolution	1920 x 1080 pixels
Display technology	LCD
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.275 x 0.275 mm
Horizontal scan range	30 - 85 kHz
Vertical scan range	48 - 75 Hz
Aspect ratio	16:9
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 85 kHz
Digital vertical frequency	48 - 75 Hz
Separate H/V sync	Yes
Sync-on-green (SOG)	Yes
3D	No
HD type	Full HD
Pixel density	93 ppi
Display surface	Gloss
DDC/CI	Yes
Colour gamut	72%
Backlight type	W-LED
Display panel size	23.8 inch/60.5 cm
Surface hardness	7H
NTSC coverage (typical)	72%
Touchscreen type	Tabletop
Touchscreen	No
Number of simultaneous touchpoints	10
Panel type	IPS
Display diagonal (metric)	60.5 cm
Display sRGB	Yes
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	250 cd/m²
Colour gamut standard	sRGB, NTSC
Performance
Mean time between failures (MTBF)	70000 h
AMD FreeSync	No
Compatible operating systems	Windows 11/10/8.1/8/7
NVIDIA G-SYNC	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Low Blue Light technology	Yes
Flicker-free technology	Yes
Component video sync	Separate Sync, Sync-on-green (SOG)
OmniTapps Multitouch compatibility	No
Palm rejection	Yes
EasyRead mode	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Built-in microphone	No
TV tuner integrated	No
Design
Market positioning	Home
Product colour	Black
Heavy metals free	Hg (mercury)
Feet colour	Black
Certification	CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC
Front bezel colour	Black
International Protection (IP) code	IP65
Mean time between failures (MTBF)	70000 h
Exterior finish type	Textured
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1.4
DisplayPorts quantity	1.2
HDCP	Yes
Audio input	Yes
Headphone outputs	1
PC Audio in	Yes
Headphone out	Yes
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
HDCP version	1.4
USB Touch port	Yes
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Power, Stand-by
Swivelling	No
Tilt angle range	-5 - 90°
Height adjustment	Yes
On Screen Display (OSD)	Yes
Pivot	No
Number of OSD languages	20
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Plug and Play	Yes
Cable lock slot type	Kensington
Palm rejection area	30 x 30 mm
Tilt adjustment	Yes
Adjustable height (max)	7.5 cm
Rotating	No
Power
Power supply type	External
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	15.68 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	11.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Weight & dimensions
Width (with stand)	554 mm
Depth (with stand)	227 mm
Height (with stand)	413 mm
Width (without stand)	554 mm
Height (without stand)	338 mm
Depth (without stand)	50 mm
Weight (with stand)	8.15 kg
Weight (without stand)	4.86 kg
Package width	620 mm
Package depth	168 mm
Package height	433 mm
Package weight	11.1 kg
Packaging data
Package dimensions (WxDxH)	620 x 433 x 168 mm
Package type	Box
Package width	620 mm
Package depth	168 mm
Package height	433 mm
Package weight	11.1 kg
Stand included	Yes
Manual	Yes
Cables included	VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
Bundled software	SmartControl
Packaging content
Stand included	Yes
Manual	Yes
Cables included	VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
Bundled software	SmartControl
Sustainability
Sustainability certificates	ENERGY STAR
Doesn't contain	Mercury, PVC/BFR
Technical details
Sustainability certificates	ENERGY STAR
Doesn't contain	Mercury, PVC/BFR
Compliance certificates	RoHS
Power supply type	External
Compatible operating systems	Windows 11/10/8.1/8/7
Weight (with stand)	8.15 kg
Folding angle	70°
Touch method	Stylus, Finger, Glove*
Surface hardness	7H
LowBlue mode	Yes
EasyRead mode	Yes
Touchscreen type	Tabletop
Touchscreen	No
Number of simultaneous touchpoints	10
Other features
Compatible operating systems	Windows 11/10/8.1/8/7
TV tuner integrated	No
Package dimensions (WxDxH)	620 x 433 x 168 mm
Signal input	VGA (Analogue); DVI-D (digital, HDCP); DisplayPort 1.2; HDMI 1.4
Rotating	No
Monitor sync input signal	Separate Sync; Sync on Green
Mobile operating systems supported	Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
Mean time between failures (MTBF)	70000 h
Heavy metals free	Hg (mercury)
Display viewable area (HxV)	527 x 296.5 mm
Certification	CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC
User controls	SmartImage; Input; Brightness; Menu; Power On/Off
Regulatory Approvals	CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; cETLus
Recyclable packaging material	100%
Picture enhancement	SmartImage
Folding angle	70°
Touch method	Stylus, Finger, Glove*
LowBlue mode	Yes
EasyRead mode	Yes
Exterior finish type	Textured
International Protection (IP) code	IP65
Compliance certificates	RoHS
Energy efficiency class (old)	A
Supplied AC adapter type	AC
Width (without stand)	554 mm
Height (without stand)	338 mm
HDMI	Yes
Depth (without stand)	50 mm
Surface hardness	7H
Energy efficiency scale	A to G
Power supply type	External
Manual	Yes
Touchscreen type	Tabletop
Touchscreen	No
Number of simultaneous touchpoints	10
Package type	Box
Front bezel colour	Black
Recycling data
Recyclable packaging material	100%
Certificates
Certification	CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC
Logistics data
Harmonized System (HS) code	85285210
