Collection: POS Printers

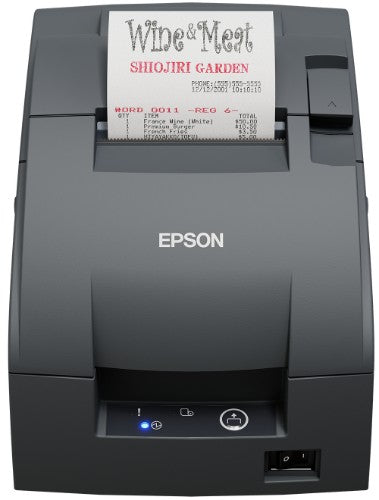

TM-U220IIB, Ethernet, 2.5 kg

Description

Easy to use
The TM-U220II is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220II is very reliable and prints on plain paper in three widths.

Increased memory
An increased buffer allows more orders to be received at the same time, making it ideal for those busy environments where order success is critical. It supports more orders being received from multiple devices, which means that more tickets can be processed in a shorter time, keeping the operation flowing.

High printing speed
The TM-U220II provides high-efficiency throughput. Retailers can hand receipts to customers faster. Restaurant kitchens can receive orders quickly.

Superior versatility
The TM-U220II suits a wide range of needs and applications. Each model in the series is powerful, yet compact enough to fit in confined spaces. In addition, the wall-mounting option frees up valuable counter space in kitchens and other tight locations.

Outstanding compatibility
The TM-U220II printers are designed to be compatible with systems built around predecessor models. These systems can be upgraded simply by dropping in a TM-U220II. Moreover, since the external dimensions are nearly identical, there is no need to change the installation environment.

Distinctive sound
The distinctive printing sound of the TM-U220II makes it stand out among the soundscape of a noisy kitchen environment. This draws attention to incoming orders and reduces the customers' waiting times.

Specifications

Printing
Type	POS printer
Print technology	Dot matrix
Print speed	6 lps
Character density	16 cpi
Performance
Type	POS printer
Print technology	Dot matrix
Print speed	6 lps
Character density	16 cpi
Paper handling
Maximum roll diameter	8.3 cm
Ports & interfaces
Connectivity technology	Wired
Serial interface	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Dot matrix
Print speed	6 lps
Character density	16 cpi
Technical details
Product colour	Grey
Cutter	Yes
Features
Mean time between failures (MTBF)	180000 h
Product colour	Grey
Sound pressure level (printing)	64 dB
Cutter	Yes
Receive buffer	40 KB
Design
Product colour	Grey
Endurance
Mean time between failures (MTBF)	180000 h
Power
AC input voltage	24 V
Power source type	AC
Power consumption (printing)	31 W
Operational conditions
Storage temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	160 mm
Depth	248 mm
Height	138.5 mm
Weight	2.5 kg

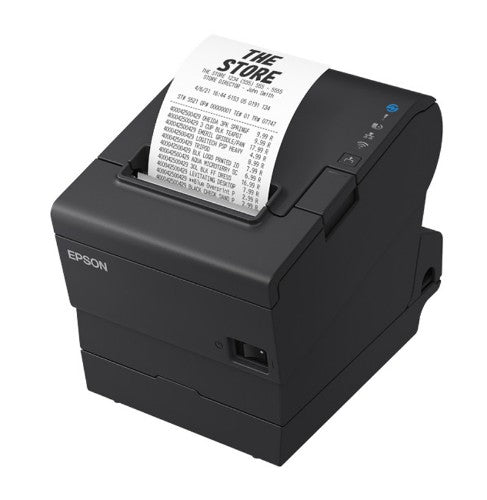

Thermal, 180 x 180 dpi, 500 mm/sec, 128 x 43 mm, 200 km, 27.6 W, 24 V

Key Features

• Reliable hardware
• High performance
• Connectivity and interface options
• Backwards compatible
• Reduced environmental impacts

Description

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.

These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.

The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.

Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.

State-of-the-art PC, tablet and web-based POS receipt printer
The TM-T88VII can print receipts directly from the web, tablets, smartphones and other mobile devices using XML commands, and offers internal storage for database and web content uploads. It coexists with traditional PC-based applications and works on several platforms so it's simple to integrate with your existing network. All models come with Ethernet connectivity, with optional Bluetooth and Wi-Fi connectivity available.

Easy to integrate
The TM-T88VII offers a variety of tools for configuration, operation, installation support and development, as well as TM-Utility for easy set-up. SDKs are available for software developers to create native apps for Android, iOS and Windows devices or web applications.

Specifications

Printing
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Character size	128 x 43 mm
Performance
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Character size	128 x 43 mm
Built-in barcodes	UPC-A, UPC-E, Code 39, Code 93, Code 128 (A/B/C), PDF417, QR Code, MaxiCode, Data Matrix, AZTECCODE, GS1-128, GS1 DataBar, GS1 DataBar Omnidirectional
Paper handling
Maximum media length	8 cm
Printing media thickness	48 - 80 µm
Ports & interfaces
Connectivity technology	Wired & Wireless
USB port	Yes
Serial interface	Yes
Near Field Communication (NFC)	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Print technology
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Character size	128 x 43 mm
Print quality
Maximum media length	8 cm
Maximum resolution	180 x 180 DPI
Technical details
Maximum media length	8 cm
Bundled software	ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise ePOS-Display Server Collaboration: Server Direct Print, Status notification PHP/Sqlite3 Backup/Restore: TM Utility (Win)
Windows operating systems supported	Yes
Mobile operating systems supported	iOS, Android
Linux operating systems supported	Yes
Product colour	Black
Built-in barcodes	UPC-A, UPC-E, Code 39, Code 93, Code 128 (A/B/C), PDF417, QR Code, MaxiCode, Data Matrix, AZTECCODE, GS1-128, GS1 DataBar, GS1 DataBar Omnidirectional
Autocutter durability	3000000 million cuts
Features
Safety	RCM: AS/NZS CISPR 32 Class A
Mean time between failures (MTBF)	360000 h
Product colour	Black
Built-in barcodes	UPC-A, UPC-E, Code 39, Code 93, Code 128 (A/B/C), PDF417, QR Code, MaxiCode, Data Matrix, AZTECCODE, GS1-128, GS1 DataBar, GS1 DataBar Omnidirectional
Autocutter durability	3000000 million cuts
Print head life	200 km
Wall mountable	Yes
Printer receipt unit life	70000000 lines
Receive buffer	12 KB
Design
Product colour	Black
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	24 V
Power source type	DC
Power consumption (printing)	27.6 W
System requirements
Windows operating systems supported	Yes
Mobile operating systems supported	iOS, Android
Linux operating systems supported	Yes
Mac compatibility	Yes
Certificates
Safety	RCM: AS/NZS CISPR 32 Class A
Weight & dimensions
Width	145 mm
Depth	195 mm
Height	148 mm
Weight	1.6 kg
Packaging data
Bundled software	ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise ePOS-Display Server Collaboration: Server Direct Print, Status notification PHP/Sqlite3 Backup/Restore: TM Utility (Win)
Software
Bundled software	ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise ePOS-Display Server Collaboration: Server Direct Print, Status notification PHP/Sqlite3 Backup/Restore: TM Utility (Win)
Windows operating systems supported	Yes
Mobile operating systems supported	iOS, Android
Linux operating systems supported	Yes
Mac compatibility	Yes
Other features
Safety	RCM: AS/NZS CISPR 32 Class A
Print head life	200 km

Built-in USB, Ethernet, Black

Description

Sleek, stylish and compact – The ideal solution for tablet POS environments
Sleek and modern, the TM-m30III thermal receipt printer series is engineered to offer enhanced connectivity and reliable performance in a compact enclosure. The clean and attractive design provides visual appeal to enhance both your business and the customer’s experience. The enclosure is IPX2 rated for water resistance, and its small size is ideal for tight spaces. The printer has a flexible configuration, working in either a top-exit or front-exit orientation.

Stylishly compact
Epson's POS expertise has resulted in unrivalled build quality and refined functionality; each component has been developed with ease of use in mind. The TM-m30III can be installed horizontally or vertically, that allows for even more positioning flexibility

Easy to install
Print directly from any smart device with ePOS-Print on both iOS and Android systems. Additional Ethernet, Bluetooth, USB and Wi-Fi connectivity are available.

Adaptable
Quickly and easily customise receipts with logos and promotional messages. Advance graphics and barcodes using high-quality, multiple greyscale printing are also fast and simple to produce.

Paper saving
Using backward paper feeding, or printing the logo when the receipt is cut, can shorten receipt lengths reducing paper costs and consumption by up to 30%.

Connectable
A single printer can be dynamically shared across multiple tablets with different interfaces.

Direct printing from web browsers
Epson's innovative ePOS-Print technology means the TM-m30II can quickly, easily and seamlessly integrate with any PC, tablet, laptop or mobile device via a Wi-Fi or Bluetooth interface. Whether the device is running iOS, Android, Windows CE or Windows mobile, direct printing from the web browser becomes possible without the need to install or update any other drivers.

Easy pairing with mobile devices
NFC connectivity (Near Field Communication), means the TM-m30III can be easily paired with tablets and smartphones. Simply bring the devices close together to make the connection. For added convenience and flexibility, pairing by QR code is also possible.

Simple set-up using Wi-Fi
The 'Easy Setting Functionality' on the TM-m30III creates an access point for connecting smart devices. Once implemented, both devices can be easily set-up and configured on a wireless network for instant use.

Optional wall mounting bracket
Mount the printer quickly and securely to any wall or vertical surface with the optional wall mounting bracket. By simply swapping just two printer covers, the TM-m30III converts from a horizontal to a vertical solution, maximising space even in the smallest retail environments.

Specifications

Printing
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Performance
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Paper handling
Printing media thickness	48 - 80 µm
Maximum printing width	8 cm
Ports & interfaces
Connectivity technology	Wired
USB port	Yes
Serial interface	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	8 cm
Technical details
Mobile operating systems supported	iOS
Maximum printing width	8 cm
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Features
Mean time between failures (MTBF)	360000 h
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Design
Product colour	Black
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	100 - 230 V
AC input frequency	50/60 Hz
Power source type	AC
Power consumption (printing)	32.8 W
System requirements
Mobile operating systems supported	iOS
Weight & dimensions
Width	127 mm
Depth	127 mm
Height	127 mm
Weight	1.3 kg
Software
Mobile operating systems supported	iOS

Built-in USB, Ethernet, Wi-Fi + Bluetooth, Black

Description

Sleek, stylish and compact – The ideal solution for tablet POS environments
Sleek and modern, the TM-m30III thermal receipt printer series is engineered to offer enhanced connectivity and reliable performance in a compact enclosure. The clean and attractive design provides visual appeal to enhance both your business and the customer’s experience. The enclosure is IPX2 rated for water resistance, and its small size is ideal for tight spaces. The printer has a flexible configuration, working in either a top-exit or front-exit orientation.

Stylishly compact
Epson's POS expertise has resulted in unrivalled build quality and refined functionality; each component has been developed with ease of use in mind. The TM-m30III can be installed horizontally or vertically, that allows for even more positioning flexibility

Easy to install
Print directly from any smart device with ePOS-Print on both iOS and Android systems. Additional Ethernet, Bluetooth, USB and Wi-Fi connectivity are available.

Adaptable
Quickly and easily customise receipts with logos and promotional messages. Advance graphics and barcodes using high-quality, multiple greyscale printing are also fast and simple to produce.

Paper saving
Using backward paper feeding, or printing the logo when the receipt is cut, can shorten receipt lengths reducing paper costs and consumption by up to 30%.

Connectable
A single printer can be dynamically shared across multiple tablets with different interfaces.

Direct printing from web browsers
Epson's innovative ePOS-Print technology means the TM-m30II can quickly, easily and seamlessly integrate with any PC, tablet, laptop or mobile device via a Wi-Fi or Bluetooth interface. Whether the device is running iOS, Android, Windows CE or Windows mobile, direct printing from the web browser becomes possible without the need to install or update any other drivers.

Easy pairing with mobile devices
NFC connectivity (Near Field Communication), means the TM-m30III can be easily paired with tablets and smartphones. Simply bring the devices close together to make the connection. For added convenience and flexibility, pairing by QR code is also possible.

Simple set-up using Wi-Fi
The 'Easy Setting Functionality' on the TM-m30III creates an access point for connecting smart devices. Once implemented, both devices can be easily set-up and configured on a wireless network for instant use.

Optional wall mounting bracket
Mount the printer quickly and securely to any wall or vertical surface with the optional wall mounting bracket. By simply swapping just two printer covers, the TM-m30III converts from a horizontal to a vertical solution, maximising space even in the smallest retail environments.

Specifications

Printing
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Performance
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Paper handling
Printing media thickness	48 - 80 µm
Maximum printing width	8 cm
Ports & interfaces
Connectivity technology	Wired & Wireless
Bluetooth	Yes
USB port	Yes
Serial interface	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Print technology
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	8 cm
Technical details
Mobile operating systems supported	iOS
Maximum printing width	8 cm
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Features
Mean time between failures (MTBF)	360000 h
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Design
Product colour	Black
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	100 - 230 V
AC input frequency	50/60 Hz
Power source type	AC
Power consumption (printing)	32.8 W
System requirements
Mobile operating systems supported	iOS
Weight & dimensions
Width	127 mm
Depth	127 mm
Height	127 mm
Weight	1.3 kg
Software
Mobile operating systems supported	iOS

Built-in USB, Ethernet, BT iOS,white

Description

Sleek, stylish and compact – The ideal solution for tablet POS environments
Sleek and modern, the TM-m30III thermal receipt printer series is engineered to offer enhanced connectivity and reliable performance in a compact enclosure. The clean and attractive design provides visual appeal to enhance both your business and the customer’s experience. The enclosure is IPX2 rated for water resistance, and its small size is ideal for tight spaces. The printer has a flexible configuration, working in either a top-exit or front-exit orientation.

Stylishly compact
Epson's POS expertise has resulted in unrivalled build quality and refined functionality; each component has been developed with ease of use in mind. The TM-m30III can be installed horizontally or vertically, that allows for even more positioning flexibility

Easy to install
Print directly from any smart device with ePOS-Print on both iOS and Android systems. Additional Ethernet, Bluetooth, USB and Wi-Fi connectivity are available.

Adaptable
Quickly and easily customise receipts with logos and promotional messages. Advance graphics and barcodes using high-quality, multiple greyscale printing are also fast and simple to produce.

Paper saving
Using backward paper feeding, or printing the logo when the receipt is cut, can shorten receipt lengths reducing paper costs and consumption by up to 30%.

Connectable
A single printer can be dynamically shared across multiple tablets with different interfaces.

Direct printing from web browsers
Epson's innovative ePOS-Print technology means the TM-m30II can quickly, easily and seamlessly integrate with any PC, tablet, laptop or mobile device via a Wi-Fi or Bluetooth interface. Whether the device is running iOS, Android, Windows CE or Windows mobile, direct printing from the web browser becomes possible without the need to install or update any other drivers.

Easy pairing with mobile devices
NFC connectivity (Near Field Communication), means the TM-m30III can be easily paired with tablets and smartphones. Simply bring the devices close together to make the connection. For added convenience and flexibility, pairing by QR code is also possible.

Simple set-up using Wi-Fi
The 'Easy Setting Functionality' on the TM-m30III creates an access point for connecting smart devices. Once implemented, both devices can be easily set-up and configured on a wireless network for instant use.

Optional wall mounting bracket
Mount the printer quickly and securely to any wall or vertical surface with the optional wall mounting bracket. By simply swapping just two printer covers, the TM-m30III converts from a horizontal to a vertical solution, maximising space even in the smallest retail environments.

Specifications

Printing
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Performance
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Paper handling
Maximum printing width	8 cm
Ports & interfaces
Connectivity technology	Wired & Wireless
Bluetooth	Yes
USB port	Yes
Serial interface	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	8 cm
Technical details
Mobile operating systems supported	iOS
Maximum printing width	8 cm
Product colour	White
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Features
Mean time between failures (MTBF)	360000 h
Product colour	White
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Design
Product colour	White
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	100 - 230 V
AC input frequency	50/60 Hz
Power source type	AC
Power consumption (printing)	32.8 W
System requirements
Mobile operating systems supported	iOS
Weight & dimensions
Width	127 mm
Depth	127 mm
Height	127 mm
Weight	1.3 kg
Software
Mobile operating systems supported	iOS

TM-T88VII -652: Built-in Ethernet, Non UIB Slot, Black

Description

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.

These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.

The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.

Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.

Specifications

Printing
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Performance
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Paper handling
Media thickness	48 - 80 mm
Supported paper width	80 mm
Printing media thickness	48 - 80 µm
Maximum roll diameter	8.3 cm
Ports & interfaces
Connectivity technology	Wired
USB port	Yes
USB connector	USB Type-A / USB Type-B
Serial interface	No
Optional connectivity	Wireless LAN
Near Field Communication (NFC)	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Print quality
Maximum resolution	180 x 180 DPI
Technical details
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Product colour	Black
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Buffer size	4 KB
Autocutter durability	3 million cuts
Features
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Mean time between failures (MTBF)	360000 h
Product colour	Black
Certification	CE
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Autocutter durability	3 million cuts
Sound pressure level (printing)	52 dB
Print head life	200 km
Sound pressure level (standby)	52 dB
Wall mountable	Yes
Mounting position	Horizontal/Vertical
Paper save function	Yes
Design
Product colour	Black
Memory
Buffer size	4 KB
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	24 V
Power source type	DC
Power consumption (printing)	27.6 W
Operational conditions
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	CE
Weight & dimensions
Width	145 mm
Depth	195 mm
Height	148 mm
Weight	1.6 kg
Other features
Mean cycles between failures (MCBF)	70000000
Buffer size	4 KB
Print head life	200 km

TM-T88VII -652: Built-in Ethernet, USB, PUSB, Black

Description

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.

These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.

The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.

Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.

Specifications

Printing
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Performance
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Paper handling
Media thickness	48 - 80 mm
Supported paper width	80 mm
Printing media thickness	48 - 80 µm
Maximum roll diameter	8.3 cm
Ports & interfaces
Connectivity technology	Wired
USB port	Yes
USB connector	USB Type-A / USB Type-B
Serial interface	Yes
Optional connectivity	Wireless LAN
Near Field Communication (NFC)	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Print quality
Maximum resolution	180 x 180 DPI
Technical details
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Product colour	Black
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Buffer size	4 KB
Autocutter durability	3 million cuts
Features
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Mean time between failures (MTBF)	360000 h
Product colour	Black
Certification	CE
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Autocutter durability	3 million cuts
Sound pressure level (printing)	52 dB
Print head life	200 km
Sound pressure level (standby)	52 dB
Wall mountable	Yes
Mounting position	Horizontal/Vertical
Paper save function	Yes
Design
Product colour	Black
Memory
Buffer size	4 KB
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	24 V
Power source type	DC
Power consumption (printing)	27.6 W
Operational conditions
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	CE
Weight & dimensions
Width	145 mm
Depth	195 mm
Height	148 mm
Weight	1.6 kg
Other features
Mean cycles between failures (MCBF)	70000000
Buffer size	4 KB
Print head life	200 km

TM-T88VII -612: Built-in Ethernet, USB, Serial, Black

Description

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.

These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.

The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.

Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.

Specifications

Printing
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Performance
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Paper handling
Media thickness	48 - 80 mm
Supported paper width	80 mm
Printing media thickness	48 - 80 µm
Maximum roll diameter	8.3 cm
Ports & interfaces
Connectivity technology	Wired
USB port	Yes
USB connector	USB Type-A / USB Type-B
Serial interface	Yes
Optional connectivity	Wireless LAN
Near Field Communication (NFC)	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Print quality
Maximum resolution	180 x 180 DPI
Technical details
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Product colour	Black
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Buffer size	4 KB
Autocutter durability	3 million cuts
Features
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Mean time between failures (MTBF)	360000 h
Product colour	Black
Certification	CE
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Autocutter durability	3 million cuts
Sound pressure level (printing)	52 dB
Print head life	200 km
Sound pressure level (standby)	52 dB
Wall mountable	Yes
Mounting position	Horizontal/Vertical
Paper save function	Yes
Design
Product colour	Black
Memory
Buffer size	4 KB
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	24 V
Power source type	DC
Power consumption (printing)	27.6 W
Operational conditions
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	CE
Weight & dimensions
Width	145 mm
Depth	195 mm
Height	148 mm
Weight	1.6 kg
Other features
Mean cycles between failures (MCBF)	70000000
Buffer size	4 KB
Print head life	200 km
