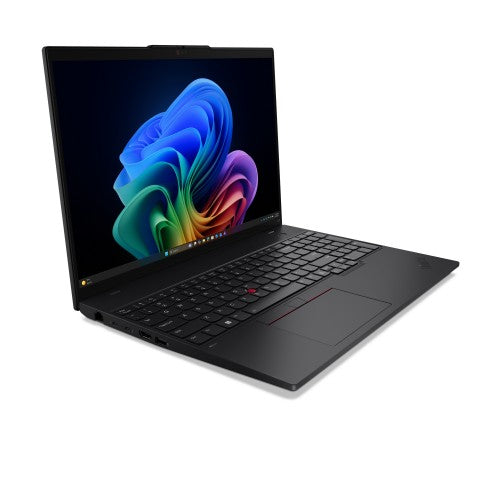

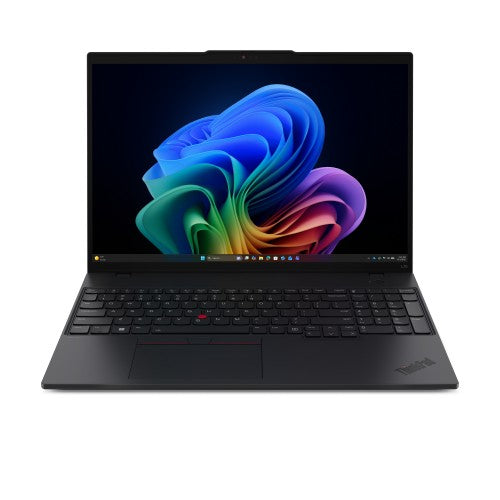

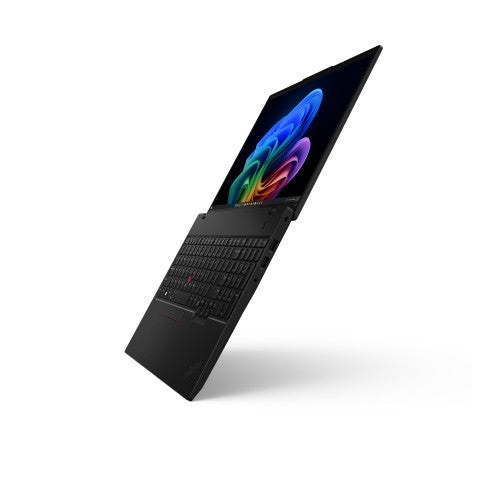

Lenovo ThinkPad L16 Gen 3 (Intel) Copilot+ PC Intel Core Ultra 5 325 Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro English Black

Intel Core Ultra 5 325 (12MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 16" WUXGA 1920 x 1200 IPS, Intel Graphics, LAN, WLAN, Webcam, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 5 325 (12MB Cache)
• 16" WUXGA 1920 x 1200 IPS
• 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 512GB SSD

Description

THINKPAD L16 G3, 16" WUXGA, U5-325, 16GB, 512GB, WI-FI 7, W11P, 3YP+CO, COPILOT+

Specifications

Design
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	400 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 5
Processor model	325
Processor boost frequency	4.5 GHz
Processor cores	8
Processor threads	8
Processor cache	12 MB
Processor socket	FCBGA2540
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	25 W
Maximum turbo power	55 W
Efficient-core base frequency	1.6 GHz
Performance-core base frequency	2.1 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Performance cores	4
Efficient cores	0
Low Power Efficient-core Base Frequency	1600 MHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	47 TOPs
GPU performance up to	40 TOPs
Copilot+ PC	Yes
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Ray tracing acceleration	Yes
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE213
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth version	5.4
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system language	US English, ENG-UK
Microsoft Copilot	Yes
Copilot+ PC	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	15 W
USB Type-C required charging power (max)	65 W
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	SSD, Power on, Supervisor
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10
Weight & dimensions
Weight	1.78 kg
Width	357.2 mm
Depth	253.4 mm
Height (front)	1.1 cm
Height (rear)	1.96 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
WLAN controller model	Intel Wi-Fi 7 BE213
Audio system	Dolby Atmos
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
