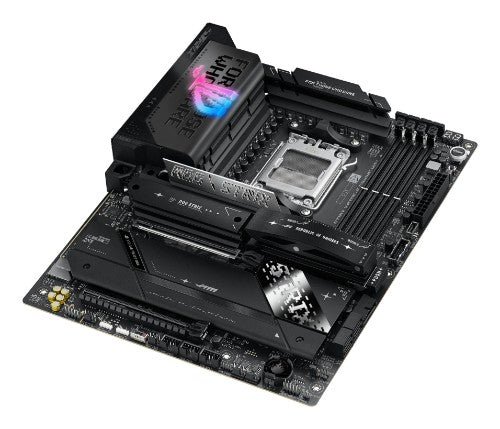

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870E

Description

ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI Overclocking
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Specifications

Internal I/O
Number of M.2 (M) slots	5
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of chassis fan connectors	5
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
USB 3.2 Gen 2x2 connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
RAID levels	0, 1, 10, 5
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10, 5
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC4080
Product colour	Black
Expansion slots
Number of M.2 (M) slots	5
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Packaging data
Package width	365 mm
Package depth	281 mm
Package height	87 mm
Package weight	3.02 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Weight	2.06 kg
Package width	365 mm
Package depth	281 mm
Package height	87 mm
Package weight	3.02 kg
Packaging content
Cables included	SATA
Other features
Height	50 mm
mSATA ports quantity	0
Weight	2.06 kg
Package width	365 mm
Package depth	281 mm
Package height	87 mm
Package weight	3.02 kg
