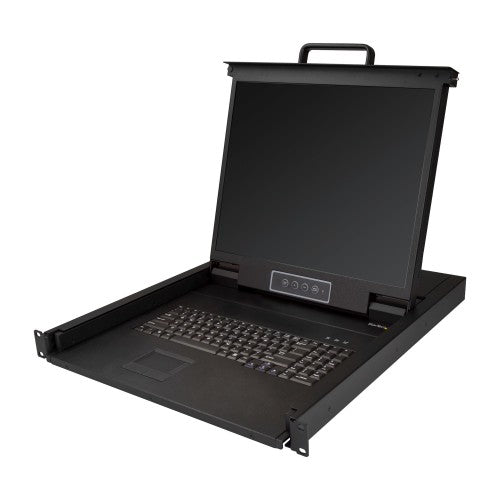

StarTech Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS1901)
Key Features
- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 19" Active Matrix TFT 1280 x 1024 LCD/ 1U height / 99 key full keyboard with numeric keypad + Trackpad / Supports VGA and USB / Integrated Power Supply
- MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
- TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
- KVM Collection: Can be purchased with integrated 8-port (RKCONS1908K) or 16-port (RKCONS1916K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK
Description
Control your server or KVM switch from a centralized rack console
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Display |
|---|
| Display number of colours |
16.78 million colours |
| Display diagonal |
48.3 cm (19") |
| Viewing angle, vertical |
170° |
| Viewing angle, horizontal |
176° |
| Pixel pitch |
0.264 x 0.264 mm |
| On Screen Display (OSD) |
Yes |
| Display type |
LCD |
| Display resolution |
1280 x 1024 pixels |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
4:3 |
| Technical details |
|---|
| Key lock |
No |
| Daisy chain |
Yes |
| LED indicators |
Yes |
| Rack capacity |
1U |
| Operating relative humidity (H-H) |
10 - 80% |
| Mean time between failures (MTBF) |
50000 h |
| Material |
Steel |
| Product colour |
Black |
| Cables included |
AC, KVM |
| IP control |
No |
| Audio support |
No |
| Compliance certificates |
RoHS |
| Ports & interfaces |
|---|
| Video port type |
VGA |
| Keyboard |
|---|
| Hot keys |
Yes |
| Built-in touchpad |
Yes |
| Power |
|---|
| Power consumption (typical) |
17 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CE, FCC |
| Weight & dimensions |
|---|
| Mounting depth (min) |
50 cm |
| Mounting depth (max) |
78 cm |
| Weight |
12.2 kg |
| Width |
483 mm |
| Height |
430 mm |
| Depth |
533 mm |
| Packaging data |
|---|
| Package width |
781 mm |
| Package depth |
619 mm |
| Package height |
190 mm |
| Package weight |
16 kg |
| Packaging content |
|---|
| Screws included |
Yes |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Cables included |
AC, KVM |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Logistics data |
|---|
| Master (outer) case width |
781 mm |
| Master (outer) case length |
619 mm |
| Master (outer) case height |
190 mm |
| Products per master (outer) case |
1 pc(s) |
