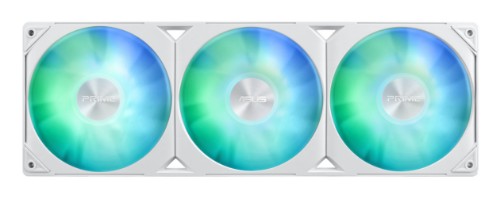

Prime LC 360 ARGB White Edition

Key Features

• A specially designed CPU contact area provides powerful heat dissipation performance
• Futuristic aesthetics with customizable infinity mirror lenses
• High-performance integrated ARGB fans
• Designed to perfectly complement the aesthetics of a Prime motherboard
• Reinforced, sleeved tubing for increased durability

Description

Prime LC ARGB White Edition all-in-one CPU liquid cooler with vast CPU contact area and finned channels, water block with infinity mirror lens options, integrated ARGB fans and Aura lighting.

Specifications

Performance
Suitable location	Processor
Pulse-width modulation (PWM) support	Yes
Type	All-in-one liquid cooler
Noise level	34 sone
Fan diameter	12 cm
Supported processor sockets	LGA 1851, LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Noise level (high speed)	34 dB
Maximum airflow	75.7 cfm
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Fan static pressure	3.2 mmH2O
Fan speed (min)	600 RPM
Fan speed (max)	2200 RPM
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Radiator material	Aluminum
Water block material	Copper
Weight & dimensions
Weight	1.1 kg
Fan dimensions (W x D x H)	360 x 123 x 25 mm
Package width	448 mm
Package depth	210 mm
Package height	137 mm
Package weight	2.1 kg
Radiator width	39.4 cm
Radiator depth	12 cm
Radiator height	2.7 cm
Tube length	40 cm
Waterblock width	6.51 cm
Waterblock depth	6.06 cm
Waterblock height	6.85 cm
Technical details
Illumination LED	Yes
Warranty period	6 year(s)
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes

AMD WRX90, 8 x DIMM slots, DDR5, ECC, Realtek 1Gb Ethernet/ Intel dual 10Gb Ethernet, 256 Mb Flash ROM, UEFI AMI BIOS, EEB

Key Features

• AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
• Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support
• CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC)
• Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad
• PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation

Description

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

ULTRAFAST CONNECTIVITY
Multi-GPU Support
The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.

ULTRAFAST CONNECTIVITY
Ultrafast Networking

Intel® X710-AT2 dual 10 Gb Ethernet
Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.

1 Gb Ethernet Dedicated to BMC
The Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller.

Ultrafast Networking

Embrace Next-Generation USB4®
The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators.
* The MiniDP In port at the back panel needs to be connected to a discrete graphics card via the bundled MiniDP to DP cable.

High Capacity Storage

M.2 PCIe 5.0 slots
The Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.

SlimSAS slot
The Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industral SSD drives, servers and networking equipment.

CPU AND MEMORY OVERCLOCKING READY
For AMD TR5 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS WRX90E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation computing.

Power Stages in VRM Area
The Pro WS WRX90E-SAGE SE voltage regulator module setup is comprised of (16*2)+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors demand, with stability for extreme overclocking.

Active VRM Cooling Solutions
The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency.

ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.

Onboard PCIe Power Connectors
Two additional 8-pin PCIe cable connectors built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.

ECC R-DIMM Memory Support
The Pro WS WRX90E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.

ASUS Control Center Express
The Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks.

THOROUGH THERMAL DESIGN

Chipset Cooling
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency.

10 Gb LAN Cooling
An optimally located and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance.

M.2 Heatsinks with Active Fan
An active fan provides an additional cooling method to M.2 slots. All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance for next-gen drives.

COMPREHENSIVE FAN CONTROLS

Thorough and Flexible Way to Adjust the Fans
The Pro WS WRX90E-SAGE SE offers advanced fan control, configurable via an IPMI web UI, Q-FAN in the UEFI BIOS*, or Fan Xpert 4 in Armoury Crate for Windows*
*Set BMC_SW to disabled to control fans via this method.

Multiple Temperature Source
Each header can be connected to a 3A-12V high speed fan and set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4, UEFI and IPMI web interfaces.

INNOVATIVE DIY DESIGN AND ROBUST RELIABILITY

PCIe Q-release Slim
The new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot.
This design also keeps the original method of removing the graphics card by pushing down on the retention clip.

EZ DIY Design
SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.

24/7 Reliability
Built for around-the-clock operation
Optimized for 24/7 operation, the Pro WS WRX90E-SAGE SE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.

Built for Firm Protection
The back-plate on the back of the motherboard provides protection for adjacent electrical components and circuits.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	M.2, SATA III, SlimSAS
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
USB 3.2 Gen 2x2 connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	Workstation
Motherboard chipset family	AMD
Motherboard chipset	AMD WRX90
Motherboard form factor	EEB
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen Threadripper PRO 7000 WX-Series
Processor socket	Socket sTR5
Memory
Number of memory slots	8
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Octa-channel
Maximum internal memory	2 TB
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III, SlimSAS
RAID levels	0, 1, 5, 10
Number of storage drives supported	10
RAID support	Yes
Graphics
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	1
Mini DisplayPorts quantity	2
HDMI ports quantity	0
DVI-D ports quantity	0
USB4 Gen 3x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Component for	Workstation
Motherboard chipset family	AMD
Motherboard chipset	AMD WRX90
Motherboard form factor	EEB
Windows operating systems supported	Windows 10 x64, Windows 11
Audio chip	Realtek ALC1220P
Product colour	Aluminium, Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	7
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Packaging data
Package width	377 mm
Package depth	362 mm
Package height	79 mm
Package weight	3.62 kg
Weight & dimensions
Width	305 mm
Depth	330 mm
Height	50 mm
Weight	3.33 kg
Package width	377 mm
Package depth	362 mm
Package height	79 mm
Package weight	3.62 kg
Other features
Height	50 mm
mSATA ports quantity	0
Weight	3.33 kg
Mini DisplayPorts quantity	2
Package width	377 mm
Package depth	362 mm
Package height	79 mm
Package weight	3.62 kg

16 GB, GDDR7, 256-bit, 2700 MHz boost clock, PCI Express 5.0, 2x DisplayPort, 1x HDMI, 1x USB Type-C, 1x 16-pin, 2.5 slot, ARGB

Description

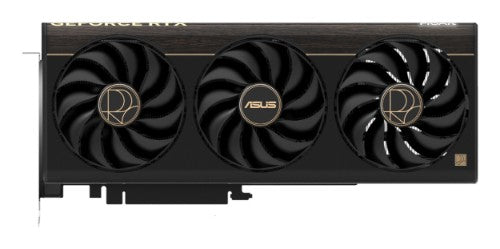

ProArt GeForce RTX™ 5080
Visionary. Versatile. Timeless.
The ProArt GeForce RTX™ 5080 combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Creator-Centric Design
USB Type-C Support
ProArt GeForce RTX 5080 comes with a USB Type-C output for connecting to a monitor capable of using the port to receive video. It also features two DisplayPort™ 2.1b ports and one HDMI® 2.1b port for multiple high-resolution displays, boosting productivity across creative workflows.

Illuminated Logo
The refined, aura-lighted ProArt logo provides a subtle and elegant accent.

Minimalist Looks
The brown wood-patterned laminate trim and refined ProArt gold elements seamlessly integrate into any designer's build for a clean and sophisticated aesthetic.

Potent Cooling
Efficient Cooling in Compact 2.5-Slot Design
The ProArt GeForce RTX 5080 features a 2.5-slot design and an advanced cooling system with Axial-tech fans plus heatpipes and a vapor chamber for efficient heat dissipation. This combination helps ensure low temperatures, low noise, and high performance.

Reverse Rotation and 0dB Technology
The two outer fans spin counterclockwise to minimize turbulence and to maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temperatures are below 50°C, enabling you to perform light creative tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.

Vapor Chamber
A vapor chamber, heatpipes and heatsink efficiently soak up heat from the GeForce RTX 5080 GPU, helping to ensure premium performance in a variety of scenarios.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep temperatures nominal during intense tasks. This additional airflow helps ensure optimal temperatures, performance, longevity and stability.

Dual BIOS
Performance mode lets the fans spin up to emphasize cooling, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Unmatched Reliability
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto−Extreme Technology
This ASUS-exclusive automated manufacturing process sets a standard in the industry by allowing all soldering to be completed in a single pass, reducing thermal strain on components and avoiding the use of harsh cleaning chemicals. This unique process leads to reduced environmental impact, lower manufacturing power consumption and a more reliable product overall.

Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

RTX. It’s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

Specifications

Processor
Graphics processor	GeForce RTX 5080
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2700 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	10752
Processor frequency (OC mode)	2730 MHz
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Data transfer rate	30 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
USB Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
NPU performance up to	1801 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	Black, Brown
Bracket height	Full-Height (FH)
Cooling technology	ASUS Axial-tech
SFF ready	Yes
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Weight & dimensions
Height	126 mm
Depth	50 mm
Length	304 mm
Packaging data
Package type	Box
Manual	Yes
Packaging content
Manual	Yes
Power cord included	Yes

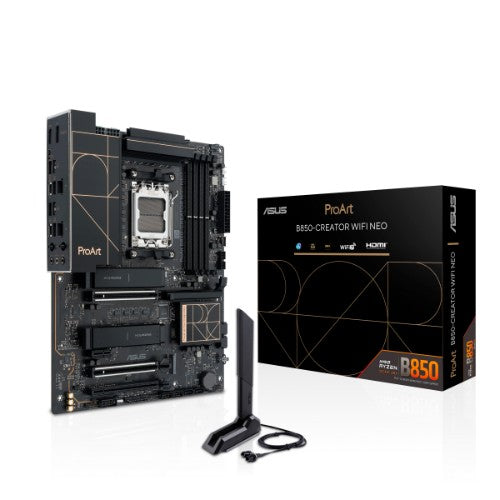

ProArt B850-CREATOR WIFI NEO AMD B850 ATX motherboard (14+2+1 Power Stages, DDR5 with AEMP, WiFi 7, Dual Realtek 5Gb Ethernet, 3x M.2 slots, PCIe 5.0 x16 SafeSlots, PCIe Slot Q-Release)

Description

The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.

With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	1
Number of temperature sensor headers	1
Number of RGB LED pin headers	3
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Cooling type	Passive
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9000 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	7680 x 4320 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Cooling type	Passive
Windows operating systems supported	Windows 11
Audio chip	Realtek ALC1220P
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x4 (Gen 1.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
BIOS flashback button	Yes
Power
Power source type	ATX
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.14 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	48 mm
Weight	1.33 kg
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.14 kg
Packaging content
Quick installation guide	Yes
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
Height	48 mm
mSATA ports quantity	0
Weight	1.33 kg
Quick installation guide	Yes
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.14 kg

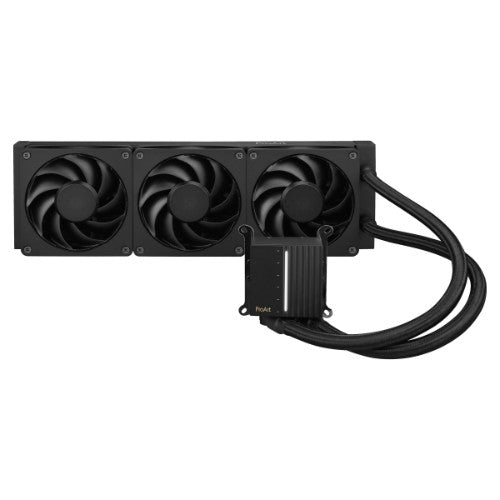

ProArt LC 360 all-in-one CPU liquid cooler with illuminated system status meter and three matte black Alphacool Apex Stealth Metal Power fans

Key Features

• Matte black Alphacool Apex Stealth Metal Power fans offer high performance up to 3000 RPM, low noise and daisy-chain installation
• Illuminated meter indicates the live system load, temperatures and fan speeds
• Advanced three-phase motor offers excellent cooling capability and quieter operation.​
• Minimalist design perfectly complements the aesthetics of the ProArt-family components

Description

Quiet. Cool. Refined.
Experience exceptional cooling performance and quiet operation. Powered by a robust three-phase motor and Alphacool Apex Stealth Metal Power fans, the ProArt LC 360 expertly integrates premium tech into an elegantly understated design. An illuminated meter on the pump cover also provides live system stats in the signature minimalist ProArt manner for real-time information at a glance. And its subtle and graceful aesthetics add a touch of refinement to your setup. Cool, quiet and classy—the perfect trifecta for any and all content creators.

Illuminated Meter
An innovative illuminated meter to display real-time PC build information, such as system load, temperatures, and fan speeds, allowing for a quick glance to understand the system's status.

Alphacool Apex Stealth Metal Power Fan
To overcome the thermal challenges of the latest multi-core CPUs, the ProArt LC 360 offers Alphacool Apex Stealth Metal 120 mm radiator fans that deliver high performance and minimized noise.

The Evolution of Cool

Performance 3-Phase Motor Pump
High-performance three-phase motor offers excellent cooling capability and quieter operation.

450 mm Durable Tubing
This tubing features a braided mesh sleeve for durability, and 450 mm of length for additional flexibility and chassis compatibility.

Stylish Radiator
The understated and refined radiator styling enhances the aesthetic of your entire build.

Extensive Compatibility
The ProArt LC 360 features 450 mm of tubing and is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.

Specifications

Performance
Suitable location	Processor
Type	Liquid cooling kit
Rotational speed (min)	800 RPM
Rotational speed (max)	2200 RPM
Noise level	35.7 sone
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	102.3 cfm
Maximum air pressure	3.2 mmH2O
Number of heat pipes	2
Number of fans	3 fan(s)
Number of fan blades	9
Fan noise level (max)	35.7 dB
Fan speed (min)	800 RPM
Fan speed (max)	2200 RPM
Design
Number of heat pipes	2
Number of fans	3 fan(s)
Product colour	Black
Illumination LED	No
Number of fan blades	9
Radiator material	Aluminum
Base plate material	Copper
Weight & dimensions
Weight	2.19 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package width	462 mm
Package depth	182.5 mm
Package height	2025 mm
Package weight	3.32 kg
Radiator width	12.1 cm
Radiator depth	39.4 cm
Radiator height	2.7 cm
Tube length	40 cm
Waterblock width	7.8 cm
Waterblock depth	7.8 cm
Waterblock height	2.7 cm
Technical details
Illumination LED	No

ProArt Display OLED PA27UCDMR Professional Monitor – 27-inch (26.5-inch viewable), 4K UHD (3840 x 2160), QD-OLED, Ultra-slim, 240Hz, 0.1ms, Auto Calibration, HDR-10, HLG, Dolby Vision, 99% DCI-P3, ΔE < 1, Thunderbolt 4 PD 96W, Calman Ready, ColourSpace Integration, Ergonomic Stand

Key Features

• 26.5-inch 4K UHD (3840 x 2160) QD-OLED panel with 240 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering
• 1000 nits peak brightness with VESA DisplayHDR True Black 400 for exceptional color contrast
• True 10-bit color depth and Quantum Dot technology provide 100% sRGB, 99% DCI-P3 and Rec. 2020 color gamut
• World-leading ∆E < 1 color performance and ASUS ProArt Hardware Calibration Technology for color-accuracy optimization and color profile write-back
• Multiple HDR format support, including Dolby Vision, HLG and HDR10 (Dolby Vision will be ready in 2026/Q2 via firmware update)
• Rich connectivity including dual Thunderbolt 4 up to 96W Power Delivery, HDMI2.1, DisplayPort1.4 DSC and a built-in USB Hub
• Ergonomic design with tilt, pivot and height adjustments for a comfortable viewing experience
• Green Sustainability: paper packaging and energy-efficient environmental standards

Description

Professional OLED Monitor for Every Creators
ProArt Display OLED PA27UCDMR is a professional monitor designed for professional content creators. This 26.5-inch 4K HDR display boasts a cutting-edge 1000-nits QD-OLED panel with 99% DCI-P3 gamut, ensuring highly-accurate colors and exceptionally-detailed visuals. Its up to 240Hz refresh rate enables creators to develop fast-rendering games and perform artwork quality checks on a single display. Additionally, support for multiple HDR format makes PA27UCDMR the perfect monitor for working on fast-moving HDR content.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	1.073 billion colours
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
sRGB coverage (typical)	100%
Display diagonal	67.3 cm (26.5")
Response time	0.1 ms
Display resolution	3840 x 2160 pixels
Display technology	LED
Contrast ratio (typical)	1500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.155 x 0.155 mm
Viewable size, horizontal	59 cm
Viewable size, vertical	33.3 cm
Digital horizontal frequency	15 - 583 kHz
Digital vertical frequency	48 - 240 Hz
HD type	4K Ultra HD
Pixel density	166 ppi
Display brightness (peak)	1000 cd/m²
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	OLED
Colour depth	10 bit
DCI-P3 coverage	99%
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG), DisplayHDR 400 True Black
Colour gamut standard	DCI-P3, sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	6 W
Design
Market positioning	Graphics design
Product colour	Silver
Feet colour	Silver
Certification	Energy Star EPEAT Gold TCO Certified TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 True Black Calman Ready FSC MIX Mac Compliance
Detachable stand	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB Type-A downstream ports quantity	2
USB Type-C downstream ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
Headphone out	No
HDMI	Yes
HDMI version	2.1
DisplayPort version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
USB Type-C DisplayPort Alternate Mode	Yes
Thunderbolt 4 ports quantity	2
HDCP version	2.2
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 20°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	25.3 W
Power consumption (off)	0 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	25 kWh
Energy consumption (HDR) per 1000 hours	29 kWh
Weight & dimensions
Width (with stand)	608 mm
Depth (with stand)	228 mm
Height (with stand)	571 mm
Width (without stand)	608 mm
Height (without stand)	354 mm
Depth (without stand)	47 mm
Weight (with stand)	7.2 kg
Weight (without stand)	4.7 kg
Package width	690 mm
Package depth	275 mm
Package height	550 mm
Package weight	13.8 kg
Packaging data
Package type	Box
Package width	690 mm
Package depth	275 mm
Package height	550 mm
Package weight	13.8 kg
Stand included	Yes
Packaging content
Stand included	Yes
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) Mix, TCO
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) Mix, TCO
Warranty period	3 year(s)
Power supply type	Internal
Weight (with stand)	7.2 kg
Touchscreen	No
Other features
Certification	Energy Star EPEAT Gold TCO Certified TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 True Black Calman Ready FSC MIX Mac Compliance
DCI-P3 coverage	99%
Warranty period	3 year(s)
Width (without stand)	608 mm
Height (without stand)	354 mm
HDMI	Yes
Depth (without stand)	47 mm
USB Power Delivery up to	96 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Display brightness (peak)	1000 cd/m²
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Certificates
Certification	Energy Star EPEAT Gold TCO Certified TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 True Black Calman Ready FSC MIX Mac Compliance

ProArt Display OLED PA27USD Professional Monitor – 27-inch (26.5-inch viewable), 4K UHD (3840 x 2160), QD-OLED, 99% DCI-P3, ΔE < 1, 240Hz, Self / Auto Calibration, HDR-10, HLG, Dolby Vision, 12G-SDI, HDMI2.1, DisplayPort2.1, Thunderbolt 4 PD 96W, Calman Ready, ColourSpace Integration

Key Features

• 26.5-inch 4K UHD (3840 x 2160) QD-OLED panel with 240 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering
• 1000 nits peak brightness with VESA DisplayHDR True Black 400 for exceptional color contrast
• True 10-bit color depth provides 100% sRGB, 99% DCI-P3 and BT. 2020 wide color gamut
• 12G-SDI supports 4K@60Hz real-time playback without any compression, compatible with 6G and 3G Level A & B
• World-leading ∆E < 1 color performance and ASUS ProArt Hardware Calibration Technology for color-accuracy optimization and color profile write-back
• Multiple HDR format support, including Dolby Vision, HLG and HDR10
• Rich connectivity including 12G-SDI, dual Thunderbolt 4 up to 96W Power Delivery, HDMI2.1, DisplayPort2.1 and a built-in USB Hub
• Includes two versatile stand options to suit any scenario or setup, along with an elegant metal handle for portability
• Monitor hood helps reduce reflections, and bundled clips allow for easy cable management

Description

Stunning Contrast from Production to Post
Designed for content creators, the ProArt Display OLED PA27USD is a professional monitor that features a cutting-edge 26.5-inch 4K HDR QD-OLED panel with 1000-nits brightness and 99% DCI-P3 coverage to deliver highly-accurate colors and exceptional visual detail. A built-in motorized flip colorimeter enables auto- and self-calibration for consistent, professional-grade color accuracy, and a 240Hz refresh rate allows creators to work on color-critical artwork as well as performance-driven game development — all on one monitor. In addition to the standard I/O interfaces, the PA27USD supports 12G-SDI connectivity to receive uncompressed video signals up to 4K@60Hz.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	1.073 billion colours
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
sRGB coverage (typical)	100%
Display diagonal	67.3 cm (26.5")
Response time	0.1 ms
Display resolution	3840 x 2160 pixels
Display technology	QD-OLED
Contrast ratio (typical)	1500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.155 x 0.155 mm
Viewable size, horizontal	59 cm
Viewable size, vertical	33.3 cm
Digital horizontal frequency	15 - 583 kHz
Digital vertical frequency	48 - 240 Hz
HD type	4K Ultra HD
Display brightness (peak)	1000 cd/m²
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	OLED
Colour depth	10 bit
DCI-P3 coverage	99%
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG), Dolby Vision, DisplayHDR 400 True Black
Colour gamut standard	DCI-P3, sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Design
Market positioning	Graphics design
Product colour	Black
Feet colour	Black
Certification	Mac Compliance FSC MIX Calman Ready VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free EPEAT Silver Energy Star
Detachable stand	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
HDMI ports quantity	2
DisplayPorts quantity	1
HDCP	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Headphone out	Yes
HDMI	Yes
HDMI version	2.1
DisplayPort version	2.1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
USB Type-C DisplayPort Alternate Mode	Yes
Built-in KVM switch	Yes
Thunderbolt 4 ports quantity	2
HDCP version	2.3
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-5 - 23°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	32 W
Power consumption (off)	0 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	45 kWh
Energy consumption (HDR) per 1000 hours	50 kWh
Weight & dimensions
Width (with stand)	610.3 mm
Depth (with stand)	239.7 mm
Height (with stand)	584.9 mm
Width (without stand)	610.3 mm
Height (without stand)	378.8 mm
Depth (without stand)	596 mm
Weight (with stand)	7.5 kg
Weight (without stand)	4.96 kg
Package width	884 mm
Package depth	196 mm
Package height	685 mm
Package weight	15.1 kg
Packaging data
Package type	Box
Package width	884 mm
Package depth	196 mm
Package height	685 mm
Package weight	15.1 kg
Stand included	Yes
Packaging content
Stand included	Yes
Other features
Certification	Mac Compliance FSC MIX Calman Ready VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free EPEAT Silver Energy Star
DCI-P3 coverage	99%
Width (without stand)	610.3 mm
Height (without stand)	378.8 mm
HDMI	Yes
Depth (without stand)	596 mm
USB Power Delivery up to	96 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Display brightness (peak)	1000 cd/m²
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Certificates
Certification	Mac Compliance FSC MIX Calman Ready VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free EPEAT Silver Energy Star
Technical details
Power supply type	Internal
Weight (with stand)	7.5 kg
Touchscreen	No

AMD Ryzen AI 9 HX 370 (2GHz), 64GB LPDDR5x-SDRAM, 2000GB SSD, 16" 4K Ultra HD 3840 x 2400 OLED Touch, AMD Radeon 890M, NVIDIA GeForce RTX 5080 (16GB GDDR7), WLAN, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• AMD Ryzen AI 9 HX 370 (2GHz)
• 16" 4K Ultra HD 3840 x 2400 OLED Touch, NVIDIA GeForce RTX 5080 (16GB GDDR7)
• 64GB LPDDR5x-SDRAM & 2000GB SSD

Description

ProArt P16
Creativity Unrivaled, Anywhere
Meet ProArt P16 – your ultimate creative companion for the studio and on the move. Its OLED touchscreen ensures precise color accuracy for flawless proofing, while versatile I/O ports seamlessly connect all your peripherals. This NVIDIA® Studio-validated laptop packs a GeForce RTX™ 40 Series Laptop GPU, providing powerful graphics and 321 TOPS AI performance. Additionally, it features up to a 50 TOPS AMD Ryzen™ AI 9 HX 370 processor, delivering exceptional processing power. With AI-enhanced creative features, military-grade toughness, and a long-lasting battery, ProArt P16 transforms any setting into your studio.

Specifications

Design
Colour name	Nano Black
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Performance
Housing material	Aluminium
Introduction year	2026
Display back cover material	Aluminium
Display
HD type	4K Ultra HD
Display number of colours	1.07 billion colours
Display diagonal	40.6 cm (16")
Display resolution	3840 x 2400 pixels
Touchscreen	Yes
Display surface	Gloss
Display response rise/fall	0.2 ms
Panel type	OLED
Contrast ratio (typical)	1000000:1
Maximum refresh rate	120 Hz
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	DisplayHDR True Black 1000
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Maximum display brightness (HDR)	1600 cd/m²
Low Blue Light technology	Yes
Processor
Processor generation	AMD Ryzen AI 300 Series
Processor cache type	L2 & L3
Processor frequency	2 GHz
Processor family	AMD Ryzen AI 9 HX
Processor model	370
Processor boost frequency	5.1 GHz
Processor cores	12
Processor threads	24
L3 cache	24 MB
L2 cache	12 MB
Processor manufacturer	AMD
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	80 TOPs
NPU performance up to	50 TOPs
Copilot+ PC	Yes
Memory
Internal memory	64 GB
Internal memory type	LPDDR5x-SDRAM
Maximum internal memory	64 GB
Memory form factor	On-board
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	2 TB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 890M
Discrete graphics card model	NVIDIA GeForce RTX 5080
Discrete graphics memory type	GDDR7
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	AMD
Audio
Audio system	Smart Amp
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth version	5.4
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	1
DC-in jack	Yes
Keyboard
Pointing device	Touchpad + DialPad
Numeric keypad	No
Keyboard backlit	Yes
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Bundled software	6-Month GoPro Premium+ Subscription 3-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2026. Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Trial software	1-month trial for new Microsoft 365 customers
Microsoft Copilot	Yes
Copilot+ PC	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Removable battery	No
Power
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
DC-in jack	Yes
Security
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Face recognition	Yes
Windows Hello	Yes
Certificates
Compliance certificates	REACH
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Weight	1.95 kg
Width	354.9 mm
Depth	246.9 mm
Height (front)	1.49 cm
Height (rear)	1.83 cm
Technical details
Discrete graphics card memory	16 GB
Sustainability certificates	ENERGY STAR
Compliance certificates	REACH
Other features
Audio system	Smart Amp
On-board graphics card	Yes
