Collection: Products

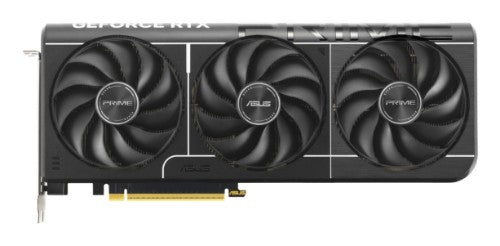

PRIME GeForce RTX 5070 12GB GDDR7 OC Edition Gaming Graphics Card (NVIDIA Blackwell Architecture and DLSS 4, 2.5-Slot Design, SSF, PCIe 5.0, 3x DisplayPort 2.1b, 1x HDMI 2.1b, PRIME-RTX5070-O12G)

Description

Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Cooling

2.5-slot Design
The Prime RTX 5070 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Unmatched Reliability

ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.

Engineering

Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

RTX. It’s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

Specifications

Processor
Graphics processor	GeForce RTX 5070
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2557 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	6144
Processor frequency (OC mode)	2587 MHz
Memory
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR7
Memory bus	192 bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
NVIDIA Ansel	Yes
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
NPU performance up to	988 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	Black
Cooling technology	ASUS Axial-tech
SFF ready	Yes
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
Weight & dimensions
Weight	1.02 kg
Height	126 mm
Depth	50 mm
Length	304 mm
Packaging data
Package type	Box
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	1.67 kg

NVIDIA GeForce RTX™ 5070 Ti 16GB GDDR7, PCI Express 5.0, 256-bit, 28 Gbps, 750W, 1 x 16-pin

Description

Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

Specifications

Processor
Graphics processor	GeForce RTX 5070 Ti
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	Black
Cooling technology	ASUS Axial-tech
SFF ready	Yes
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
System requirements
Windows operating systems supported	Yes
Weight & dimensions
Weight	1.17 kg
Height	126 mm
Depth	50 mm
Length	304 mm
Packaging data
Package type	Box
Package width	405 mm
Package depth	88.5 mm
Package height	233 mm
Package weight	1.82 kg

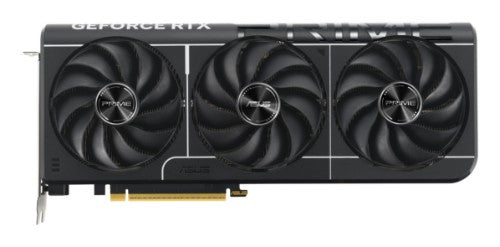

PRIME GeForce RTX 5070 Ti 16GB GDDR7 OC Edition

Description

Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Cooling
2.5-slot Design
The Prime RTX 5070 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Specifications

Processor
Graphics processor	GeForce RTX 5070 Ti
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
NPU performance up to	1406 TOPs
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	Black
Cooling technology	ASUS Axial-tech
SFF ready	Yes
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
Weight & dimensions
Weight	1.17 kg
Height	126 mm
Depth	50 mm
Length	306 mm
Packaging data
Package type	Box
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	1.82 kg
Manual	Yes
Packaging content
Manual	Yes

16GB GDDR7 Nvidia GeForce RTX5080, SFF-Ready, Dual-BIOS, PCIe 5.0, 1x HDMI 2.1b, 3x DisplayPort 2.1a

Description

Primed for Power
Experience Primal performance with the Prime GeForce RTX 5080, an SFF-ready graphics card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow and vapor chamber design for supreme cooling.

Cooling
2.5-slot Design
The Prime GeForce RTX 5080 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Vapor Chamber
A vapor chamber and heatsink soaks up heat from the graphics card, helping to ensure premium performance in a variety of scenarios.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Specifications

Processor
Graphics processor	GeForce RTX 5080
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2617 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	10752
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Data transfer rate	30 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	Black
Cooling technology	ASUS Axial-tech
SFF ready	Yes
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
Weight & dimensions
Weight	1.34 kg
Height	126 mm
Depth	50 mm
Length	306 mm
Packaging data
Package type	Box
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	1.99 kg
Manual	Yes
Packaging content
Manual	Yes

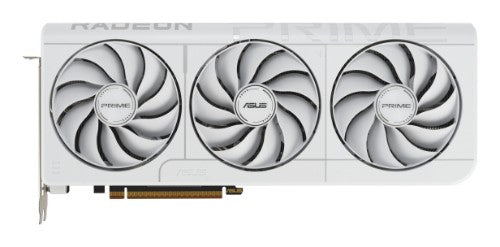

PRIME-RX9070XT-O16G-WHITE

Description

ASUS Prime Radeon™ RX 9070 XT White OC Edition 16GB GDDR6 boasts three axial-tech fans and a phase-change GPU thermal pad for supreme cooling.

Specifications

Processor
Graphics processor	Radeon RX 9070 XT
Maximum resolution	7680 x 4320 pixels
Graphics processor family	AMD
CUDA	No
Processor frequency	2460 MHz
Processor boost clock speed	3010 MHz
Stream processors	4096
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Processor frequency (OC mode)	2480 MHz
Processor boost clock speed (OC mode)	3030 MHz
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Data transfer rate	20 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1a
Thunderbolt 3 ports quantity	0
Performance
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	White
Cooling technology	ASUS Axial-tech
Power
Minimum system power supply	750 W
Supplementary power connectors	3x 8-pin
System requirements
Windows operating systems supported	Yes
Weight & dimensions
Weight	1.16 kg
Height	130 mm
Depth	50 mm
Length	312 mm
Packaging data
Package type	Box
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	1.75 kg

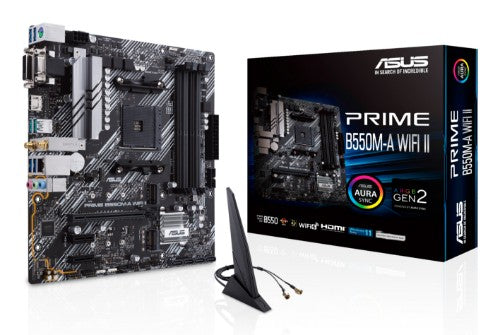

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support

Key Features

• AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility
• Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
• Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Reasons To Buy

All-around Energy Efficiency

With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

Flexible Cooling Controls

Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Description

ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.

EZ XMP
Improve DRAM performance with one click.

Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Cool to the Core
Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pads
A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design
Prime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

Each onboard chassis fan header supports PWM and DC mode.

Build on a Solid Foundation
Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

PCIe 4.0 M.2
(up to 64 Gbps)
Achieve speed with onboard M.2
PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on AMD Ryzen™ 5000 Series/ 3000 Series Processors.

Wi-Fi 6
Wi-Fi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

USB 3.2 Gen 2
Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including two rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Little Things Make a Big Difference
Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for RGB LED strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 Header
The addressable Gen 2 header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

LANGuard
Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of EATX power connectors	1
Number of COM connectors	1
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Performance
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM4
RAID levels	0, 1, 10
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Processor socket	Socket AM4
Supported processor sockets	Socket AM4
Memory
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wake-on-LAN ready	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM4
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Harmonized System (HS) code	84733020
Product colour	Multicolour
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	67 mm
Weight	845 g
Packaging content
Drivers included	Yes
Cables included	SATA
Technical details
Harmonized System (HS) code	84733020
Other features
Height	67 mm
mSATA ports quantity	0
Weight	845 g
Packaging content	2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual

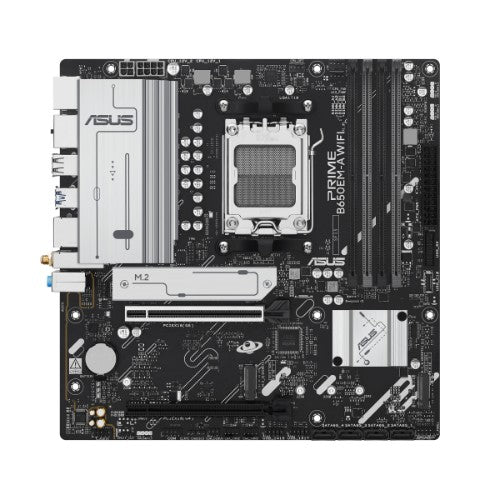

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6, Realtek 2.5Gb Ethernet, 2 x DisplayPort, HDMI, front USB 5Gbps Type-C support, BIOS FlashBack, Aura Sync

Key Features

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AM5 Socket for AMD Ryzen™ Desktop Processors
• Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® support
• Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

Description

B650EM-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650EM-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes

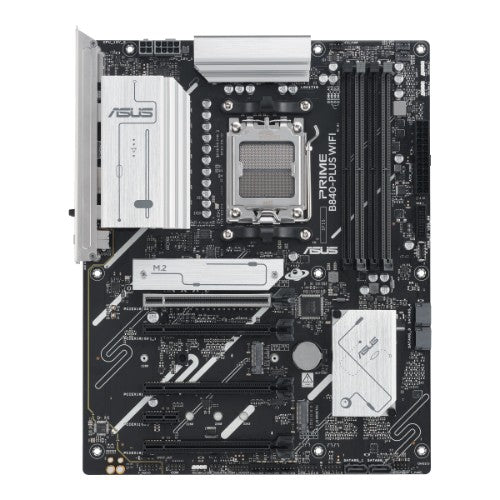

AMD B840, AM5, 4 x DIMM slots, max. 192GB, DDR5, Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 6E (802.11ax), Bluetooth 5.3, 256 Mb Flash ROM, UEFI AMI BIOS, ATX

Description

PRIME B840-PLUS WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
S/PDIF out connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B840
Motherboard form factor	ATX
Audio output channels	7.1 channels
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	7600 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B840
Motherboard form factor	ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Multicolour
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	3
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	305 mm
Depth	244 mm
