Collection: Products

ASUS NUC 15 Pro RNUC15CRKC500004I, Mini PC barebone, DDR5-SDRAM, PCI Express, Ethernet LAN, Wi-Fi 7 (802.11be)

Description

ASUS NUC 15 Pro RNUC15CRKC500004I. Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Maximum storage capacity: 8 TB. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.4

Specifications

Processor
Built-in processor	Yes
Processor model	210H
Processor boost frequency	4.8 GHz
Processor threads	12
Processor family	Intel Core 5
Processor cores	8
Processor manufacturer	Intel
Processor cache	12 MB
Performance cores	4
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.6 GHz
Processor generation	Intel Core (Series 2)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Internal memory installed	No
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Number of storage drives supported	1
Maximum storage capacity	8 TB
SSD form factor	M.2
Storage drives installed	No
Graphics
Graphics card family	Intel
On-board graphics card	Yes
On-board graphics card model	Intel® Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth version	5.4
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
USB4 Gen 2x2 ports quantity	1
Design
Product type	Mini PC barebone
On/off switch	Yes
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Weight	500 g

ASUS NUC 15 Pro RNUC15CRKC700004I, Mini PC barebone, DDR5-SDRAM, PCI Express, Ethernet LAN, Wi-Fi 7 (802.11be)

Description

ASUS NUC 15 Pro RNUC15CRKC700004I. Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Maximum storage capacity: 8 TB. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.4

Specifications

Processor
Built-in processor	Yes
Processor model	240H
Processor boost frequency	5.2 GHz
Processor threads	16
Processor family	Intel Core 7
Processor cores	10
Processor manufacturer	Intel
Processor cache	24 MB
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor generation	Intel Core (Series 1)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Internal memory installed	No
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Number of storage drives supported	1
Maximum storage capacity	8 TB
SSD form factor	M.2
Storage drives installed	No
Graphics
Graphics card family	Intel
On-board graphics card	Yes
On-board graphics card model	Intel® Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth version	5.4
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
USB4 Gen 2x2 ports quantity	1
Design
Product type	Mini PC barebone
On/off switch	Yes
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Weight	500 g

ASUS NUC 15 Pro RNUC15CRKU700004I, Mini PC barebone, DDR5-SDRAM, PCI Express, Ethernet LAN, Wi-Fi 7 (802.11be)

Description

ASUS NUC 15 Pro RNUC15CRKU700004I. Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Maximum storage capacity: 8 TB. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.4

Specifications

Processor
Built-in processor	Yes
Processor model	255H
Processor boost frequency	5.1 GHz
Processor threads	16
Processor family	Intel Core Ultra 7
Processor cores	16
Processor manufacturer	Intel
Processor cache	24 MB
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core base frequency	2 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor generation	Intel Core Ultra (Series 2)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Internal memory installed	No
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Number of storage drives supported	1
Maximum storage capacity	8 TB
SSD form factor	M.2
Storage drives installed	No
Graphics
Graphics card family	Intel
On-board graphics card	Yes
On-board graphics card model	Intel Arc 140T
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth version	5.4
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
USB4 Gen 2x2 ports quantity	1
Design
Product type	Mini PC barebone
On/off switch	Yes
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Processor special features
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Weight	500 g

ASUS NUC RNUC15CRKC5063C4, Intel Core 5, 210H, 16 GB, 512 GB, Windows 11 Pro, 64-bit

Description

ASUS NUC RNUC15CRKC5063C4. Processor family: Intel Core 5, Processor model: 210H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 500 g. Product colour: Black

Specifications

Processor
Processor generation	Intel Core (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core 5
Processor manufacturer	Intel
Processor model	210H
Processor cores	8
Processor boost frequency	4.8 GHz
Processor socket	BGA 1744
Processor cache	12 MB
Processor threads	12
Performance cores	4
Efficient cores	4
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	45 W
Maximum turbo power	115 W
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	96 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Design
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Display
Display included	No
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Weight	500 g
Packaging content
Display included	No
Other features
Processor manufacturer	Intel
On-board graphics card	Yes

ASUS NUC RNUC15CRKI3063C4, Intel Core 3, 100U, 16 GB, 512 GB, Windows 11 Pro, 64-bit

Description

ASUS NUC RNUC15CRKI3063C4. Processor family: Intel Core 3, Processor model: 100U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 500 g. Product colour: Black

Specifications

Processor
Processor generation	Intel Core (Series 1)
Processor cache type	Smart Cache
Processor family	Intel Core 3
Processor manufacturer	Intel
Processor model	100U
Processor cores	6
Processor boost frequency	4.7 GHz
Processor socket	BGA 1744
Processor cache	10 MB
Processor threads	8
Performance cores	2
Efficient cores	4
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.9 GHz
Processor base power	15 W
Maximum turbo power	55 W
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	96 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Design
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Display
Display included	No
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Weight	500 g
Packaging content
Display included	No
Other features
Processor manufacturer	Intel
On-board graphics card	Yes

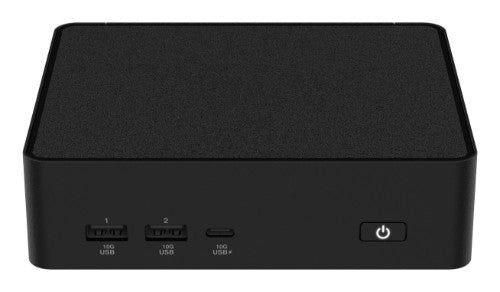

Intel Core Ultra X7 358H (18MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Arc B390, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra X7 358H (18MB Cache)
• 32GB DDR5-SDRAM & 1000GB SSD

Description

Faster, Smarter, More Secure
For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.

Specifications

Processor
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra X7
Processor manufacturer	Intel
Processor model	358H
Processor cores	16
Processor boost frequency	4.8 GHz
Processor socket	FCBGA2540
Processor cache	18 MB
Processor threads	16
Performance cores	4
Efficient cores	8
Performance-core base frequency	1.5 GHz
Processor base power	25 W
Maximum turbo power	80 W
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.6 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
NPU performance up to	50 TOPs
GPU performance up to	122 TOPs
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Storage
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc B390
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Market positioning	Performance
Product type	Mini PC
Built-in speaker(s)	No
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	6.0
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
LAN controller	Intel I226-V
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	2
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Power
Power supply	150 W
Design
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Display
Display included	No
Weight & dimensions
Width	144 mm
Depth	117 mm
Height	42 mm
Weight	910 g
Packaging content
Display included	No
Other features
Processor manufacturer	Intel
On-board graphics card	Yes
Built-in speaker(s)	No

AMD Ryzen 5 7535HS, WiFi 6E, Bluetooth 5, Audio Chip, Black

Key Features

• Windows 11 Pro-ASUS recommends Windows 11 Pro for business
• Powered by the latest AMD Ryzen™ 7000 and 6000 Series Processor with Radeon™ graphics
• Quad-4K displays support and 8K UHD support**
• Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
• Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
• Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
• Onboard 2.5GbE LAN delivering faster Ethernet connectivity
• Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Configurable Ports support DP1.4/VGA/COM/HDMI options
• 24/7 reliability — Extensively tested to ensure long-term dependability

Description

Ultra-compact Mini PC provides flexible, comprehensive solutions

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There’s also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

System & CPU Performance

PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.

Graphics Performance

ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.

Ultrafast PCIe® 4.0 SSD

PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.

*Test model: ASUS Mini PC | SAMSUNG GXA7301Q vs. SAMSUNG EXD7201
*Actual performance may vary depending on objective environmental changes.
Versatile USB 4 Type-C*

Versatile USB 4 Type-C

Power Delivery
The Power Delivery (PD) function can either receive power from a supported display* or supply power to mobile devices.

Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB*

DisplayPort™
Enjoy up to 8K @ 30 Hz video output*.

* Power Delivery (PD) input only supported by the rear USB 4 port.
* Actual speed may vary depending on devices and applications

Faster and Better DDR5 RAM

ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.

4K Resolution & Quad Display Support

Integrated AMD Radeon 600M series graphics enable ExpertCenter PN53 to display stunning 4K UHD videos and imagery. With HDMI, USB-C DisplayPort and a configurable port that can be specified for video signal output, PN53 lets you extend your workspace across up to four displays.

4K Resolution & Quad Display Support
*Video playing or streaming in 4K or higher resolution requires dual channel memory configuration
*Configurable ports are confirmed SKU before configuring
*Actual resolution may vary depending on devices and application changes.
Ultra-realistic 8K Visuals

ExpertCenter PN53 supports stunning 8K UHD visuals via USB 4 or the configurable video output ports for detail four times greater than 4K, or a remarkable 16 times that of traditional FHD visuals. PN53 is capable of pumping out 8K imagery at 30 Hz via USB 4 or DisplayPort 1.4; or up to 60 Hz through HDMI 2.1* to bring images to life.

Exceptional Connection Experience – Wi-Fi 6 & Wi-Fi 6E*

The built-in WiFi 6 module allows ExpertCenter PN53 to deliver smooth high-resolution video streams, fewer dropped connections, and faster performance farther away from the router, even in dense environments. WiFi 6E is an expanded version of WiFi 6 to support high-speed 160 MHz channels.

And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

Configurable Port

ExpterCenter PN53 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, for monitors or legacy devices such as barcode scanners or receipt printers.

*Configurable ports are confirmed SKU before configuring.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Easy modification,
maximum possibilities

An optional multi-storage design that accommodates up to two PCIe Gen4 M.2 SSD and a 2.5-inch solid-state drives(SSD) or hard disk drives (HDD) for added storage flexibility.

Power Delivery (PD) – Input & Output

PD input lets the monitor* provide power to ExpertCenter PN53 via a single USB-C cable, allowing for a neater workstation. ExpertCenter PN53 is able to receive power and deliver a DisplayPort signal via this connection, and also supply power to charge mobile devices.

Extreme cooling

To unleash high-end performance in such a compact machine, ASUS designers and engineers fine-tuned every aspect of the ExpertCenter PN53’s cooling system. The self-cleaning fan module includes flat heat pipes that are connected to full-sized heatsinks and fan outlets. This comprehensive cooling solution enables the CPU to operate at optimum temperatures for stronger performance that lasts.

Extreme cooling
*All test data is according to ASUS testing result, comparing to early generation design.
*Actual performance may vary depending on objective environmental changes.
Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean, but also effectively ejects the dust and other particles to prolong the lifespan of the system. The fan is never overworked, so less noise is generated for a quieter workstation.

Enhanced Software - MyASUS

AI Noise Cancelation

Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.
AI Noise Cancelation
System Diagnosis

Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
System Diagnosis
Smart Fan Control

Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Smart Fan Control
Other Functions

WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Motherboard
Number of processors supported	1
Processor
L3 cache	16 MB
Built-in processor	Yes
Processor model	7535HS
Processor boost frequency	4.55 GHz
Processor threads	12
Processor family	AMD Ryzen™ 5
Processor cores	6
Processor frequency	3.3 GHz
Number of processors supported	1
L2 cache	3 MB
Processor manufacturer	AMD
Processor cache	19 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	32 GB
Video
Graphics card family	AMD
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
Graphics
Graphics card family	AMD
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 660M
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC897
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8125B-CG
Bluetooth version	5.0
Bluetooth	Yes
Copper ethernet cabling technology	2500BASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB4 Gen 2x2 ports quantity	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Number of processors supported	1
Audio chip	Realtek ALC897
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Weight & dimensions
Width	120 mm
Depth	130 mm
Height	58 mm
Weight	900 g
Other features
Chassis type	0.92L sized PC

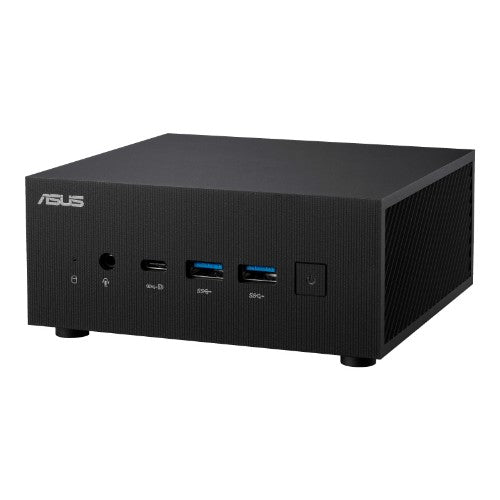

AMD Ryzen 7 7735HS, WiFi 6E, Bluetooth 5, Audio Chip, Black

Key Features

• Windows 11 Pro-ASUS recommends Windows 11 Pro for business
• Powered by the latest AMD Ryzen™ 7000 and 6000 Series Processor with Radeon™ graphics
• Quad-4K displays support and 8K UHD support**
• Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
• Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
• Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
• Onboard 2.5GbE LAN delivering faster Ethernet connectivity
• Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Configurable Ports support DP1.4/VGA/COM/HDMI options
• 24/7 reliability — Extensively tested to ensure long-term dependability

Description

Ultra-compact Mini PC provides flexible, comprehensive solutions

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There’s also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

System & CPU Performance

PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.

Graphics Performance

ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.

Ultrafast PCIe® 4.0 SSD

PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.

*Test model: ASUS Mini PC | SAMSUNG GXA7301Q vs. SAMSUNG EXD7201
*Actual performance may vary depending on objective environmental changes.
Versatile USB 4 Type-C*

Versatile USB 4 Type-C

Power Delivery
The Power Delivery (PD) function can either receive power from a supported display* or supply power to mobile devices.

Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB*

DisplayPort™
Enjoy up to 8K @ 30 Hz video output*.

* Power Delivery (PD) input only supported by the rear USB 4 port.
* Actual speed may vary depending on devices and applications

Faster and Better DDR5 RAM

ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.

4K Resolution & Quad Display Support

Integrated AMD Radeon 600M series graphics enable ExpertCenter PN53 to display stunning 4K UHD videos and imagery. With HDMI, USB-C DisplayPort and a configurable port that can be specified for video signal output, PN53 lets you extend your workspace across up to four displays.

4K Resolution & Quad Display Support
*Video playing or streaming in 4K or higher resolution requires dual channel memory configuration
*Configurable ports are confirmed SKU before configuring
*Actual resolution may vary depending on devices and application changes.
Ultra-realistic 8K Visuals

ExpertCenter PN53 supports stunning 8K UHD visuals via USB 4 or the configurable video output ports for detail four times greater than 4K, or a remarkable 16 times that of traditional FHD visuals. PN53 is capable of pumping out 8K imagery at 30 Hz via USB 4 or DisplayPort 1.4; or up to 60 Hz through HDMI 2.1* to bring images to life.

Exceptional Connection Experience – Wi-Fi 6 & Wi-Fi 6E*

The built-in WiFi 6 module allows ExpertCenter PN53 to deliver smooth high-resolution video streams, fewer dropped connections, and faster performance farther away from the router, even in dense environments. WiFi 6E is an expanded version of WiFi 6 to support high-speed 160 MHz channels.

And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

Configurable Port

ExpterCenter PN53 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, for monitors or legacy devices such as barcode scanners or receipt printers.

*Configurable ports are confirmed SKU before configuring.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Easy modification,
maximum possibilities

An optional multi-storage design that accommodates up to two PCIe Gen4 M.2 SSD and a 2.5-inch solid-state drives(SSD) or hard disk drives (HDD) for added storage flexibility.

Power Delivery (PD) – Input & Output

PD input lets the monitor* provide power to ExpertCenter PN53 via a single USB-C cable, allowing for a neater workstation. ExpertCenter PN53 is able to receive power and deliver a DisplayPort signal via this connection, and also supply power to charge mobile devices.

Extreme cooling

To unleash high-end performance in such a compact machine, ASUS designers and engineers fine-tuned every aspect of the ExpertCenter PN53’s cooling system. The self-cleaning fan module includes flat heat pipes that are connected to full-sized heatsinks and fan outlets. This comprehensive cooling solution enables the CPU to operate at optimum temperatures for stronger performance that lasts.

Extreme cooling
*All test data is according to ASUS testing result, comparing to early generation design.
*Actual performance may vary depending on objective environmental changes.
Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean, but also effectively ejects the dust and other particles to prolong the lifespan of the system. The fan is never overworked, so less noise is generated for a quieter workstation.

Enhanced Software - MyASUS

AI Noise Cancelation

Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.
AI Noise Cancelation
System Diagnosis

Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
System Diagnosis
Smart Fan Control

Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Smart Fan Control
Other Functions

WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Motherboard
Number of processors supported	1
Processor
L3 cache	16 MB
Built-in processor	Yes
Processor model	7735HS
Processor boost frequency	4.75 GHz
Processor threads	16
Processor family	AMD Ryzen™ 7
Processor cores	8
Processor frequency	3.2 GHz
Number of processors supported	1
L2 cache	4 MB
Processor manufacturer	AMD
Processor cache	20 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	32 GB
Video
Graphics card family	AMD
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
Graphics
Graphics card family	AMD
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 660M
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC897
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8125B-CG
Bluetooth version	5.0
Bluetooth	Yes
Copper ethernet cabling technology	2500BASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB4 Gen 2x2 ports quantity	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Number of processors supported	1
Audio chip	Realtek ALC897
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Weight & dimensions
Width	120 mm
Depth	130 mm
Height	58 mm
Weight	900 g
Other features
Chassis type	0.92L sized PC
