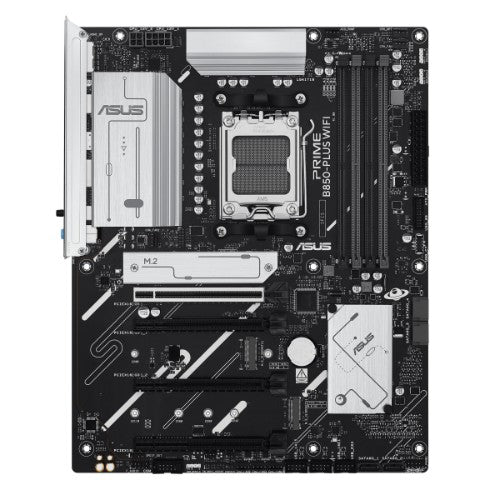

AMD Socket AM5, AMD B850 Chipset, 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM

Description

B850-PLUS WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of EPS power connectors (8-pin)	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Black, White
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	305 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes

AMD Socket AM5, AMD B850 Chipset, 4 x DIMM slots, max. 256GB, DDR5

Description

B850M-A WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Black, White
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes

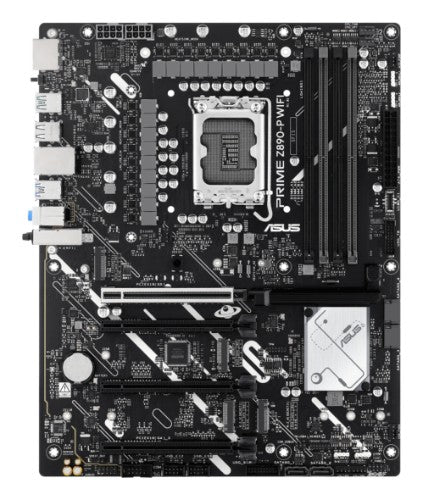

Prime Z890-P WIFI-CSM

Description

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Internal I/O
Number of M.2 (M) slots	4
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	1
Number of RGB LED pin headers	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
RAID levels	0, 1, 5, 10
Cooling type	Passive
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8666 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
Cooling type	Passive
Windows operating systems supported	Windows 11
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
BIOS flashback button	Yes
Power
Power source type	ATX
Weight & dimensions
Width	305 mm
Depth	244 mm
Packaging content
Quick installation guide	Yes
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
Quick installation guide	Yes

16 GB, GDDR7, 256-bit, 2700 MHz boost clock, PCI Express 5.0, 2x DisplayPort, 1x HDMI, 1x USB Type-C, 1x 16-pin, 2.5 slot, ARGB

Description

ProArt GeForce RTX™ 5080
Visionary. Versatile. Timeless.
The ProArt GeForce RTX™ 5080 combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Creator-Centric Design
USB Type-C Support
ProArt GeForce RTX 5080 comes with a USB Type-C output for connecting to a monitor capable of using the port to receive video. It also features two DisplayPort™ 2.1b ports and one HDMI® 2.1b port for multiple high-resolution displays, boosting productivity across creative workflows.

Illuminated Logo
The refined, aura-lighted ProArt logo provides a subtle and elegant accent.

Minimalist Looks
The brown wood-patterned laminate trim and refined ProArt gold elements seamlessly integrate into any designer's build for a clean and sophisticated aesthetic.

Potent Cooling
Efficient Cooling in Compact 2.5-Slot Design
The ProArt GeForce RTX 5080 features a 2.5-slot design and an advanced cooling system with Axial-tech fans plus heatpipes and a vapor chamber for efficient heat dissipation. This combination helps ensure low temperatures, low noise, and high performance.

Reverse Rotation and 0dB Technology
The two outer fans spin counterclockwise to minimize turbulence and to maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temperatures are below 50°C, enabling you to perform light creative tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.

Vapor Chamber
A vapor chamber, heatpipes and heatsink efficiently soak up heat from the GeForce RTX 5080 GPU, helping to ensure premium performance in a variety of scenarios.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep temperatures nominal during intense tasks. This additional airflow helps ensure optimal temperatures, performance, longevity and stability.

Dual BIOS
Performance mode lets the fans spin up to emphasize cooling, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Unmatched Reliability
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto−Extreme Technology
This ASUS-exclusive automated manufacturing process sets a standard in the industry by allowing all soldering to be completed in a single pass, reducing thermal strain on components and avoiding the use of harsh cleaning chemicals. This unique process leads to reduced environmental impact, lower manufacturing power consumption and a more reliable product overall.

Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

RTX. It’s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

Specifications

Processor
Graphics processor	GeForce RTX 5080
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2700 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	10752
Processor frequency (OC mode)	2730 MHz
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Data transfer rate	30 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
USB Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
NPU performance up to	1801 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.5
Product colour	Black, Brown
Bracket height	Full-Height (FH)
Cooling technology	ASUS Axial-tech
SFF ready	Yes
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Weight & dimensions
Height	126 mm
Depth	50 mm
Length	304 mm
Packaging data
Package type	Box
Manual	Yes
Packaging content
Manual	Yes
Power cord included	Yes

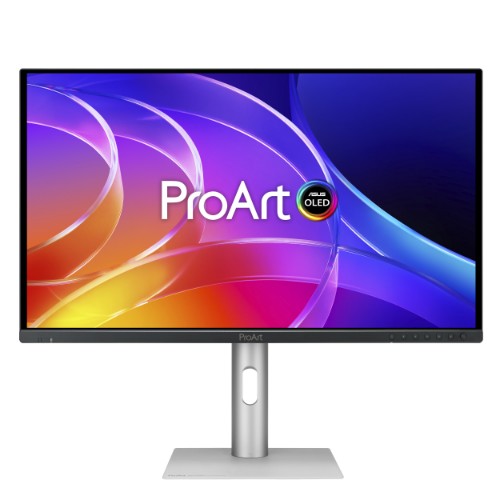

ProArt Display OLED PA279CDV Professional Monitor – 27-inch (26.5-inch viewable), 4K UHD (3840 × 2160), QD-OLED, 120Hz, HDR10, 99% DCI-P3, ΔE < 1.5, Calman Verified, USB-C with 96W Power Delivery, Auto KVM, Ergonomic Stand, ASUS DisplayWidget Center, Green sustainability, Optimized for Mac

Key Features

• 26.5-inch 4K UHD (3840 × 2160) QD-OLED panel with a 120 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering
• 1000 nits peak brightness with VESA DisplayHDR™ True Black 400 for exceptional contrast and color performance
• True 10-bit color depth provides 100% sRGB, 99% DCI-P3 and BT. 2020 wide color gamut
• Calman Verified and factory-calibrated for excellent color accuracy with Delta E < 1.5
• Extensive connectivity options, including USB-C with up to 96W Power Delivery, HDMI, DisplayPort with daisy-chaining support, and a built-in USB hub
• Mac Compatible with M Model-P3 color temperature optimized for MacBook display color accuracy
• Built-in Auto KVM allows effortless switching between two connected laptops or PCs using a single keyboard and mouse
• The exclusive ASUS DisplayWidget Center software enables easy access to OSD settings and monitor adjustments via mouse control
• Ergonomic design with tilt, swivel, pivot, and height adjustments for a comfortable viewing experience
• Green sustainability features include paper packaging and energy-efficient environmental standards

Description

All The Pro Essentials For Every Creator
ProArt Display OLED PA279CDV is a 26.5-inch 4K UHD QD-OLED professional monitor designed for content creators, video editors, and color-critical workflows. It features 1000-nit peak brightness, 99% DCI-P3 color gamut, Delta E < 1.5 factory calibrated, ensuring highly-accurate colors and exceptionally-detailed visuals. Its 120Hz refresh rate enables creators to develop fast-rendering games and perform artwork quality checks on a single display. The monitor also features an anti-scratch film that provides up to 2.5x better protection compared to previous-gen OLED panels.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	1.073 billion colours
Native aspect ratio	16:9
Maximum refresh rate	120 Hz
sRGB coverage (typical)	100%
Display diagonal	67.3 cm (26.5")
Response time	0.1 ms
Display resolution	3840 x 2160 pixels
Display technology	QD-OLED
Contrast ratio (typical)	1500000:1
Contrast ratio (dynamic)	1500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.153 x 0.153 mm
Viewable size, horizontal	59 cm
Viewable size, vertical	33.3 cm
Digital horizontal frequency	31 - 275 kHz
Digital vertical frequency	48 - 120 Hz
HD type	4K Ultra HD
Pixel density	166 ppi
Backlight type	QD
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	OLED
DCI-P3 coverage	99%
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), DisplayHDR 400 True Black
Colour gamut standard	DCI-P3, sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Design
Market positioning	Home
Product colour	Black, Silver
Feet colour	Silver
Certification	Mac Compliance FSC MIX Calman Verified VESA MediaSync Display VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free Energy Star
Detachable stand	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports	3
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	2
HDCP	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Headphone out	Yes
HDMI	Yes
HDMI version	2.1
DisplayPort version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
USB Type-C DisplayPort Alternate Mode	Yes
Built-in KVM switch	Yes
HDCP version	2.2
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-5 - 35°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	26.54 W
Power consumption (off)	0 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	F
Energy consumption (SDR) per 1000 hours	22 kWh
Energy consumption (HDR) per 1000 hours	24 kWh
Weight & dimensions
Width (with stand)	612.1 mm
Depth (with stand)	202.1 mm
Height (with stand)	525.8 mm
Width (without stand)	612.1 mm
Height (without stand)	360.9 mm
Depth (without stand)	39.8 mm
Weight (with stand)	5.6 kg
Weight (without stand)	3.6 kg
Package width	691 mm
Package depth	427 mm
Package height	140 mm
Package weight	8.4 kg
Packaging data
Package type	Box
Package width	691 mm
Package depth	427 mm
Package height	140 mm
Package weight	8.4 kg
Stand included	Yes
Packaging content
Stand included	Yes
Other features
Certification	Mac Compliance FSC MIX Calman Verified VESA MediaSync Display VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free Energy Star
DCI-P3 coverage	99%
Warranty period	3 year(s)
Width (without stand)	612.1 mm
Height (without stand)	360.9 mm
HDMI	Yes
Depth (without stand)	39.8 mm
USB Power Delivery up to	96 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Technical details
Warranty period	3 year(s)
Weight (with stand)	5.6 kg
Touchscreen	No
Certificates
Certification	Mac Compliance FSC MIX Calman Verified VESA MediaSync Display VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free Energy Star

ProArt Display OLED PA27UCDMR Professional Monitor – 27-inch (26.5-inch viewable), 4K UHD (3840 x 2160), QD-OLED, Ultra-slim, 240Hz, 0.1ms, Auto Calibration, HDR-10, HLG, Dolby Vision, 99% DCI-P3, ΔE < 1, Thunderbolt 4 PD 96W, Calman Ready, ColourSpace Integration, Ergonomic Stand

Key Features

• 26.5-inch 4K UHD (3840 x 2160) QD-OLED panel with 240 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering
• 1000 nits peak brightness with VESA DisplayHDR True Black 400 for exceptional color contrast
• True 10-bit color depth and Quantum Dot technology provide 100% sRGB, 99% DCI-P3 and Rec. 2020 color gamut
• World-leading ∆E < 1 color performance and ASUS ProArt Hardware Calibration Technology for color-accuracy optimization and color profile write-back
• Multiple HDR format support, including Dolby Vision, HLG and HDR10 (Dolby Vision will be ready in 2026/Q2 via firmware update)
• Rich connectivity including dual Thunderbolt 4 up to 96W Power Delivery, HDMI2.1, DisplayPort1.4 DSC and a built-in USB Hub
• Ergonomic design with tilt, pivot and height adjustments for a comfortable viewing experience
• Green Sustainability: paper packaging and energy-efficient environmental standards

Description

Professional OLED Monitor for Every Creators
ProArt Display OLED PA27UCDMR is a professional monitor designed for professional content creators. This 26.5-inch 4K HDR display boasts a cutting-edge 1000-nits QD-OLED panel with 99% DCI-P3 gamut, ensuring highly-accurate colors and exceptionally-detailed visuals. Its up to 240Hz refresh rate enables creators to develop fast-rendering games and perform artwork quality checks on a single display. Additionally, support for multiple HDR format makes PA27UCDMR the perfect monitor for working on fast-moving HDR content.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	1.073 billion colours
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
sRGB coverage (typical)	100%
Display diagonal	67.3 cm (26.5")
Response time	0.1 ms
Display resolution	3840 x 2160 pixels
Display technology	LED
Contrast ratio (typical)	1500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.155 x 0.155 mm
Viewable size, horizontal	59 cm
Viewable size, vertical	33.3 cm
Digital horizontal frequency	15 - 583 kHz
Digital vertical frequency	48 - 240 Hz
HD type	4K Ultra HD
Pixel density	166 ppi
Display brightness (peak)	1000 cd/m²
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	OLED
Colour depth	10 bit
DCI-P3 coverage	99%
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG), DisplayHDR 400 True Black
Colour gamut standard	DCI-P3, sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	6 W
Design
Market positioning	Graphics design
Product colour	Silver
Feet colour	Silver
Certification	Energy Star EPEAT Gold TCO Certified TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 True Black Calman Ready FSC MIX Mac Compliance
Detachable stand	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB Type-A downstream ports quantity	2
USB Type-C downstream ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
Headphone out	No
HDMI	Yes
HDMI version	2.1
DisplayPort version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
USB Type-C DisplayPort Alternate Mode	Yes
Thunderbolt 4 ports quantity	2
HDCP version	2.2
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 20°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	25.3 W
Power consumption (off)	0 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	25 kWh
Energy consumption (HDR) per 1000 hours	29 kWh
Weight & dimensions
Width (with stand)	608 mm
Depth (with stand)	228 mm
Height (with stand)	571 mm
Width (without stand)	608 mm
Height (without stand)	354 mm
Depth (without stand)	47 mm
Weight (with stand)	7.2 kg
Weight (without stand)	4.7 kg
Package width	690 mm
Package depth	275 mm
Package height	550 mm
Package weight	13.8 kg
Packaging data
Package type	Box
Package width	690 mm
Package depth	275 mm
Package height	550 mm
Package weight	13.8 kg
Stand included	Yes
Packaging content
Stand included	Yes
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) Mix, TCO
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) Mix, TCO
Warranty period	3 year(s)
Power supply type	Internal
Weight (with stand)	7.2 kg
Touchscreen	No
Other features
Certification	Energy Star EPEAT Gold TCO Certified TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 True Black Calman Ready FSC MIX Mac Compliance
DCI-P3 coverage	99%
Warranty period	3 year(s)
Width (without stand)	608 mm
Height (without stand)	354 mm
HDMI	Yes
Depth (without stand)	47 mm
USB Power Delivery up to	96 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Display brightness (peak)	1000 cd/m²
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Certificates
Certification	Energy Star EPEAT Gold TCO Certified TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 True Black Calman Ready FSC MIX Mac Compliance

ProArt Display OLED PA27USD Professional Monitor – 27-inch (26.5-inch viewable), 4K UHD (3840 x 2160), QD-OLED, 99% DCI-P3, ΔE < 1, 240Hz, Self / Auto Calibration, HDR-10, HLG, Dolby Vision, 12G-SDI, HDMI2.1, DisplayPort2.1, Thunderbolt 4 PD 96W, Calman Ready, ColourSpace Integration

Key Features

• 26.5-inch 4K UHD (3840 x 2160) QD-OLED panel with 240 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering
• 1000 nits peak brightness with VESA DisplayHDR True Black 400 for exceptional color contrast
• True 10-bit color depth provides 100% sRGB, 99% DCI-P3 and BT. 2020 wide color gamut
• 12G-SDI supports 4K@60Hz real-time playback without any compression, compatible with 6G and 3G Level A & B
• World-leading ∆E < 1 color performance and ASUS ProArt Hardware Calibration Technology for color-accuracy optimization and color profile write-back
• Multiple HDR format support, including Dolby Vision, HLG and HDR10
• Rich connectivity including 12G-SDI, dual Thunderbolt 4 up to 96W Power Delivery, HDMI2.1, DisplayPort2.1 and a built-in USB Hub
• Includes two versatile stand options to suit any scenario or setup, along with an elegant metal handle for portability
• Monitor hood helps reduce reflections, and bundled clips allow for easy cable management

Description

Stunning Contrast from Production to Post
Designed for content creators, the ProArt Display OLED PA27USD is a professional monitor that features a cutting-edge 26.5-inch 4K HDR QD-OLED panel with 1000-nits brightness and 99% DCI-P3 coverage to deliver highly-accurate colors and exceptional visual detail. A built-in motorized flip colorimeter enables auto- and self-calibration for consistent, professional-grade color accuracy, and a 240Hz refresh rate allows creators to work on color-critical artwork as well as performance-driven game development — all on one monitor. In addition to the standard I/O interfaces, the PA27USD supports 12G-SDI connectivity to receive uncompressed video signals up to 4K@60Hz.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	1.073 billion colours
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
sRGB coverage (typical)	100%
Display diagonal	67.3 cm (26.5")
Response time	0.1 ms
Display resolution	3840 x 2160 pixels
Display technology	QD-OLED
Contrast ratio (typical)	1500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.155 x 0.155 mm
Viewable size, horizontal	59 cm
Viewable size, vertical	33.3 cm
Digital horizontal frequency	15 - 583 kHz
Digital vertical frequency	48 - 240 Hz
HD type	4K Ultra HD
Display brightness (peak)	1000 cd/m²
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	OLED
Colour depth	10 bit
DCI-P3 coverage	99%
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG), Dolby Vision, DisplayHDR 400 True Black
Colour gamut standard	DCI-P3, sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Design
Market positioning	Graphics design
Product colour	Black
Feet colour	Black
Certification	Mac Compliance FSC MIX Calman Ready VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free EPEAT Silver Energy Star
Detachable stand	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
HDMI ports quantity	2
DisplayPorts quantity	1
HDCP	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Headphone out	Yes
HDMI	Yes
HDMI version	2.1
DisplayPort version	2.1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
USB Type-C DisplayPort Alternate Mode	Yes
Built-in KVM switch	Yes
Thunderbolt 4 ports quantity	2
HDCP version	2.3
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-5 - 23°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	32 W
Power consumption (off)	0 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	45 kWh
Energy consumption (HDR) per 1000 hours	50 kWh
Weight & dimensions
Width (with stand)	610.3 mm
Depth (with stand)	239.7 mm
Height (with stand)	584.9 mm
Width (without stand)	610.3 mm
Height (without stand)	378.8 mm
Depth (without stand)	596 mm
Weight (with stand)	7.5 kg
Weight (without stand)	4.96 kg
Package width	884 mm
Package depth	196 mm
Package height	685 mm
Package weight	15.1 kg
Packaging data
Package type	Box
Package width	884 mm
Package depth	196 mm
Package height	685 mm
Package weight	15.1 kg
Stand included	Yes
Packaging content
Stand included	Yes
Other features
Certification	Mac Compliance FSC MIX Calman Ready VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free EPEAT Silver Energy Star
DCI-P3 coverage	99%
Width (without stand)	610.3 mm
Height (without stand)	378.8 mm
HDMI	Yes
Depth (without stand)	596 mm
USB Power Delivery up to	96 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Display brightness (peak)	1000 cd/m²
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Certificates
Certification	Mac Compliance FSC MIX Calman Ready VESA DisplayHDR 400 True Black TÜV Low Blue Light TÜV Flicker-free EPEAT Silver Energy Star
Technical details
Power supply type	Internal
Weight (with stand)	7.5 kg
Touchscreen	No

AMD Ryzen AI 9 HX 370 (2GHz), 64GB LPDDR5x-SDRAM, 2000GB SSD, 16" 4K Ultra HD 3840 x 2400 OLED Touch, AMD Radeon 890M, NVIDIA GeForce RTX 5080 (16GB GDDR7), WLAN, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• AMD Ryzen AI 9 HX 370 (2GHz)
• 16" 4K Ultra HD 3840 x 2400 OLED Touch, NVIDIA GeForce RTX 5080 (16GB GDDR7)
• 64GB LPDDR5x-SDRAM & 2000GB SSD

Description

ProArt P16
Creativity Unrivaled, Anywhere
Meet ProArt P16 – your ultimate creative companion for the studio and on the move. Its OLED touchscreen ensures precise color accuracy for flawless proofing, while versatile I/O ports seamlessly connect all your peripherals. This NVIDIA® Studio-validated laptop packs a GeForce RTX™ 40 Series Laptop GPU, providing powerful graphics and 321 TOPS AI performance. Additionally, it features up to a 50 TOPS AMD Ryzen™ AI 9 HX 370 processor, delivering exceptional processing power. With AI-enhanced creative features, military-grade toughness, and a long-lasting battery, ProArt P16 transforms any setting into your studio.

Specifications

Design
Colour name	Nano Black
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Performance
Housing material	Aluminium
Introduction year	2026
Display back cover material	Aluminium
Display
HD type	4K Ultra HD
Display number of colours	1.07 billion colours
Display diagonal	40.6 cm (16")
Display resolution	3840 x 2400 pixels
Touchscreen	Yes
Display surface	Gloss
Display response rise/fall	0.2 ms
Panel type	OLED
Contrast ratio (typical)	1000000:1
Maximum refresh rate	120 Hz
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	DisplayHDR True Black 1000
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Maximum display brightness (HDR)	1600 cd/m²
Low Blue Light technology	Yes
Processor
Processor generation	AMD Ryzen AI 300 Series
Processor cache type	L2 & L3
Processor frequency	2 GHz
Processor family	AMD Ryzen AI 9 HX
Processor model	370
Processor boost frequency	5.1 GHz
Processor cores	12
Processor threads	24
L3 cache	24 MB
L2 cache	12 MB
Processor manufacturer	AMD
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	80 TOPs
NPU performance up to	50 TOPs
Copilot+ PC	Yes
Memory
Internal memory	64 GB
Internal memory type	LPDDR5x-SDRAM
Maximum internal memory	64 GB
Memory form factor	On-board
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	2 TB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 890M
Discrete graphics card model	NVIDIA GeForce RTX 5080
Discrete graphics memory type	GDDR7
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	AMD
Audio
Audio system	Smart Amp
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth version	5.4
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	1
DC-in jack	Yes
Keyboard
Pointing device	Touchpad + DialPad
Numeric keypad	No
Keyboard backlit	Yes
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Bundled software	6-Month GoPro Premium+ Subscription 3-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2026. Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Trial software	1-month trial for new Microsoft 365 customers
Microsoft Copilot	Yes
Copilot+ PC	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Removable battery	No
Power
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
DC-in jack	Yes
Security
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Face recognition	Yes
Windows Hello	Yes
Certificates
Compliance certificates	REACH
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Weight	1.95 kg
Width	354.9 mm
Depth	246.9 mm
Height (front)	1.49 cm
Height (rear)	1.83 cm
Technical details
Discrete graphics card memory	16 GB
Sustainability certificates	ENERGY STAR
Compliance certificates	REACH
Other features
Audio system	Smart Amp
On-board graphics card	Yes
