Yealink MeetingDisplay 55

Yealink MeetingDisplay 55

Key Features

• Unified installation, the customised structure makes installation easy.
• Unified coordination, supports digital signage, sleep, and wake-up functions.
• Unified management, manage MeetingDisplay and MTR device on one platform (YMCS or YDMP).
• Unified configuration, one-touch console is enough.

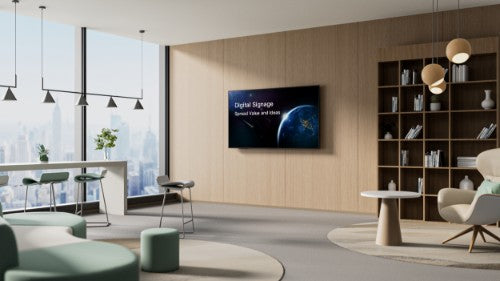

• Upgraded 24/7 operation, could be used as workspace digital signage

Description

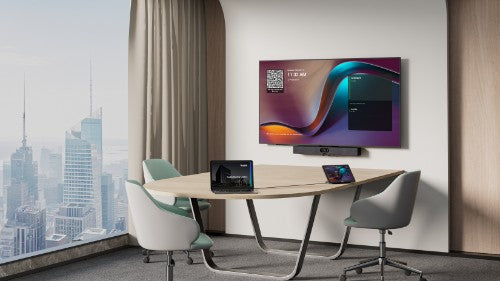

The Yealink MeetingDisplay 55 is designed for modern huddle rooms, delivering a compact and efficient collaboration experience with Yealink MeetingBar A25. As part of Yealink’s MTR portfolio, it supports unified installation, configuration, coordination, and centralized management via YMCS/YDMP, helping teams deploy and manage meeting spaces with greater ease. With upgraded 24/7 operation, MeetingDisplay 55 goes beyond meetings and can also serve as workspace digital signage in open areas, public spaces, and shared workplaces. From huddle room collaboration to always-on information display, it brings more flexibility to modern workspaces.

Specifications

Display
Display diagonal	165.1 cm (65")
Display technology	LED
Display resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Panel type	IPS
Display brightness	500 cd/m²
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Native refresh rate	60 Hz
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	12 W
Design
Product colour	Black
Orientation	Landscape
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Bezel width (bottom)	1.25 cm
Bezel width (side)	1.19 cm
Bezel width (top)	1.19 cm
Mounting type	Wall
Ports & interfaces
HDMI ports quantity	3
HDMI input ports quantity	3
DVI port	No
USB port	Yes
USB ports quantity	3
USB connector type	USB Type-B, USB Type-A
USB 2.0 Type-B ports quantity	1
Audio (L/R) out	1
RS-232 interface	Yes
Computer system
Computer system	Yes
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system installed	Android 13
Power
Power consumption (typical)	82 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	138 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Display width	1237 mm
Display depth	56 mm
Display height	717 mm
Display weight	15.6 kg
Packaging data
Package width	1340 mm
Package depth	1085 mm
Package height	790 mm
Package weight	21.6 kg
Logistics data
Country of origin	China
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
