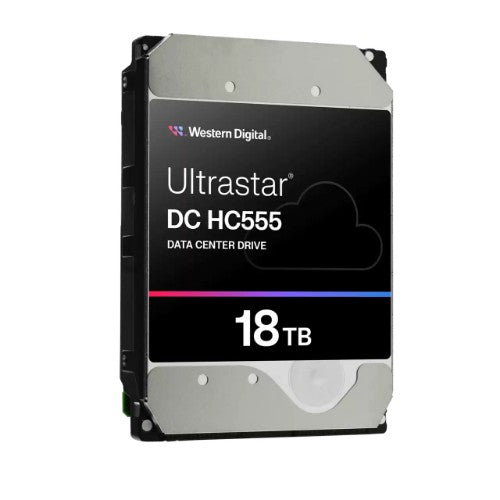

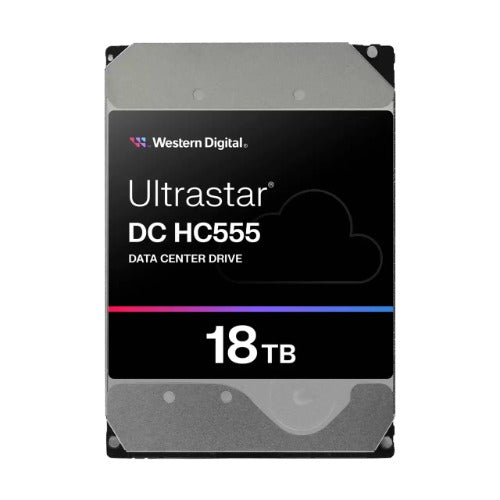

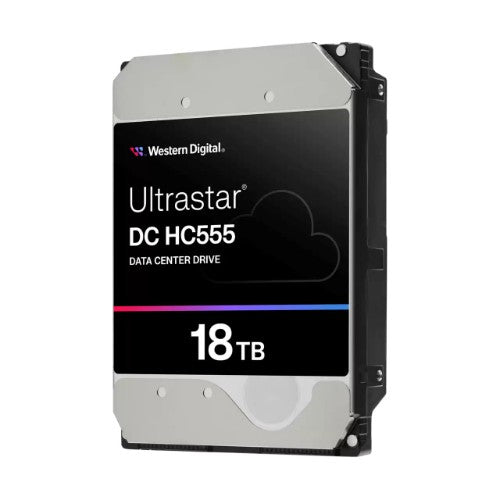

Western Digital Ultrastar DC HC555 internal hard drive 18 TB 7200 RPM 512 MB 3.5" Serial ATA III

3.5" 18TB 512 7200RPM SATA 512E SE NP3 DC

Key Features

• Capacities up to 20TB in standard 3.5-inch form factor
• Conventional Magnetic Recording (CMR) technology
• Superior reliability of field-proven hardware and firmware designs
• Seamless integration with existing applications & environments

Description

Engineered to handle high-intensity workloads with proven technology

Ultrastar Data Center HC555 hard drives are engineered to deliver the large capacity, strong performance and proven reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Handle Data Center Workloads with Proven Technology
The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Grow Capacity while Lowering Costs
Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx.

Rapid qualification and integration
Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers.

Reliability You Can Trust
Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage.

Increase Density with Low Power
Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power.

Meet Eco Goals with Helium
The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry.

Protected Against Vibration & Shock
Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data.

Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF rating.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	18 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	18 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
24/7 operation	Yes
Power
Power consumption (typical)	6.4 W
Power consumption (idle)	5.3 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.67 G
Operating shock	50 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Warranty period	5 year(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	679 g
Other features
Interface	Serial ATA III
Warranty period	5 year(s)
