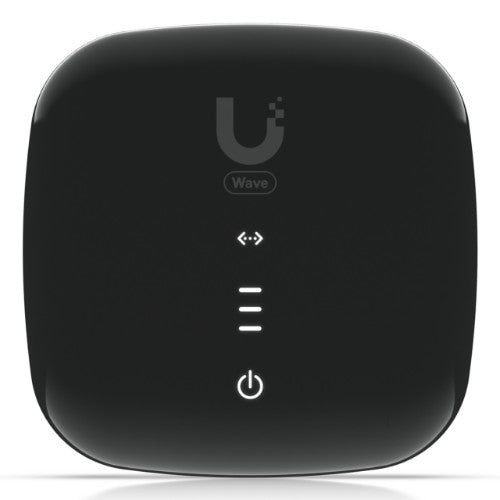

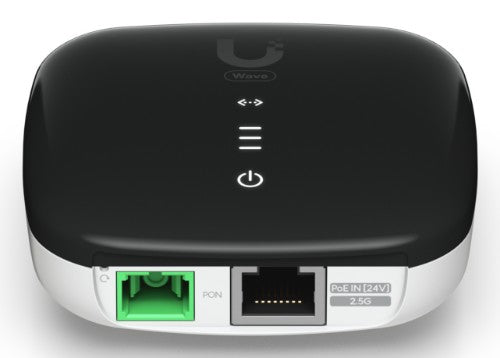

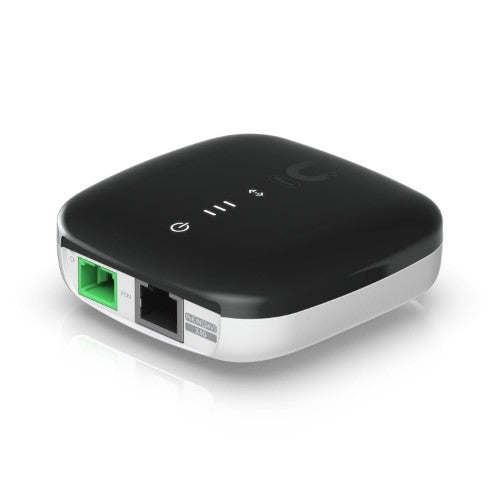

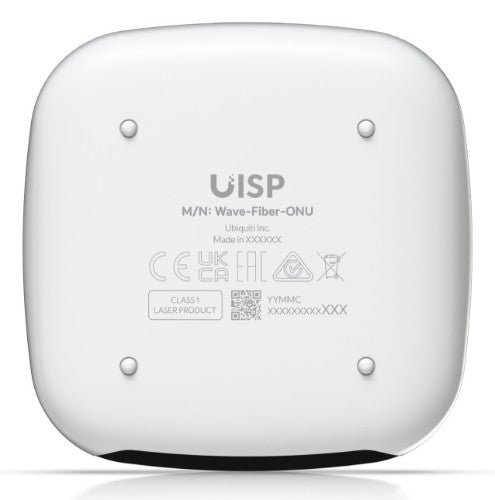

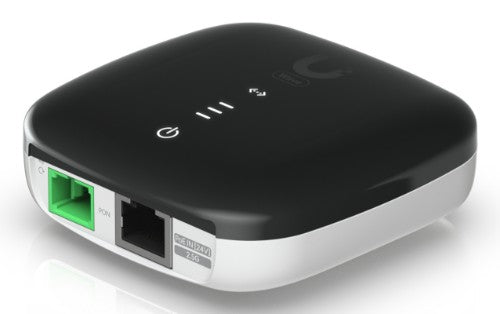

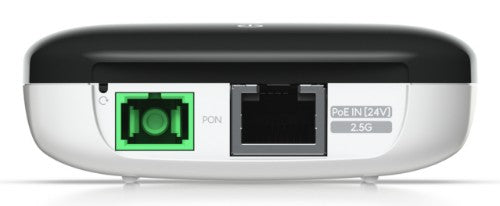

Ubiquiti WaveFiber ONU Optical network unit (ONU)

SC/APC, ITU-G.984 GPON WAN, 1/2.5 GbE RJ45, 1.2 Gbps uplink / 2.5 Gbps downlink, up to 20 km, PoE, 5W, 76.5 x 76.5 x 26.4 mm

Description

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.

Specifications

Design
Product type	Optical network unit (ONU)
Product colour	Black, White
Housing material	Polycarbonate (PC)
LED indicators	LAN, Power, Status
Network
ITU standards	G.984
Ethernet LAN data rates	1000,2500 Mbit/s
Switch layer	L2/L3
Upstream data rate	1244 Mbit/s
Downstream data rate	2488 Mbit/s
Transmission distance (max)	20 km
Tx wavelength (min)	1310 nm
Rx wavelength (min)	1490 nm
VLAN support	Yes
Tx power (min)	1.5 dBmW
Tx power (max)	5 dBmW
Management features
Reset button	Yes
Ports & interfaces
Fiber ports quantity	1
Fiber optic connector	SC/APC
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	5 W
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Operational conditions
Operating temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	76.5 mm
Depth	76.5 mm
Height	26.4 mm
Weight	78 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Logistics data
Quantity per pack	1 pc(s)
