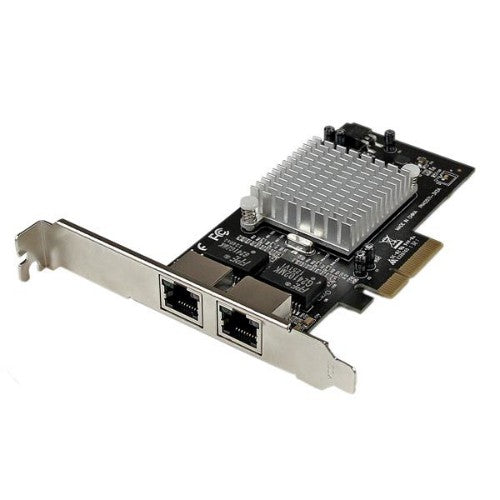

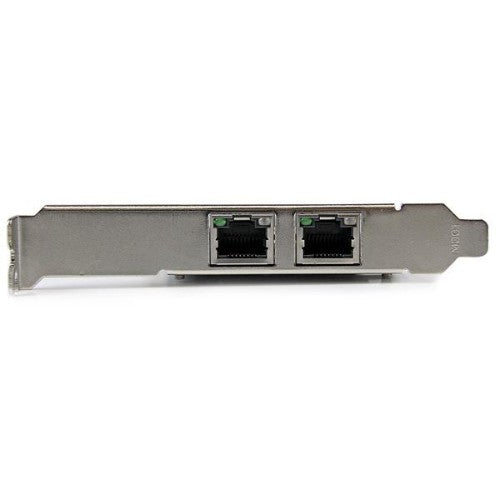

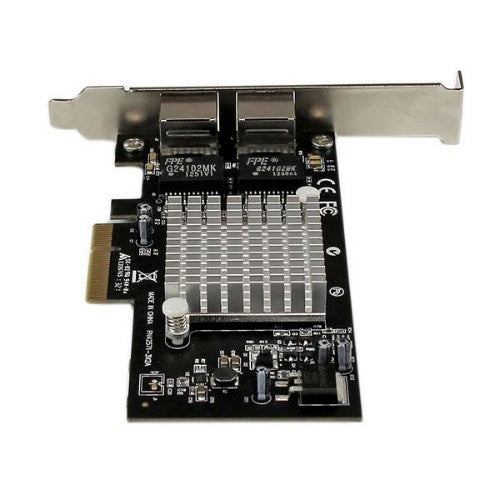

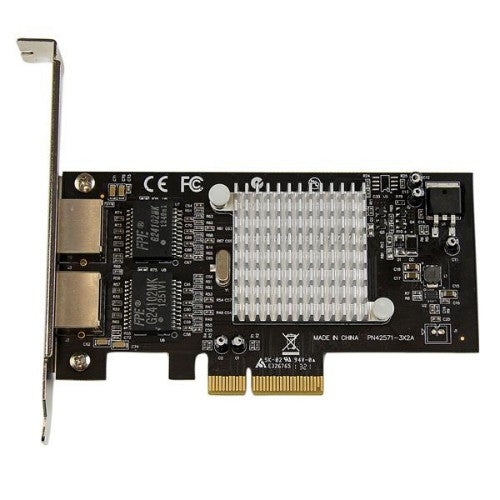

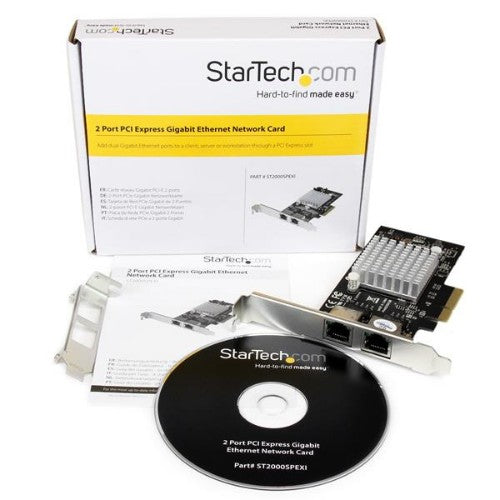

StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC

StarTech 2 Port PCIe Network Card - RJ45 Port - Intel i350 Chipset - Ethernet Server / Desktop Network Card - Dual Gigabit NIC Card (ST2000SPEXI)

Key Features

• Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
• Jumbo Frame support up to 9k bytes
• Teaming Support
• Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
• Wake-on-LAN / Remote Wake-up support
• Configured with standard profile bracket, low profile/half-height bracket included
• Supports Intel® Virtualization Technology (VT-c, VMDq, SR-IOV)
• Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
• Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)

Description

Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.

Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.1
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
Bandwidth
Maximum data transfer rate	2000 Mbit/s
Full duplex	Yes
Network
Chipset	Intel - I350-AM2
VLAN tagging	Yes
Jumbo frames	9000
Maximum data transfer rate	2000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
LAN controller	Intel® I350-AM2
Jumbo frames support	Yes
Full duplex	Yes
Design
Internal	Yes
Product colour	Aluminium, Black
Chipset	Intel - I350-AM2
Certification	CE, FCC, REACH
Mean time between failures (MTBF)	432400 h
LED indicators	Activity, Link
Component for	Server
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	19 mm
Depth	67 mm
Height	121 mm
Weight	80 g
Package width	142 mm
Package depth	170 mm
Package height	32 mm
Package weight	165 g
Packaging data
Low-profile bracket	Yes
Drivers included	Yes
Package width	142 mm
Package depth	170 mm
Package height	32 mm
Package weight	165 g
Manual	Yes
Packaging content
Manual	Yes
Low-profile bracket	Yes
Drivers included	Yes
Performance
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Mean time between failures (MTBF)	432400 h
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Certificates
Certification	CE, FCC, REACH
Other features
Chipset	Intel - I350-AM2
Manual	Yes
Jumbo frames	9000
Power LED	Yes
Link/Act LED	Yes
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case width	318 mm
Master (outer) case length	590 mm
Master (outer) case height	364 mm
Products per master (outer) case	80 pc(s)
Harmonized System (HS) code	85176990
