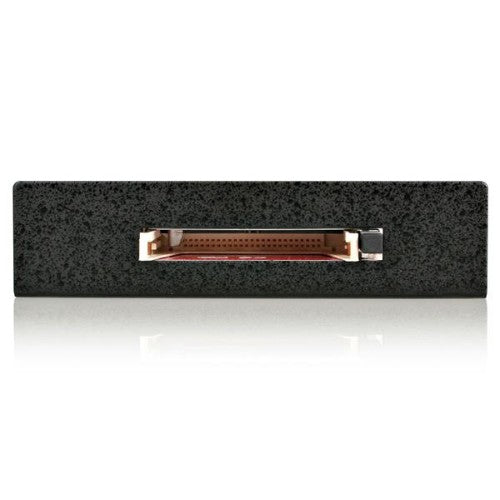

StarTech.com 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader - TAA

StarTech 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader , TAA (35BAYCF2IDE)

Key Features

• Quick and driver free installation into any IDE 40 pin and 44 pin slot
• Fully compatible with Compact Flash Type I/II and IBM Micro-drive
• Allows Compact flash card to be used as bootable storage
• Easy to use jumpers offer simple master/slave drive setting
• Can be mounted in the front or rear panel of your case, to fit into any 3.5” bay or available expansion slot
• Easily swap cards in and out with built-in push button ejector

Description

Connect a CF card to a computer through an IDE connector

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.

Specifications

Ports & interfaces
Internal	Yes
Host interface	IDE
Output interface	CF
Performance
Data transfer rate (max)	0.133 Gbit/s
Harmonized System (HS) code	84733020
Design
Internal	Yes
Features
Data transfer rate (max)	0.133 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-55 - 85 °C
Storage temperature (T-T)	-55 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Weight & dimensions
Width	97 mm
Depth	100 mm
Height	25 mm
Weight	145 g
Package width	143 mm
Package depth	173 mm
Package height	34 mm
Package weight	215 g
Packaging data
User guide	Yes
Package width	143 mm
Package depth	173 mm
Package height	34 mm
Package weight	215 g
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	370 mm
Master (outer) case height	320 mm
Harmonized System (HS) code	84733020
Packaging content
User guide	Yes
