StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows - TAA

StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows , TAA

Key Features

• HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40Gbps); Up to dual 4K 60Hz video; 2x DisplayPort, 1x HDMI, 1x VGA; 2-Port USB-A Hub (USB 3.2 Gen 1 5Gbps); Gigabit Ethernet; 85W Power Delivery
• FLEXIBLE MONITOR OUTPUTS: Connect up to two external monitors for up to dual 4K video with any combination of 2x DP (4K 60Hz), 1x HDMI (4K 60Hz) or VGA (1080p 60Hz); Video output utilizes direct GPU performance with no software or compression
• COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
• EASY TO DEPLOY & SETUP: Thunderbolt 3 Dock requires no driver setup or additional display adapters; Included 1.6 ft (0.5 m) Thunderbolt 3 host cable; Front facing Thunderbolt 3 host port for hassle-free installation
• OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, WiFi Auto Switching, USB Event Monitoring & Windows Layout

Description

Laptop Dock | Mac & Windows® | HDMI | DisplayPort | VGA | 85W PD

Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable.

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

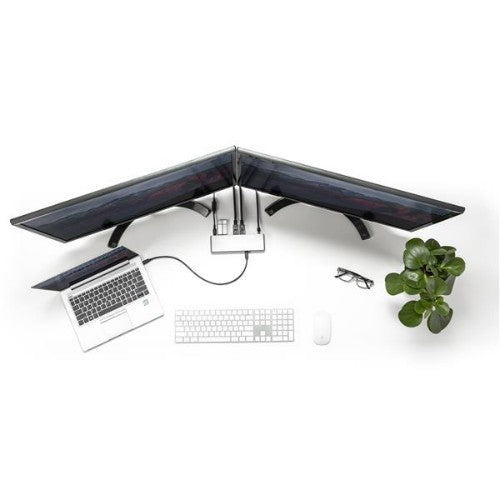

Speed & Flexibility with 3 Monitor Options

Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.

The dock offers many dedicated dual-video options:

2x DisplayPort (4096 x 2160p @ 60Hz)

1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)

The Ports You Need Most

Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.

Power & Charge with 85W Power Delivery

Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it's docked. It provides up to 85W of charging power through Power Delivery.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Connectivity technology	Wired
USB 2.0 ports quantity	0
Host interface	Thunderbolt 3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
10G support	No
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Grey
Card reader integrated	No
Data transfer rate	40 Gbit/s
Certification	CE, FCC, REACH
Housing material	Aluminium
Storage
Card reader integrated	No
Power
Compatible power plug types	AU, JP, US
Power source type	AC
Input current	1.8 A
Power plug type	Type N
AC input voltage	100 - 240 V
Power supply type	External
Power consumption (typical)	120 W
Output voltage	19 V
Output current	6.32 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	58.6 mm
Depth	196 mm
Height	24 mm
Weight	340 g
Package width	187 mm
Package depth	254 mm
Package height	65 mm
Package weight	1.3 kg
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Product colour	Grey
Certification	CE, FCC, REACH
Packaging data
Package width	187 mm
Package depth	254 mm
Package height	65 mm
Package weight	1.3 kg

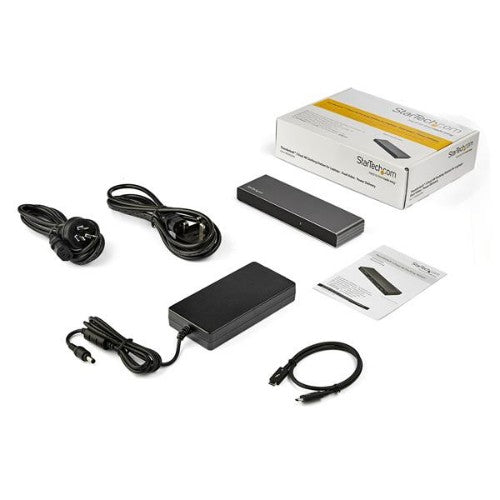

Packaging content
Manual	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Technical details
Compliance certificates	RoHS
Products per master (outer) case	20 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	676 mm
Master (outer) case height	280 mm
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	676 mm
Master (outer) case height	280 mm
Other features
Power supply type	External
Chipset	Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
Cable length	0.5 m
