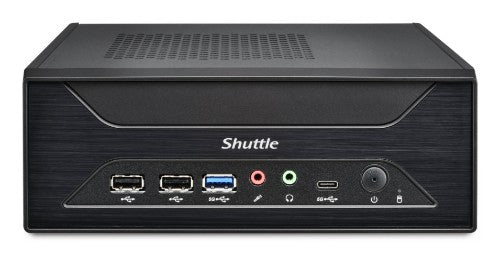

Shuttle XPC slim Barebone XH810 - S1851, Intel H810, 1xDP, 2xHDMI, 3x COM (RS232) , 2x Intel LAN,2x2.5", 8x USB, 3x M.2, 24/7 permanent operation

XPC slim Barebone XH810 - S1851, Intel H810, 1xDP, 2xHDMI, 3x COM (RS232) , 2x Intel LAN,2x2.5", 8x USB, 3x M.2, 24/7 permanent operation

Key Features

• LGA1851 for Intel Core Ultra 200 series 9/7/5 processors
• 1x HDD 3,5" or 2x SSD 2,5"
• Up to 6 COM (RS232) possible
• 24/7 continuous operation

Description

The Shuttle XPC XH810 is the ideal entry point for professional computing, offering an exceptional balance of price and performance within a compact 3.5-litre chassis. As a cost-effective base model, this robust steel barebone supports the latest Intel Core Ultra 200 series processors (LGA1851) and up to 96GB of high-speed DDR5 memory. Its versatile storage options provide incredible value, uniquely accommodating a full-sized 3.5-inch hard disk or two 2.5-inch drives alongside dual M.2 NVMe SSDs for maximum flexibility on a budget.

Despite its affordable positioning, the XH810 makes no compromises on connectivity. It features triple 4K/8K display support, dual Intel LAN (2.5G + 1G), and up to six serial ports, making it a versatile choice for office tasks, digital signage, or industrial control. An integrated heatpipe cooling system ensures stable 24/7 operation, delivering professional-grade reliability at an accessible price point. The XH810 is the smart, economical alternative to bulky and expensive tower PCs.

Specifications

Motherboard
Motherboard form factor	mini ITX
Processor socket	LGA 1851 (Socket V1)
Number of processors supported	1
Motherboard chipset	Intel H810
Compatible processor series	Intel Core Ultra (Series 2)
Processor
Built-in processor	No
Processor socket	LGA 1851 (Socket V1)
Number of processors supported	1
Motherboard chipset	Intel H810
Compatible processor series	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Memory
Memory voltage	1.1 V
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Memory channels	Dual-channel
Maximum internal memory	96 GB
ECC	No
Non-ECC	Yes
Internal memory installed	No
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,3.5,M.2
Storage drives installed	No
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Graphics card family	Intel
On-board graphics card	Yes
Performance
Motherboard form factor	mini ITX
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Processor socket	LGA 1851 (Socket V1)
Number of processors supported	1
Motherboard chipset	Intel H810
Compatible processor series	Intel Core Ultra (Series 2)
BIOS type	AMI EEPROM
Audio chip	ALC 888S
Harmonized System (HS) code	84733080
Audio
Built-in speaker(s)	No
Audio chip	ALC 888S
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel I226-LM, Intel® I219-LM
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	4
Serial ports quantity	3
Microphone in	Yes
Headphone outputs	1
HDMI version	2.0/2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
DisplayPorts quantity	1
DC-in jack	Yes
Design
VESA mounting	Yes
Motherboard form factor	mini ITX
Product type	PC barebone
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	3.5L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Colour
Product colour	Black
Technical details
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Cooling type	Active
Chassis type	3.5L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
BIOS type	AMI EEPROM
Harmonized System (HS) code	84733080
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	Federal Communications Commission (FCC), CE, UKCA, BSMI, RCM, VCCI, RoHS
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Package weight	3.2 kg
Indication
LED indicators	Yes
Logistics data
Country of origin	China
Harmonized System (HS) code	84733080
Sustainability
Sustainability certificates	ENERGY STAR, ErP
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	238 mm
Depth	200 mm
Height	72.5 mm
Weight	1.9 kg
Package weight	3.2 kg
Packaging content
Quick start guide	Yes
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Other features
Chassis type	3.5L sized PC
Country of origin	China
