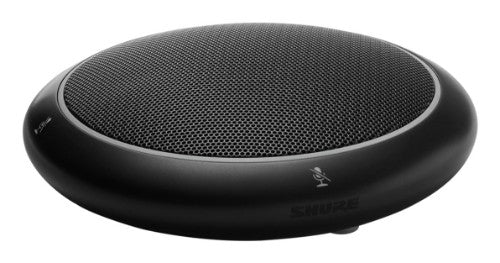

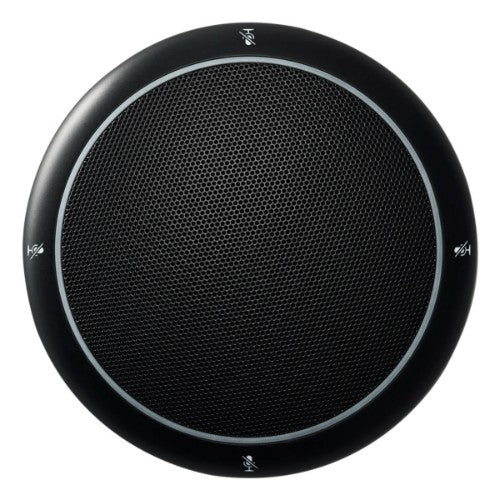

Shure MXA320 Black Table microphone

Table Array Microphone

Key Features

• Steerable Coverage™ Technology lobe accuracy allows users to configure up to four simultaneous polar patterns
• Onboard IntelliMix® DSP includes echo-cancellation and noise reduction to eliminate annoying distractions
• Remote device management, real-time device monitoring of device status and performance, and firmware updates with ShureCloud
• With Designer System Configuration Software, coverage can easily be viewed alongside other Microflex Ecosystem products in the room
• Housed in a familiar compact low-profile design
• Stylish round form factor complements any interior design without drawing attention
• Available in white, black, or aluminum finishes
• PoE powered
• LED status bar with configurable colors and brightness

Description

The MXA320 is the next evolution of Shure’s table array microphone that provides high quality audio capture and flexible configuration for AV conferencing environments including boardrooms, huddle rooms and conferencing rooms. It features Steerable Coverage™ Technology with onboard IntelliMix® DSP, streamlined deployment with Designer System Configuration Software and intuitive remote management via ShureCloud, all housed in a familiar, compact, low-profile design.

Specifications

Microphone
Type	Table microphone
Microphone frequency	100 - 20000 Hz
Microphone mute	Yes
Ports & interfaces
Connectivity technology	Wired
Device interface	RJ-45
Performance
Operating temperature (T-T)	-6.7 - 40 °C
Product colour	Black
Digital Signal Processing (DSP)	Yes
Recommended usage	Indoor
Power
Power source	PoE
USB Type-C charging port	No
Weight & dimensions
Diameter	13.4 cm
Microphone weight	362 g
Height	36 mm
Packaging content
AC adapter included	No
Operational conditions
Operating temperature (T-T)	-6.7 - 40 °C
