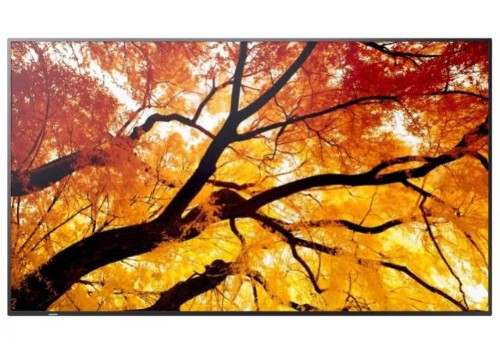

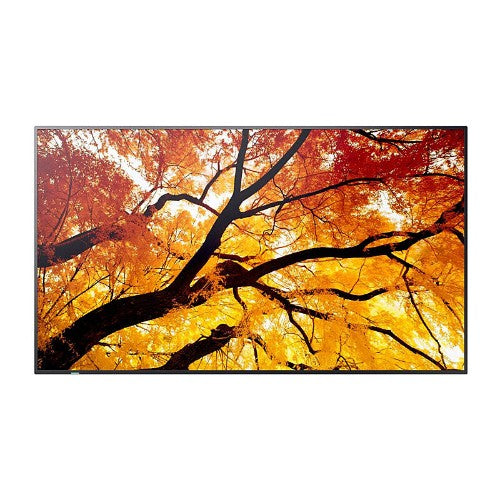

Sharp MultiSync M652 Digital signage flat panel 139.7 cm (55") LCD 550 cd/m² 4K Ultra HD Black Touchscreen

LCD 65", 550 cd/m², 3840 x 2160, 16:9, ≥ 8000:1, 72% of NTSC, 100-240 V AC; 50/60 Hz; 1454.5 x 832.4 x 59.5 mm

Key Features

• Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
• Wide colour gamut – high-performance panel technology delivers a wider spectrum of colours for a superb visual experience
• Safe for public environments – a metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory
• Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images
• Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience

Description

Built to perform, designed to last

The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.

As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.

Specifications

Display
LED backlight	Yes
Display number of colours	1.073 billion colours
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	550 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Active display area (W x H)	1428.5 x 803.5 mm
Display diagonal (metric)	163.9 cm
Vertical scan range	23 - 76 Hz
Touchscreen	Yes
Panel type	IPS
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Horizontal scan range	15 - 135 kHz
Display technology	LCD
Native refresh rate	60 Hz
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
Ethernet LAN data rates	100 Mbit/s
DVI port	No
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	4
RS-232C	Yes
DisplayPorts quantity	2
DisplayPorts out	1
DisplayPorts in	1
DisplayPort version	1.2
HDMI input ports quantity	2
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	400 x 400 mm
Bezel width (top)	1.1 cm
Bezel width (side)	1.1 cm
Bezel width (bottom)	1.39 cm
Certification	RoHS, CE, UL/C-UL or CSA, FCC Class B
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Bezel colour	Black
Performance
Purpose	Universal
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	105 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy consumption (SDR) per 1000 hours	135 kWh
Weight & dimensions
Display width	1454.5 mm
Display depth	59.5 mm
Display height	832.4 mm
Display weight	26 kg
Packaging data
Package width	1620 mm
Package depth	185 mm
Package height	950 mm
Package weight	35 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80%
Certificates
Certification	RoHS, CE, UL/C-UL or CSA, FCC Class B
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Panel type	IPS
LED backlighting type	Direct-LED
DisplayPorts out	1
DisplayPorts in	1
DisplayPort version	1.2
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UL, cUL
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Wi-Fi	No
Other features
USB connector type	USB Type-A, USB Type-C
Wi-Fi	No
Panel type	IPS
DisplayPorts out	1
DisplayPorts in	1
DisplayPort version	1.2
Display technology	LCD
Bezel width (top)	1.1 cm
Bezel width (side)	1.1 cm
Bezel width (bottom)	1.39 cm
Energy efficiency scale	A to G
