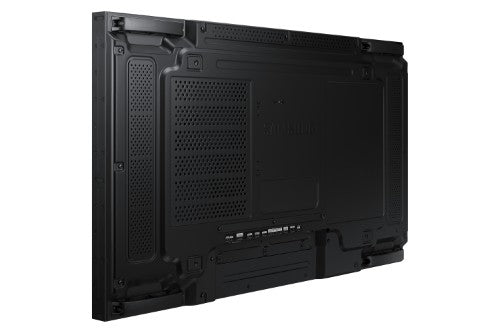

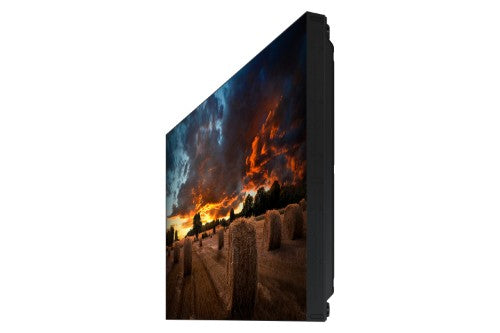

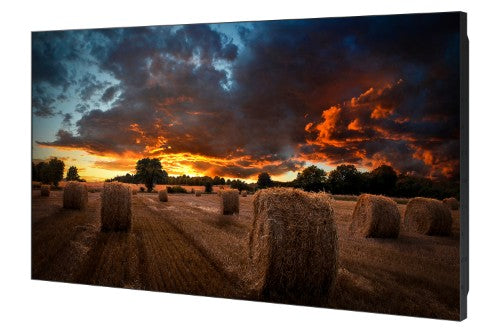

Samsung VM46B-U LCD Indoor

46", IPS FHD (1920 x 1080), 1200:1, 8 ms, 45000:1, 24/7, HDMI, USB, LAN, 1022 x 577 x 69.9 mm

Description

SAMSUNG (VMB-U) VIDEO WALL, 46" LED FHD, 500NITS, DP, HDMI(2), LAN, 3.5MM BEZ, 24H/7D, 3YR

Specifications

Display
Display technology	LCD
Display diagonal	116.8 cm (46")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Panel type	IPS
Aspect ratio	16:9
Pixel pitch	0.53 x 0.53 mm
Display brightness	500 cd/m²
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Response time	0.008 s
Operating hours (hours/days)	24/7
Pixel frequency	82 MHz
Contrast ratio (dynamic)	45000:1
Horizontal scan range	62.7 - 72.3 kHz
Vertical scan range	57 - 63 Hz
Design
Placement supported	Indoor

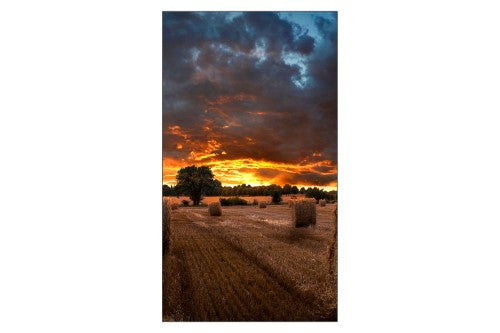

Orientation	Horizontal/Vertical
Bezel width (top)	2.25 mm
Bezel width (side)	1.25 mm
Bezel width (bottom)	2.25 mm
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Panel colour	Black
Product colour	Black

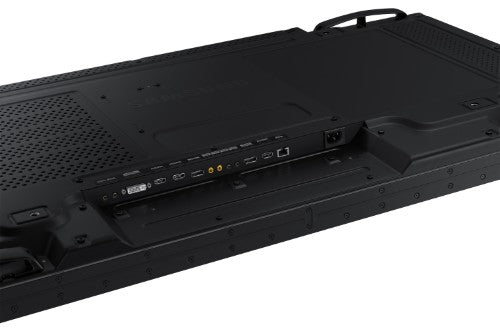

Ports & interfaces
HDMI ports quantity	2
DVI port	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
RS-232C	Yes
USB port	Yes
USB ports quantity	1
HDCP version	2.2
HDCP	Yes
RS-232 output ports	1
RS-232 input ports	1
IR input ports quantity	1
Audio output	Yes
Audio input	Yes
HDMI version	2.0
DisplayPort version	1.2
Power
Power consumption (typical)	160 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	128 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Technical details
Harmonized System (HS) code	85285210
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Logistics data
Harmonized System (HS) code	85285210
Sustainability
Certification	FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14336-1 ( ITE Safety ) / CNS15663 (RoHS)C-Tick (Australia) : AS/NZS CISPR32:2015CCC(China) :GB/T9254-2008, GB17625.1-2012GOST(Russia/CIS) : ROCT CISPR 24-2013/ROCT CISPR 22:2005
Weight & dimensions
Width	1022 mm
Depth	69.9 mm
Height	577 mm
Weight	15.7 kg
Packaging data
Package width	1193 mm
Package depth	257 mm
Package height	719 mm
Package weight	22.2 kg
