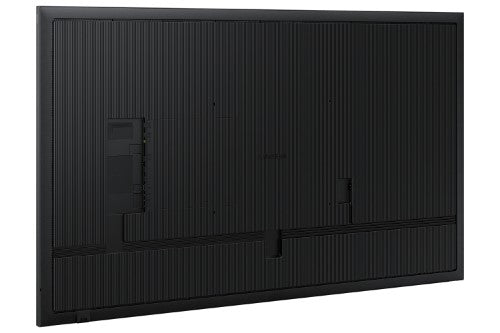

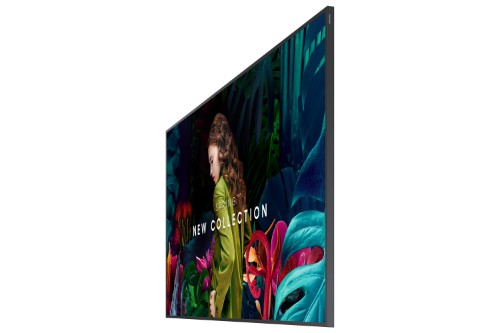

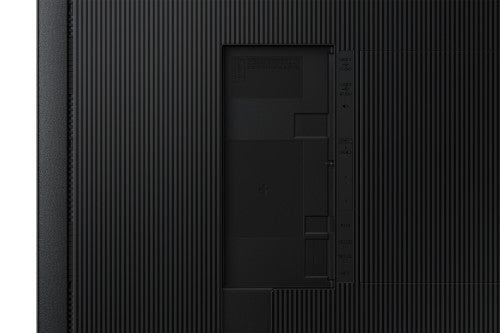

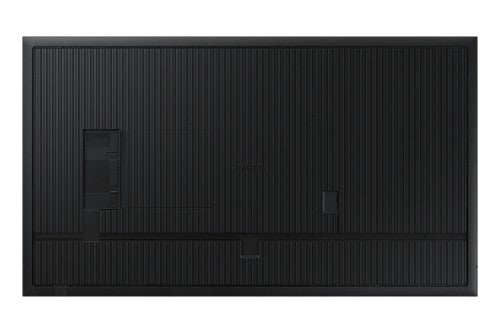

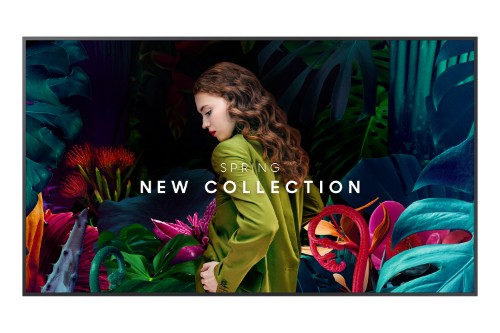

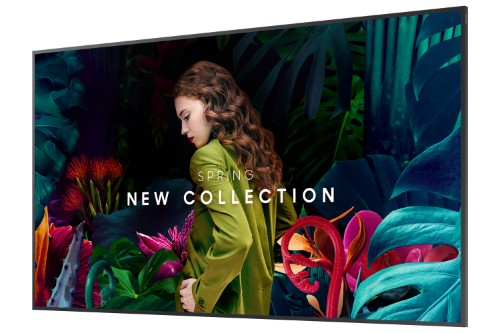

Samsung QB75C-N Digital signage flat panel 190.5 cm (75") LED 350 cd/m² 4K Ultra HD Black Built-in processor Tizen 7.0 16/7

75", 4K UHD 3840 x 2160, VA, 350 nit, 4000:1, 8 ms, 178/178, 3x HDMI 2.0, 2x USB, Tizen 7.0

Description

SAMSUNG (QBC-N) PRO DISPLAY, 75" UHD, 350NITS, HDMI(3), LAN, SPK, PORT/LAND, 16H/7D, 3Y

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.429 x 0.429 mm
Active display area (W x H)	1650.24 x 928.26 mm
Display diagonal (metric)	189.3 cm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC

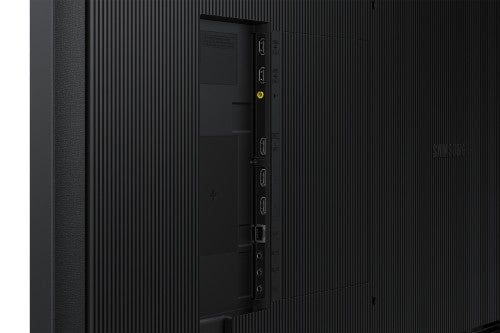

Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	0
HDMI input ports quantity	3
Audio
Sound modes	Dolby Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	400 x 400 mm
Bezel width (top)	1.34 cm
Bezel width (side)	1.34 cm
Bezel width (bottom)	1.34 cm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	214.5 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Built-in processor	Yes
Weight & dimensions
Display width	1682.3 mm
Display depth	28.5 mm
Display height	960.4 mm
Display weight	33.4 kg
Packaging data
Package width	1839 mm
Package depth	180 mm
Package height	1113 mm
Package weight	43.5 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, RS-232, USB
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	VA
Processor	Quantum Lite 4K Processor
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	TÜV mark
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 7.0
Internal memory	8 GB
Video formats supported	HEVC/H.265
Other features
Wi-Fi	No
Sound modes	Dolby Audio
PC Audio out	Yes
Panel type	VA
On/off switch	Yes
Display technology	LED
Bezel width (top)	1.34 cm
Bezel width (side)	1.34 cm
Bezel width (bottom)	1.34 cm
