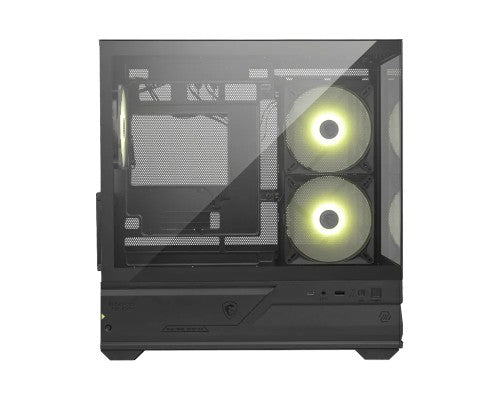

MSI MAG PANO M110R computer case Mini Tower Black

Mini Tower, 1 x 2.5”, 1 x 3.5”, 434 x 225 x 444 mm, 5.7 kg

Key Features

• 270-Degree Display: A 270-degree panoramic design delivers an immersive, edge-to-edge view, transforming your PC into a stunning visual centerpiece
• Upgraded Airflow Layout: Supports up to nine fans and provides one 360 mm radiator mounting position. Ventilation on the side panel further enhances heat dissipation for optimal performance
• 1 to 4 ARGB Control board: Supports up to four independent ARGB + PWM fans, delivering clean cable management and effortless installation
• Tool-free Panels: The front and side tempered panels are easily removable, giving you unobstructed access when installing side fans and radiators
• ARGB Fan: Built-in dual 140 mm ARGB fans on the side and a 120 mm ARGB fan at the rear deliver striking lighting and vivid lighting effects

Description

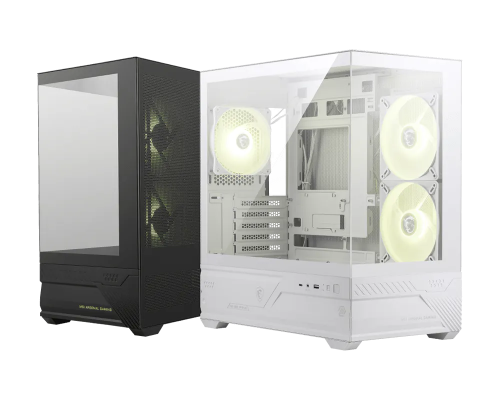

The MAG PANO M110R / WHITE is a compact mini-tower with a 270-degree panoramic design, dual 140 mm ARGB side fans, and a 1-to-4 ARGB control board - built to showcase your build with effortless customization.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

MAG Design Language
Built with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.

Compact Size. Full Display.
The 270-degree panoramic mATX case delivers powerful performance in a space-efficient design, showcasing your build from multiple angles angle without compromising style or clarity.

Addressable RGB SHOWROOM
The MAG PANO M110R comes with 3 pre-installed ARGB fans (2 at the fside and 1 at the rear), featuring 18 built-in lighting modes controlled via an LED switch button.

The uni-front-panel cable simplifies installation and delivers easy cable management for DIY users.

With just one pull, the tool-free EZ Release panel makes PC building and upgrades fast and hassle-free.

Specifications

Ergonomics
LED indicators	Yes
On/off button	Yes
Design
Form factor	Mini Tower
Type	PC
Number of 3.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Product colour	Black
Number of 2.5" bays	1
Suitable for	Gaming
Side window	Yes
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Number of expansion slots	5
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
On/off button	Yes
Power supply
Power supply location	Bottom
Power supply shroud	Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
Cooling
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,240,360 mm
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	225 mm
Depth	434 mm
Height	444 mm
Weight	5.7 kg
Packaging data
Package weight	17.6 kg
