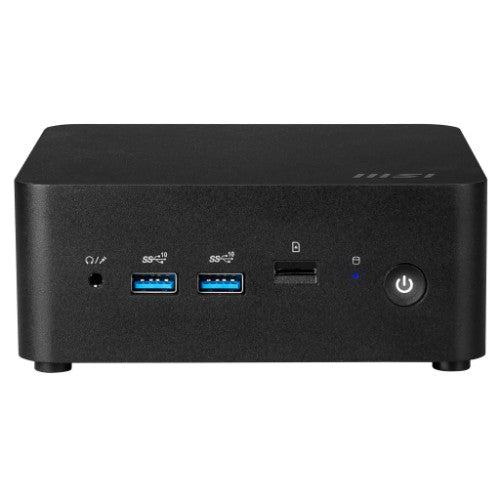

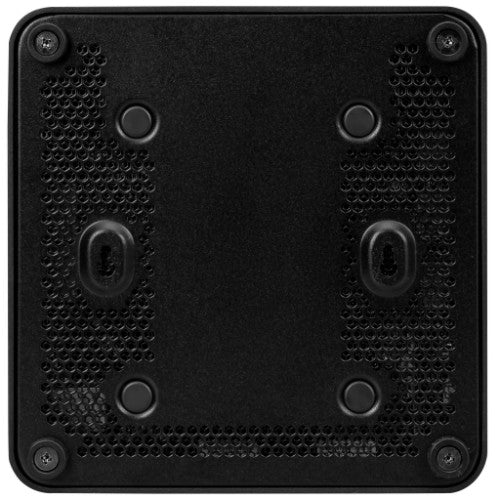

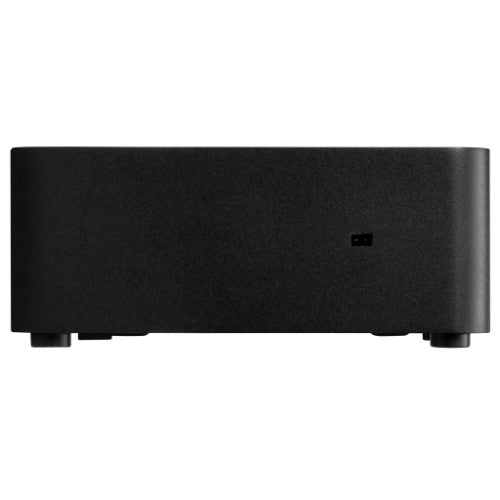

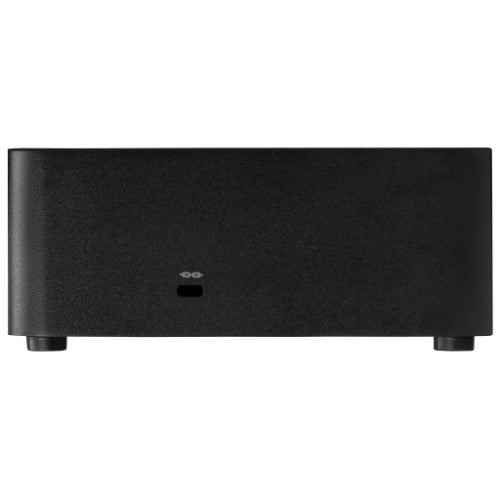

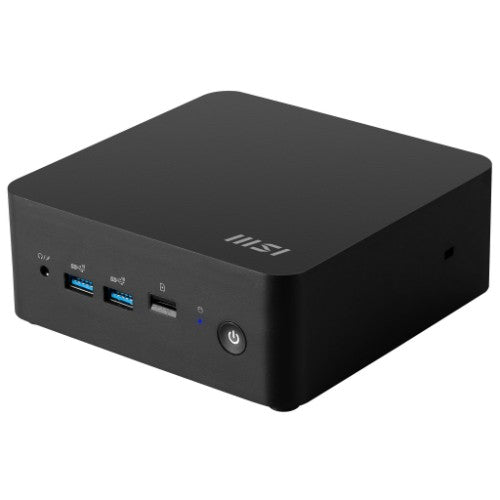

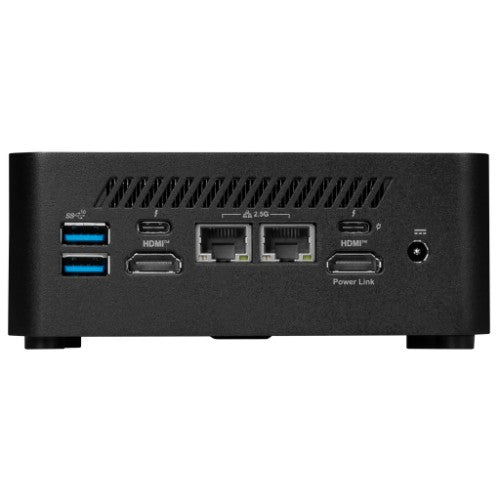

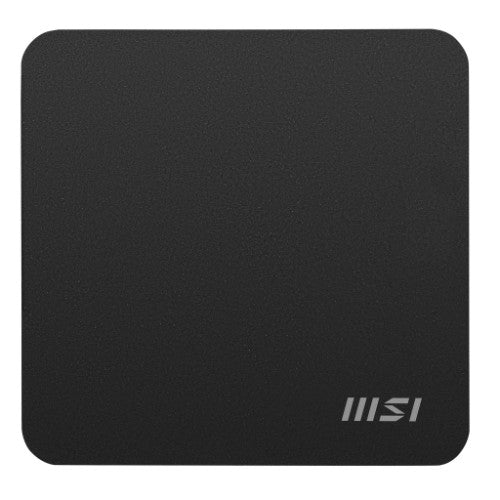

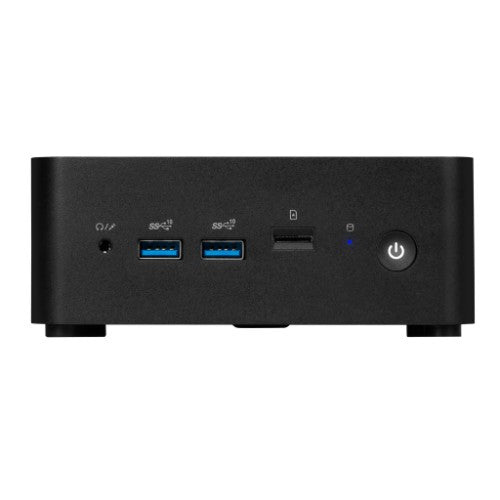

MSI Cubi NUC 1M-002BAU 0.84L sized PC Black Intel SoC

Intel Core 5 120U (12MB Cache), Intel Iris Xe Graphics, LAN, WLAN, Bluetooth, No OS

Key Features

• No OS
• Intel Core 5 120U (12MB Cache)

Description

Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.

Specifications

Motherboard
Motherboard form factor	NUC
Number of processors supported	1
Motherboard chipset	Intel SoC
Processor
Built-in processor	Yes
Processor boost frequency	5 GHz
Processor threads	12
Processor family	Intel Core 5
Processor cores	10
Number of processors supported	1
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor cache	12 MB
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor cache type	Smart Cache
Processor generation	Intel Core (Series 1)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5200 MHz
Maximum internal memory	64 GB
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	M.2
Number of storage drives supported	3
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
SSD form factor	M.2
NVMe	Yes
Graphics
Graphics card family	Intel
On-board graphics card	Yes
Number of displays supported	4
On-board graphics card model	Intel Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Bluetooth version	5.3
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Combo headphone/mic port	Yes
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Microphone in	No
HDMI version	1.4b/2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
DVI port	No
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
Expansion slots
Number of M.2 (M) slots	2
Design
VESA mounting	Yes
Motherboard form factor	NUC
Product type	Mini PC barebone
Housing material	Plastic
Panel mounting interface	100 x 100 mm
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.84L sized PC
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Motherboard form factor	NUC
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Number of processors supported	1
Number of displays supported	4
Motherboard chipset	Intel SoC
Colour
Product colour	Black
Technical details
Panel mounting interface	100 x 100 mm
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Cooling type	Active
Chassis type	0.84L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Certificates
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Software
Operating system installed	No
Management features
On/off switch	Yes
Features
Number of displays supported	4
Power
Power supply type	External AC adapter
Power supply	120 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	132.5 mm
Depth	135.6 mm
Height	50.1 mm
Weight	0.625 g
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.45 g
Packaging data
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.45 g
Packaging content
Mouse included	No
Display included	No
Keyboard included	No
Other features
Chassis type	0.84L sized PC
