MBeat activiva ErgoLife 81.3 cm (32") Clamp Black

17"-32", Max 9 kg weight capacity per screen, Tilt/Swivel/Screen Rotation

Key Features

• Dual monitor steel gas spring monitor arm
• Keyhole Pattern: allows for easy installation

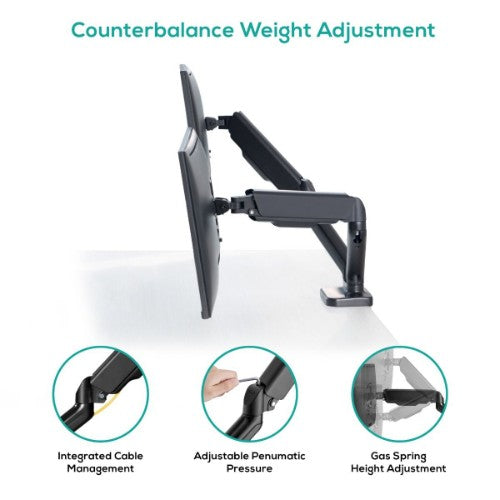

• Gas Spring: perfectly counterbalances the weight of your monitor
• Built-in Spring Tension Gauge: for perfect weight adjustments
• Cable Management: elegantly hides any cables that are attached to displays

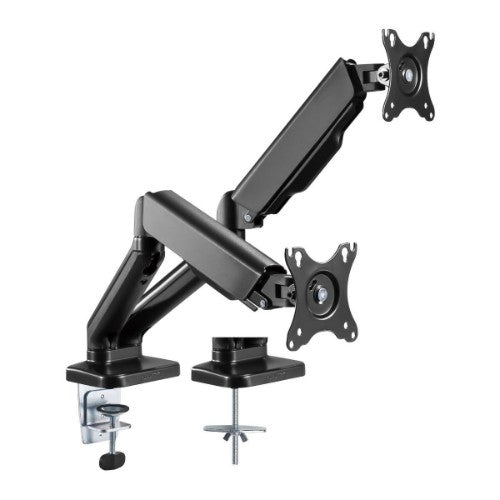

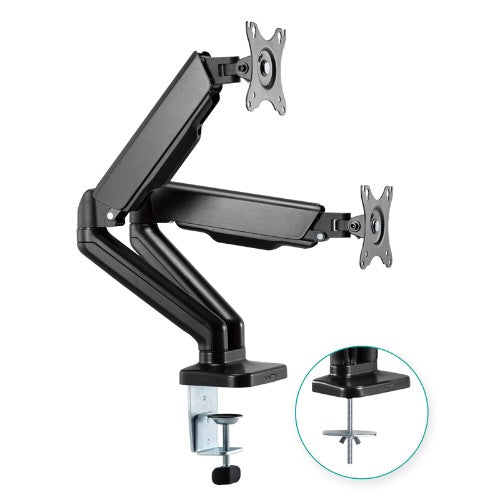

• Two Mounting Options: both desk clamp and grommet included

Description

mbeat® activiva ErgoLife Dual Monitor Screen Steel Gas Spring Monitor Arm

Features

• Dual Monitor Steel Gas Spring Monitor Arms

• Keyhole Pattern: allows for easy installation

• Gas Spring: perfectly counterbalances the weight of your monitor

• Built-in Spring Tension Gauge: for perfect weight adjustments

• Cable Management: elegantly hides any cables that are attached to
displays.

• Two Mounting Options: both desk clamp and grommet included'


Specifications

Fit Screen Screen: 17' - 32
'
Weight Capacity per Screen:2kg - 9kg

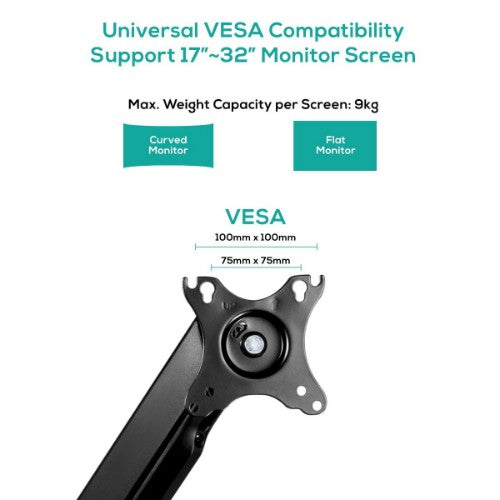

VESA Compatible:75Å~75, 100Å~100

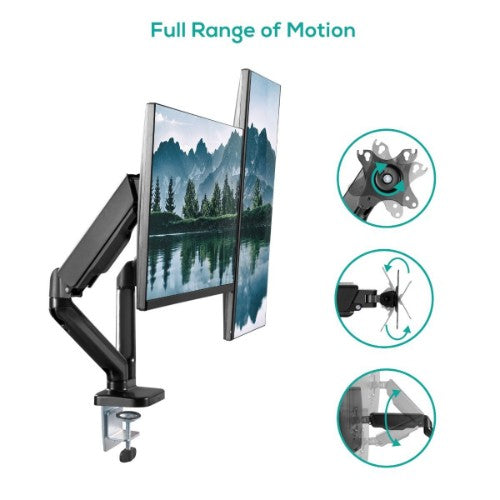

Tilt Range:+45°~-45°

Swivel Range:+90°~-90°

Screen Rotation:+180°~-180°

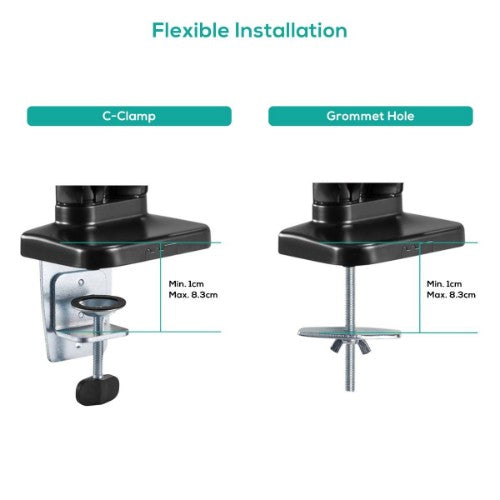

Suggested Desktop Clamp：10~83mm,
Thickness:Grommet：10~83mm

arton Size: 40.6cm × 30cm × 17cm
Gross Weight: 4.5kg
Net Weight 4kg

Specifications

Mounting
Maximum weight capacity (per display)	9 kg
Minimum screen size	43.2 cm (17")
Maximum screen size	81.3 cm (32")
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Clamp mount desk thickness (max)	8.3 cm
Grommet mount desk thickness (max)	8.3 cm
Ergonomics
Cable management	Yes
Height adjustment	Yes
Swivel angle range	-90 - 90°
Tilt angle range	-45 - 70°
Angle of rotation	180°
Height adjustment type	Gas spring
Design
Product colour	Black
Technical details
Cable management	Yes
Weight & dimensions
Weight	4 kg
Package weight	4.5 kg
Packaging content
Clamp included	Yes
Packaging data
Clamp included	Yes
Quantity per pack	1 pc(s)
Other features
Mounting type	Desk
Mounting	Clamp
