MAXHUB MT71F 12th Gen Intel-i7 Windows 11 Pro PC module
MAXHUB MT71F 12th Gen Intel-i7 Windows 11 Pro PC module
SKU: MT71F
Availability:
Sale
Sold out
In Stock
10+ in stock
Regular price
$3,656.82
Price:
$3,656.82
Regular price
$1,999.00
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
MT71F 12th Gen Intel-i7 Windows 11 Pro PC module
View full details
Description

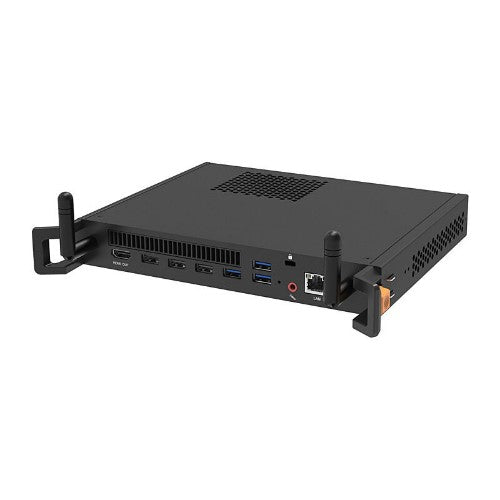

MT71F is modular PC which could be easily inserted into MAXHUB Interactive Flat panel , with 12th Generation Intel® Core™ i7 Processor and pre-installed the MAXHUB OS based on windows system.Specifications
| Processor | |
|---|---|
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor cache type | Smart Cache |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Processor model | i7-12650H |
| Processor cores | 10 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 24 MB |
| Processor threads | 16 |
| Performance cores | 6 |
| Efficient cores | 4 |
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives supported | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| Design | |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Power | |
| Power consumption (typical) | 110 W |
| Power consumption (standby) | 2.3 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 244.5 mm |
| Depth | 32 mm |
| Height | 207.2 mm |
| Weight | 1.2 kg |
| Package width | 314 mm |
| Package depth | 70 mm |
| Package height | 256 mm |
| Package weight | 1.79 kg |
| Packaging data | |
| Package width | 314 mm |
| Package depth | 70 mm |
| Package height | 256 mm |
| Package weight | 1.79 kg |
| Packaging content | |
| Display included | No |
| Display | |
| Display included | No |
| Other features | |
| Processor manufacturer | Intel |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
