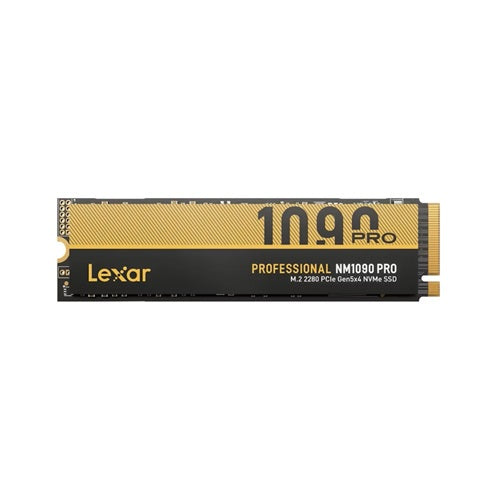

Lexar Professional NM1090 PRO 1 TB M.2 PCI Express 5.0 NVMe 3D TLC NAND
Lexar Professional NM1090 PRO 1 TB M.2 PCI Express 5.0 NVMe 3D TLC NAND
SKU: LNM109P001T-RNNNG
Availability:
Sale
Sold out
In Stock
10+ in stock
Regular price
$596.67
Price:
$596.67
Regular price
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
1 TB, M.2, PCIe Gen 5x4, NVMe, 3D TLC NAND flash
Capacity
1TB, 2TB, 4TB, 8TB
Form Factor
M.2 2280
Interface
PCIe Gen 5x4
Speed
1TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 10,000MB/s1, random read up to 1650K IOPs, random write up to 1800K IOPs
2TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1800K IOPs
4TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1700K IOPs
8TB: Sequential read speed up to 14,400MB/s1, sequential write speed up to 13,400MB/s1, random read up to 2000K IOPs, random write up to 2100K IOPs
Dram Capacity
1TB: 2GB, 2TB: 2GB, 4TB: 4GB, 8TB: 8GB
Operating Temperature
0° to 70° C (32°F to 158°F)
Storage Temperature
-40° to 85° C (-40°F to 185°F)
Shock Resistant
1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)
TBW
1TB: 700TBW, 2TB: 1400TBW, 4TB: 2800TBW, 8TB: 5600TBW
MTBF
1,500,000 Hours
Dimension (W x L x H)
1TB-2TB: 80 x 22 x 3.6 mm (3.15' x 0.87' x 0.14')
4TB-8TB: 80 x 22 x 3.9 mm (3.15' x 0.87' x 0.15')
Weight
1TB-2TB：8g / 0.017lbs
4TB: 8.5g / 0.019 lbs
8TB: 9.6g / 0.021 lbs
Warranty
Five-year limited warranty
View full details
Description
Lexar LNMPLYX001T-RNNNG Internal SSD PLAY X PCIe 4.0 1TB,up to 7400MB/s read, 6400MB/s write M.2 2030, M.2 2230, M.2 2280Capacity
1TB, 2TB, 4TB, 8TB
Form Factor
M.2 2280
Interface
PCIe Gen 5x4
Speed
1TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 10,000MB/s1, random read up to 1650K IOPs, random write up to 1800K IOPs
2TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1800K IOPs
4TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1700K IOPs
8TB: Sequential read speed up to 14,400MB/s1, sequential write speed up to 13,400MB/s1, random read up to 2000K IOPs, random write up to 2100K IOPs
Dram Capacity
1TB: 2GB, 2TB: 2GB, 4TB: 4GB, 8TB: 8GB
Operating Temperature
0° to 70° C (32°F to 158°F)
Storage Temperature
-40° to 85° C (-40°F to 185°F)
Shock Resistant
1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)
TBW
1TB: 700TBW, 2TB: 1400TBW, 4TB: 2800TBW, 8TB: 5600TBW
MTBF
1,500,000 Hours
Dimension (W x L x H)
1TB-2TB: 80 x 22 x 3.6 mm (3.15' x 0.87' x 0.14')
4TB-8TB: 80 x 22 x 3.9 mm (3.15' x 0.87' x 0.15')
Weight
1TB-2TB：8g / 0.017lbs
4TB: 8.5g / 0.019 lbs
8TB: 9.6g / 0.021 lbs
Warranty
Five-year limited warranty
Specifications
| Performance | |
|---|---|
| Brand specific technologies | SLC Caching |
| Interface | PCI Express 5.0 |
| Component for | PC/Laptop |
| SSD capacity | 1 TB |
| Read speed | 14000 MB/s |
| Write speed | 10000 MB/s |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| PCI Express interface data lanes | x4 |
| Random read (4KB) | 1650000 IOPS |
| Random write (4KB) | 1800000 IOPS |
| Hardware encryption | No |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 700 |
| Features | |
| Interface | PCI Express 5.0 |
| Component for | PC/Laptop |
| SSD capacity | 1 TB |
| Read speed | 14000 MB/s |
| Write speed | 10000 MB/s |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| PCI Express interface data lanes | x4 |
| Random read (4KB) | 1650000 IOPS |
| Random write (4KB) | 1800000 IOPS |
| Hardware encryption | No |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 700 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Brand-specific features | |
| Brand specific technologies | SLC Caching |
| Design | |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 22 mm |
| Height | 3.6 mm |
| Weight | 8 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
| Operating vibration | 20 G |
| Technical details | |
| Interface | PCI Express 5.0 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
| Operating vibration | 20 G |
| SSD form factor | M.2 |
