2 x DisplayPort, 1 x HDMI, 3 x USB 3.1, 2 x USB 2.0, 1 x USB Type C, 1 x Gigabit LAN, 90W
Description

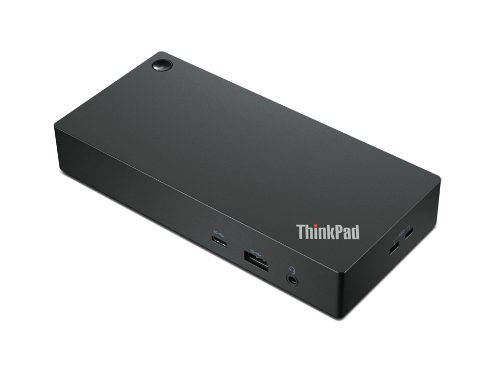

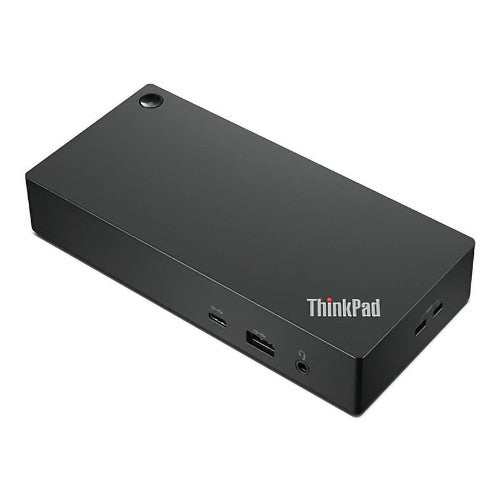

The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.
One Dock. No Limits. Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.

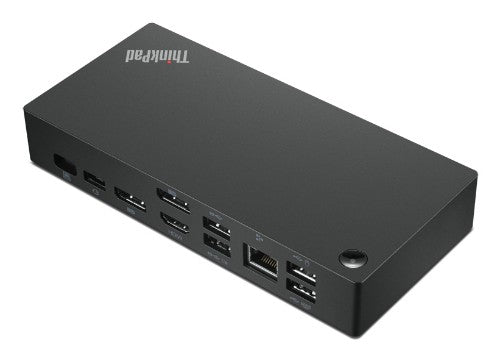

One Cable. No Hassle. With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.
Entire Fleet. One Manager. The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.
Specifications
Ports & interfaces
Combo headphone/mic port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
Connectivity technology
Wired
USB 2.0 ports quantity
2
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
2
Microphone in
No
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports
1
Performance
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3
Product colour
Black
On/off switch
Yes
Card reader integrated
No
Cable lock slot
Yes
Certification
FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Cable lock slot type
Kensington
HD type
4K Ultra HD
Storage
Card reader integrated
No
Power
Power source type
USB
Power connector
USB Type-C
Power supply
90 W
Software
Windows operating systems supported
Windows 10, Windows 7
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
171 mm
Depth
80 mm
Height
30.8 mm
Weight
340 g
Package width
210 mm
Package depth
158 mm
Package height
75 mm
Package weight
955 g
Design
Windows operating systems supported
Windows 10, Windows 7
Product colour
Black
Cable lock slot
Yes
Certification
FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
