Lenovo ThinkCentre M70s Gen 5 Intel® Core™ i5 i5-14400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black

Intel Core i5-14400, 10C (6P + 4E)/16T, P-core 2.5/4.7GHz, E-core 1.8/3.5GHz, 20MB, 2x 8GB UDIMM DDR5-4800, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 730, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

Key Features

• Intel Core i5-14400, 10C (6P + 4E)/16T, P-core 2.5/4.7GHz, E-core 1.8/3.5GHz, 20MB
• 2x 8GB UDIMM DDR5-4800
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics 730
• Windows 11 Pro

Description

LENOVO ThinkCentre M70s G5 SFF Desktop PC i5-14400 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty Ethernet RJ-45 LAN UHD Graphics Keyboard Mouse

PERFORMANCE
Processor Intel® Core™ i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
Graphics Integrated Intel® UHD Graphics 730
Chipset Intel® Q670 Chipset
Memory 2x 8GB UDIMM DDR5-4800
Memory Slots Two DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support Up to three drives, 1x 3.5' HDD + 1x 2.5' HDD + 1x M.2 SSD • 3.5' HDD up to 2TB • 2.5' HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight Around 5.3 kg (11.7 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2
WWAN Non-WWAN
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

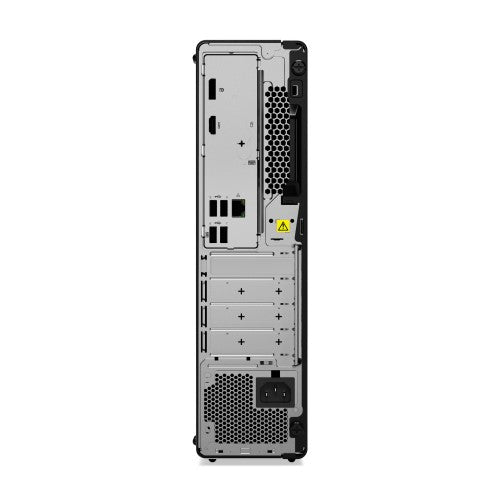

Rear Ports 4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 9.0
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

Specifications

Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-14400
Processor cores	10
Processor boost frequency	4.7 GHz
Processor cache	20 MB
Processor threads	16
Performance cores	6
Efficient cores	4
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	65 W
Maximum turbo power	148 W
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x DIMM
Memory clock speed	4800 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
DisplayPort version	1.4a
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Product type	PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	260 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Certificates
Certification	ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	297.7 mm
Height	339.5 mm
Weight	5.3 kg
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging data
Package width	195 mm
Package depth	395 mm
Package height	530 mm
Package weight	7.6 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Sustainability compliance	Yes
Sustainability certificates	ErP, TCO
Compliance certificates	RoHS
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
